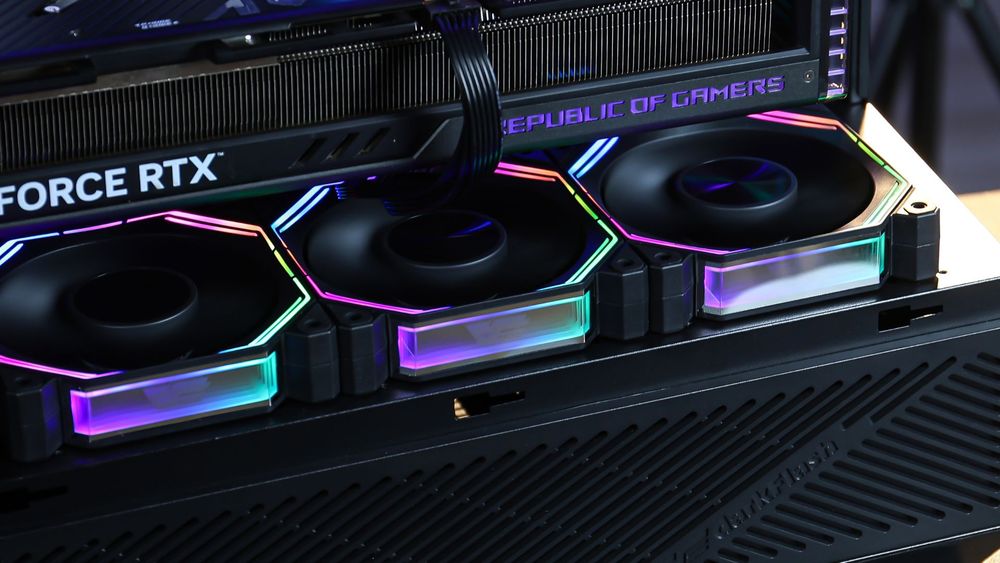

(darkFlash INF34 ARGB PWM Cooling Fan)
When buying case fans, most people look at RGB lighting, CFM (airflow), or noise levels (dBA). However, there is one hidden spec that dictates how long your fan will live and how noisy it will become over time: The Bearing Type.
In this guide, we will compare Hydro (Hydraulic), Sleeve, and Double Ball bearings to help you decide which one is worth your money for your next gaming build.

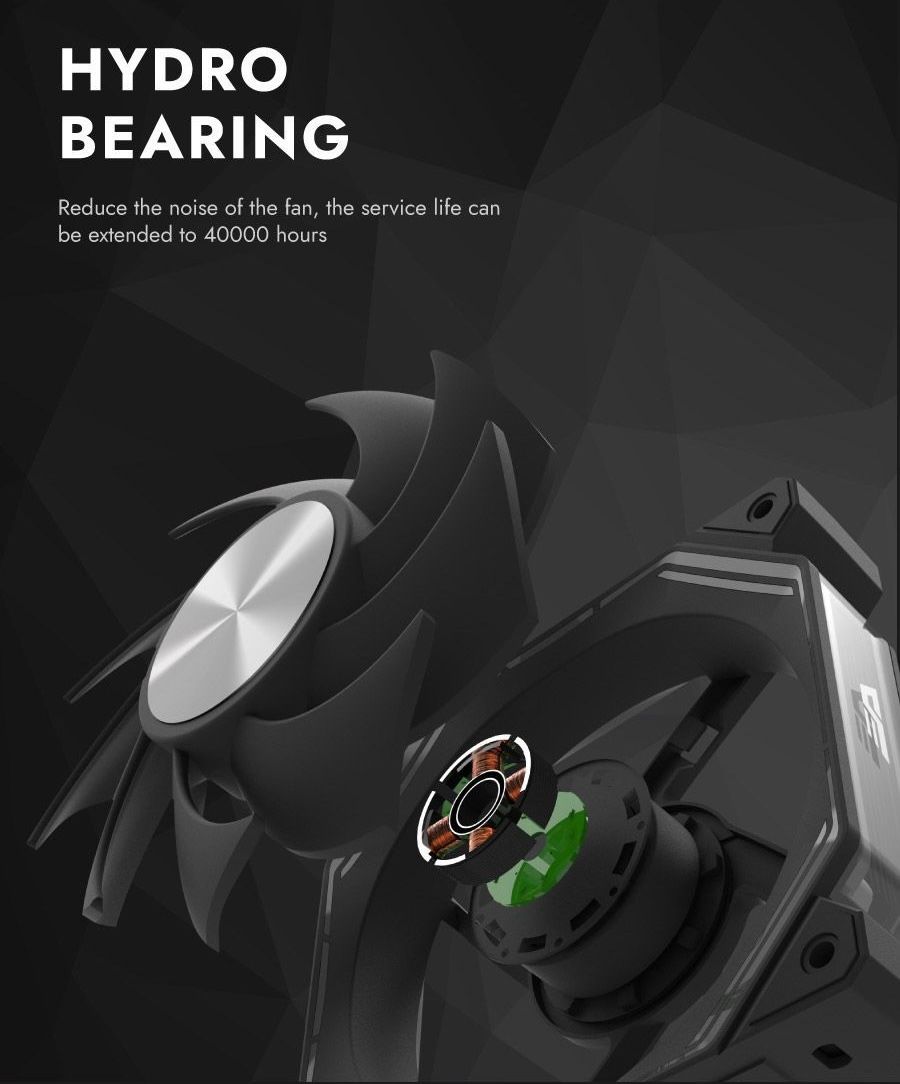

Hydro / Rifle Bearing: The Gamer's "Sweet Spot"
This is the category where most modern mid-to-high-end RGB fans (like many darkFlash models) belong. Hydro Bearings (and their cousins, Rifle Bearings) are essentially an advanced version of the Sleeve Bearing. They feature special grooves and a sealed design that recirculates the lubricant, preventing it from drying out.
(darkFlash INF34 ARGB PWM Cooling Fan)
The Pros
It combines the silence of a sleeve bearing with a significantly longer lifespan. It is the perfect balance of price and performance for home gaming PCs.
The Cons
Slightly more expensive than basic sleeve fans, but cheaper than complex magnetic levitation fans.
Lifespan
Good (~40,000 to 50,000+ hours).

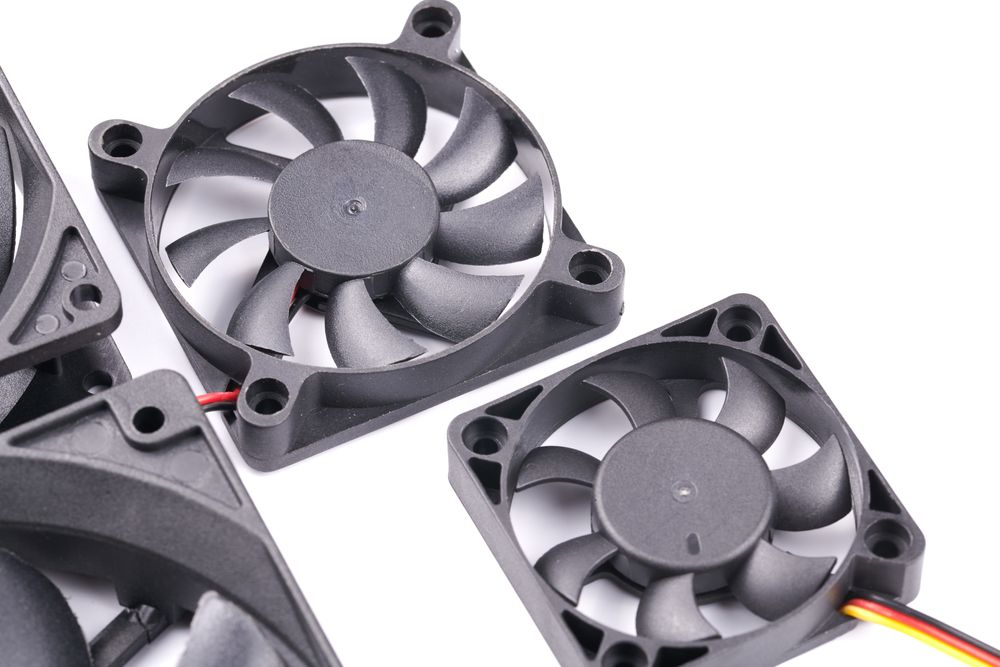

Sleeve Bearing: The Budget-Friendly Choice
The Sleeve Bearing is the most basic and common type found in budget-friendly electronics. It uses a simple design where the central shaft rotates inside a sleeve-like cylinder, lubricated by oil or grease.
The Pros
It is incredibly cheap to manufacture and is generally quiet when brand new.
The Cons
The lubricant eventually dries out (evaporates). Once dry, the metal-on-metal friction causes loud noise and eventual failure.
Lifespan
Shortest (~30,000 to 40,000 hours).

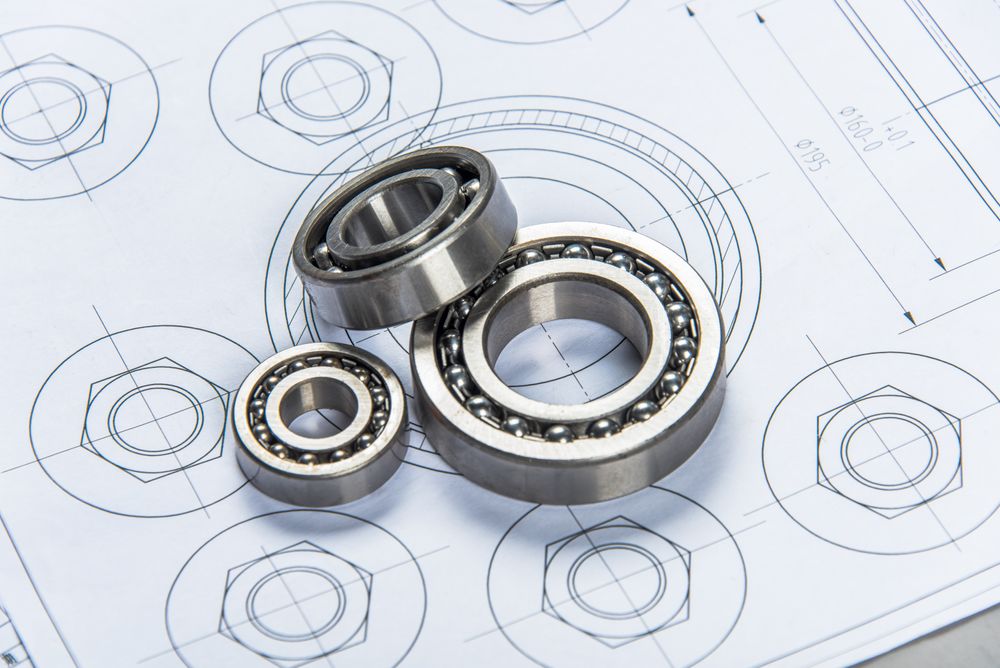

Double Ball Bearing: The Industrial Workhorse
If you look at server rooms or mining rigs, you will find Double Ball Bearing fans. As the name suggests, this design uses two rings of tiny steel balls to support the fan shaft, significantly reducing friction.
The Pros
Extremely durable. They can withstand high heat and run 24/7 for years without failing.
The Cons
They are inherently noisier. You can often hear a distinct "metallic clicking" sound at low speeds, which might annoy silence-focused gamers.
Lifespan
Long (~50,000 to 70,000 hours).

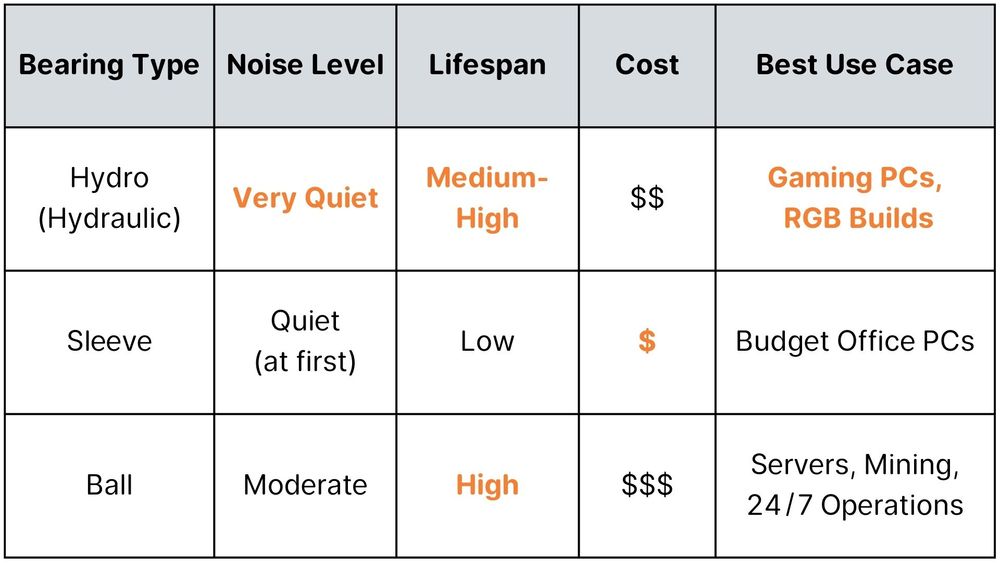

Quick Comparison: Which One Should You Buy?
The "Vertical vs. Horizontal" Mounting Issue
This is a critical factor often overlooked.
Ball and Hydro Bearings are not affected by gravity. You can mount them vertically (front panel) or horizontally (top/bottom panel) without affecting their lifespan.
Sleeve Bearings hate being mounted horizontally (e.g., at the top of your case blowing air up). Gravity causes the oil to pool on one side, leading to uneven wear and rapid failure.

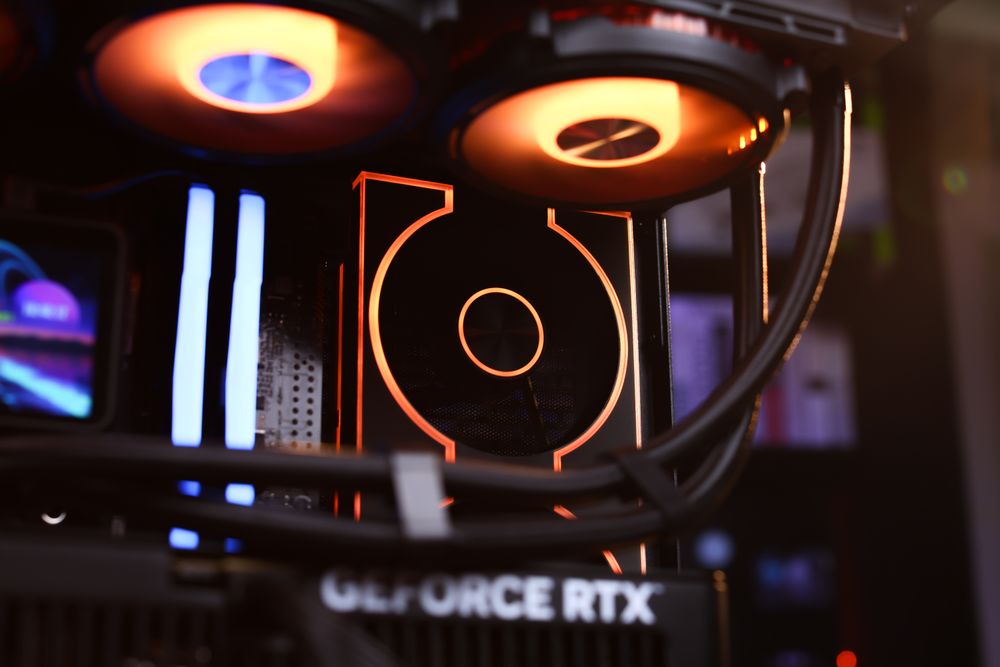

(darkFlash DM8 LINE ARGB PWM Cooling Fan, on FLOATRON F1 M-ATX PC Case)
Pro Tip: If you are installing fans on the top radiator of your case, avoid cheap Sleeve bearings. Opt for Hydro bearings to ensure they last.
Conclusion
For most PC gamers and builders, Hydro (or Rifle) Bearing fans offer the best value. They provide the whisper-quiet operation you need for an immersive gaming experience while offering enough durability to outlast your other components.
When choosing fans for your next build, whether it's for a high-airflow mesh case or a stunning panoramic view case—checking the bearing type is just as important as checking the RGB style.
