Will floating cases become the future mainstream? Judging by recent fluid simulations, the direction favors them.

Inviscid AI’s simulation shows that after reconfiguring the case airflow around bottom intake, the temperature of the air drawn into the CPU cooler can be up to about 13°C lower than in a traditional front-intake configuration. Bottom intake needs clearance off the ground, which is exactly where a floating design is strongest.

The Blind Spot of Traditional Front Intake

Most cases use front intake with rear and top exhaust, and the baseline configuration in this simulation is three intake fans at the front. The problem is the graphics card: the hot air it exhausts spreads upward and creates recirculation near the CPU cooler.

According to data reported by HKEPC, at a room temperature of 22°C, the intake air temperature at the CPU cooler gradually rises to 35°C, and the intake temperature beneath the graphics card also rises to 30°C.

The second simulation reconfigures the airflow around bottom intake, drawing room-temperature air of about 22°C directly from below.

According to Cowcotland, this configuration has 2 fans taking in air at the rear and 1 fan exhausting at the top, with one more fan in total than the baseline. After the reconfiguration, vertical airflow does a better job of carrying the hot air generated by the graphics card toward the exhaust area, reducing recirculation near the CPU cooler.

The simulation results show that the CPU cooler intake temperature drops from about 35°C to 22°C, and the temperature beneath the graphics card drops from about 30°C to 26°C. The 13°C here refers to the temperature of the air drawn into the cooler, not the temperature of the processor itself.

According to reports, this simulation used the open-source tool OpenReynolds, which lets an AI agent operate the OpenFOAM fluid dynamics software.

This set of simulations points out one thing: the location of the air source and the overall airflow configuration matter as much as the number of fans. Cowcotland notes that the number of cases offering bottom fan mounts is growing, and bottom intake is gradually becoming an option in case design.

However, if the bottom sits close to a desk or the floor, intake space and dust remain limitations. A floating design lifts the case off the ground, giving bottom intake real space, which is its structural advantage in this direction. We believe clearance from the ground and dust protection will receive more and more attention, and floating cases are a design direction worth watching.

FLOATRON F1 Builds Bottom Intake into the Structure

Bottom intake is becoming a new option in airflow design, and the darkFlash FLOATRON F1 is a case that builds this concept into its structure. The floating base creates intake space beneath the chassis, and the bottom supports three 120mm fans, with three pre-installed.

It ships standard with PWM temperature-controlled, ARGB-lit fans, and the top, side, and bottom use magnetic dust filters that can be quickly removed for cleaning. Visually, the floating base doubles as a display platform where you can place figurines or pair it with lighting effects.

Together with a quick-release side panel and back-connect motherboard support, upgrades and maintenance are more intuitive. The

 has also won the Red Dot Award 2026 and the iF Design Award 2026, and was named an honoree of the CES 2026 Innovation Awards (Computer Hardware & Components category).

The simulation shows that under this configuration, the intake temperature is clearly lower. Actual results will vary depending on the case, components, and fan configuration.

Does the 13°C figure mean the CPU temperature drops by that much?

No. It refers to the temperature of the air drawn into the CPU cooler. The actual drop in CPU temperature will vary with the cooler and the load.

Do the two simulated configurations have the same number of fans?

No. According to Cowcotland, the bottom-intake configuration has one more fan than the baseline.





Will floating cases become the future mainstream? Judging by recent fluid simulations, the direction favors them.

Inviscid AI’s simulation shows that after reconfiguring the case airflow around bottom intake, the temperature of the air drawn into the CPU cooler can be up to about 13°C lower than in a traditional front-intake configuration. Bottom intake needs clearance off the ground, which is exactly where a floating design is strongest.



The Blind Spot of Traditional Front Intake

Most cases use front intake with rear and top exhaust, and the baseline configuration in this simulation is three intake fans at the front. The problem is the graphics card: the hot air it exhausts spreads upward and creates recirculation near the CPU cooler.

According to data reported by HKEPC, at a room temperature of 22°C, the intake air temperature at the CPU cooler gradually rises to 35°C, and the intake temperature beneath the graphics card also rises to 30°C.



What Reconfiguring the Airflow Changes



(inviscidai @instagram)



The second simulation reconfigures the airflow around bottom intake, drawing room-temperature air of about 22°C directly from below.

According to Cowcotland, this configuration has 2 fans taking in air at the rear and 1 fan exhausting at the top, with one more fan in total than the baseline. After the reconfiguration, vertical airflow does a better job of carrying the hot air generated by the graphics card toward the exhaust area, reducing recirculation near the CPU cooler.



The simulation results show that the CPU cooler intake temperature drops from about 35°C to 22°C, and the temperature beneath the graphics card drops from about 30°C to 26°C. The 13°C here refers to the temperature of the air drawn into the cooler, not the temperature of the processor itself.

According to reports, this simulation used the open-source tool OpenReynolds, which lets an AI agent operate the OpenFOAM fluid dynamics software.



The Next Step in Airflow Design



(OpenReynolds official website)



This set of simulations points out one thing: the location of the air source and the overall airflow configuration matter as much as the number of fans. Cowcotland notes that the number of cases offering bottom fan mounts is growing, and bottom intake is gradually becoming an option in case design.

However, if the bottom sits close to a desk or the floor, intake space and dust remain limitations. A floating design lifts the case off the ground, giving bottom intake real space, which is its structural advantage in this direction. We believe clearance from the ground and dust protection will receive more and more attention, and floating cases are a design direction worth watching.



FLOATRON F1 Builds Bottom Intake into the Structure



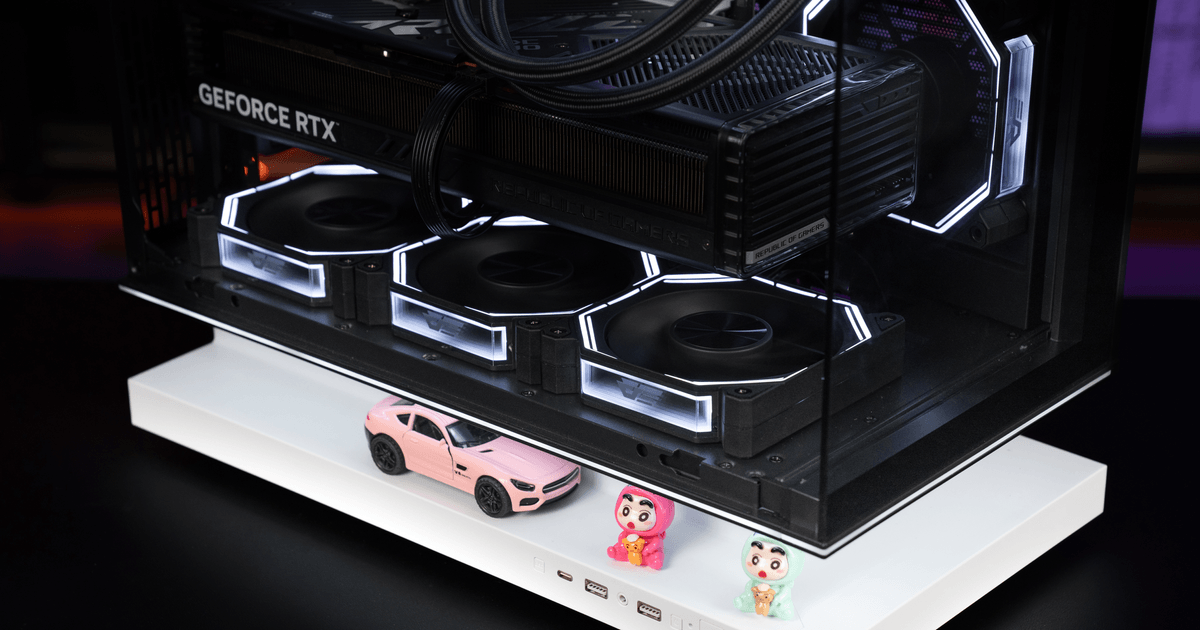

(darkFlash FLOATRON F1 ATX PC Case)



Bottom intake is becoming a new option in airflow design, and the darkFlash FLOATRON F1 is a case that builds this concept into its structure. The floating base creates intake space beneath the chassis, and the bottom supports three 120mm fans, with three pre-installed.

It ships standard with PWM temperature-controlled, ARGB-lit fans, and the top, side, and bottom use magnetic dust filters that can be quickly removed for cleaning. Visually, the floating base doubles as a display platform where you can place figurines or pair it with lighting effects.



Together with a quick-release side panel and back-connect motherboard support, upgrades and maintenance are more intuitive. The FLOATRON F1 M-ATX has also won the Red Dot Award 2026 and the iF Design Award 2026, and was named an honoree of the CES 2026 Innovation Awards (Computer Hardware & Components category).





(darkFlash FLOATRON F1 ATX PC Case)



FAQ

Is bottom intake always better?

The simulation shows that under this configuration, the intake temperature is clearly lower. Actual results will vary depending on the case, components, and fan configuration.



Does the 13°C figure mean the CPU temperature drops by that much?

No. It refers to the temperature of the air drawn into the CPU cooler. The actual drop in CPU temperature will vary with the cooler and the load.



Do the two simulated configurations have the same number of fans?

No. According to Cowcotland, the bottom-intake configuration has one more fan than the baseline.

Will floating PC cases become mainstream? A fluid simulation shows bottom intake can lower CPU cooler intake air temperature by up to 13°C. Here’s why.

Will Floating Cases Become the Future Mainstream? A Look at the New Airflow Trend Through Bottom-Intake Simulation

Can you install a standard motherboard in a back-connect PC case? Yes.

A back-connect case is built around the same ATX, Micro-ATX, and Mini-ITX mounting standards as a traditional case, so a regular front-plug motherboard drops onto the standoffs without adapters, modifications, or special tools.

The only thing to confirm is that the case’s spec sheet lists standard motherboard support. The darkFlash

A regular board in a back-connect chassis can actually make building easier. These cases add extra cutouts around the motherboard tray and give you a deeper rear chamber, so you get more room to route 24-pin, 8-pin, and fan cables. And if you later switch to a hidden-connector motherboard, you won’t need a new case.

Why Standard Motherboards Fit Back-Connect Cases Seamlessly

Many first-time builders panic after ordering a sleek panoramic case that advertises “Back-Connect” or “BTF Support,” worried that an existing AMD B650/X870 or Intel Z790/Z890 board won’t mount. That worry comes from a one-way compatibility rule: back-connect cases accept both board types, but standard cases cannot accept back-connect boards.

Back-connect motherboards, such as ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth, move power, fan, and front-panel connectors to the rear of the PCB. To make this work, it redesigned the motherboard tray with additional slots around the perimeter that line up with the new port positions. The mounting standard itself did not change.

Why Standard Boards Don’t Care About Extra Cutouts

When you lay a traditional motherboard onto a back-connect tray, the solid back of the PCB simply covers those extra openings. The screw holes line up the same way, and the cutouts only add options for cable routing rather than taking anything away.

A back-connect motherboard has connectors pointing out of the back of the PCB. In an older case with a solid motherboard tray, those connectors have nowhere to go, and the cables would be stopped by the side panel and forced into a sharp 90-degree bend. That is why you need a case with matching cutouts and enough rear depth for back-connect boards.

Compatibility Matrix: Motherboard Types vs. PC Case Designs

Compatibility is confirmed case by case, so check the supported-board list. Corsair, for example,

 reverse-connector Micro-ATX support from one case series after finding that the power supply blocked some connectors.

4 Hidden Benefits of Using a Back-Connect Case With a Regular Motherboard

Even if you have no plans to buy a rear-connector motherboard this year, a back-connect-capable case offers four practical advantages over older designs. Details vary from case to case, so the specs below use the darkFlash

On a traditional case, the top-left pass-through for the 8-pin CPU power cable can be tight, especially once a radiator is mounted on top. The extra perimeter cutouts on a back-connect tray can give you another path. The exact positions differ by case, so look at which cutouts remain uncovered once your board is in place.

2. Deeper Rear Cable Management Clearance

Back-connect boards use stiff connectors that stick straight out of the back, so these cases need real depth behind the tray. Corsair notes that

 the rear chamber to fit an ATX power supply creates enough room for the cables. With a standard board, you inherit that space for thick PSU cables, RGB hubs, and extra length.

3. A Dual-Chamber Layout That Hides the PSU and Excess Cable

Both the DY460 and DY470 use a dual-chamber layout that keeps the power supply and cable clutter out of the main compartment. The DY470 also comes with a rear cable management cover plate. According to darkFlash’s

, the DY460 uses a top-and-bottom chamber with a louvered PSU panel, while the DY470 uses a left-and-right layout with a solid chamber.

A back-connect-ready case lets you pick either board type when you upgrade your CPU and motherboard. The DY470’s official page lists the ASUS ROG MAXIMUS Z790 HERO BTF and ASUS TUF GAMING Z790-BTF as compatible examples. Because these standards vary by brand, confirm that the board you want is supported before buying.

3 Tips When Installing a Standard Board in a Back-Connect Case

To get the cleanest result when mounting a front-plug motherboard in a panoramic back-connect showcase case, keep these three tips in mind.

Double-Check ATX vs. Micro-ATX Standoff Positions

Back-connect ATX cases often support ATX, Micro-ATX, and ITX boards. Before lowering the board in, compare the screw holes on your PCB with the standoffs on the tray, and remove any standoff that does not line up with a mounting ring.

A stray standoff touching the back of the board can cause a short, which is one common cause of a PC that turns on for a second and then shuts off (see our boot-loop troubleshooting guide).

Route Each Cable Through the Nearest Open Cutout

Once the board is mounted, look at which cutouts are still open around its edges. Route the 24-pin, front-panel, and audio cables through the closest one and keep bends gentle. Cables that take a long path will show through the glass.

The DY470 includes a rear cable management cover plate. Even with a standard motherboard, tucking your cables beneath it keeps the back panel tidy and prevents loose wires from drifting toward open cutouts that are visible from the front.

Will the empty back-connect cutouts look ugly if I use a standard motherboard?

Usually not with a full ATX board. A standard ATX motherboard is 305 mm × 244 mm and covers most of the tray, and back-connect ATX boards share that footprint, so the extra cutouts sit behind the PCB. If you install a smaller Micro-ATX or Mini-ITX board in a full-size case, some cutouts may stay exposed, depending on the case.

Do I need a special power supply for a back-connect case?

No. Back-connect boards still use standard PSU cables.

 notes that for ASUS’s GC_HPWR design, power still comes from standard PCIe power cables, which plug into the back of the motherboard rather than the graphics card. Any standard modular ATX power supply works. Just make sure the cables are long enough for the rear routing path.

Can I use a regular graphics card in a back-connect case?

Yes. You can use a conventional graphics card with a back-connect motherboard by plugging in its power cables as normal. One nuance applies to ASUS BTF graphics cards: the original design needed a BTF motherboard, while newer BTF 2.0 cards use a

Does a back-connect case affect CPU cooler or AIO compatibility?

The cooler mounting bracket attaches to the CPU socket backplate, so it is not affected by the tray design. What matters is the case’s maximum cooler height, which the DY470 lists at 175 mm and the DY460 at 185 mm. Check your cooler’s height against those numbers.

Conclusion: Build With What You Have Today, Upgrade Tomorrow

You never have to pass up a great back-connect PC case just because you own, or plan to buy, a traditional front-plug motherboard. The mounting standard is the same, the extra cutouts add routing options, and the deeper rear chamber gives you more room to hide cables.

If you want a panoramic showcase case that works with a standard board today and leaves the door open for a back-connect upgrade, the

 both support standard ATX, Micro-ATX, and ITX motherboards as well as back-connect ATX boards.

Both offer three-sided tempered glass, support up to ten 120mm fans, and include a front-panel USB Type-C port at 10Gbps.





Can you install a standard motherboard in a back-connect PC case? Yes.



A back-connect case is built around the same ATX, Micro-ATX, and Mini-ITX mounting standards as a traditional case, so a regular front-plug motherboard drops onto the standoffs without adapters, modifications, or special tools.

The only thing to confirm is that the case’s spec sheet lists standard motherboard support. The darkFlash FLOATRON F1 ATX and DY460 both list back-connect ATX support.

A regular board in a back-connect chassis can actually make building easier. These cases add extra cutouts around the motherboard tray and give you a deeper rear chamber, so you get more room to route 24-pin, 8-pin, and fan cables. And if you later switch to a hidden-connector motherboard, you won’t need a new case.







Why Standard Motherboards Fit Back-Connect Cases Seamlessly

Many first-time builders panic after ordering a sleek panoramic case that advertises “Back-Connect” or “BTF Support,” worried that an existing AMD B650/X870 or Intel Z790/Z890 board won’t mount. That worry comes from a one-way compatibility rule: back-connect cases accept both board types, but standard cases cannot accept back-connect boards.



What Changed on a Back-Connect Case

Back-connect motherboards, such as ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth, move power, fan, and front-panel connectors to the rear of the PCB. To make this work, it redesigned the motherboard tray with additional slots around the perimeter that line up with the new port positions. The mounting standard itself did not change.



Why Standard Boards Don’t Care About Extra Cutouts

When you lay a traditional motherboard onto a back-connect tray, the solid back of the PCB simply covers those extra openings. The screw holes line up the same way, and the cutouts only add options for cable routing rather than taking anything away.



Why the Reverse Does NOT Work

A back-connect motherboard has connectors pointing out of the back of the PCB. In an older case with a solid motherboard tray, those connectors have nowhere to go, and the cables would be stopped by the side panel and forced into a sharp 90-degree bend. That is why you need a case with matching cutouts and enough rear depth for back-connect boards.



Compatibility Matrix: Motherboard Types vs. PC Case Designs





Compatibility is confirmed case by case, so check the supported-board list. Corsair, for example, removed reverse-connector Micro-ATX support from one case series after finding that the power supply blocked some connectors.







4 Hidden Benefits of Using a Back-Connect Case With a Regular Motherboard

Even if you have no plans to buy a rear-connector motherboard this year, a back-connect-capable case offers four practical advantages over older designs. Details vary from case to case, so the specs below use the darkFlash FLOATRON F1, DY470 and DY460 ATX PC Case as examples.





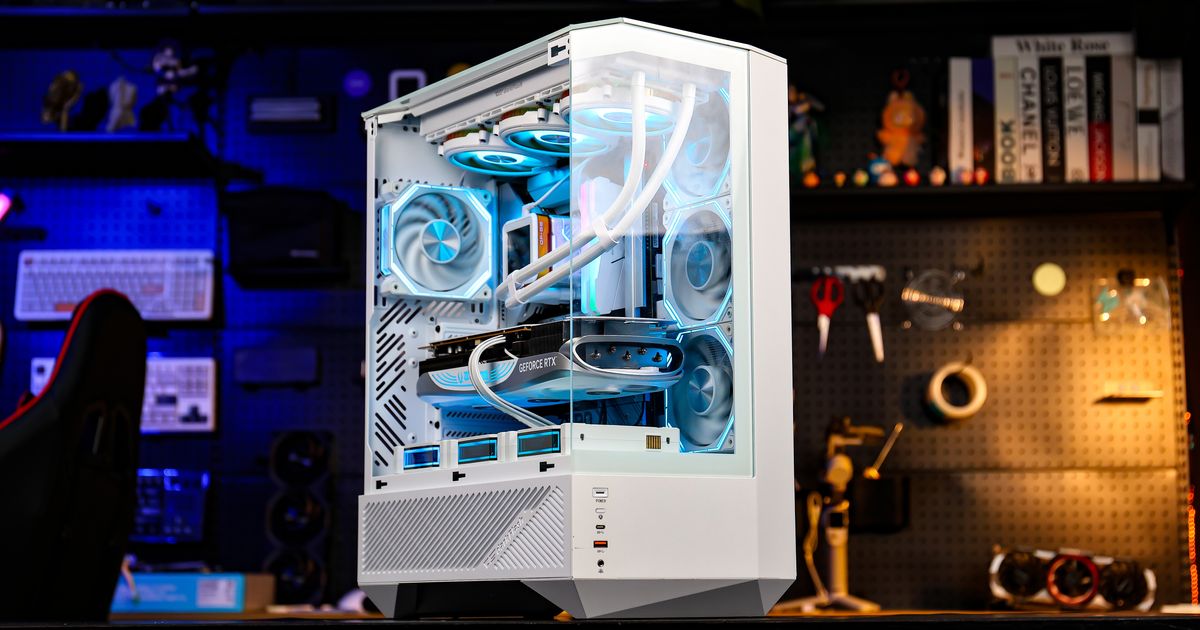

(darkFlash DY470 PC Case)



1. More Room for CPU and Fan Cables

On a traditional case, the top-left pass-through for the 8-pin CPU power cable can be tight, especially once a radiator is mounted on top. The extra perimeter cutouts on a back-connect tray can give you another path. The exact positions differ by case, so look at which cutouts remain uncovered once your board is in place.



2. Deeper Rear Cable Management Clearance

Back-connect boards use stiff connectors that stick straight out of the back, so these cases need real depth behind the tray. Corsair notes that sizing the rear chamber to fit an ATX power supply creates enough room for the cables. With a standard board, you inherit that space for thick PSU cables, RGB hubs, and extra length.



3. A Dual-Chamber Layout That Hides the PSU and Excess Cable

Both the DY460 and DY470 use a dual-chamber layout that keeps the power supply and cable clutter out of the main compartment. The DY470 also comes with a rear cable management cover plate. According to darkFlash’s comparison, the DY460 uses a top-and-bottom chamber with a louvered PSU panel, while the DY470 uses a left-and-right layout with a solid chamber.



4. Future-Proofing Your Next Upgrade

A back-connect-ready case lets you pick either board type when you upgrade your CPU and motherboard. The DY470’s official page lists the ASUS ROG MAXIMUS Z790 HERO BTF and ASUS TUF GAMING Z790-BTF as compatible examples. Because these standards vary by brand, confirm that the board you want is supported before buying.



3 Tips When Installing a Standard Board in a Back-Connect Case

To get the cleanest result when mounting a front-plug motherboard in a panoramic back-connect showcase case, keep these three tips in mind.



Double-Check ATX vs. Micro-ATX Standoff Positions

Back-connect ATX cases often support ATX, Micro-ATX, and ITX boards. Before lowering the board in, compare the screw holes on your PCB with the standoffs on the tray, and remove any standoff that does not line up with a mounting ring.

A stray standoff touching the back of the board can cause a short, which is one common cause of a PC that turns on for a second and then shuts off (see our boot-loop troubleshooting guide).



Route Each Cable Through the Nearest Open Cutout

Once the board is mounted, look at which cutouts are still open around its edges. Route the 24-pin, front-panel, and audio cables through the closest one and keep bends gentle. Cables that take a long path will show through the glass.



Close the Rear Cable Cover Plate

The DY470 includes a rear cable management cover plate. Even with a standard motherboard, tucking your cables beneath it keeps the back panel tidy and prevents loose wires from drifting toward open cutouts that are visible from the front.







Frequently Asked Questions (FAQ)

Will the empty back-connect cutouts look ugly if I use a standard motherboard?

Usually not with a full ATX board. A standard ATX motherboard is 305 mm × 244 mm and covers most of the tray, and back-connect ATX boards share that footprint, so the extra cutouts sit behind the PCB. If you install a smaller Micro-ATX or Mini-ITX board in a full-size case, some cutouts may stay exposed, depending on the case.



Do I need a special power supply for a back-connect case?

No. Back-connect boards still use standard PSU cables. CustomPC notes that for ASUS’s GC_HPWR design, power still comes from standard PCIe power cables, which plug into the back of the motherboard rather than the graphics card. Any standard modular ATX power supply works. Just make sure the cables are long enough for the rear routing path.



Can I use a regular graphics card in a back-connect case?

Yes. You can use a conventional graphics card with a back-connect motherboard by plugging in its power cables as normal. One nuance applies to ASUS BTF graphics cards: the original design needed a BTF motherboard, while newer BTF 2.0 cards use a detachable adapter so they also work on standard boards.



Does a back-connect case affect CPU cooler or AIO compatibility?

The cooler mounting bracket attaches to the CPU socket backplate, so it is not affected by the tray design. What matters is the case’s maximum cooler height, which the DY470 lists at 175 mm and the DY460 at 185 mm. Check your cooler’s height against those numbers.







Conclusion: Build With What You Have Today, Upgrade Tomorrow

You never have to pass up a great back-connect PC case just because you own, or plan to buy, a traditional front-plug motherboard. The mounting standard is the same, the extra cutouts add routing options, and the deeper rear chamber gives you more room to hide cables.

If you want a panoramic showcase case that works with a standard board today and leaves the door open for a back-connect upgrade, the FLOATRON F1 ATX, DY470 and DY460 both support standard ATX, Micro-ATX, and ITX motherboards as well as back-connect ATX boards.

Both offer three-sided tempered glass, support up to ten 120mm fans, and include a front-panel USB Type-C port at 10Gbps.

Can you install a standard motherboard in a back-connect PC case? Yes! Learn how BTF and Project Zero case cutouts work with regular ATX and mATX boards.

Can You Install a Standard Motherboard in a Back-Connect PC Case? Compatibility Explained

Hardware Tips

Why does my CPU hit 90°C instantly under load even with a 360mm AIO? When a modern CPU jumps from a calm 40°C idle to 88°C or even 95°C within seconds of clicking “Start” in Cinebench or compiling shaders in a game, your liquid cooler is usually not broken.

You are seeing two things at once: all the heat is generated in a very small patch of silicon, and modern boost algorithms deliberately raise power and clock speed until the chip reaches its thermal target.

How can you tell whether that reading is normal boost behavior or a genuinely bad mount? Look at three numbers together: temperature, CPU package power, and clock speed. If your processor draws its full rated power, holds high boost clocks, and cools down within seconds after you close the benchmark, your 360mm AIO is doing its job.

The Physics of Heat Flux: Why 150W Today Runs Hotter Than 150W Five Years Ago

Wattage alone no longer tells you how hard a CPU is to cool. What matters is how much heat is produced per square millimeter of silicon, and how many layers that heat must cross before it reaches your coolant.

Your 360mm radiator can shed plenty of heat into the room, but it cannot make heat leave the die faster than the die’s own thermal path allows.

AMD confirmed that the Zen 5 compute chiplet (CCD) measures

, almost the same as the 71 mm² Zen 4 chiplet, even though it holds roughly a quarter more transistors. That is an eight-core chiplet smaller than a 10 mm × 10 mm square.

Under an all-core load, nearly all of that heat comes from that small patch, so the sensor temperature can climb within seconds even though the radiator is nowhere near saturated.

Before the coolant feels anything, heat must travel from the silicon through the

 under the lid, through the copper heat spreader (IHS), through a layer of thermal paste, and into the cold plate.

Each layer adds thermal resistance and creates a temperature gradient. That is why your water block and coolant can sit at a modest temperature while the sensor inside the chip reads 90°C.

On the Ryzen 7 7800X3D, the cache chiplet sits on top of the cores and

 that traps heat. That generation also has a lower maximum temperature,

AMD moved the cache underneath the cores on the 9000X3D series, which puts the cores closer to the heat spreader and makes them behave much more like standard Ryzen 9000 chips.

Modern Ryzen chips do not stop boosting at a fixed clock.

 explains that the algorithm raises clocks and voltage while the temperature is under its target, then regulates to hold it there. AMD describes its maximum temperature as the highest safe operating temperature,

 only adds a small frequency bonus while the CPU is under a threshold of about 70°C, and its maximum temperature is

. Don’t assume the same “run at the ceiling by design” rule applies. On Intel, check power draw and clocks first.

Normal Boost Behavior vs. Bad AIO Mount: Diagnostic Guide

Because modern CPUs are designed to run hot under all-core stress tests, you cannot judge cooler health from peak temperature alone. Use a free monitoring tool such as HWiNFO64 and compare the patterns below.

For a fair comparison, record package temperature, clock, and power after the first minute and again after ten minutes. A stable curve means the cooler has reached equilibrium.

 also notes that if a game holds 95°C at low CPU usage, you should return tuning to stock and inspect the cooling.

If My CPU Still Hits 90°C, What Is My 360mm AIO Actually Doing?

This is one of the most common questions among PC builders in 2026: if my CPU hits 90°C on a budget air cooler and still hits 90°C on a 360mm AIO during a stress test, what did I pay for?

When a processor is programmed to boost until it reaches a thermal target, a better cooler rewards you in ways a temperature gauge hides.

If the temperature is held at the same target, the CPU must be running at different clock speeds depending on the cooler. TechPowerUp’s testing showed exactly this: when the target is the same,

frequency scales with cooling performance

A stronger cooler lets the chip sustain more power and higher clocks at the same 90°C, which shows up as faster rendering, shader compilation, and steadier 1% low frame rates.

Games rarely load every thread at 100% the way Cinebench or Prime95 does. Once the initial loading and shader compilation finish, the extra liquid capacity of a 360mm AIO keeps typical gaming temperatures well below the stress-test peak, and the cooler spends most of its time far from the thermal ceiling.

A 360mm radiator has far more surface area than a single-tower cooler, so its three fans can move the same amount of heat at lower speeds. At the same temperature, you typically hear less fan noise.

4 Safe Ways to Tame Instant 90°C Spikes Without Losing Gaming FPS

If you dislike seeing 90°C on your monitoring screen, or you want to stop your fans from ramping every time a game loads a new map, these four tweaks can lower peak temperatures while keeping gaming performance close to stock. Results vary by chip, so test each change with your own games.

1. Apply a Negative Curve Optimizer (Undervolt)

Factory voltages include a safety margin for lower-quality silicon. On AM5, open the BIOS, enable Precision Boost Overdrive, go to Curve Optimizer, choose All Cores, set the sign to Negative, and start with a magnitude of

A negative curve asks for less voltage at each frequency step, which reduces heat and can leave headroom for sustained boost. On Intel boards that offer it, a small negative voltage offset works the same way. On either platform, an unstable undervolt shows up as crashes, so run a stability test and back off if needed.

2. Set a Custom Platform Thermal Limit (80°C or 85°C) in BIOS

Many AM5 boards include a Platform Thermal Throttle Limit setting, which

lets you lower the maximum allowed processor temperature

At stock you can only lower this limit, not raise it. Setting it to 85°C or 80°C caps how hard the chip chases its ceiling. Heavy all-core workloads may lose a little performance, while gaming is often affected much less. Intel boards use different settings and names, so check your manual.

3. Lock Your AIO Pump to a Fixed 80%–100% Speed

As covered in our AIO pump speed guide, a pump that idles at a low speed can’t react to a temperature spike that happens within moments. Set your AIO_PUMP header to a flat 80% to 100% in BIOS so coolant is already flowing the instant a core boosts. Leave temperature-based curves to your radiator fans, not the pump.

4. Verify Cold Plate Contact and Thermal Paste

Remove the protective film from the cold plate, then check that the block sits flat and that the mounting screws are tightened evenly in a criss-cross pattern. Mounting pressure and full contact matter more than the paste pattern: a pea, line, or thin spread all work when the block is seated correctly. If idle temperatures are erratic or one core runs far hotter than the rest, remove the block and re-seat it.

Is 90°C safe for my CPU during gaming or rendering in 2026?

For most modern desktop chips, brief 90°C readings are within spec. AMD’s maximum temperature is 95°C on Ryzen 9000 (including 9000X3D) and 89°C on the older 7000X3D parts, and

 that Ryzen 9000 is designed to run at its maximum temperature 24/7 without damage.

Intel’s limits are 100°C on Raptor Lake and 105°C on Arrow Lake. Built-in protection reduces clocks and voltage long before a damaging temperature. That said, “safe” is not the same as “ideal”: if a game holds 90°C or more at low CPU usage, check your cooler mount.

Why does my CPU hit 90°C when launching a game, then drop while playing?

When a modern game launches or loads a new area, it can use most of your CPU threads at once to decompress assets and compile shaders. Once you are in the game world, CPU usage usually falls and temperatures settle back down.

Why is my AIO radiator blowing cool air while my CPU says 90°C?

During a short burst, the liquid in a 360mm AIO absorbs the heat so easily that coolant temperature barely rises, so the air coming off the radiator can still feel cool. If your CPU stays pinned at its limit for ten minutes at low power and clocks, and the tubes and radiator stay cold to the touch, your pump may not be circulating liquid or an air bubble may be trapped in the block.

Does using too much thermal paste cause instant 90°C spikes?

With a standard non-conductive paste, slightly too much is usually squeezed out when you tighten the block and does not insulate the CPU. Instant overheating is more often caused by too little paste, a protective film left on the cold plate, or uneven mounting pressure.

Conclusion: Watch Your Clocks and Wattage, Not Just Peak Temperature

Seeing a new processor flash 90°C under a 360mm liquid cooler can be jarring, especially if you’re upgrading from an older PC, but on modern high-density silicon, reaching the thermal target during an all-core stress test is by design.

If your idle temperatures are reasonable, your gaming temperatures stay comfortably below the limit, and the CPU holds its expected boost clocks, your cooling loop is performing as intended.

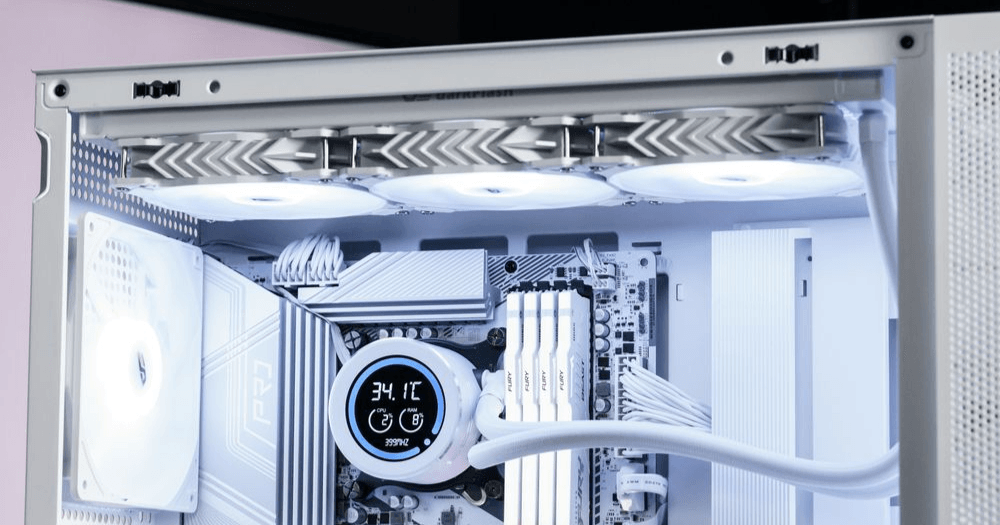

If you’d like to see this at a glance, a 360mm AIO with a built-in display lets you watch temperature and fan speed through your side panel. The darkFlash

 pairs a 3.95-inch 480×480 IPS screen with a 2,700 RPM pump and a pure copper base. The

 uses a magnetic 2.88-inch IPS display on a copper water block.





Why does my CPU hit 90°C instantly under load even with a 360mm AIO? When a modern CPU jumps from a calm 40°C idle to 88°C or even 95°C within seconds of clicking “Start” in Cinebench or compiling shaders in a game, your liquid cooler is usually not broken.

You are seeing two things at once: all the heat is generated in a very small patch of silicon, and modern boost algorithms deliberately raise power and clock speed until the chip reaches its thermal target.

How can you tell whether that reading is normal boost behavior or a genuinely bad mount? Look at three numbers together: temperature, CPU package power, and clock speed. If your processor draws its full rated power, holds high boost clocks, and cools down within seconds after you close the benchmark, your 360mm AIO is doing its job.



The Physics of Heat Flux: Why 150W Today Runs Hotter Than 150W Five Years Ago

Wattage alone no longer tells you how hard a CPU is to cool. What matters is how much heat is produced per square millimeter of silicon, and how many layers that heat must cross before it reaches your coolant.

Your 360mm radiator can shed plenty of heat into the room, but it cannot make heat leave the die faster than the die’s own thermal path allows.



Shrinking Silicon Die Area

AMD confirmed that the Zen 5 compute chiplet (CCD) measures 70.6 mm², almost the same as the 71 mm² Zen 4 chiplet, even though it holds roughly a quarter more transistors. That is an eight-core chiplet smaller than a 10 mm × 10 mm square.

Under an all-core load, nearly all of that heat comes from that small patch, so the sensor temperature can climb within seconds even though the radiator is nowhere near saturated.



The Heat Has to Cross Several Layers

Before the coolant feels anything, heat must travel from the silicon through the solder under the lid, through the copper heat spreader (IHS), through a layer of thermal paste, and into the cold plate.

Each layer adds thermal resistance and creates a temperature gradient. That is why your water block and coolant can sit at a modest temperature while the sensor inside the chip reads 90°C.





(AMD Ryzen 7 9800X3D Review, Techspot)



3D V-Cache: Generation Matters

On the Ryzen 7 7800X3D, the cache chiplet sits on top of the cores and acts like a blanket that traps heat. That generation also has a lower maximum temperature, 89°C versus 95°C on the 9800X3D.

AMD moved the cache underneath the cores on the 9000X3D series, which puts the cores closer to the heat spreader and makes them behave much more like standard Ryzen 9000 chips.



Target-Temperature Boosting

Modern Ryzen chips do not stop boosting at a fixed clock. TechPowerUp explains that the algorithm raises clocks and voltage while the temperature is under its target, then regulates to hold it there. AMD describes its maximum temperature as the highest safe operating temperature, not an emergency limit.

Intel works differently. Its Thermal Velocity Boost only adds a small frequency bonus while the CPU is under a threshold of about 70°C, and its maximum temperature is 100°C on Raptor Lake and 105°C on Arrow Lake. Don’t assume the same “run at the ceiling by design” rule applies. On Intel, check power draw and clocks first.







Normal Boost Behavior vs. Bad AIO Mount: Diagnostic Guide

Because modern CPUs are designed to run hot under all-core stress tests, you cannot judge cooler health from peak temperature alone. Use a free monitoring tool such as HWiNFO64 and compare the patterns below.







For a fair comparison, record package temperature, clock, and power after the first minute and again after ten minutes. A stable curve means the cooler has reached equilibrium. Evetech also notes that if a game holds 95°C at low CPU usage, you should return tuning to stock and inspect the cooling.







If My CPU Still Hits 90°C, What Is My 360mm AIO Actually Doing?

This is one of the most common questions among PC builders in 2026: if my CPU hits 90°C on a budget air cooler and still hits 90°C on a 360mm AIO during a stress test, what did I pay for?

When a processor is programmed to boost until it reaches a thermal target, a better cooler rewards you in ways a temperature gauge hides.



Higher Sustained Power and Clock Speeds

If the temperature is held at the same target, the CPU must be running at different clock speeds depending on the cooler. TechPowerUp’s testing showed exactly this: when the target is the same, frequency scales with cooling performance.

A stronger cooler lets the chip sustain more power and higher clocks at the same 90°C, which shows up as faster rendering, shader compilation, and steadier 1% low frame rates.



Cooler Temperatures in Real Gaming Loads

Games rarely load every thread at 100% the way Cinebench or Prime95 does. Once the initial loading and shader compilation finish, the extra liquid capacity of a 360mm AIO keeps typical gaming temperatures well below the stress-test peak, and the cooler spends most of its time far from the thermal ceiling.



Lower Noise at the Same Heat Output

A 360mm radiator has far more surface area than a single-tower cooler, so its three fans can move the same amount of heat at lower speeds. At the same temperature, you typically hear less fan noise.







4 Safe Ways to Tame Instant 90°C Spikes Without Losing Gaming FPS

If you dislike seeing 90°C on your monitoring screen, or you want to stop your fans from ramping every time a game loads a new map, these four tweaks can lower peak temperatures while keeping gaming performance close to stock. Results vary by chip, so test each change with your own games.



1. Apply a Negative Curve Optimizer (Undervolt)

Factory voltages include a safety margin for lower-quality silicon. On AM5, open the BIOS, enable Precision Boost Overdrive, go to Curve Optimizer, choose All Cores, set the sign to Negative, and start with a magnitude of 10 to 20.

A negative curve asks for less voltage at each frequency step, which reduces heat and can leave headroom for sustained boost. On Intel boards that offer it, a small negative voltage offset works the same way. On either platform, an unstable undervolt shows up as crashes, so run a stability test and back off if needed.



2. Set a Custom Platform Thermal Limit (80°C or 85°C) in BIOS

Many AM5 boards include a Platform Thermal Throttle Limit setting, which lets you lower the maximum allowed processor temperature.

At stock you can only lower this limit, not raise it. Setting it to 85°C or 80°C caps how hard the chip chases its ceiling. Heavy all-core workloads may lose a little performance, while gaming is often affected much less. Intel boards use different settings and names, so check your manual.



3. Lock Your AIO Pump to a Fixed 80%–100% Speed

As covered in our AIO pump speed guide, a pump that idles at a low speed can’t react to a temperature spike that happens within moments. Set your AIO_PUMP header to a flat 80% to 100% in BIOS so coolant is already flowing the instant a core boosts. Leave temperature-based curves to your radiator fans, not the pump.



4. Verify Cold Plate Contact and Thermal Paste

Remove the protective film from the cold plate, then check that the block sits flat and that the mounting screws are tightened evenly in a criss-cross pattern. Mounting pressure and full contact matter more than the paste pattern: a pea, line, or thin spread all work when the block is seated correctly. If idle temperatures are erratic or one core runs far hotter than the rest, remove the block and re-seat it.







Frequently Asked Questions (FAQ)

Is 90°C safe for my CPU during gaming or rendering in 2026?

For most modern desktop chips, brief 90°C readings are within spec. AMD’s maximum temperature is 95°C on Ryzen 9000 (including 9000X3D) and 89°C on the older 7000X3D parts, and AMD states that Ryzen 9000 is designed to run at its maximum temperature 24/7 without damage.

Intel’s limits are 100°C on Raptor Lake and 105°C on Arrow Lake. Built-in protection reduces clocks and voltage long before a damaging temperature. That said, “safe” is not the same as “ideal”: if a game holds 90°C or more at low CPU usage, check your cooler mount.



Why does my CPU hit 90°C when launching a game, then drop while playing?

When a modern game launches or loads a new area, it can use most of your CPU threads at once to decompress assets and compile shaders. Once you are in the game world, CPU usage usually falls and temperatures settle back down.



Why is my AIO radiator blowing cool air while my CPU says 90°C?

During a short burst, the liquid in a 360mm AIO absorbs the heat so easily that coolant temperature barely rises, so the air coming off the radiator can still feel cool. If your CPU stays pinned at its limit for ten minutes at low power and clocks, and the tubes and radiator stay cold to the touch, your pump may not be circulating liquid or an air bubble may be trapped in the block.



Does using too much thermal paste cause instant 90°C spikes?

With a standard non-conductive paste, slightly too much is usually squeezed out when you tighten the block and does not insulate the CPU. Instant overheating is more often caused by too little paste, a protective film left on the cold plate, or uneven mounting pressure.







Conclusion: Watch Your Clocks and Wattage, Not Just Peak Temperature

Seeing a new processor flash 90°C under a 360mm liquid cooler can be jarring, especially if you’re upgrading from an older PC, but on modern high-density silicon, reaching the thermal target during an all-core stress test is by design.

If your idle temperatures are reasonable, your gaming temperatures stay comfortably below the limit, and the CPU holds its expected boost clocks, your cooling loop is performing as intended.



If you’d like to see this at a glance, a 360mm AIO with a built-in display lets you watch temperature and fan speed through your side panel. The darkFlash DV360S MAX pairs a 3.95-inch 480×480 IPS screen with a 2,700 RPM pump and a pure copper base. The EXPLORE DE360 uses a magnetic 2.88-inch IPS display on a copper water block.

Why does your CPU hit 90°C instantly under load even with a 360mm AIO cooler? Learn how thermal density, IHS resistance, and boost algorithms work in 2026.

Why Does My CPU Hit 90°C Instantly Under Load Even With a 360mm AIO? Modern Thermal Density Explained

How-to Guides

Why does my PC turn on for a second then shut off? The cause is usually one of two things: your power supply is cutting power instantly because it detects a short circuit, or your motherboard is failing its startup checks and restarting in a loop.

In most DIY builds and upgrades, the culprit is a loose or wrong CPU power cable, an unseated RAM stick, a stray motherboard standoff, or a RAM setting that won’t boot. On a new DDR5 build, it can also just be normal memory training that looks like a failure.

Don’t assume your motherboard or graphics card is dead. Work through the six checks below in order, and you can usually find the cause in under twenty minutes.

Diagnostic Table: How Long Does Your PC Stay On Before Shutting Down?

How long your PC stays on is your best clue. Match what you see to a row below to know where to start.

6 Step-by-Step Fixes When Your PC Turns On and Immediately Shuts Off

Before touching any internal component, switch the power supply to OFF (O) and unplug the power cord.

1. Check Your 8-Pin CPU Power Cable (And Ensure It Isn’t a PCIe Cable)

The most common cause on a new build is the 8-pin CPU power cable, which is often 4+4 pin and sits near the top-left of the motherboard.

2. Reseat Your RAM in Slots A2 and B2 (The Single-Stick Test)

If your PC stays on for a few seconds, shuts down, and tries again in a loop, the motherboard may be failing to initialize memory. DDR5 sticks can feel seated while one end is still raised slightly.

Wait before you decide it has failed. On a new DDR5 build, the first boots can include long memory training (see the FAQ below).

3. Inspect for Extra Motherboard Standoffs or Metal Shorts Inside the Case

If the PC dies instantly even with correct cables, look for something metal touching the back of the motherboard.

4. Verify Your CPU Cooler Mount, Plastic Peel, and Pump Power

Without proper cooling, a CPU can reach its thermal limit quickly and the system will shut down to protect it.

5. Test for a Stuck Case Power Button (The Screwdriver Jump-Start Test)

If your PC runs normally for about four seconds and then powers off every time, suspect the power button. A button that stays pressed can trigger a forced shutdown, and a front-panel cable on the wrong pins can do the same.

If the PC now boots and stays on, the case button or its wiring is the problem.

6. Clear the CMOS Battery to Wipe Corrupted BIOS / XMP Settings

If a working PC started boot-looping after you enabled an XMP/EXPO profile, changed voltages, or lost power, stored BIOS settings may be unbootable.

Why Power Supply Protections (SCP & OCP) Are Actually Saving Your PC

A PC that dies instantly isn’t always a sign your power supply is faulty. It can mean the protection circuits are working as designed.

Quality power supplies include safeguards such as short-circuit protection (SCP) and over-current protection (OCP). If the PSU detects a short, such as a pinched wire, a mis-wired cable, or a stray standoff, it shuts off almost immediately instead of pushing current into the fault. That is why a split-second shutdown often points to a physical short rather than a dead component.

If you want to rule out the PSU, you can run a no-load check with a jumper or paperclip.

Bridge pin 16 and pin 17 on the 24-pin connector

, which are the 4th and 5th pins from the left with the clip facing up. Treat the result carefully:

 the PSU can switch on without a load, and a unit can pass it and still fail under real system load. If you have a known-good spare PSU, swapping it in is the most reliable test. For the full procedure, see our guide on how to test a PSU if your PC won’t boot.

Why does my new AM5 / DDR5 PC turn on, turn off, and take minutes to show a picture?

This is often DDR5 memory training, and it is more common on AMD AM5 boards. On some DDR5 systems, training can take up to 15 minutes, so it is worth waiting 10 to 15 minutes on the first boot after a RAM change, BIOS reset, or profile change.

 roughly two to three minutes the first time XMP is enabled, then around 30 seconds afterward. The system may restart once or twice during this process. If your board offers it, enabling Memory Context Restore can speed up later boots.

How can I tell if my power supply or my motherboard is dead?

Run the no-load jumper test described above. If the PSU fan spins, the PSU can at least switch on, but that doesn’t prove it is healthy under load. The reliable method is to try a known-good PSU, or to test the motherboard outside the case.

Can a dead CMOS battery cause a PC to turn on and immediately shut off?

A drained battery usually resets the BIOS clock and settings rather than stopping startup. Clearing CMOS (Step 6) is more useful as a way to remove bad settings than as a battery fix.

What should I do if the PC still shuts off after checking every cable and RAM stick?

Do an out-of-case test. Place the motherboard on its non-conductive box and connect only the CPU, cooler, one RAM stick, the 24-pin cable, and the 8-pin CPU cable. Use a screwdriver on the power switch pins to start it. If it boots, something inside the case, such as an extra standoff or a pinched wire, was causing the problem.

Conclusion: Isolate the Short and Get Back in the Game

A PC that turns on for a second and dies is stressful, but the fix is usually mechanical. Confirm the 8-pin CPU cable and RAM are fully seated, check for stray standoffs, make sure the cooler is mounted correctly, and clear the CMOS. If you’re on DDR5, give the first boot extra time before you assume something has failed.

If you’re planning a new build, case and PSU choice can make assembly easier. darkFlash’s

 are ATX cases that support back-connect motherboards, which keeps the front clean and builds tidier. For power, the

 offers 80 PLUS Gold, ATX 3.1, full-modular units, and the

 is the 80 PLUS Platinum option. Both list OVP, OCP, OPP, SCP, OTP, and UVP protections.





Why does my PC turn on for a second then shut off? The cause is usually one of two things: your power supply is cutting power instantly because it detects a short circuit, or your motherboard is failing its startup checks and restarting in a loop.

In most DIY builds and upgrades, the culprit is a loose or wrong CPU power cable, an unseated RAM stick, a stray motherboard standoff, or a RAM setting that won’t boot. On a new DDR5 build, it can also just be normal memory training that looks like a failure.

Don’t assume your motherboard or graphics card is dead. Work through the six checks below in order, and you can usually find the cause in under twenty minutes.



Diagnostic Table: How Long Does Your PC Stay On Before Shutting Down?

How long your PC stays on is your best clue. Match what you see to a row below to know where to start.







6 Step-by-Step Fixes When Your PC Turns On and Immediately Shuts Off

Before touching any internal component, switch the power supply to OFF (O) and unplug the power cord.

1. Check Your 8-Pin CPU Power Cable (And Ensure It Isn’t a PCIe Cable)

The most common cause on a new build is the 8-pin CPU power cable, which is often 4+4 pin and sits near the top-left of the motherboard.









Check both connectors are fully latched.
The 24-pin motherboard connector and the 8-pin CPU connector both need firm pressure until the clips snap over. A partly seated connector can give unstable power that stops the PC from starting.



Make sure the cable is actually a CPU/EPS cable.
CPU (EPS) and graphics (PCIe) 8-pin cables look similar but are wired differently. An EPS 8-pin has four +12V and four ground wires, while a PCIe 8-pin has three +12V and five ground wires. The connectors are keyed differently, so a PCIe cable generally won’t seat fully into an EPS socket, and you should never force it. Use the cable labeled CPU or EPS in your PSU’s cable set.

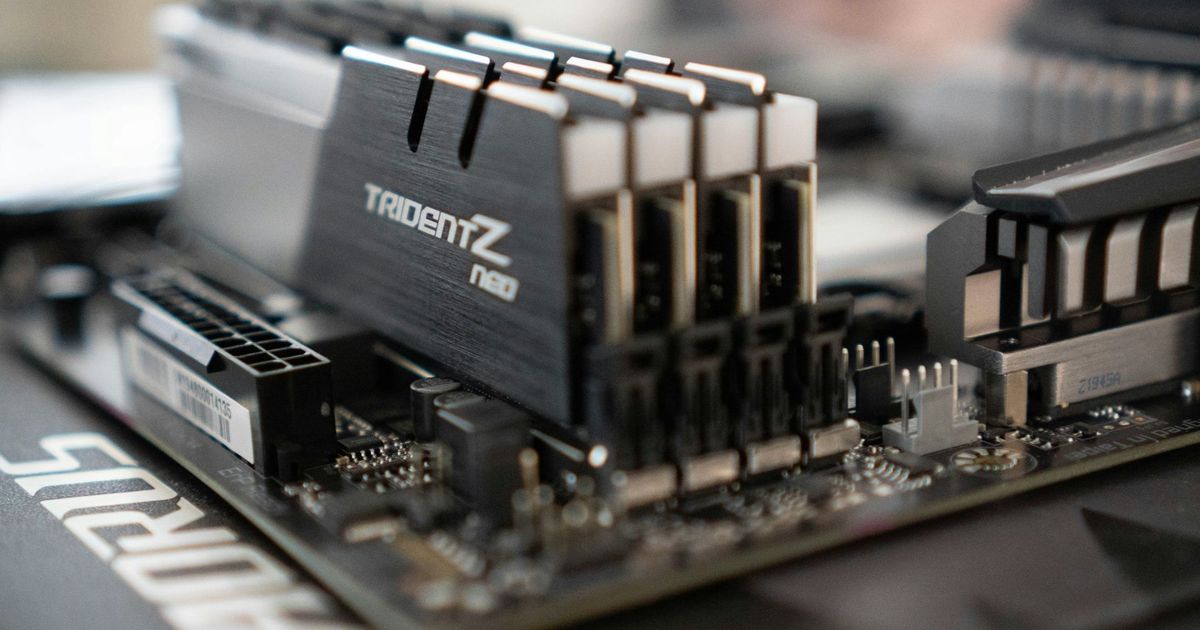

2. Reseat Your RAM in Slots A2 and B2 (The Single-Stick Test)

If your PC stays on for a few seconds, shuts down, and tries again in a loop, the motherboard may be failing to initialize memory. DDR5 sticks can feel seated while one end is still raised slightly.









Remove all RAM sticks.



Install one stick in slot A2. On most boards this is the second slot from the CPU, but confirm in your motherboard manual. For most consumer DDR5 boards, one stick goes in A2 and two sticks go in A2 and B2.



Press down firmly on both ends until the latches click.



Try booting. If it works, shut down and add the second stick in B2.

Wait before you decide it has failed. On a new DDR5 build, the first boots can include long memory training (see the FAQ below).



3. Inspect for Extra Motherboard Standoffs or Metal Shorts Inside the Case

If the PC dies instantly even with correct cables, look for something metal touching the back of the motherboard.





(Install the standoffs, ASUS)





Extra standoffs. If you moved from a larger to a smaller motherboard, an unused standoff left in the tray can touch the board’s underside and cause a short. Every standoff should line up with a mounting hole on your board.



Rear I/O shield tabs. On boards without a built-in shield, check that no metal tab has slipped into a USB or Ethernet port.



Loose cables. Unused fan or ARGB connectors lying against bare metal can potentially short. Tuck them away or tape the ends.



4. Verify Your CPU Cooler Mount, Plastic Peel, and Pump Power

Without proper cooling, a CPU can reach its thermal limit quickly and the system will shut down to protect it.









Remove the protective film. Check that the plastic sticker on the cold plate of your air cooler or AIO block is gone.



Check mounting pressure. If the cooler is loose or uneven, the base may not touch the CPU properly.



Check pump power on AIOs. Make sure the pump cable (AIO_PUMP or CPU_FAN header) and any required SATA power cable are connected so coolant is circulating.

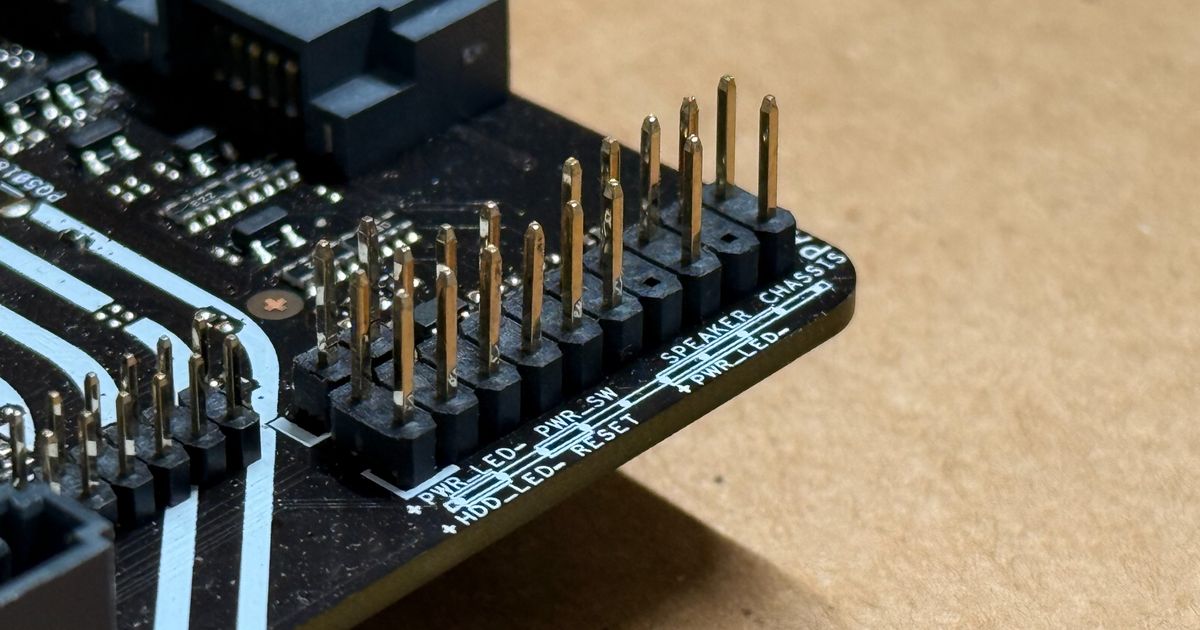

5. Test for a Stuck Case Power Button (The Screwdriver Jump-Start Test)

If your PC runs normally for about four seconds and then powers off every time, suspect the power button. A button that stays pressed can trigger a forced shutdown, and a front-panel cable on the wrong pins can do the same.









Unplug the POWER SW connector from the front-panel header.



Find the power switch pins in your motherboard manual.



Briefly touch a screwdriver tip across those two pins, then remove it.

If the PC now boots and stays on, the case button or its wiring is the problem.



6. Clear the CMOS Battery to Wipe Corrupted BIOS / XMP Settings

If a working PC started boot-looping after you enabled an XMP/EXPO profile, changed voltages, or lost power, stored BIOS settings may be unbootable.









Switch off the PSU and unplug the power cord.



Press the case power button once or twice to drain residual charge.



Find the silver CR2032 coin battery and pop it out.



Wait about 5 minutes, or use the CLR_CMOS jumper if your board has one.



Reinstall the battery, power on, and boot at default settings.



Why Power Supply Protections (SCP & OCP) Are Actually Saving Your PC

A PC that dies instantly isn’t always a sign your power supply is faulty. It can mean the protection circuits are working as designed.







Quality power supplies include safeguards such as short-circuit protection (SCP) and over-current protection (OCP). If the PSU detects a short, such as a pinched wire, a mis-wired cable, or a stray standoff, it shuts off almost immediately instead of pushing current into the fault. That is why a split-second shutdown often points to a physical short rather than a dead component.

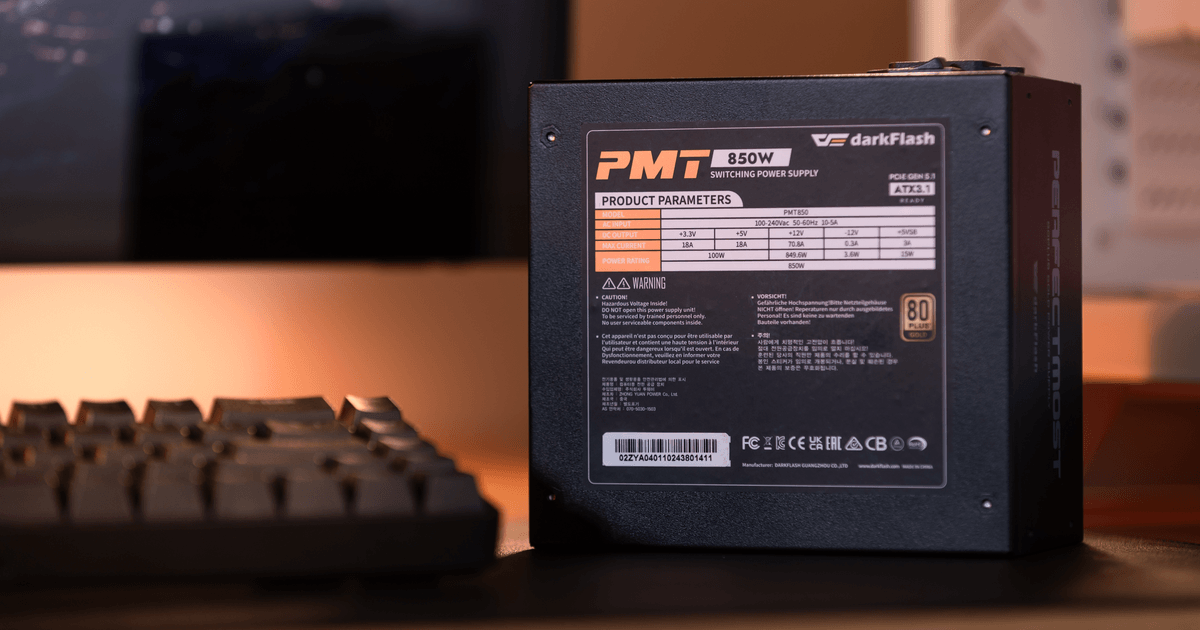

(darkFlash PMT Series Power Supply, with 7 Power Supply Protections)



If you want to rule out the PSU, you can run a no-load check with a jumper or paperclip. Bridge pin 16 and pin 17 on the 24-pin connector, which are the 4th and 5th pins from the left with the clip facing up. Treat the result carefully: the test only confirms the PSU can switch on without a load, and a unit can pass it and still fail under real system load. If you have a known-good spare PSU, swapping it in is the most reliable test. For the full procedure, see our guide on how to test a PSU if your PC won’t boot.



Frequently Asked Questions (FAQ)

Why does my new AM5 / DDR5 PC turn on, turn off, and take minutes to show a picture?

This is often DDR5 memory training, and it is more common on AMD AM5 boards. On some DDR5 systems, training can take up to 15 minutes, so it is worth waiting 10 to 15 minutes on the first boot after a RAM change, BIOS reset, or profile change.

Many users report roughly two to three minutes the first time XMP is enabled, then around 30 seconds afterward. The system may restart once or twice during this process. If your board offers it, enabling Memory Context Restore can speed up later boots.



How can I tell if my power supply or my motherboard is dead?

Run the no-load jumper test described above. If the PSU fan spins, the PSU can at least switch on, but that doesn’t prove it is healthy under load. The reliable method is to try a known-good PSU, or to test the motherboard outside the case.



Can a dead CMOS battery cause a PC to turn on and immediately shut off?

A drained battery usually resets the BIOS clock and settings rather than stopping startup. Clearing CMOS (Step 6) is more useful as a way to remove bad settings than as a battery fix.



What should I do if the PC still shuts off after checking every cable and RAM stick?

Do an out-of-case test. Place the motherboard on its non-conductive box and connect only the CPU, cooler, one RAM stick, the 24-pin cable, and the 8-pin CPU cable. Use a screwdriver on the power switch pins to start it. If it boots, something inside the case, such as an extra standoff or a pinched wire, was causing the problem.







Conclusion: Isolate the Short and Get Back in the Game

A PC that turns on for a second and dies is stressful, but the fix is usually mechanical. Confirm the 8-pin CPU cable and RAM are fully seated, check for stray standoffs, make sure the cooler is mounted correctly, and clear the CMOS. If you’re on DDR5, give the first boot extra time before you assume something has failed.

If you’re planning a new build, case and PSU choice can make assembly easier. darkFlash’s DY460 and FLOATRON F1 ATX are ATX cases that support back-connect motherboards, which keeps the front clean and builds tidier. For power, the PMT Series offers 80 PLUS Gold, ATX 3.1, full-modular units, and the UMT Series is the 80 PLUS Platinum option. Both list OVP, OCP, OPP, SCP, OTP, and UVP protections.

Why does your PC turn on for a second then shut off? Follow these 6 step-by-step hardware fixes to stop boot loops, PSU short circuits, and RAM POST errors.

PC Turns On for a Second Then Shuts Off: 6 Steps to Fix a Boot Loop

One pigtail cable vs. two separate PCIe cables: how should you power your graphics card? Whenever your power supply includes two independent PCIe power cables, you should always use two separate PCIe cables rather than a single daisy-chained "pigtail" cable to power a dual 8-pin graphics card.

In any gpu pigtail vs two separate pcie cables comparison, running two dedicated cables from your PSU splits the electrical current evenly across twice as many copper wires and modular PSU terminals—reducing cable heat, minimizing voltage droop, and preventing random PC shutdowns during heavy gaming transient spikes.

Is it ever safe to use a single pigtail cable with two 6+2 pin plugs? Only if your graphics card has a total board power (TBP) under 225W (75W from the motherboard PCIe slot plus 150W from the primary cable). For any mid-range or high-end GPU drawing over 225W—such as an AMD Radeon RX 9070 XT, RX 7900 XT, or an NVIDIA RTX 4070 Ti / 5070 Ti using an adapter—using two separate PCIe cables is mandatory for long-term hardware safety.

What Is a PCIe Pigtail Cable and How Does GPU Power Math Work?

If you open the box of almost any modern modular or semi-modular power supply, you will notice that the PCIe 8-pin (6+2 pin) cables have a main connector at the end, plus a second 6+2 pin connector branching off a few inches further down the same wire harness. PC builders call this secondary branch a pigtail or daisy-chain connector.

Individual 8-pin vs Pigtail Connectors for GPUs, CORSAIR

Why do power supply manufacturers include a pigtail plug if builders warn against using it? The answer lies in the official PCI-SIG electrical specification versus how modern high-wattage graphics cards actually behave:

The trouble starts when a gamer plugs a single pigtail cable into a power-hungry 280W or 350W graphics card. As highlighted in

GPU power wiring discussions on r/PcBuild

, the graphics card sees two 8-pin plugs occupied and assumes it has permission to pull up to 300W through those two plugs combined—forcing all 300W through a single 8-pin modular socket on the power supply side.

One Pigtail Cable vs. Two Separate PCIe Cables: Wattage & Safety Guide

Not sure which wiring layout matches your graphics card? Use this breakdown—based on standard PSU engineering guidelines and

real-world wattage benchmarks shared on r/buildapc

—to match your GPU's power draw to the right cable configuration:

4 Risks of Using a Single Pigtail Cable on a High-Wattage GPU

Even if your PC boots up and runs a game using a single daisy-chained cable, pushing 250W to 350W down one 8-pin wire harness introduces four serious hardware risks over time.

1. Melted Modular Connectors on the Power Supply Side





One pigtail cable vs. two separate PCIe cables: how should you power your graphics card? Whenever your power supply includes two independent PCIe power cables, you should always use two separate PCIe cables rather than a single daisy-chained "pigtail" cable to power a dual 8-pin graphics card.

In any gpu pigtail vs two separate pcie cables comparison, running two dedicated cables from your PSU splits the electrical current evenly across twice as many copper wires and modular PSU terminals—reducing cable heat, minimizing voltage droop, and preventing random PC shutdowns during heavy gaming transient spikes.


Is it ever safe to use a single pigtail cable with two 6+2 pin plugs? Only if your graphics card has a total board power (TBP) under 225W (75W from the motherboard PCIe slot plus 150W from the primary cable). For any mid-range or high-end GPU drawing over 225W—such as an AMD Radeon RX 9070 XT, RX 7900 XT, or an NVIDIA RTX 4070 Ti / 5070 Ti using an adapter—using two separate PCIe cables is mandatory for long-term hardware safety.


What Is a PCIe Pigtail Cable and How Does GPU Power Math Work?

If you open the box of almost any modern modular or semi-modular power supply, you will notice that the PCIe 8-pin (6+2 pin) cables have a main connector at the end, plus a second 6+2 pin connector branching off a few inches further down the same wire harness. PC builders call this secondary branch a pigtail or daisy-chain connector.





(Individual 8-pin vs Pigtail Connectors for GPUs, CORSAIR)


Why do power supply manufacturers include a pigtail plug if builders warn against using it? The answer lies in the official PCI-SIG electrical specification versus how modern high-wattage graphics cards actually behave:






The Motherboard PCIe x16 Slot: Supplies up to 75W of power directly through the gold fingers on the bottom of your graphics card.



A Single 8-Pin PCIe Connector (Official Spec): Rated by the PCI-SIG standard to deliver 150W continuously.



The Cable vs. Connector Bottleneck: While a single 8-pin plug on the GPU side is strictly capped at 150W in the official standard, a high-quality PSU cable made with thick 16AWG or 18AWG copper wires can physically carry 225W to 288W before overheating. PSU brands add a pigtail plug so that a card drawing 180W to 220W—which technically requires two 8-pin sockets on the PCB just to exceed the 225W (75W + 150W) threshold—can run off one cable.

The trouble starts when a gamer plugs a single pigtail cable into a power-hungry 280W or 350W graphics card. As highlighted in GPU power wiring discussions on r/PcBuild, the graphics card sees two 8-pin plugs occupied and assumes it has permission to pull up to 300W through those two plugs combined—forcing all 300W through a single 8-pin modular socket on the power supply side.


One Pigtail Cable vs. Two Separate PCIe Cables: Wattage & Safety Guide

Not sure which wiring layout matches your graphics card? Use this breakdown—based on standard PSU engineering guidelines and real-world wattage benchmarks shared on r/buildapc—to match your GPU's power draw to the right cable configuration:






4 Risks of Using a Single Pigtail Cable on a High-Wattage GPU

Even if your PC boots up and runs a game using a single daisy-chained cable, pushing 250W to 350W down one 8-pin wire harness introduces four serious hardware risks over time.



1. Melted Modular Connectors on the Power Supply Side

Heat in an electrical wire increases with the square of the current ($I^2R$). When you split 300W across two separate PCIe cables, each cable carries 150W (roughly 12.5 Amps at 12V, or just over 4 Amps per 12V pin).

When you force all 300W through a single pigtail cable, the single modular plug plugged into the back of your power supply has to carry 25 Amps continuously. Over months of heavy gaming, that high contact resistance can char, brown, or melt the plastic housing right at the PSU port.



2. Voltage Droop and Unstable GPU Boost Clocks

As copper wires heat up under heavy current, their electrical resistance rises, causing a phenomenon called voltage droop. Instead of receiving a rock-steady 12.0V under full load, your graphics card's VRM may see the voltage sag to 11.5V or 11.4V.

Modern GPUs constantly monitor input voltage; excessive voltage sag can reduce maximum boost clock stability, introduce coil whine, or trigger black-screen driver timeouts (nvlddmkm or AMD driver crashes).



3. Millisecond Transient Spikes Tripping PSU Protections

A graphics card rated for 260W average power does not draw a flat 260W every millisecond. Modern GPUs experience transient power excursions—brief 1-to-10-millisecond spikes where power draw jumps to 1.5x or 2x the card's rated TDP.

On a single pigtail cable, a sudden 450W spike concentrated on one PSU rail or terminal can trip Over-Current Protection (OCP) or Under-Voltage Protection (UVP), shutting your PC off instantly in the middle of a boss fight.



4. Severe Overheating on 12VHPWR / 12V-2x6 Adapter Dongles

If your graphics card uses a 16-pin power connector and came with a 2x 8-pin to 16-pin or 3x 8-pin to 16-pin adapter, you must never plug a pigtail connector into that adapter. Every 8-pin leg of a 16-pin adapter expects an independent 150W feed from your PSU.

Daisy-chaining one cable into two legs of a 16-pin adapter is one of the fastest ways to overload the cable and void your warranty.






How to Wire Your Graphics Card Cleanly (And Hide Unused Pigtails)

One of the main reasons DIY builders are tempted to use a single pigtail cable is aesthetics: nobody likes having two dangling, unconnected 6+2 pin plugs hanging out in front of a tempered glass side panel. Here are three safe ways to keep your build looking clean without compromising power delivery:






Always Plug In the Primary Connector First: On each separate PCIe cable, plug the main connector (the one directly attached to the main wire trunk coming from the PSU) into the GPU, and leave the secondary pigtail branch unplugged. This keeps the electrical path as short and low-resistance as possible.



Fold and Zip-Tie the Pigtail Behind the Main Run: Gently bend the unused 6+2 pin pigtail loop backward so it lies flat against the main braided cable sleeve, then secure it tightly with a black or white velcro strap or small zip-tie just below the GPU backplate cutout.



Use Universal Braided PSU Extensions (Or Native ATX 3.1 Cables): If you want a showcase look with zero pigtail loops visible in the main chamber, attach high-gauge (16AWG) braided PCIe extension cables to the ends of two separate PSU cables hidden behind the motherboard tray—or upgrade to an ATX 3.1 power supply with clean, single-connector cables.





(Piggytail on a 3x8 pin GPU, u/Andrej760, r/pcmasterrace)



Frequently Asked Questions (FAQ)

What if my graphics card has THREE 8-pin power ports, but my PSU only came with two PCIe cables?

If your GPU has three 8-pin connectors (common on flagship custom cards) and your power supply only includes two PCIe cables in the box, it is safe to run two separate cables plus one pigtail on the second cable—giving you 75W (slot) + 150W (Cable 1) + 225W (Cable 2 + pigtail) = 450W of safe capacity. Just make sure the single dedicated cable is plugged into the primary power socket on the GPU.



Does using two separate PCIe cables increase FPS in games?

Under normal conditions, switching from one cable to two cables will not magically add 20 FPS. However, if your GPU was suffering from severe voltage droop or power-limit throttling on a single overloaded cable, switching to two separate cables restores stable 12V delivery, eliminating micro-stutters, driver crashes, and clock-speed drops under heavy overclocking.



Can I buy an extra modular PCIe cable online to avoid using a pigtail?

Only if the cable is verified by the manufacturer for your exact PSU model and series. Unlike extension cables, modular PSU cables do not have a standardized pinout on the power-supply side. Plugging a generic modular PCIe cable from another brand into your PSU can send 12V down a ground wire and instantly destroy your graphics card.



Which plug on a pigtail cable is the "main" connector?

Hold the cable by the long end that goes into the power supply. Follow the wires to the first 8-pin connector they enter—that is your main (primary) connector. The short 10cm–15cm loop jumping out the back of that plug is the secondary pigtail connector.







Conclusion: Give Your Graphics Card Clean, Dedicated Power

When wiring a gaming PC, taking an extra two minutes to route a second PCIe power cable from your power supply is the cheapest insurance policy you can buy for your graphics card. Unless your GPU draws well under 225W at peak load, skip the daisy-chain shortcut and give each 8-pin port its own dedicated cable run.

If you are building a new rig or upgrading your GPU in 2026, starting with a high-efficiency, fully modular power supply makes clean, multi-cable routing effortless.

Modern power supplies like the darkFlash PMT Series 80 PLUS Gold Power Supply, the flagship darkFlash UMT Series 80 PLUS Platinum Power Supply, and the darkFlash DG Series feature DC-to-DC LLC resonant topologies, complete industrial-grade circuit protections (OVP, OCP, OPP, SCP, OTP, UVP), and native ATX 3.1 / PCIe 5.1 support—delivering rock-solid, spike-resistant power whether your graphics card runs on dual 8-pin connectors or a single 600W 12V-2x6 cable.

Should you use one pigtail cable or two separate PCIe cables for your GPU? Learn the 225W safety rule, wattage limits, and how to prevent melted connectors.
