When shopping for PC fans, you’ll often come across connectors that are either 3-pin or 4-pin. If you don’t fully understand the difference, you might end up with a fan that your motherboard can’t properly control, or find yourself confused about where to plug it in during installation.



This guide will quickly walk you through the differences between 3-pin and 4-pin connectors, explain their functions, and help you decide which type of fan is the better choice for your build.



How to Tell the Difference Between 3-Pin and 4-Pin Fans

It’s actually very simple to distinguish between them. Here are two easy methods:

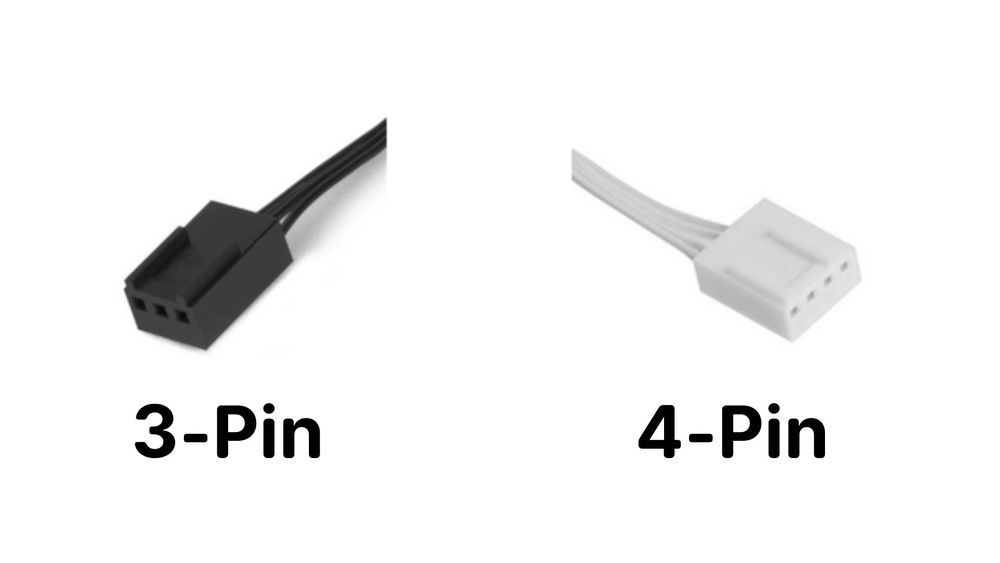

Method 1 | Metal Pins





3-pin fans: three metal pins for ground, power, and RPM feedback.



4-pin fans: include an extra pin for PWM (Pulse Width Modulation) control.







Method 2 | Check the Product Specs

Look at the fan’s packaging or user manual:





If you see PWM mentioned → it’s a 4-pin fan.



If it only says DC Fan or doesn’t mention PWM → it’s a 3-pin fan.

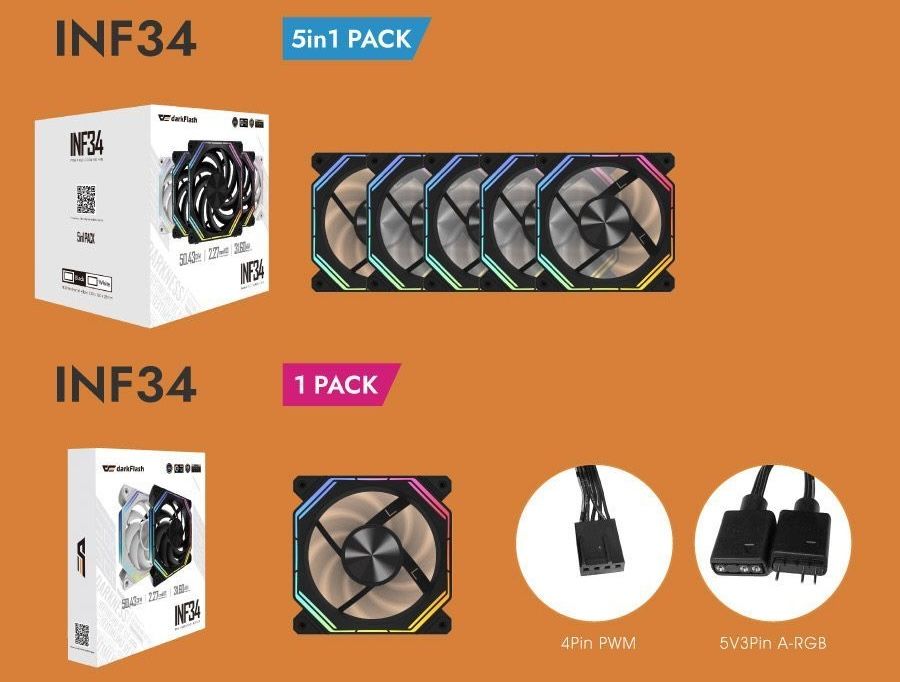

↑ INF34 Cooling Fan clearly states it uses a 4-pin PWM cable

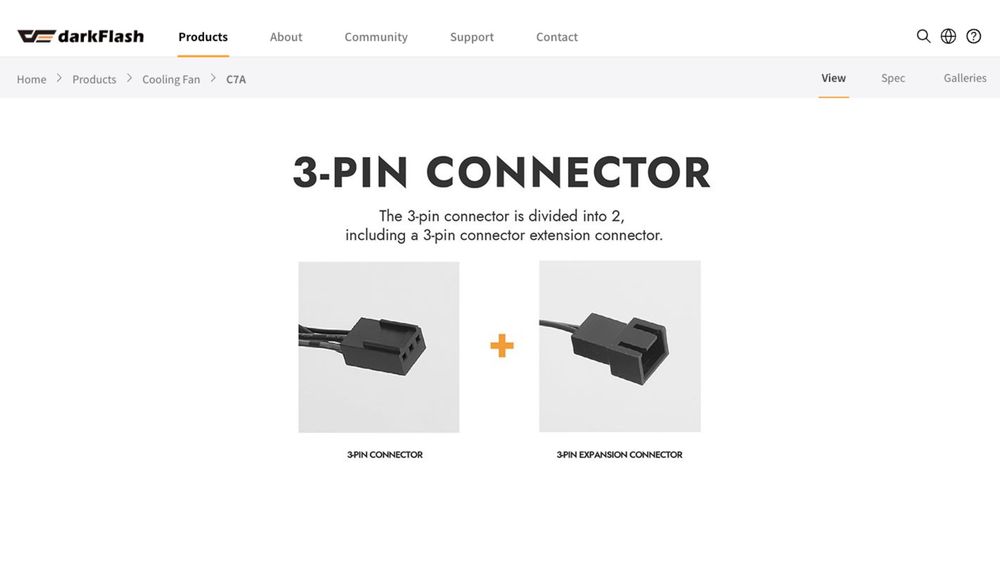

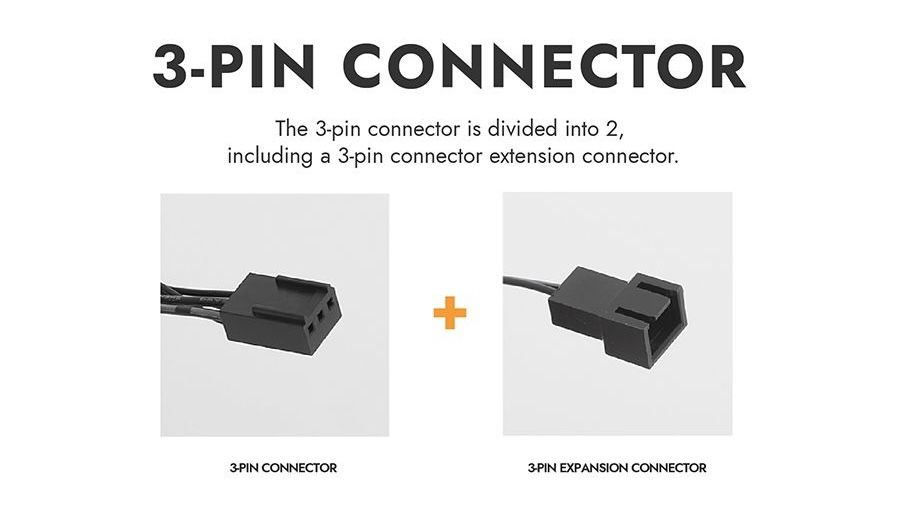

↑ C7A Cooling Fan comes with a 3-pin cable

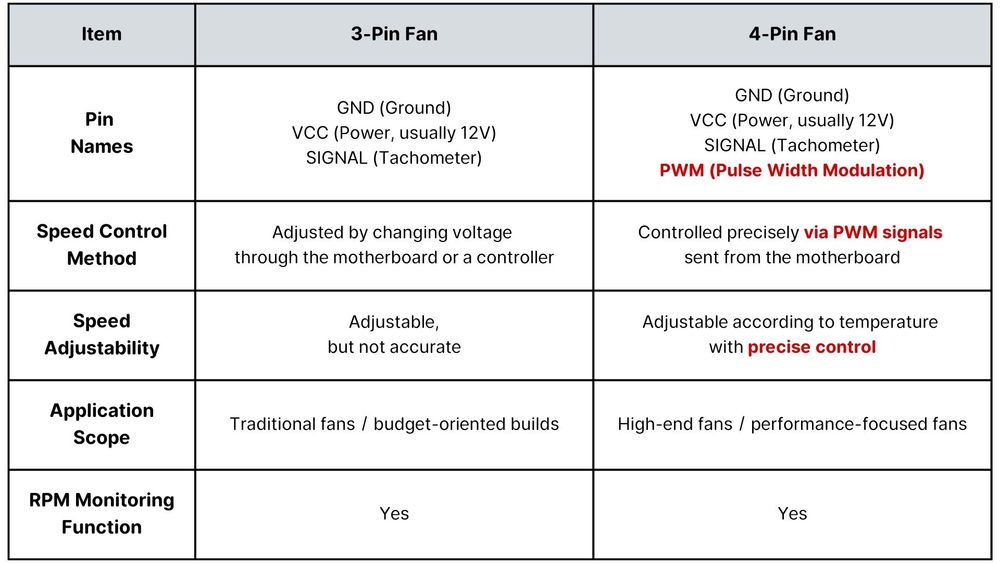

The Difference Between 3-Pin and 4-Pin Fans

3-Pin Fans

These are entry-level fans. The motherboard adjusts the fan speed by changing the voltage, but the level of control is quite limited.



4-Pin Fans (PWM Fans)

These include an extra control wire that delivers precise PWM signals. This allows the fan to automatically adjust its speed based on system temperature. PWM fans generally provide faster response, smoother control, and quieter operation.







Can I Plug a 3-Pin Fan Into a 4-Pin Header?

Yes, you can. A 3-pin fan will work in a 4-pin motherboard header, but it will run only at full speed and won’t support PWM speed control.







Should I Choose a 3-Pin or 4-Pin Fan?

Choose 4-Pin Fans

if you’re a performance-focused gamer or power user who values cooling efficiency, quiet operation, and fast thermal response. With PWM functionality, these fans automatically adjust speed for the perfect balance of performance and noise.



Choose 3-Pin Fans

if you’re more budget-conscious and your system doesn’t generate heavy heat loads. For basic case airflow, 3-pin fans are a cost-effective and perfectly adequate choice.







In the end, it comes down to your needs—different systems call for different solutions. Picking the right type ensures you’ll get the most efficient cooling setup for your PC.

Choosing between 3-pin and 4-pin fans comes down to simplicity versus precise control.

How to Choose a PC Fan? 3-Pin vs. 4-Pin Explained

How-to Guides

By observing two key characteristics, you can quickly identify whether a fan is a normal-blade or reverse-blade design. Choosing the right fan ensures optimal cooling performance and aesthetic appeal for your PC.

Fan blades tilt backward, meaning the leading edge is higher than the trailing edge.

Fan blades tilt forward, meaning the leading edge is lower than the trailing edge.

Air enters from the front of the fan and exits through the back.

Air enters from the back of the fan and exits through the front.

Normal-blade fans dominate the market due to their versatility and compatibility with most cooling setups. Reverse-blade fans cater to specific aesthetic or airflow needs, particularly when you want a consistent look across all fans while maintaining effective cooling.

By understanding the differences in blade tilt and airflow direction, and strategically installing fans in suitable positions, you can significantly improve your system’s cooling efficiency and maintain stable performance.





By observing two key characteristics, you can quickly identify whether a fan is a normal-blade or reverse-blade design. Choosing the right fan ensures optimal cooling performance and aesthetic appeal for your PC.



Key Differences

1. Blade Tilt Direction

Normal-Blade Fans:

Fan blades tilt backward, meaning the leading edge is higher than the trailing edge.



Reverse-Blade Fans:

Fan blades tilt forward, meaning the leading edge is lower than the trailing edge.





2. Airflow Direction

Normal-Blade Fans:

Air enters from the front of the fan and exits through the back.



Reverse-Blade Fans:

Air enters from the back of the fan and exits through the front.







Recommended Installation Positions

Normal-Blade Fans:





Designed for the interior-facing installation where the fan's front faces the inside of the case.



Recommended placement: Top panel of the case / Rear panel of the case

Reverse-Blade Fans:





Suited for maintaining uniform aesthetics and airflow when fans are installed with the back facing the interior.



Recommended placement: Side panel of the case / Above the power supply shroud



Considerations for Installation

Airflow Requirements:





Decide based on your cooling strategy: intake or exhaust airflow.



Normal-blade fans are the default and most versatile choice.

Placement and Clearance:





Ensure the fan fits without obstruction and doesn’t interfere with other components.

Cooling Efficiency:





Test the thermal performance in your setup to confirm the fan type and placement meet your needs.







Summary

Normal-blade fans dominate the market due to their versatility and compatibility with most cooling setups. Reverse-blade fans cater to specific aesthetic or airflow needs, particularly when you want a consistent look across all fans while maintaining effective cooling.



By understanding the differences in blade tilt and airflow direction, and strategically installing fans in suitable positions, you can significantly improve your system’s cooling efficiency and maintain stable performance.

Learn how blade orientation affects airflow, efficiency, and the proper use of fan systems in different environments.

What's the Difference Between Normal-Blade and Reverse-Blade Fans?

When people talk about upgrading RAM, the first questions are usually:

But there’s another factor that gets thrown around a lot—RAM speed, often listed as 3200 MHz, 5600 MHz, 6400 MHz, and beyond.So what exactly does that number mean, and how much does it actually affect real-world performance? Let’s break it down.

, tells you how many cycles of data the memory can handle per second. Higher numbers equal more potential bandwidth.

But speed is only one piece of the puzzle. Memory performance depends on three things working together:

All three determine how responsive your system feels.

, improving efficiency when handling multiple tasks at once.

A common trap is assuming that higher MHz automatically equals better performance. In reality, you also have to consider

, which measures the delay before memory responds to a request.

Even though DDR5 has a higher latency number, its much faster clock speed offsets this. What really matters is true latency in nanoseconds, calculated as:

This is why DDR5, despite higher CL, still outperforms DDR4 in most cases.

What RAM Speed Should You Choose in 2025?

Just remember: your CPU and motherboard must support the speeds you are aiming for. Always check the





When people talk about upgrading RAM, the first questions are usually: How many gigabytes do I need? and Should I run single or dual-channel?


But there’s another factor that gets thrown around a lot—RAM speed, often listed as 3200 MHz, 5600 MHz, 6400 MHz, and beyond.So what exactly does that number mean, and how much does it actually affect real-world performance? Let’s break it down.



What RAM Speed Actually Means

RAM speed, or frequency, tells you how many cycles of data the memory can handle per second. Higher numbers equal more potential bandwidth.

But speed is only one piece of the puzzle. Memory performance depends on three things working together:





Capacity (GB) → How much data can be stored



Channels (single, dual, quad) → How many lanes data can travel across



Frequency (MHz) → How fast those lanes can move data

All three determine how responsive your system feels.







Does Faster RAM Make Your PC Faster?

The short answer: sometimes, but not always.











Gaming: In most AAA titles, faster RAM might improve FPS by just a few percent. But in competitive eSports games, like CS2 or Valorant, higher speeds can help maintain smoother frame delivery at high refresh rates.



Content creation: Video editing, 3D rendering, and large simulations benefit more from the extra bandwidth.



Everyday use: Faster RAM makes little difference when browsing or running basic apps, but it can reduce stutter when multitasking heavily.



DDR4 vs. DDR5: How the Numbers Compare

DDR4





Common speeds: 2133–3600 MHz



High-end kits can push past 4600 MHz

DDR5





Starts at 4800 MHz by default



Mainstream kits: 5600–6400 MHz



Premium kits already exceed 8000 MHz





(DDR5 Overview, Kingston)



Beyond raw speed, DDR5 also brings dual 32-bit sub-channels per DIMM, improving efficiency when handling multiple tasks at once.



Speed vs. Latency: The Balancing Act

A common trap is assuming that higher MHz automatically equals better performance. In reality, you also have to consider CAS Latency (CL), which measures the delay before memory responds to a request.







For example:





DDR4-3200 CL16



DDR5-6000 CL40

Even though DDR5 has a higher latency number, its much faster clock speed offsets this. What really matters is true latency in nanoseconds, calculated as:

True Latency = (CL ÷ Frequency) × 2000

This is why DDR5, despite higher CL, still outperforms DDR4 in most cases.







What RAM Speed Should You Choose in 2025?





Everyday users: DDR4-3200 or DDR5-5600 is more than enough.



Gamers: DDR4-3600 or DDR5-6000–6400 hits the sweet spot for most modern builds.



Content creators and professionals: High-frequency, low-latency kits provide real benefits in editing, rendering, and workstation workloads.

Just remember: your CPU and motherboard must support the speeds you are aiming for. Always check the QVL (Qualified Vendor List) for compatibility.

What really affects RAM speed? Let’s break it down in simple terms.

RAM Speed Explained: How Much Does Frequency Affect Performance?

When choosing RAM for a PC build, capacity usually gets the most attention—whether you need 16GB, 32GB, or more. But the way that RAM is configured also matters. Most consumer systems support

Dual-channel RAM isn’t about adding more gigabytes—it’s about doubling the available bandwidth. With two identical sticks working together, your system can move twice as much data at the same time, reducing wait times and improving overall responsiveness.

Your motherboard must support dual-channel memory. Almost every modern board does, but it’s worth checking the specifications just to be sure.

GIGABYTE X870E AORUS XTREME AI TOP Motherboard

For dual-channel to work, the two sticks need to match. That means the same capacity (8GB + 8GB, 16GB + 16GB), the same frequency, and ideally the same brand and model. Using a pre-packaged RAM kit is the easiest way to guarantee compatibility.

Most motherboards have four RAM slots, but only certain pairings enable dual-channel.

Always follow the diagram in your motherboard manual.

Does Dual-Channel Make a Difference in Games?

The answer depends on the game. Memory bandwidth matters more in some scenarios than others.

In other words, single-channel RAM is still capable of running modern games at smooth frame rates. But if you want to push performance further or reduce system latency, dual-channel provides an advantage.

(Gaming Performance: Single vs. Dual-Channel RAM,

Single-channel memory will get the job done for everyday tasks, but dual-channel gives your system more bandwidth to breathe.

For most new PC builds in 2025, dual-channel is worth it, especially since the cost difference is usually minimal.





When choosing RAM for a PC build, capacity usually gets the most attention—whether you need 16GB, 32GB, or more. But the way that RAM is configured also matters. Most consumer systems support single-channel or dual-channel memory setups.



Dual-channel RAM isn’t about adding more gigabytes—it’s about doubling the available bandwidth. With two identical sticks working together, your system can move twice as much data at the same time, reducing wait times and improving overall responsiveness.



How to Run RAM in Dual-Channel Mode

Motherboard support

Your motherboard must support dual-channel memory. Almost every modern board does, but it’s worth checking the specifications just to be sure.





(GIGABYTE X870E AORUS XTREME AI TOP Motherboard)



Matching RAM kits

For dual-channel to work, the two sticks need to match. That means the same capacity (8GB + 8GB, 16GB + 16GB), the same frequency, and ideally the same brand and model. Using a pre-packaged RAM kit is the easiest way to guarantee compatibility.







Correct slot placement

Most motherboards have four RAM slots, but only certain pairings enable dual-channel.

Always follow the diagram in your motherboard manual.









Does Dual-Channel Make a Difference in Games?

The answer depends on the game. Memory bandwidth matters more in some scenarios than others.





Memory-sensitive titles like Fortnite or GTA V can see performance gains of 10% or more when switching from single- to dual-channel.



Less demanding games such as Modern Warfare 2 or F1 22 show little difference, often under 2%.

In other words, single-channel RAM is still capable of running modern games at smooth frame rates. But if you want to push performance further or reduce system latency, dual-channel provides an advantage.





(Gaming Performance: Single vs. Dual-Channel RAM, ProYamYamPC)



Which Should You Choose?





Single-channel: Fine for light use like browsing, streaming, and office work.



Dual-channel: Recommended for gamers, content creators, and multitaskers who want every bit of performance.







Final Thoughts

Single-channel memory will get the job done for everyday tasks, but dual-channel gives your system more bandwidth to breathe.

For most new PC builds in 2025, dual-channel is worth it, especially since the cost difference is usually minimal.





This guide breaks down single vs. dual-channel RAM, how it works, and the real impact on gaming and everyday performance.

Single vs. Dual-Channel RAM: What's the Difference and Which One Should You Choose?
