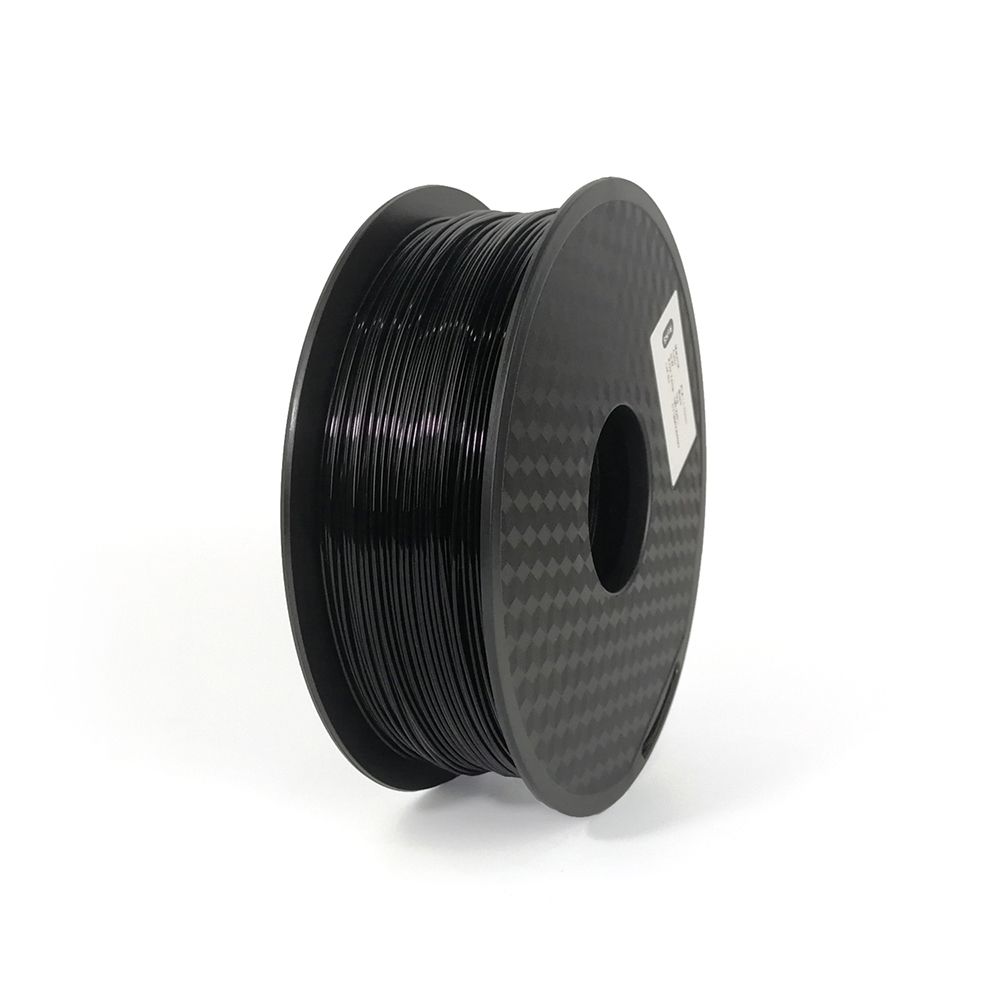

PA6-CF

PA6-CF

    Colors - Black

    Spec

    • Main Spec
      • Material:PA6-CF
      • Density:1.12 g/cm³
      • Flammability:UL 94 HB (1.5 mm)
    • Print Spec
      • Nozzle Temp:270–290 °C
      • Print Speed:50–100 mm/s
      • Bed Temp:50–70 °C
      • Build Plate:Textured PEIGlue
      • Cooling Fan:On
      • Drying Temp:80–110 °C
    • Strength Spec
      • Tensile Strength:112±10 MPa
      • Elongation:12±3 %
      • Flexural Strength:192±20 MPa
      • Flexural Modulus:8600±400 MPa
      • Izod Impact:6.5±2 kJ/m²
    • Heat Spec (Temp)
      • Heat Distortion:203±3 °C
      • Glass Transition:65 °C
    • Chemical Resistance
      • Good:Weak acidsWeak basesStrong basesDeionized waterPetroleum fuelsEster
      • Normal:AlcoholKetones
      • Bad:Strong acids
