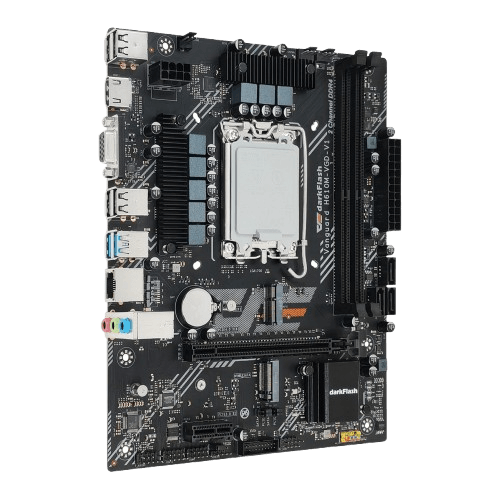

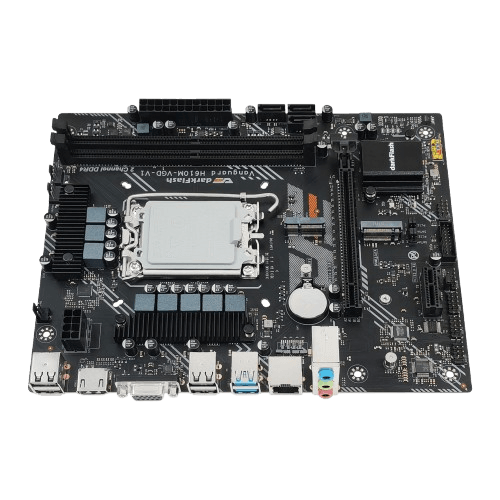

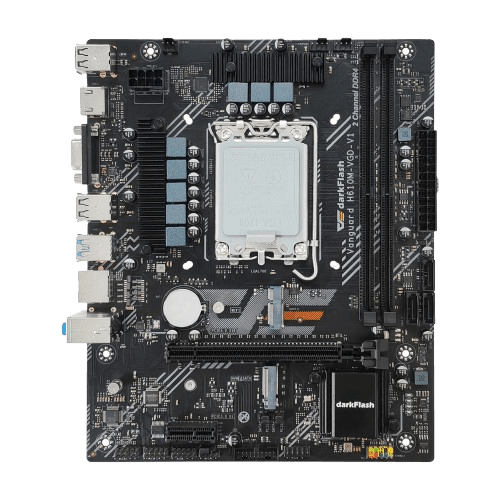

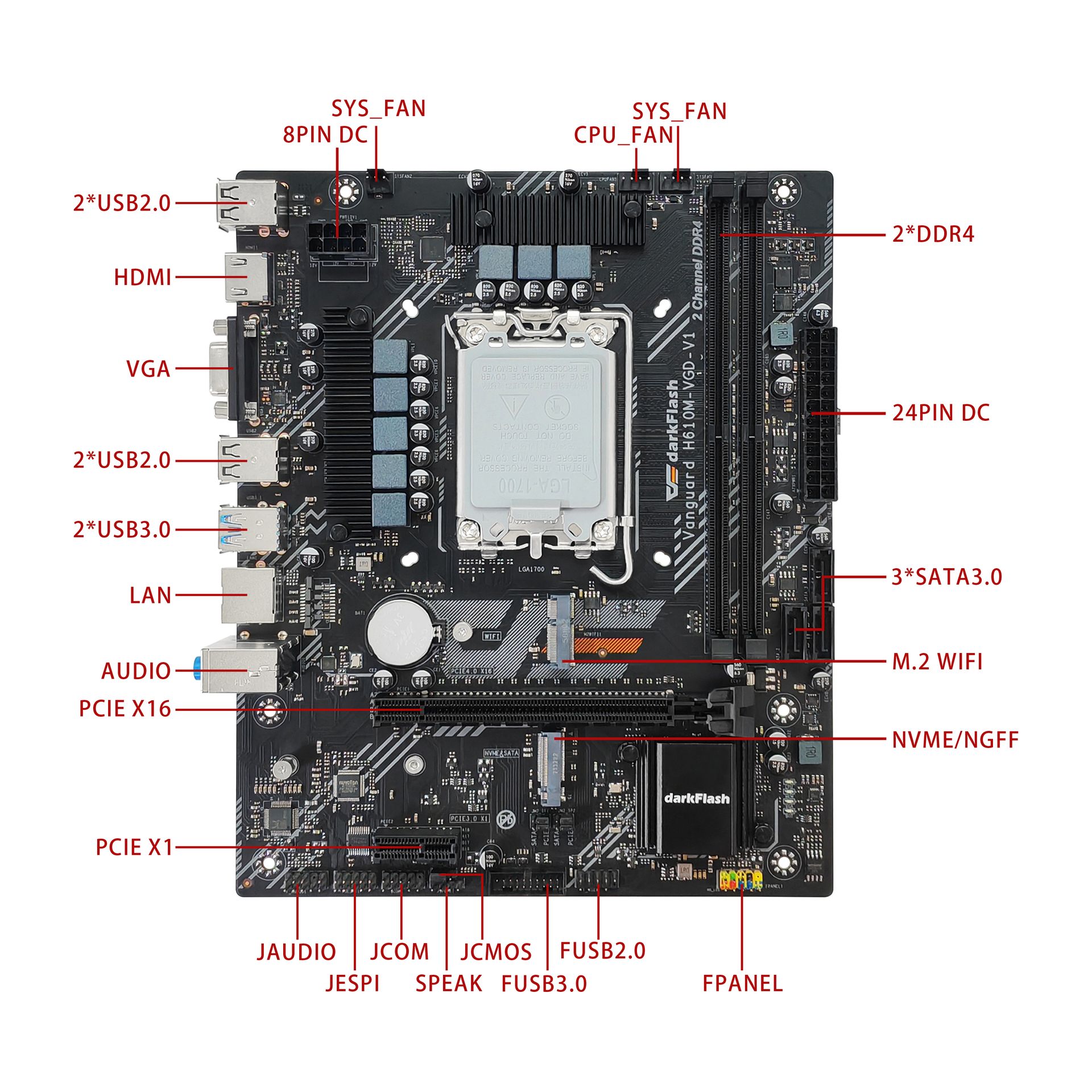

H610M-VGD-V1 Motherboard
- Supports 12th / 13th / 14th Gen Intel® Core™ & Pentium® processors (LGA1700)
- Dual M.2 slots compatible with NVMe and NGFF SSDs
- Dual-channel DDR4 memory slots for smooth multitasking
- SATA 3.0 interface for high-speed data transfer
- PCIe 4.0 slot for faster GPU and expansion performance

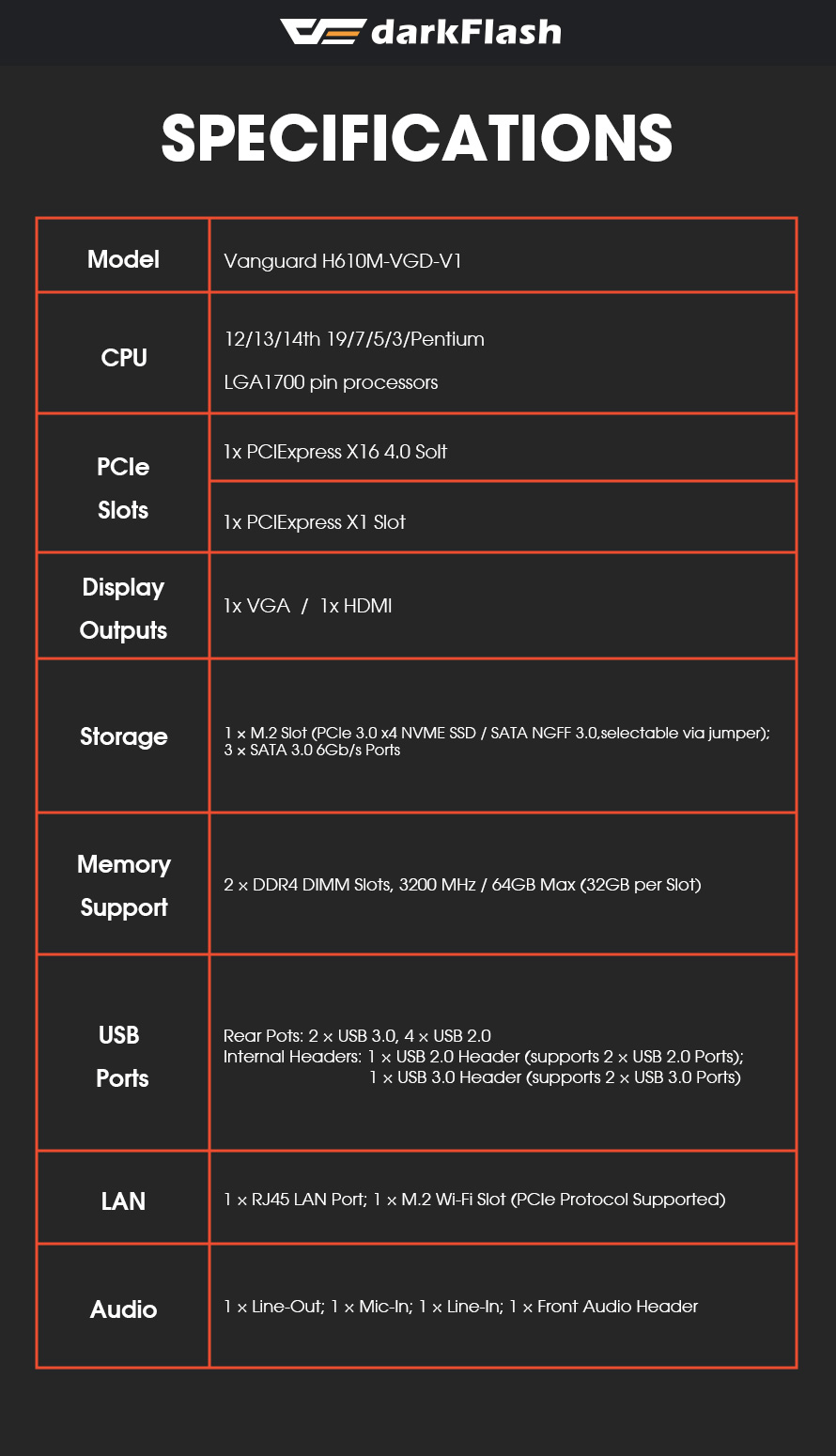

Spec
- Model
- Vanguard H610M-VGD-V1
- Chipset
- Intel® H610
- CPU
- Intel® Core™ 14th / 13th / 12th Gen Processors LGA 1700
- Memory
- 2 x DDR4 DIMM Slots 3200 MHz / 64GB Max (32GB per slot) Dual channel memory architecture
- Graphics
- 1 x HDMI 1 x VGA
- Expansion Slots
- 1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot
- Storage
- 1 x M.2 Slot (PCIe 3.0 x4 NVME SSD / SATA NGFF 3.0, selectable via jumper) 3 x SATA 3.0 6Gb/s ports
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in 1 x Front Audio Header
- LAN
- 1 x RJ45 LAN port 1 x M.2 Wi-Fi slot (PCIe protocol supported)
- USB
- Rear USB 2 x USB 3.0 4 x USB 2.0 Internal Headers 1 x USB 2.0 Header (Supports 2 x USB 2.0 ports) 1 x USB 3.0 Header (Supports 2 x USB 3.0 ports)
