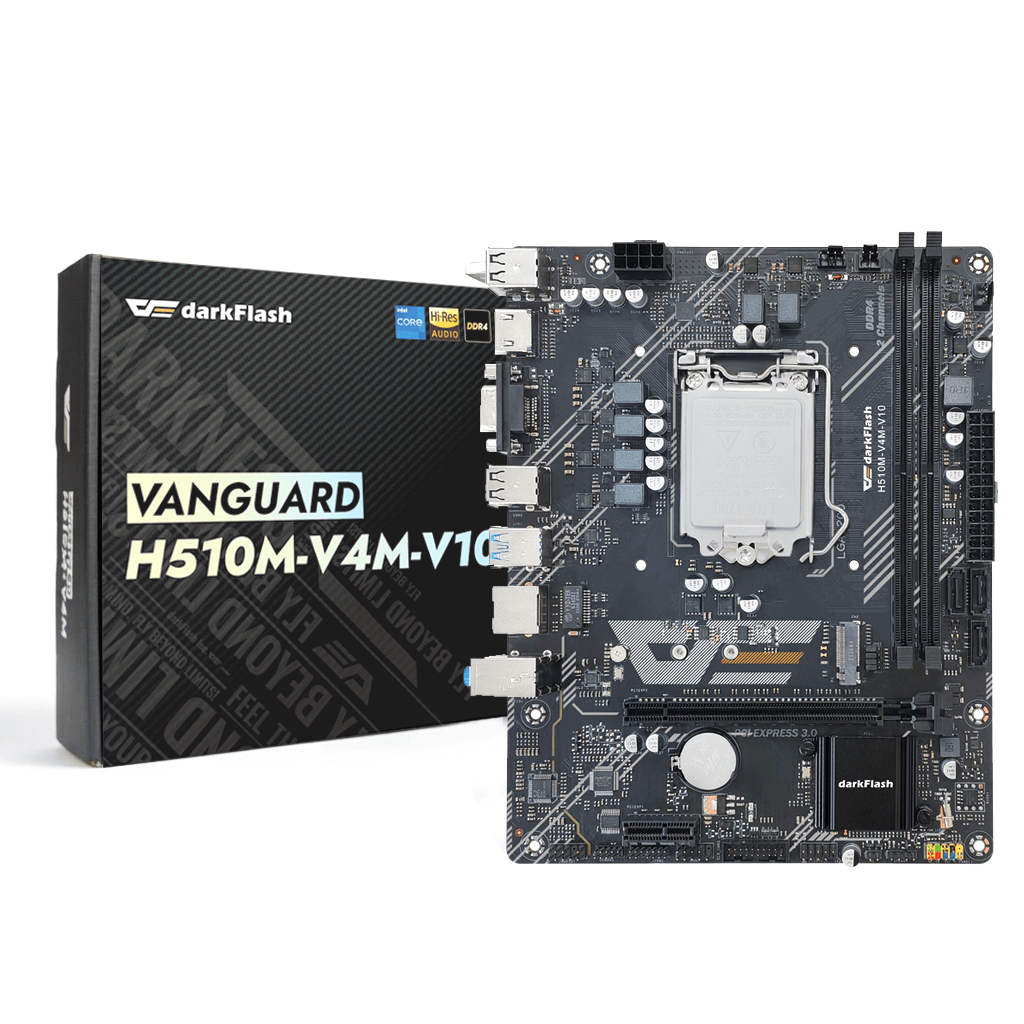

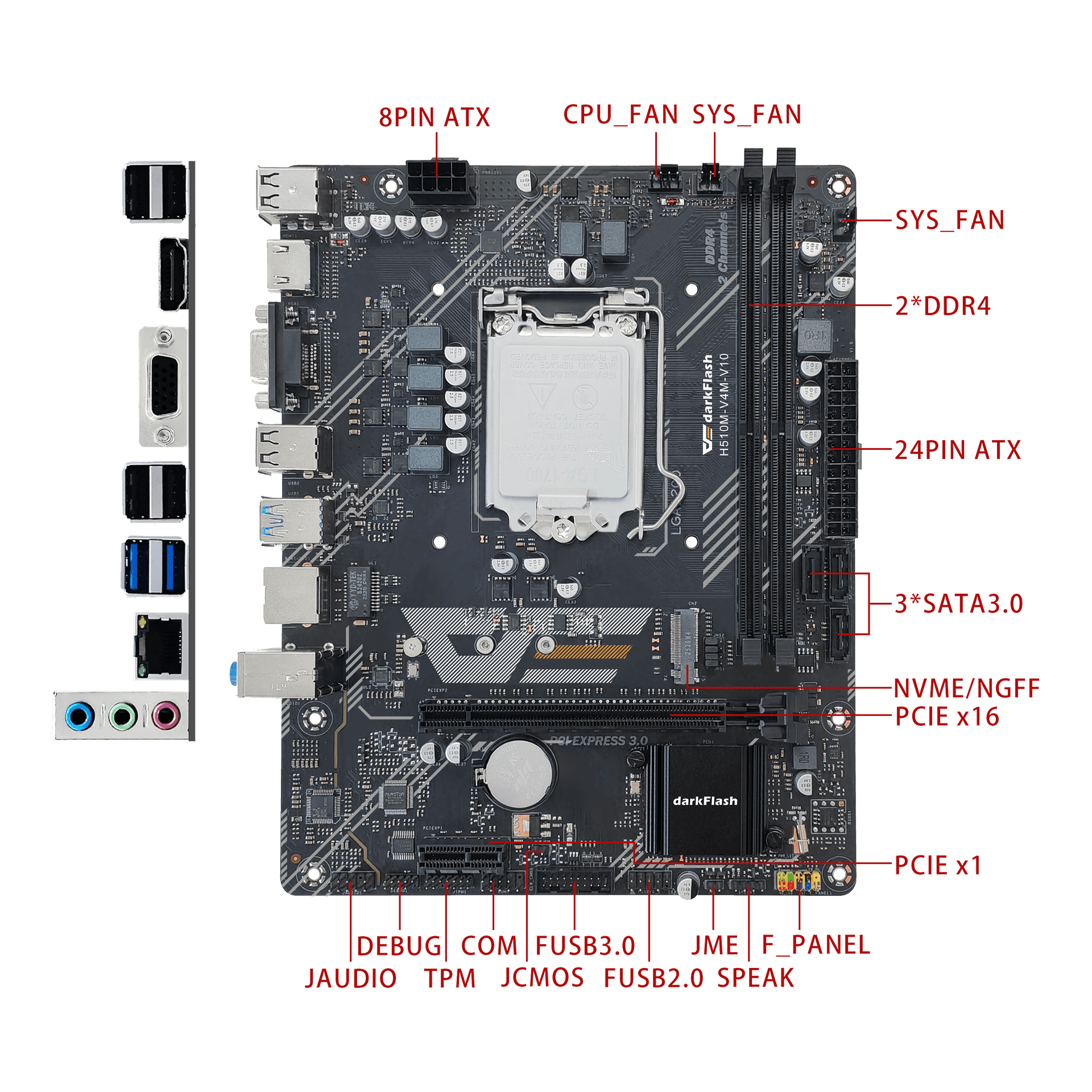

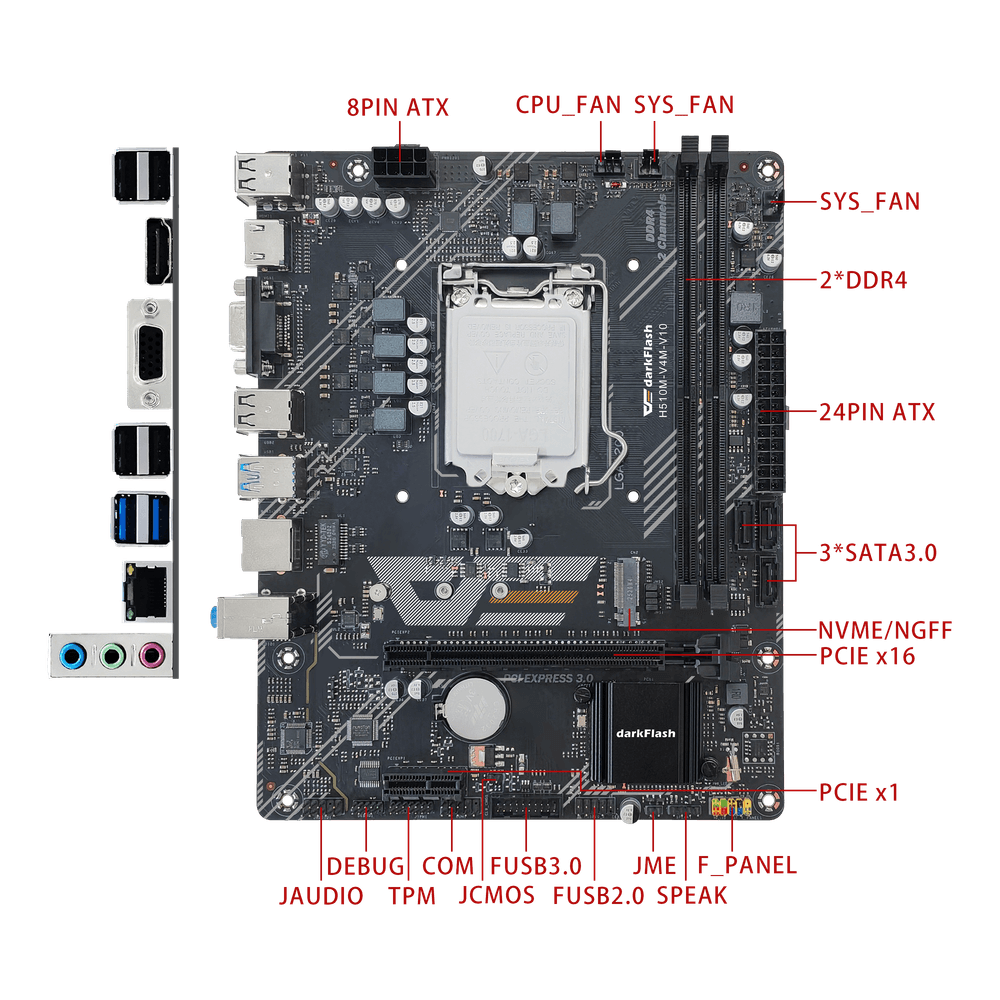

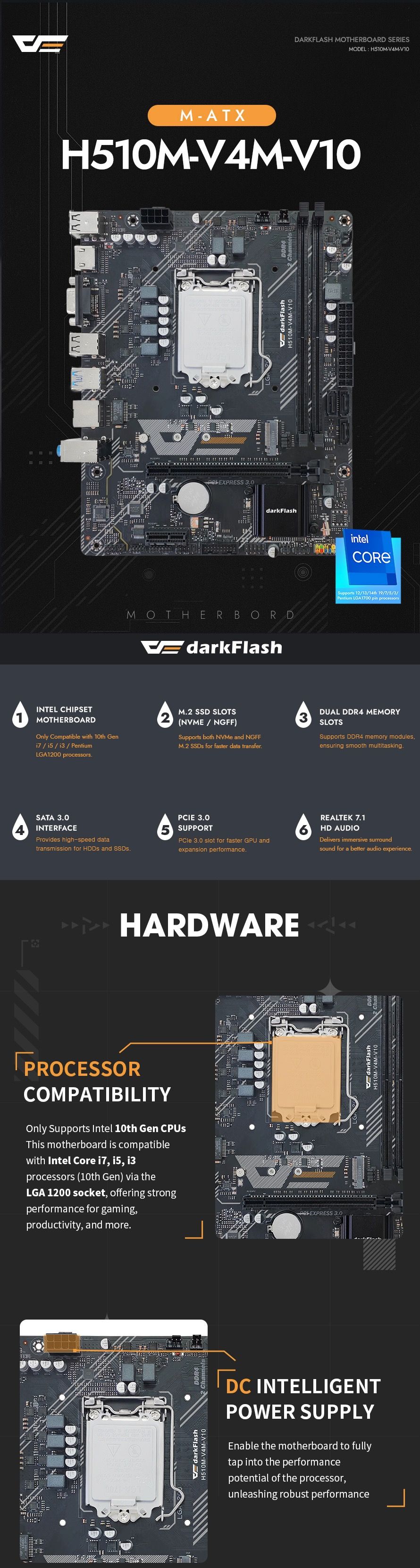

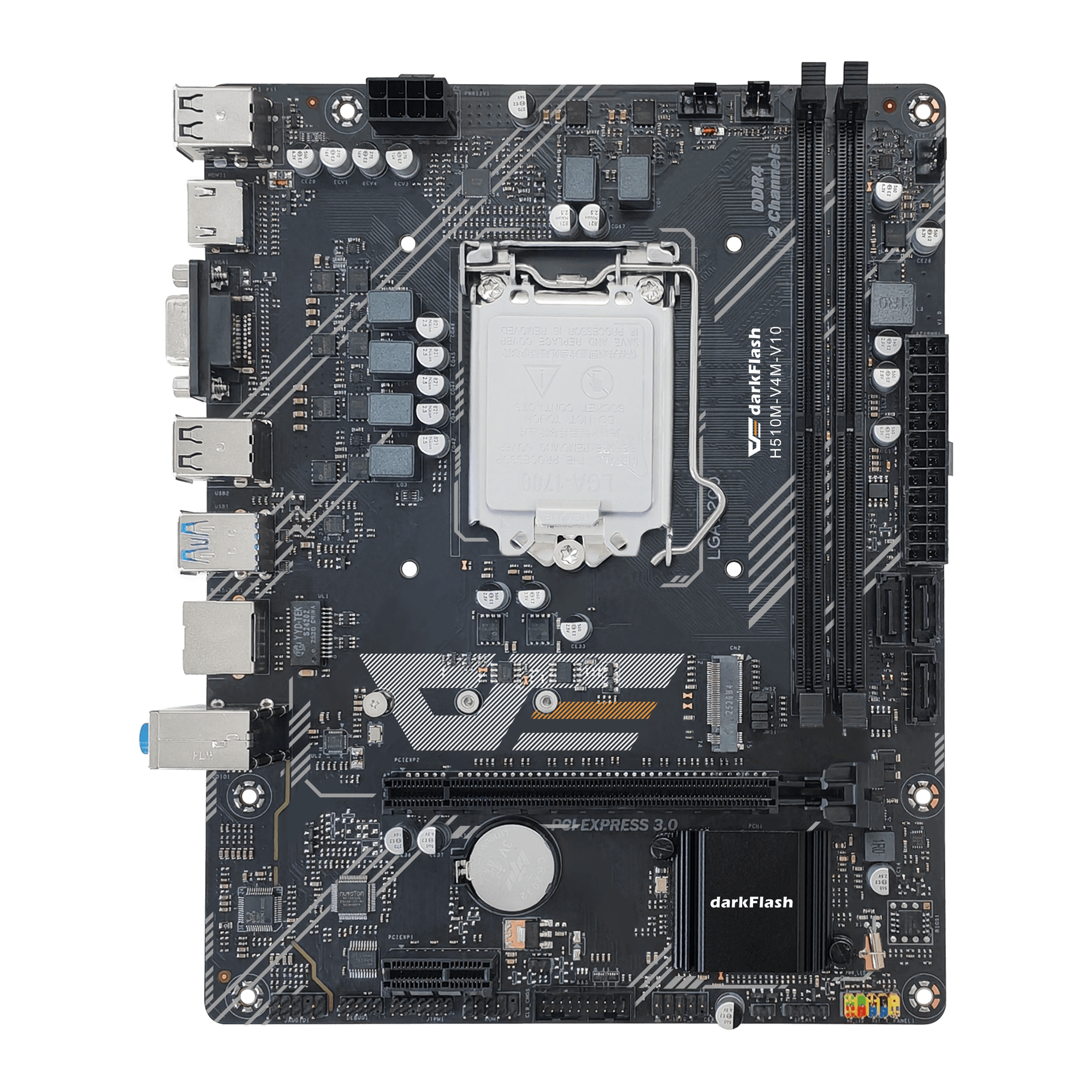

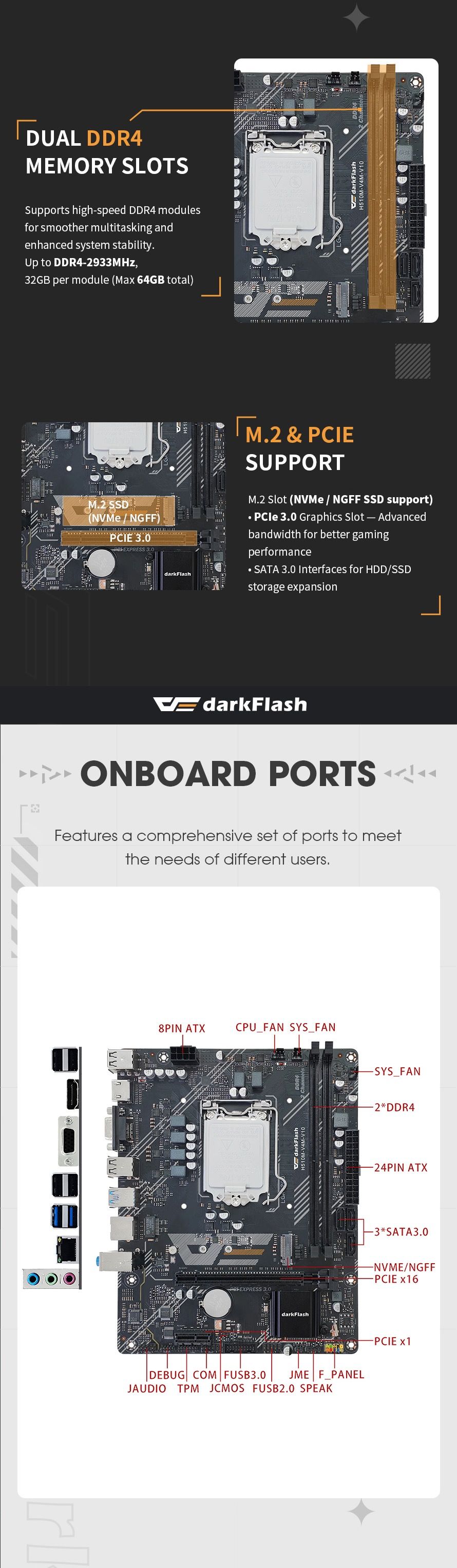

H510M-V4M-V10 Motherboard
- Supports 10th / 11th / 14th Gen Intel® Core™ & Pentium® processors (LGA1200)
- M.2 slots compatible with NVMe
- Dual-channel DDR4 memory slots for smooth multitasking
- SATA 3.0 interface for high-speed data transfer
Spec
- Model
- Vanguard H510M-V4M
- Chipset
- Intel® H510
- CPU
- Intel® Core™ 10th Gen Processors LGA 1200
- Memory
- 2 x DDR4 DIMM Slots 3200 MHz / 64GB Max (32GB per slot)
- Graphics
- 1 x HDMI 1 x VGA
- Expansion Slots
- 1 x PCIe 3.0 x16 slot 1 x PCIe 3.0 x1 slot
- Storage
- 1 x M.2 Slot (NVMe/NGFF) 3 x SATA 3.0 6Gb/s ports
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in 1 x Front Audio Header Realtek 7.1 HD Audio
- LAN
- 1 x RJ45 LAN port
- USB
- Rear USB 2 x USB 3.0 4 x USB 2.0 Internal Headers 1 x USB 2.0 Header (Supports 2 x USB 2.0 ports) 1 x USB 3.0 Header (Supports 2 x USB 3.0 ports)
