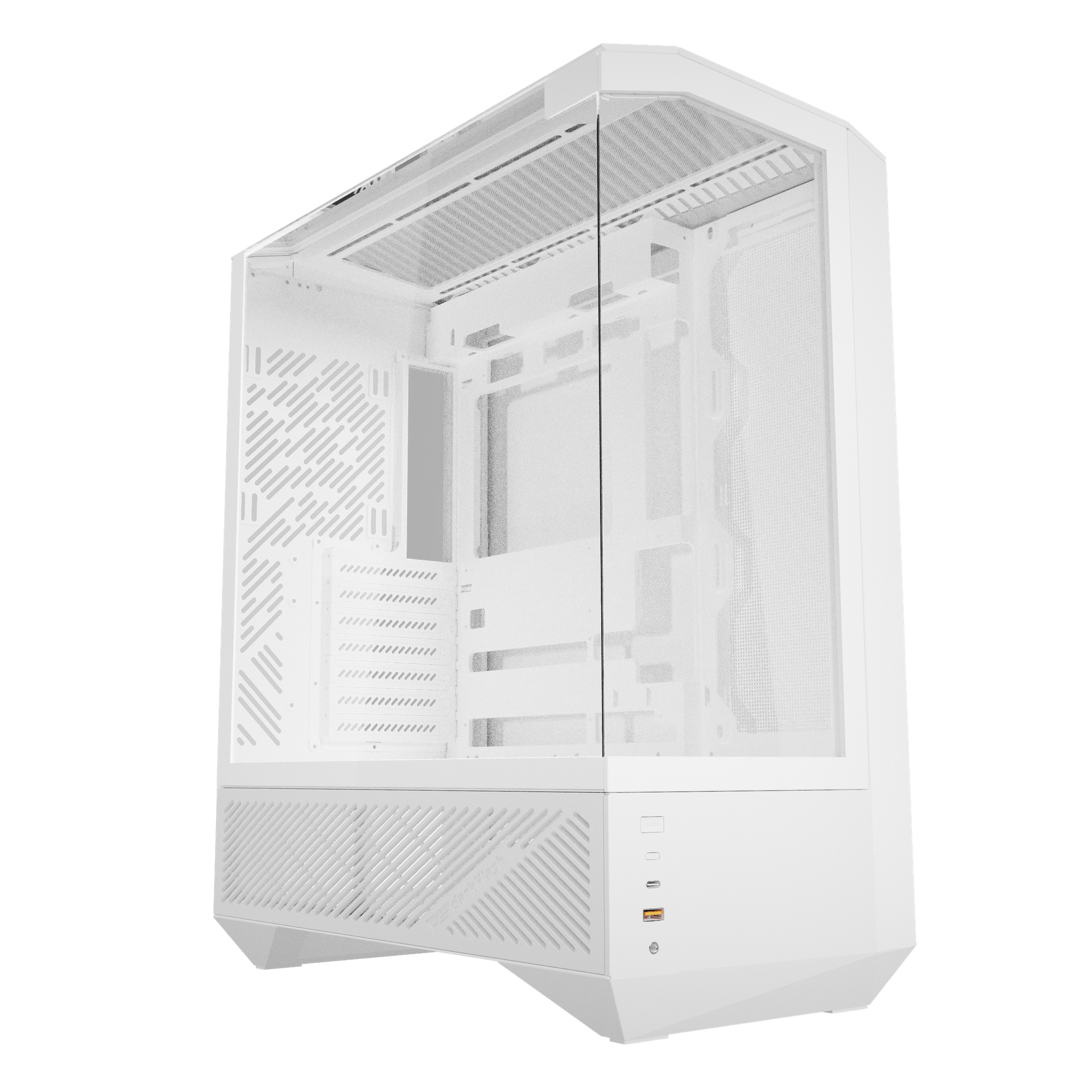

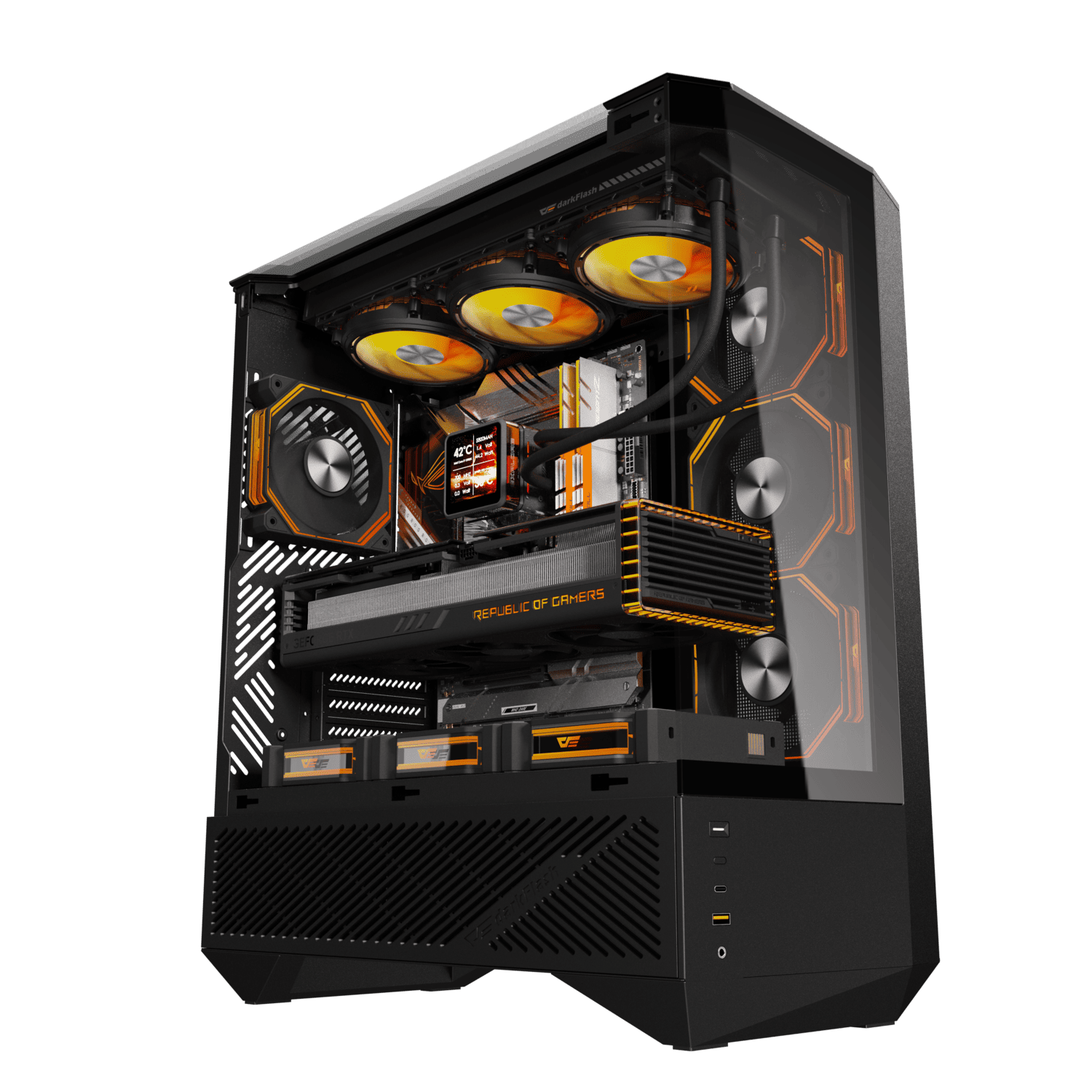

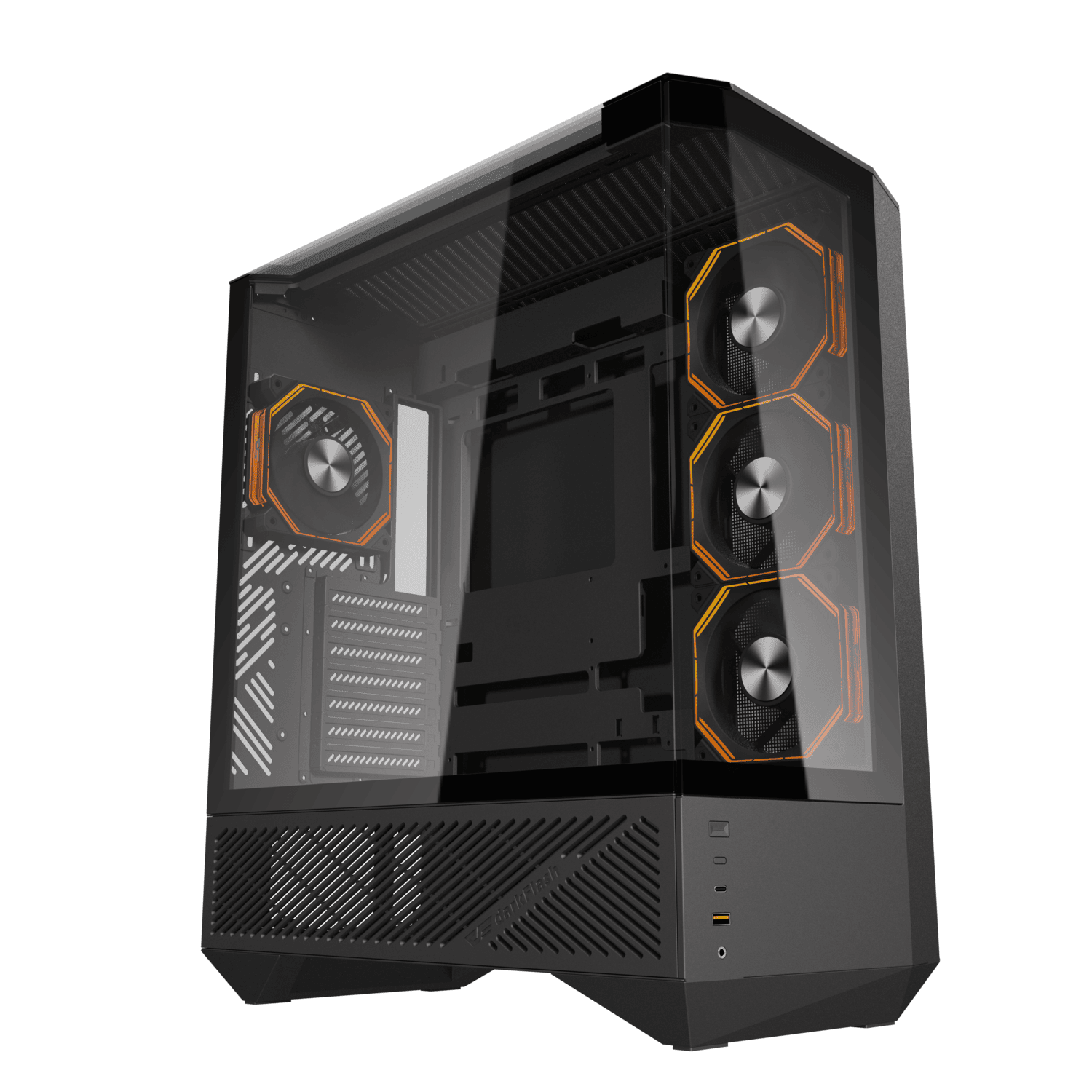

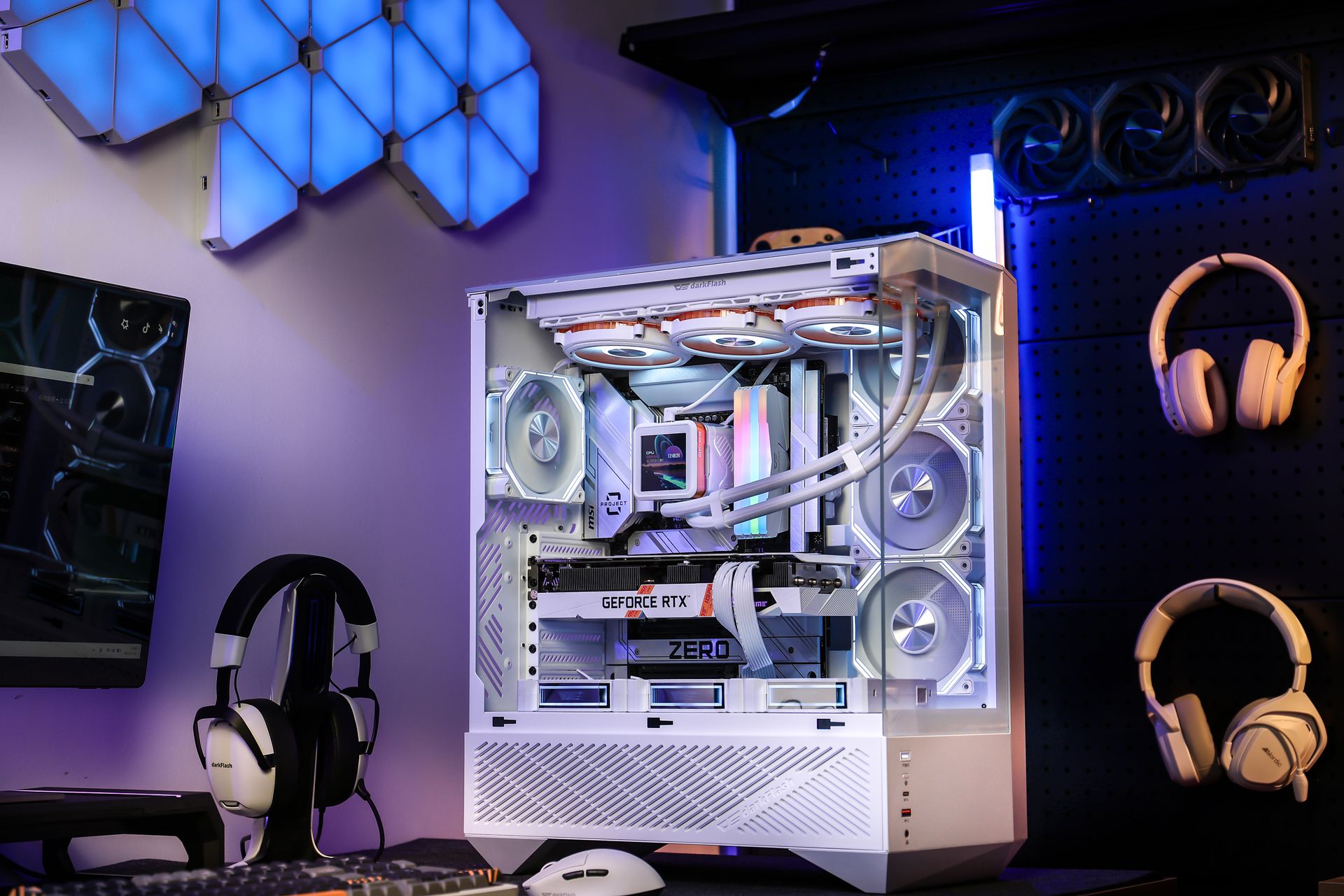

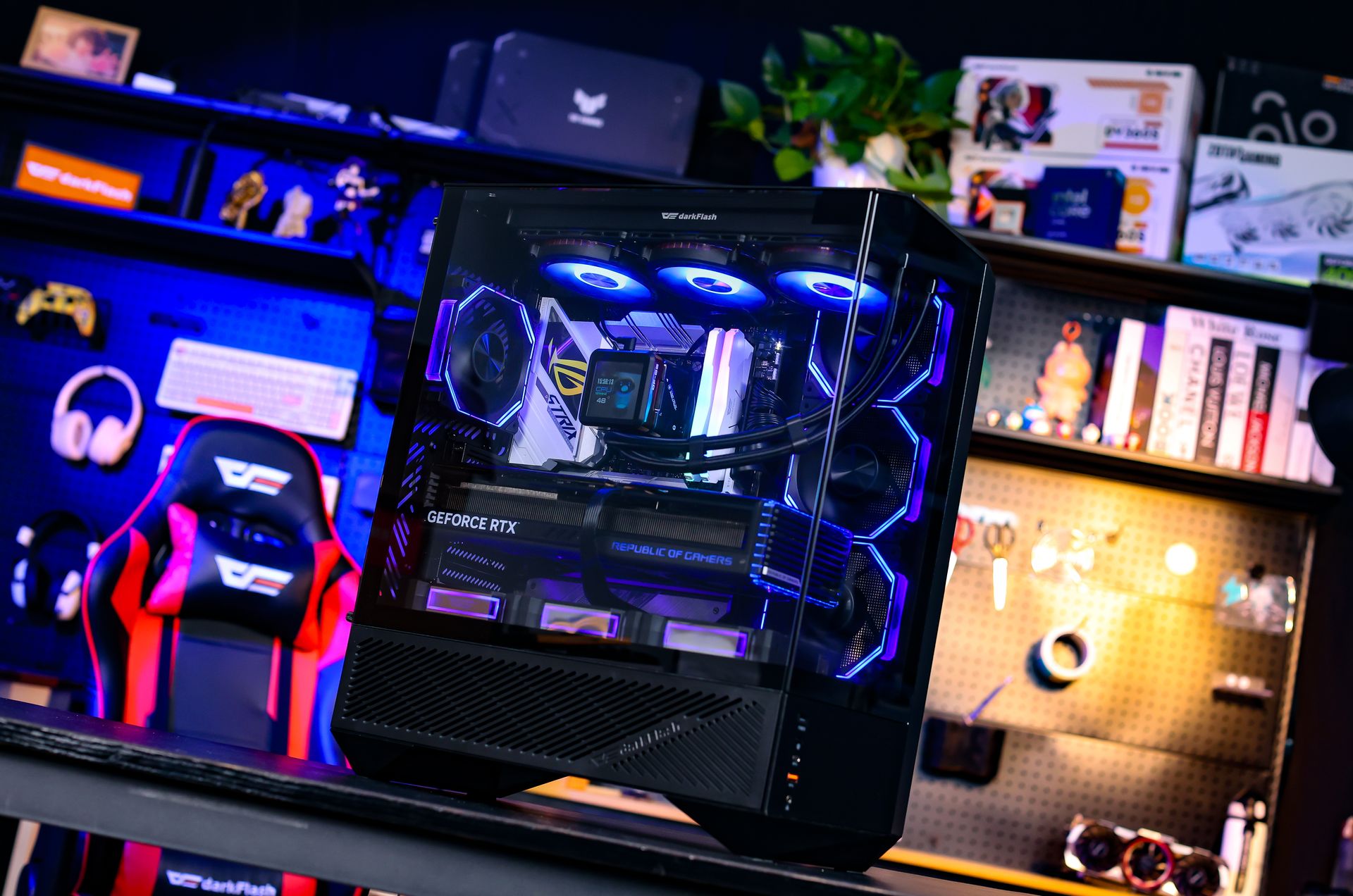

DY460 ATX PC Case
- Parallel to the DY470

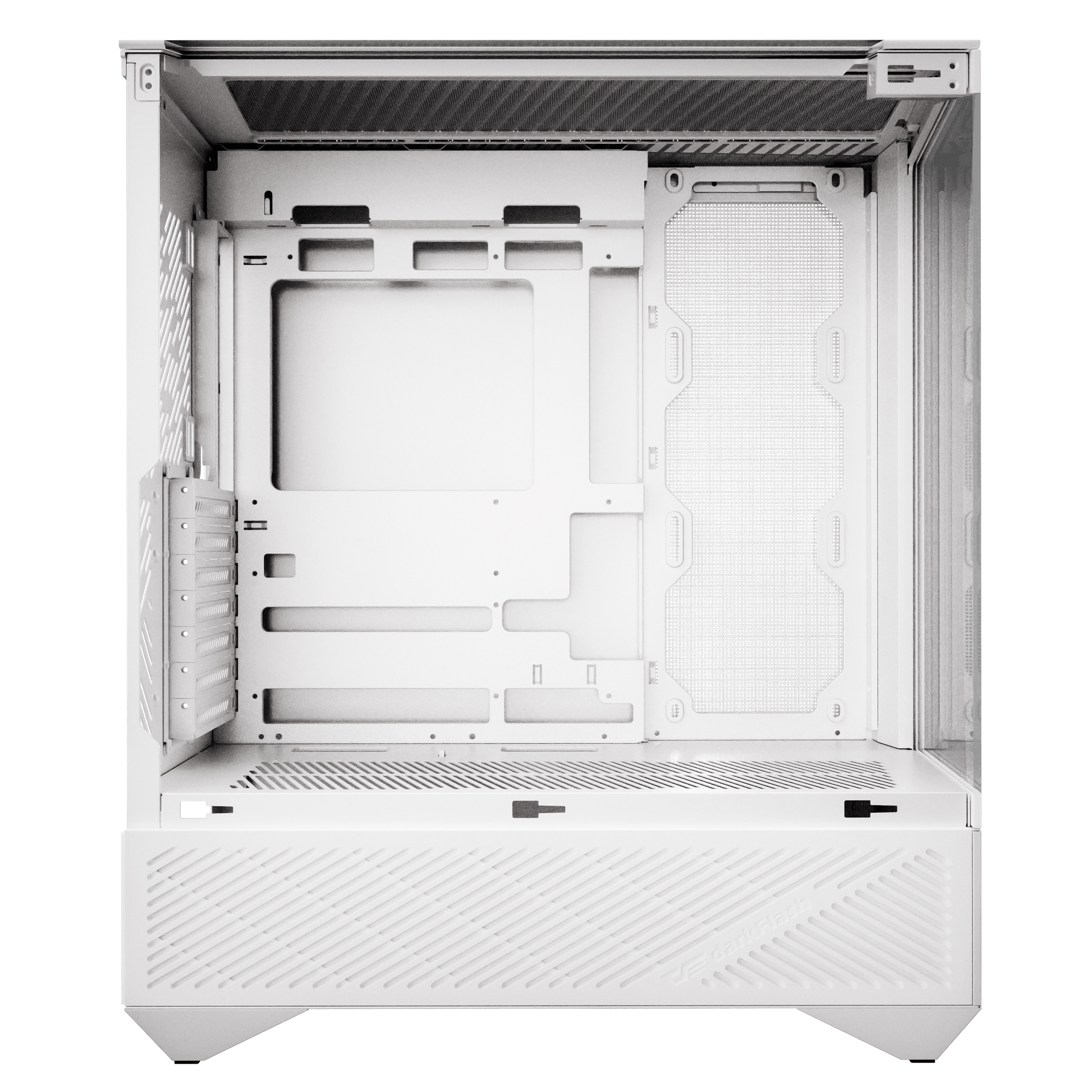

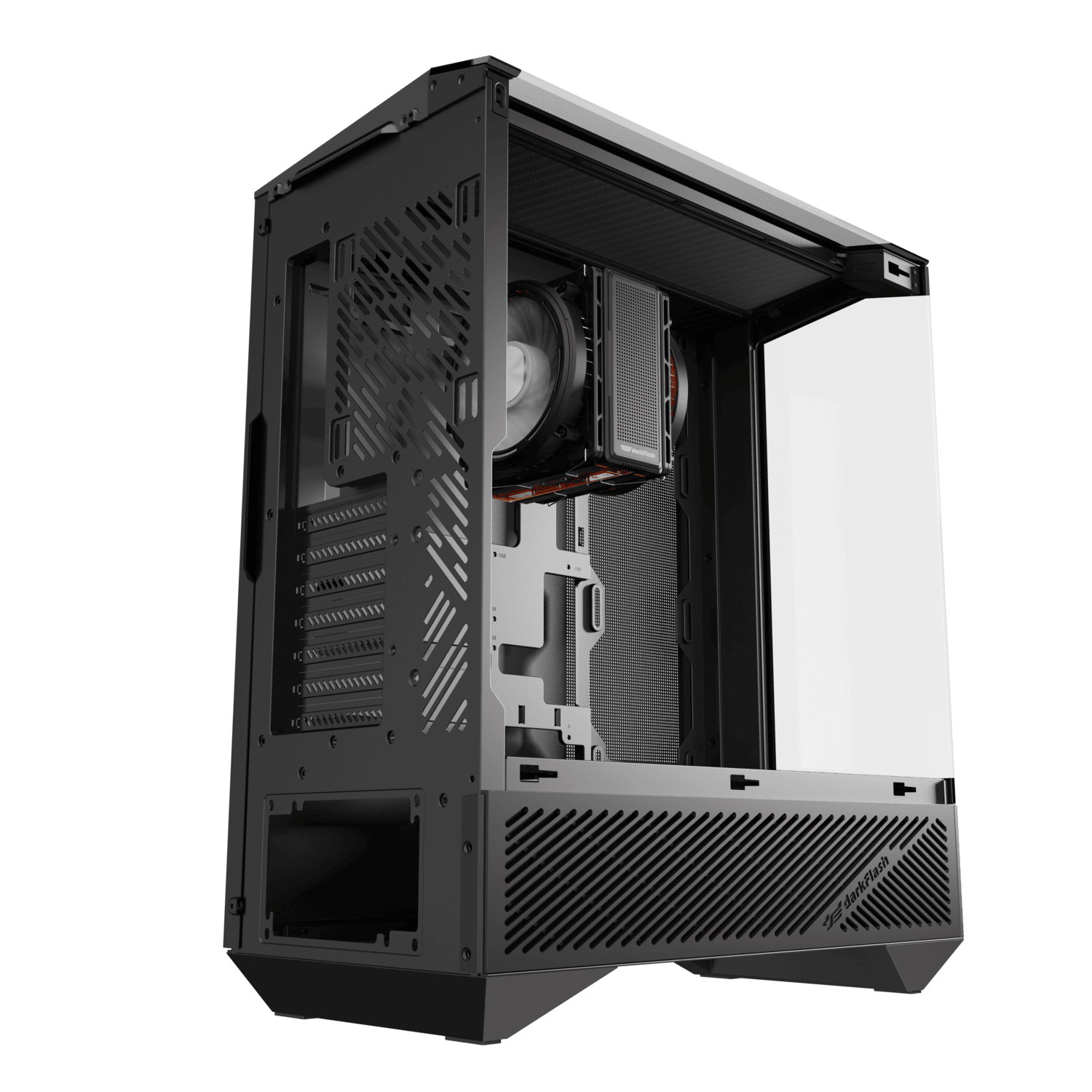

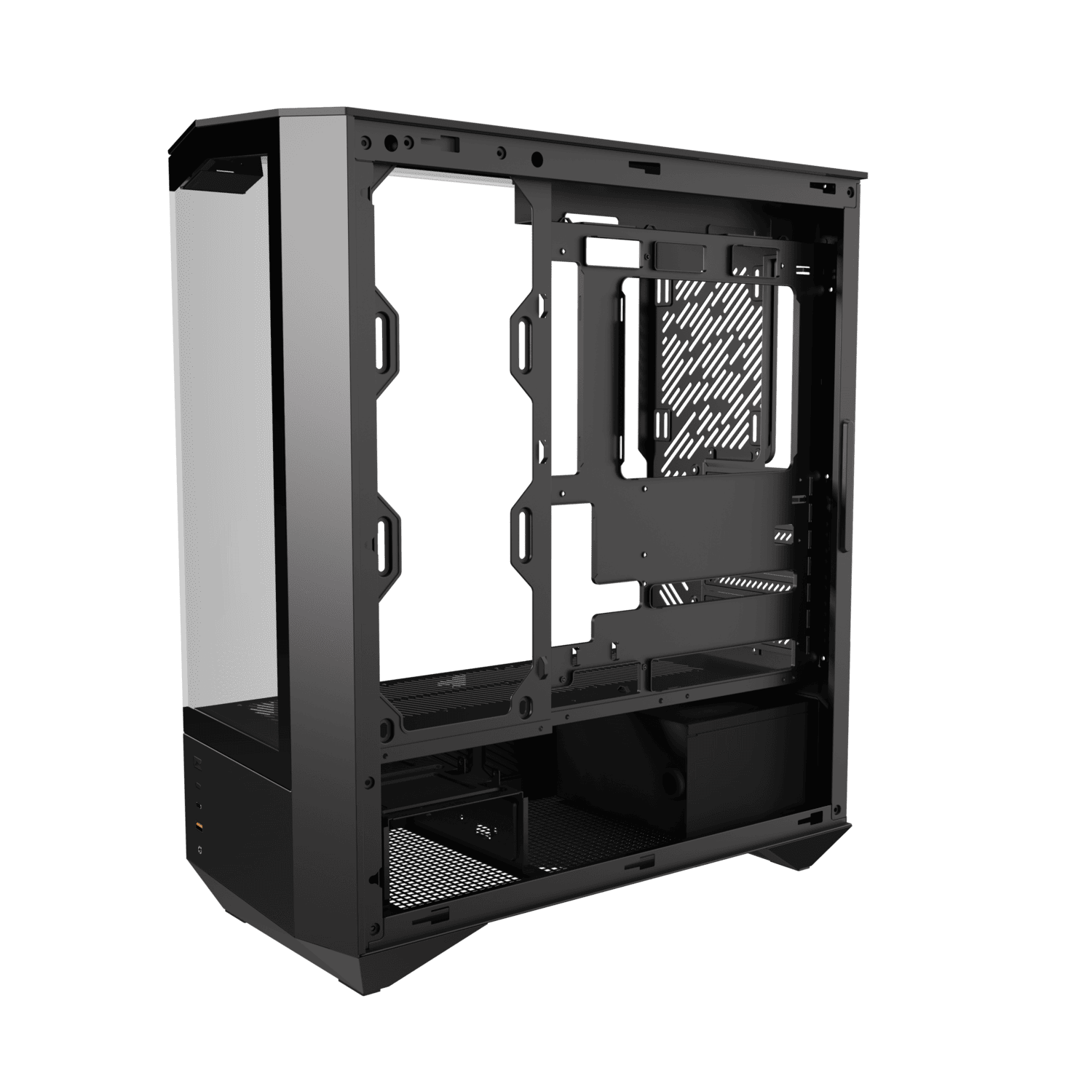

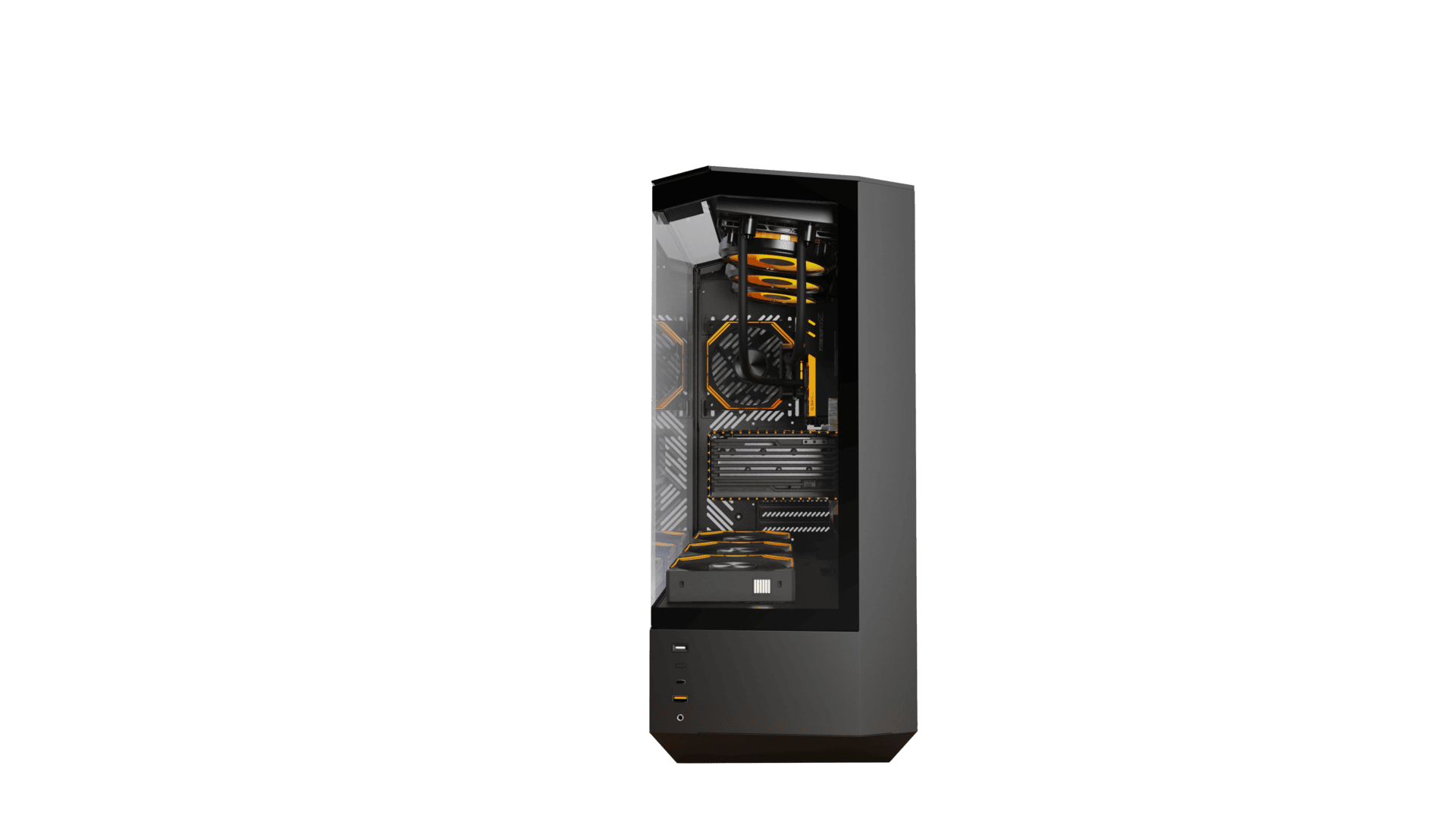

- Dual-chamber vertical layout for space efficiency

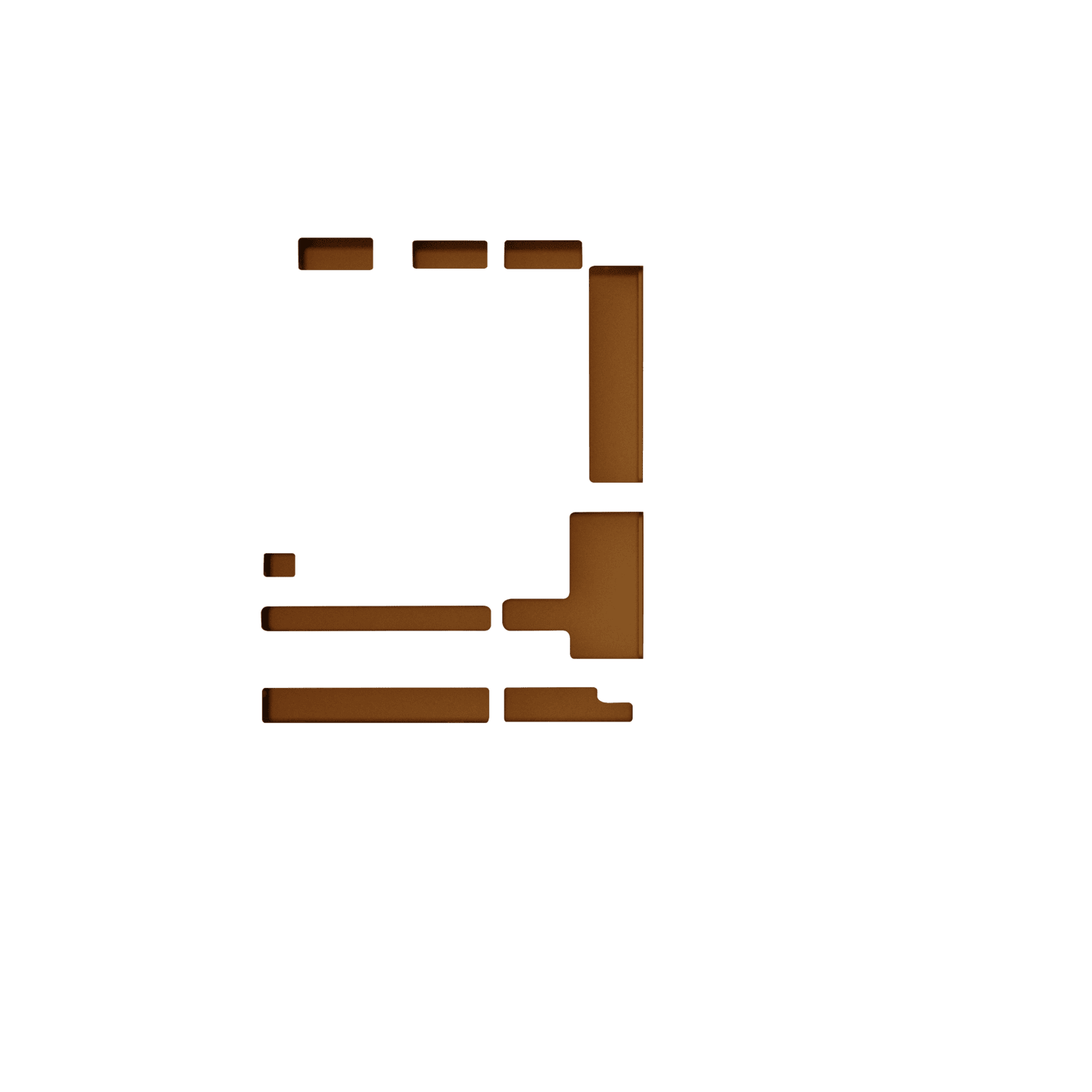

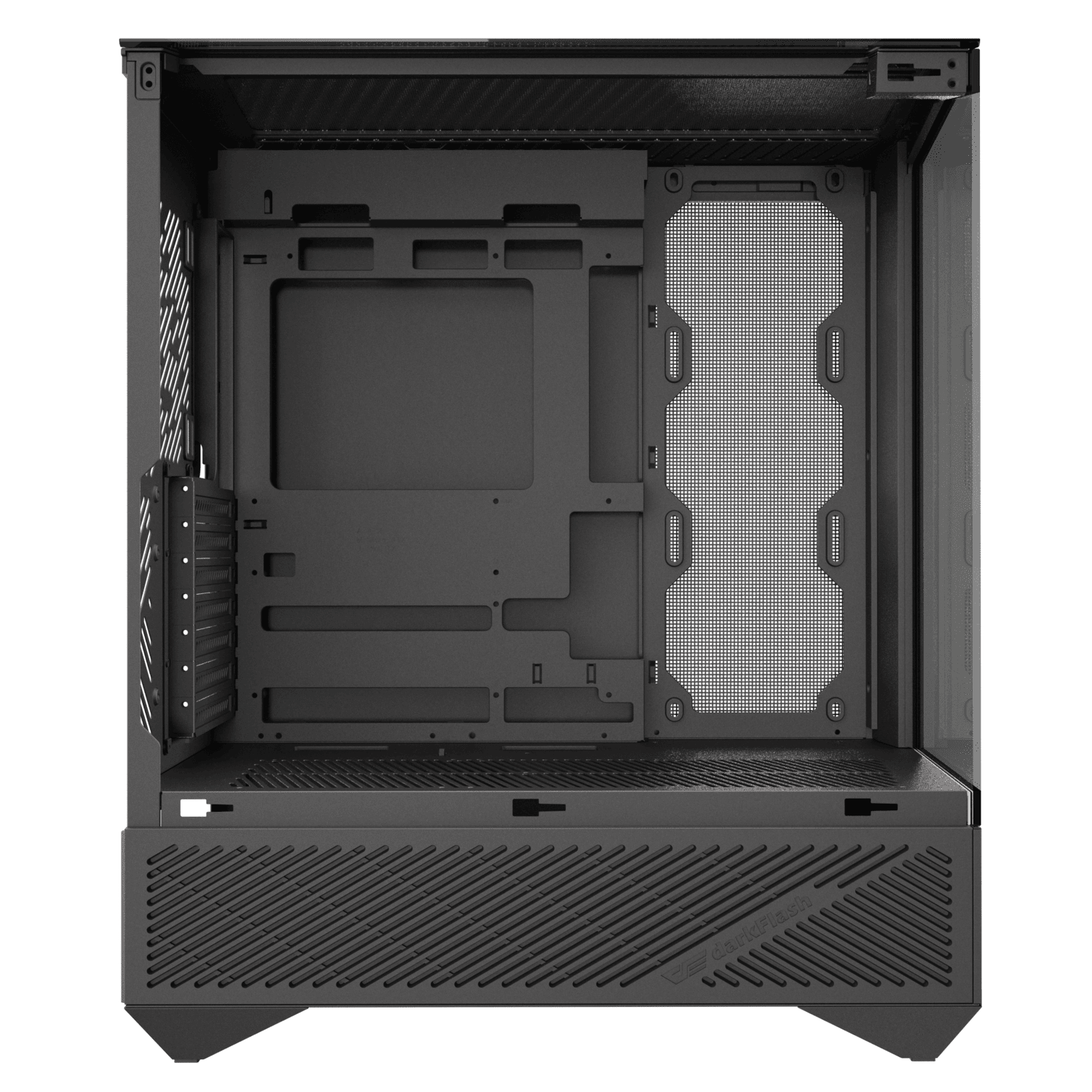

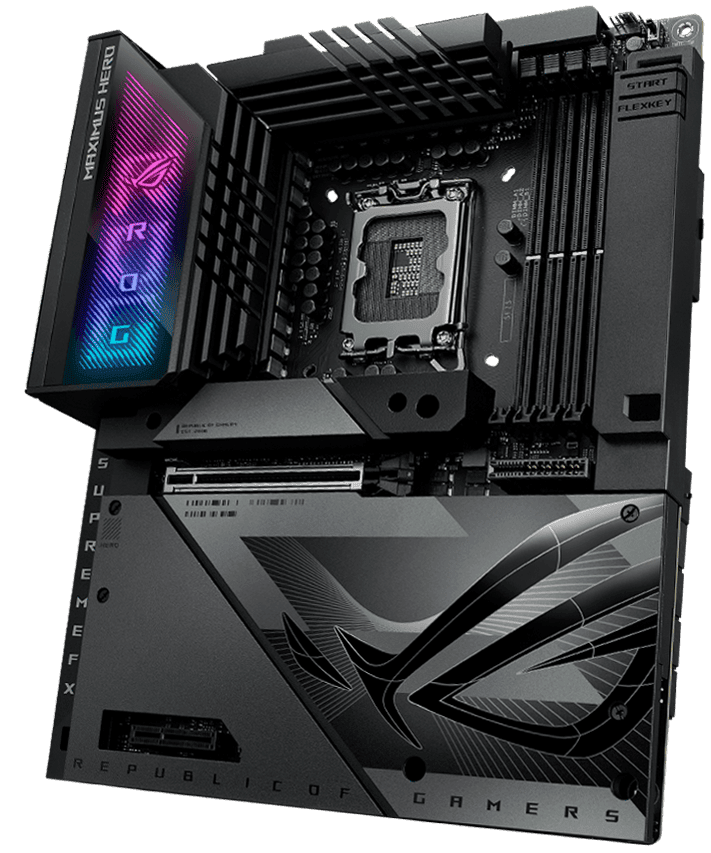

- Compatible with back-connect motherboards

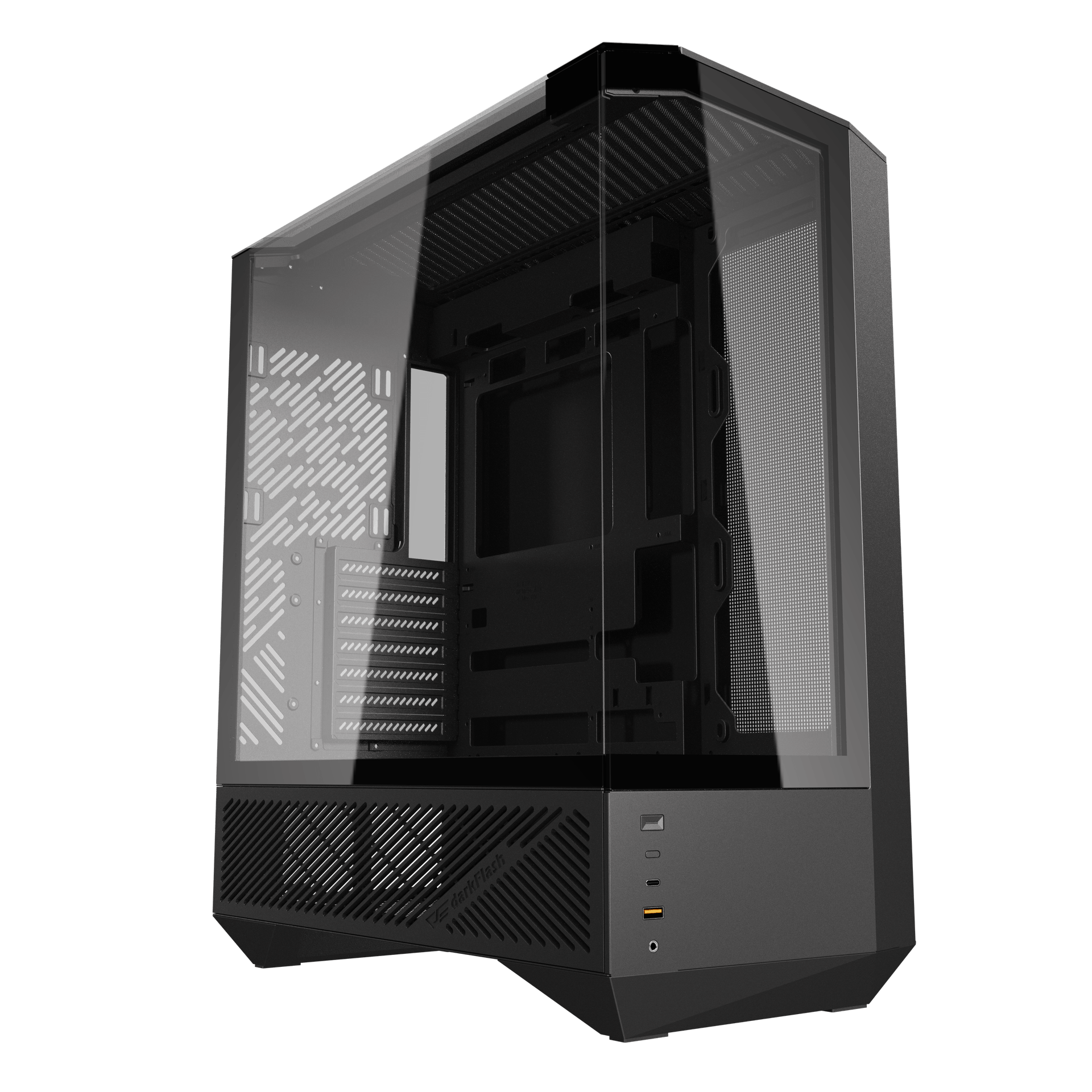

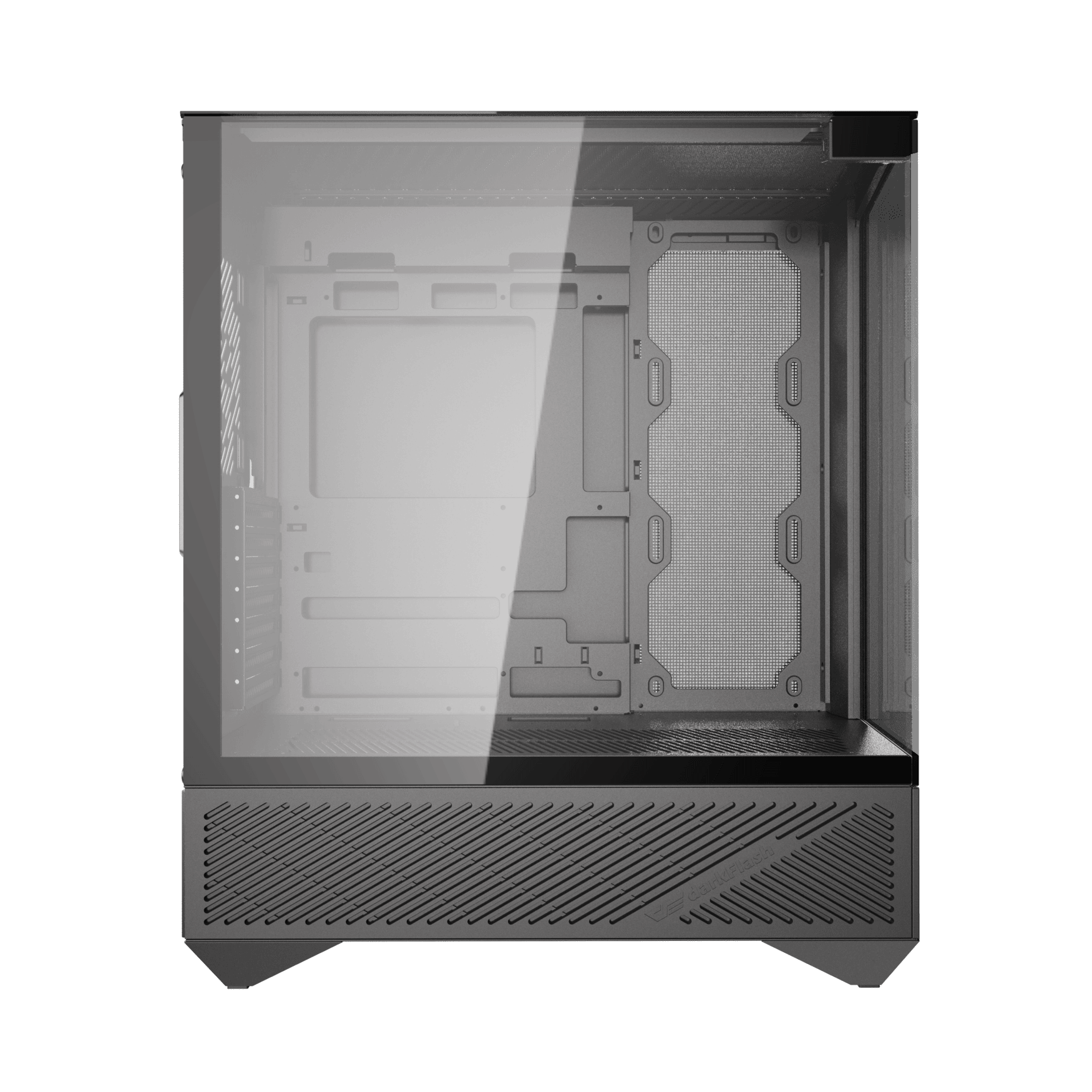

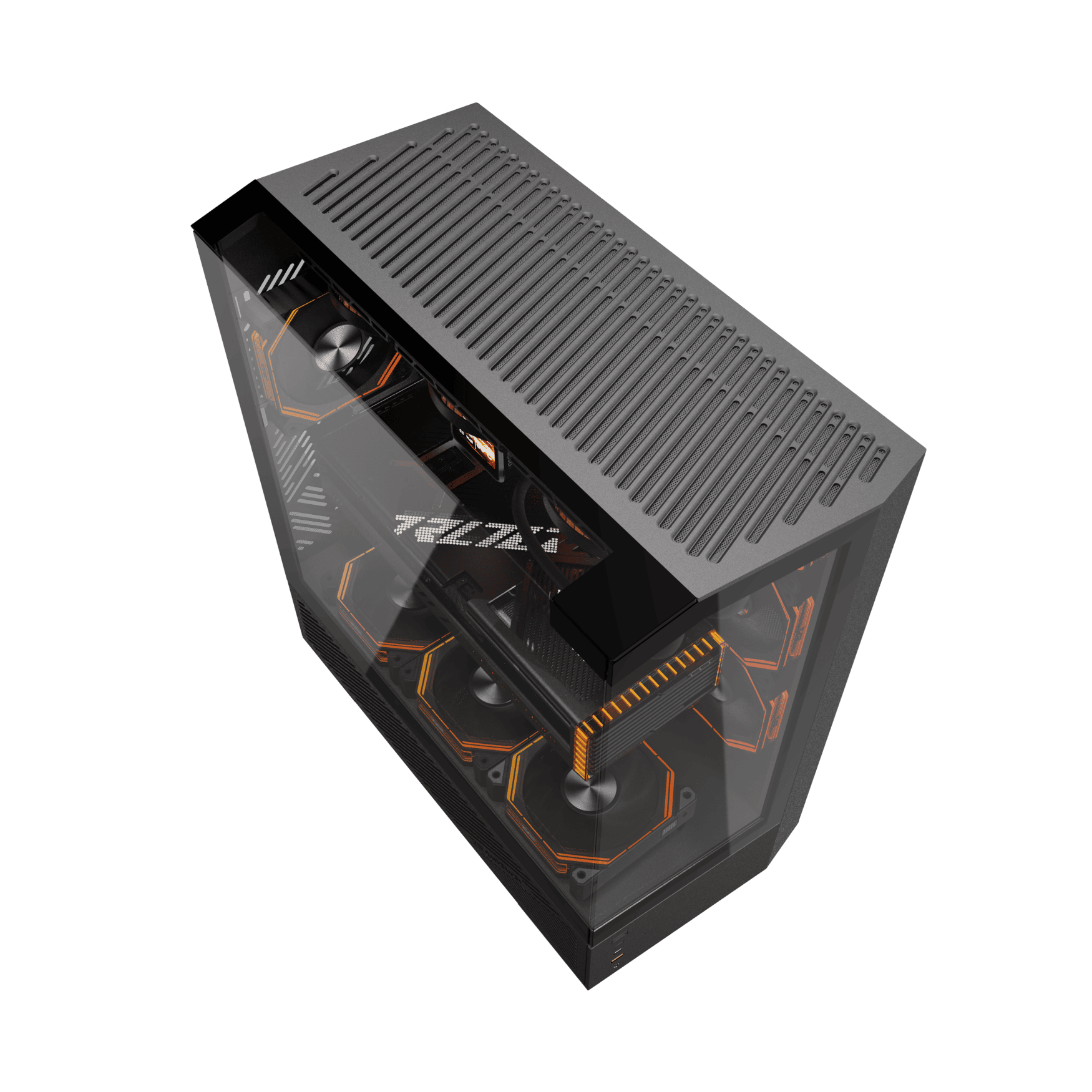

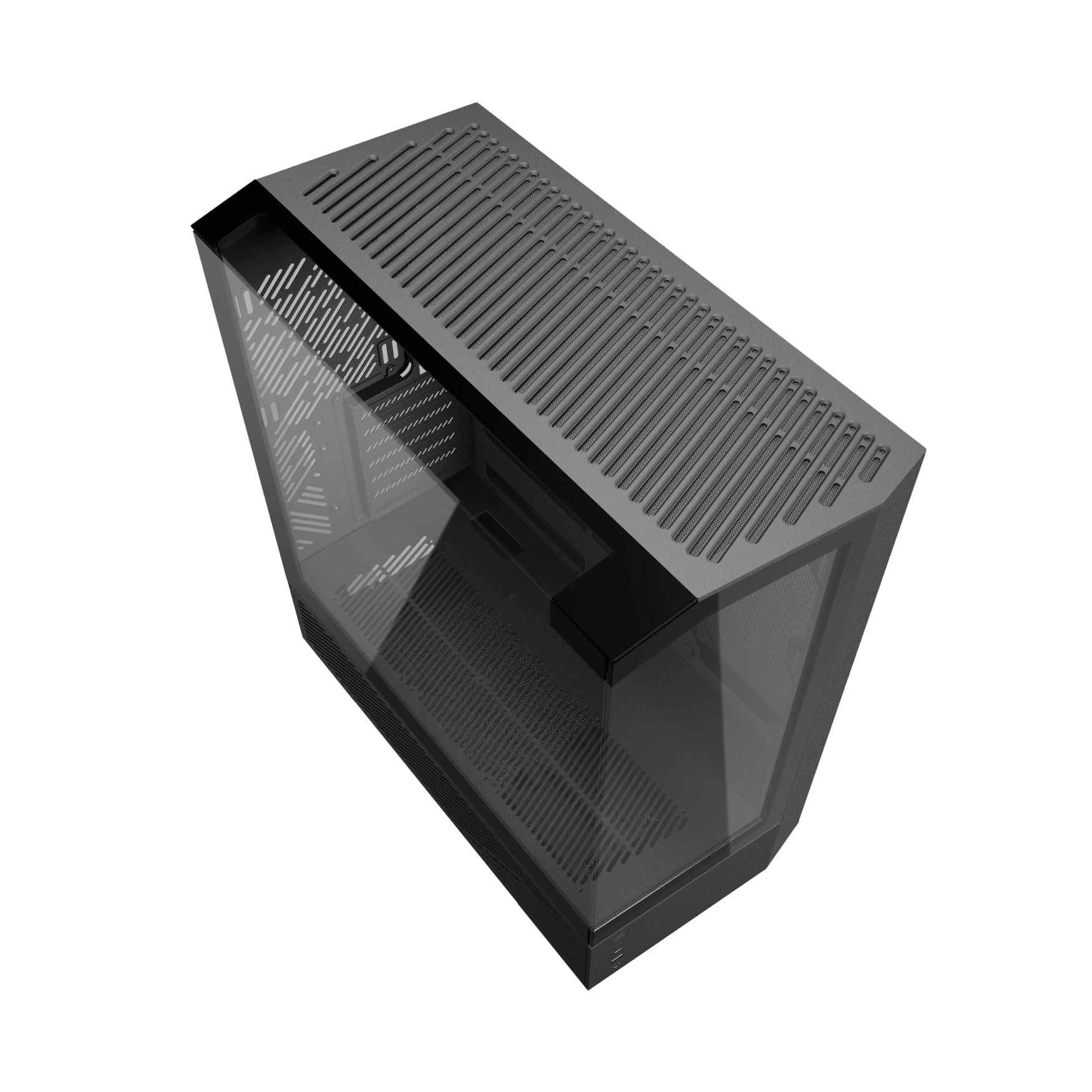

- Three-sided tempered glass design
- Supports 360mm radiators or up to 10×120mm fans

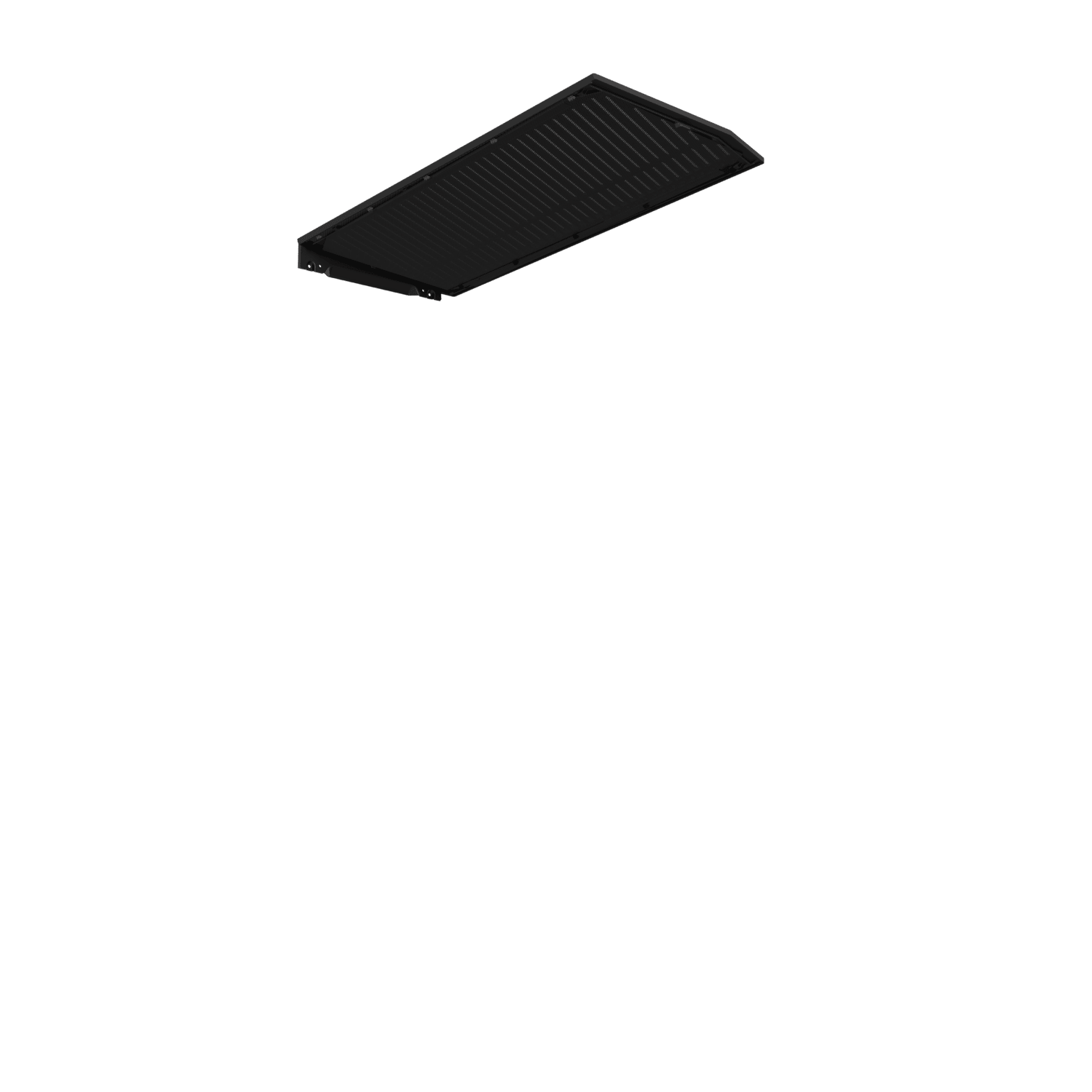

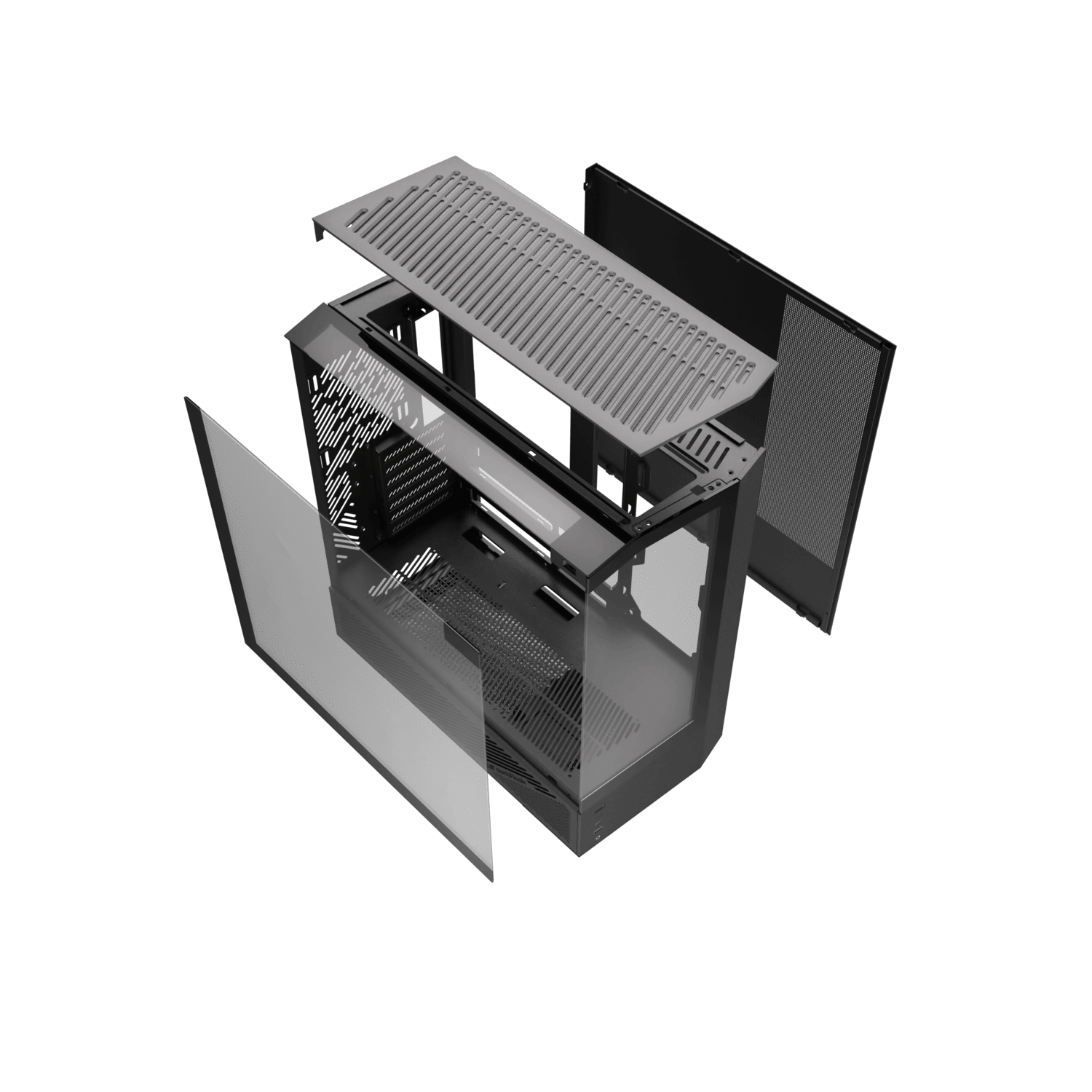

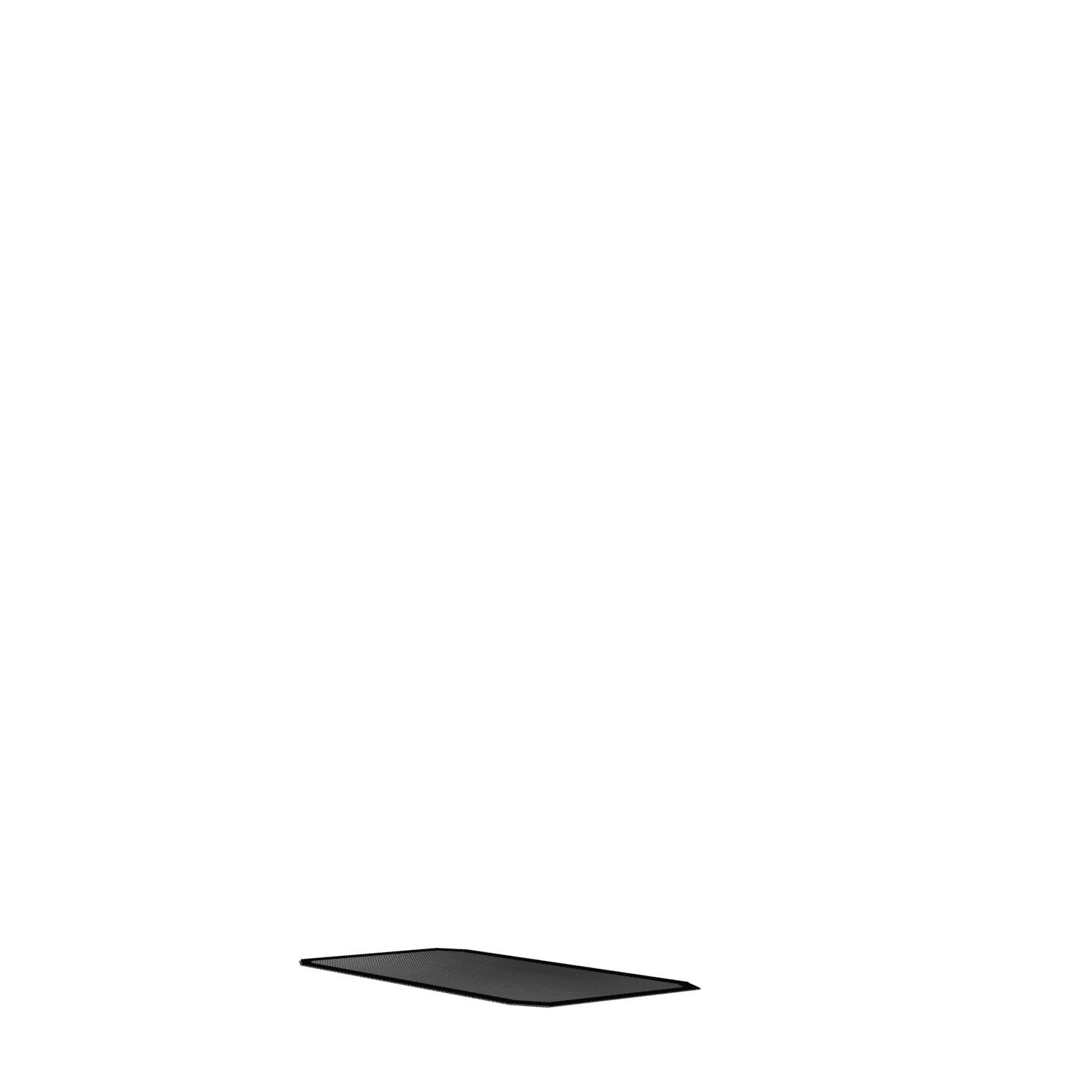

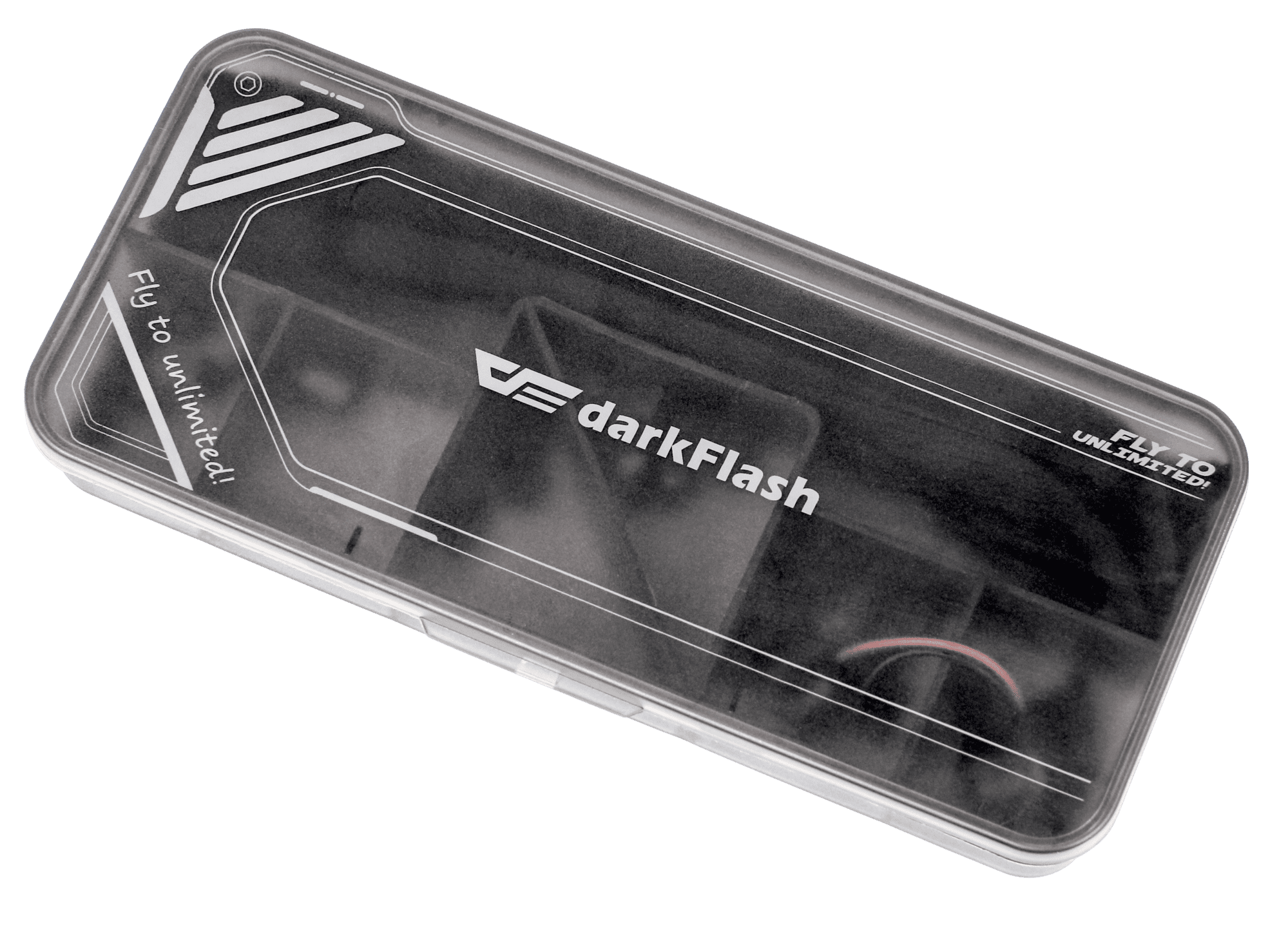

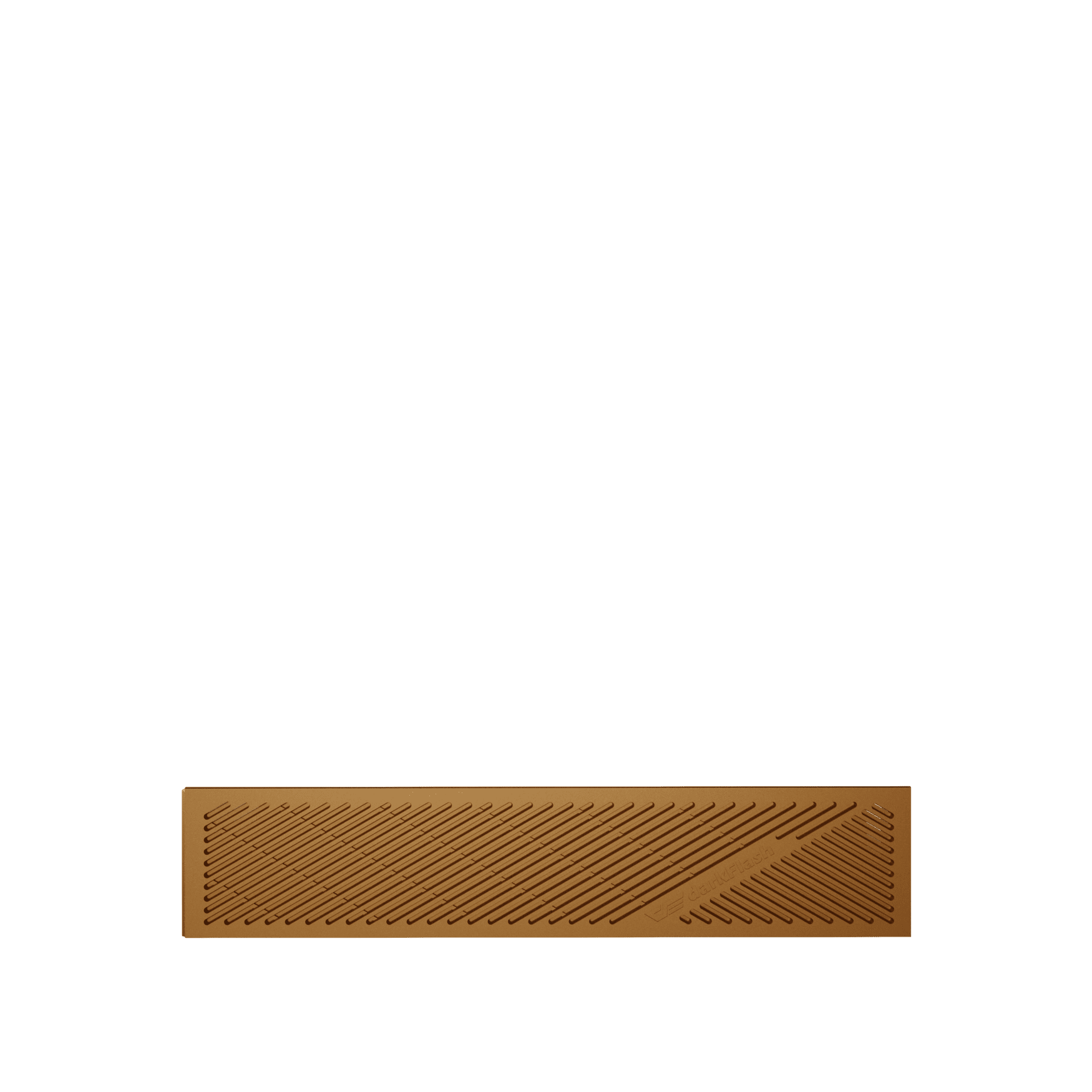

- Full dust protection design

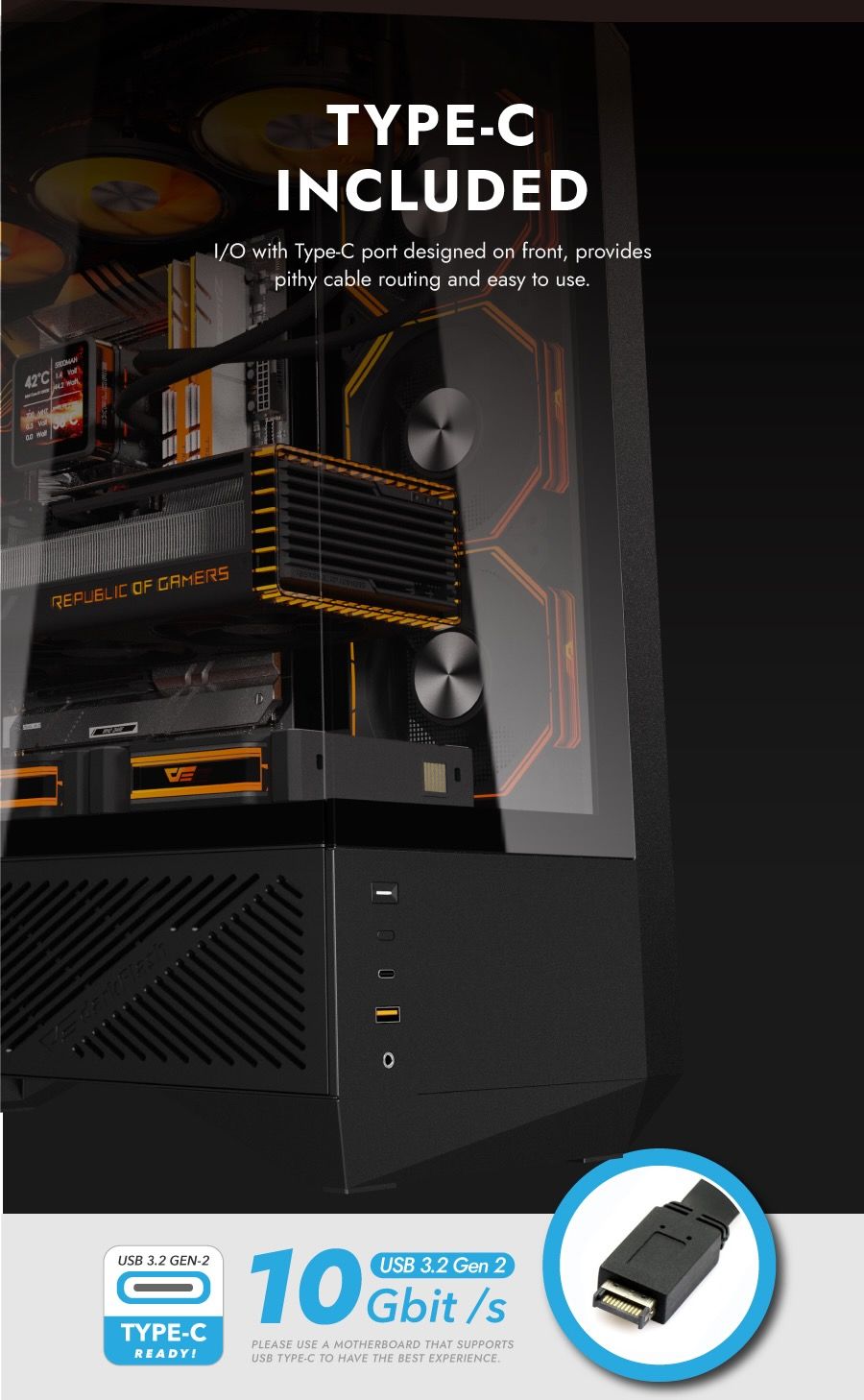

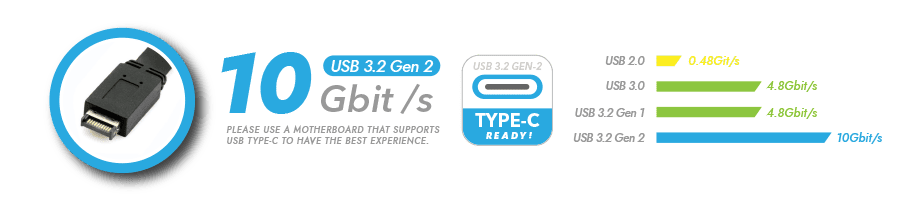

- USB 3.2 Gen 2 Type-C port included

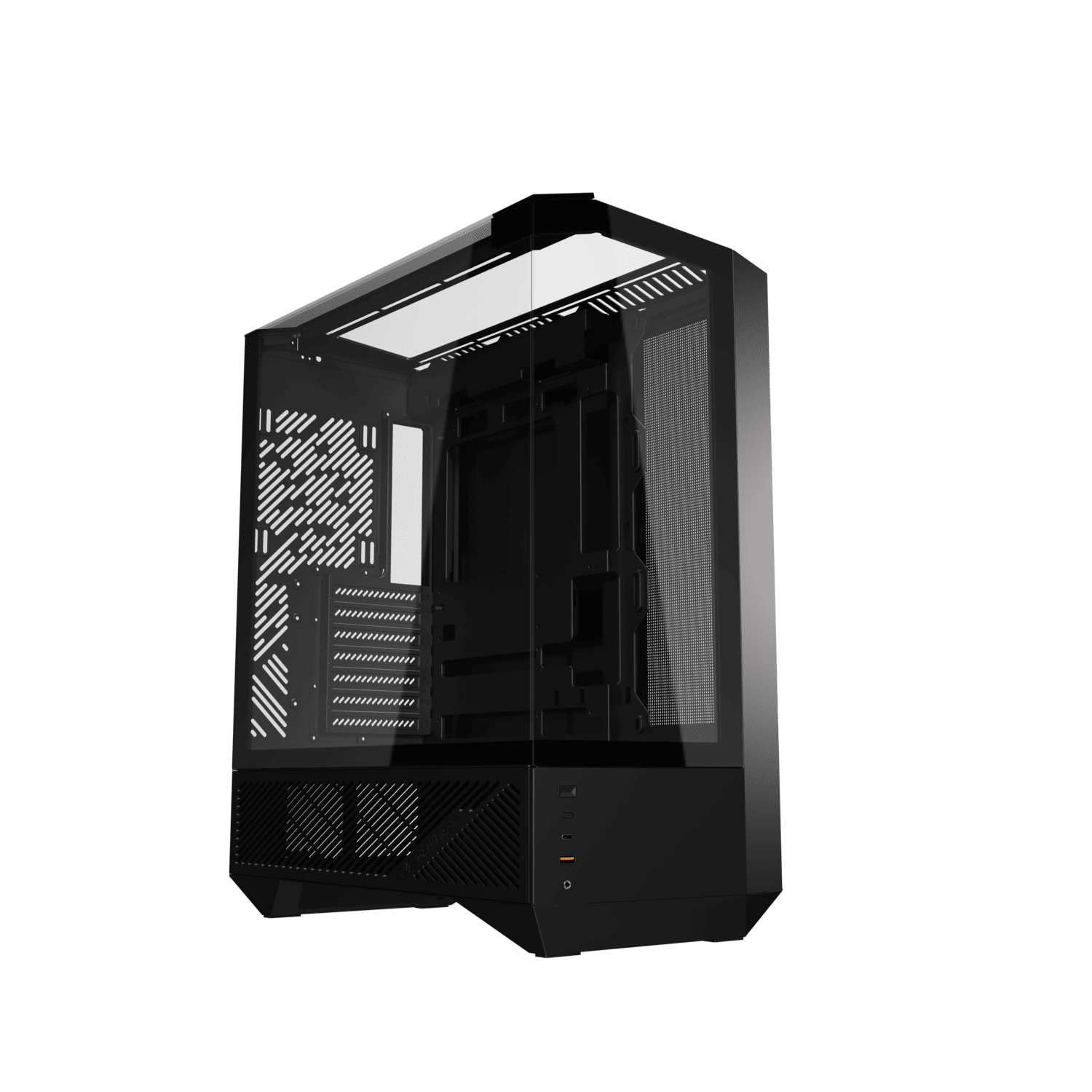

Colors - Black
Spec
- Key Specs
- Motherboard Support：ATXM-ATXITX
- Case Material：0.8mm SPCC

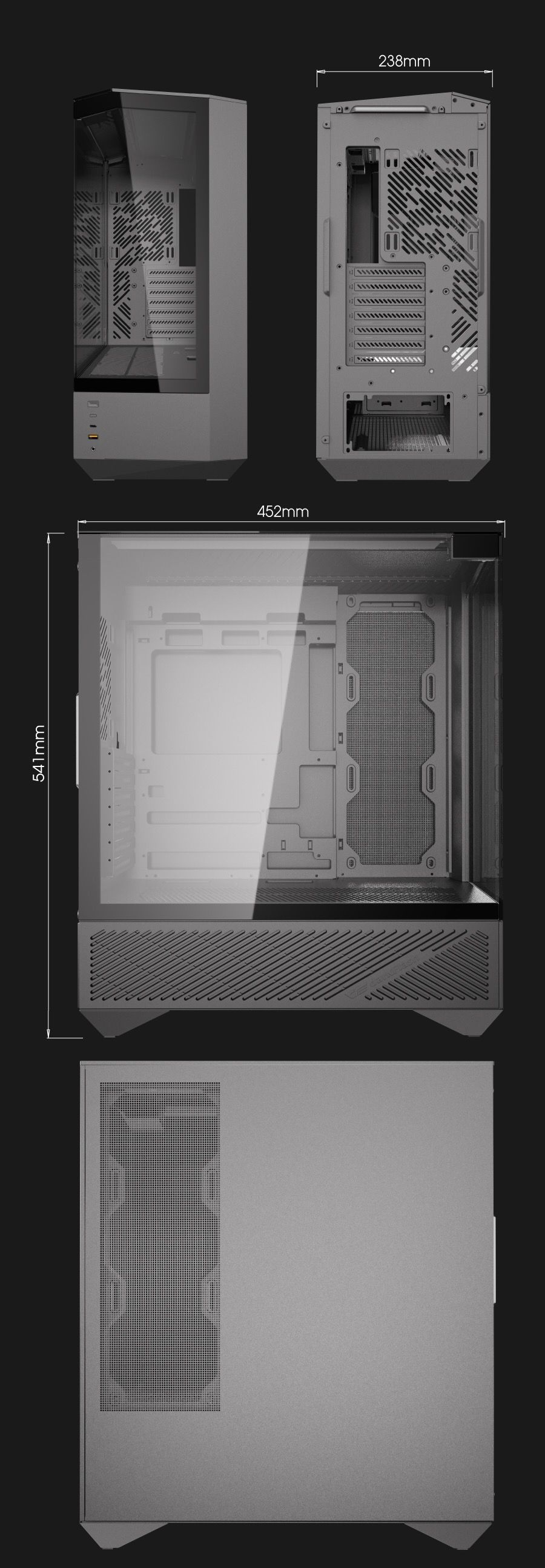

- Dimensions
- Case Size：452*238*505mm
- Overall Size：452*238*541mm
- Carton Size：605*313*533mm
- Compatibility & Clearance

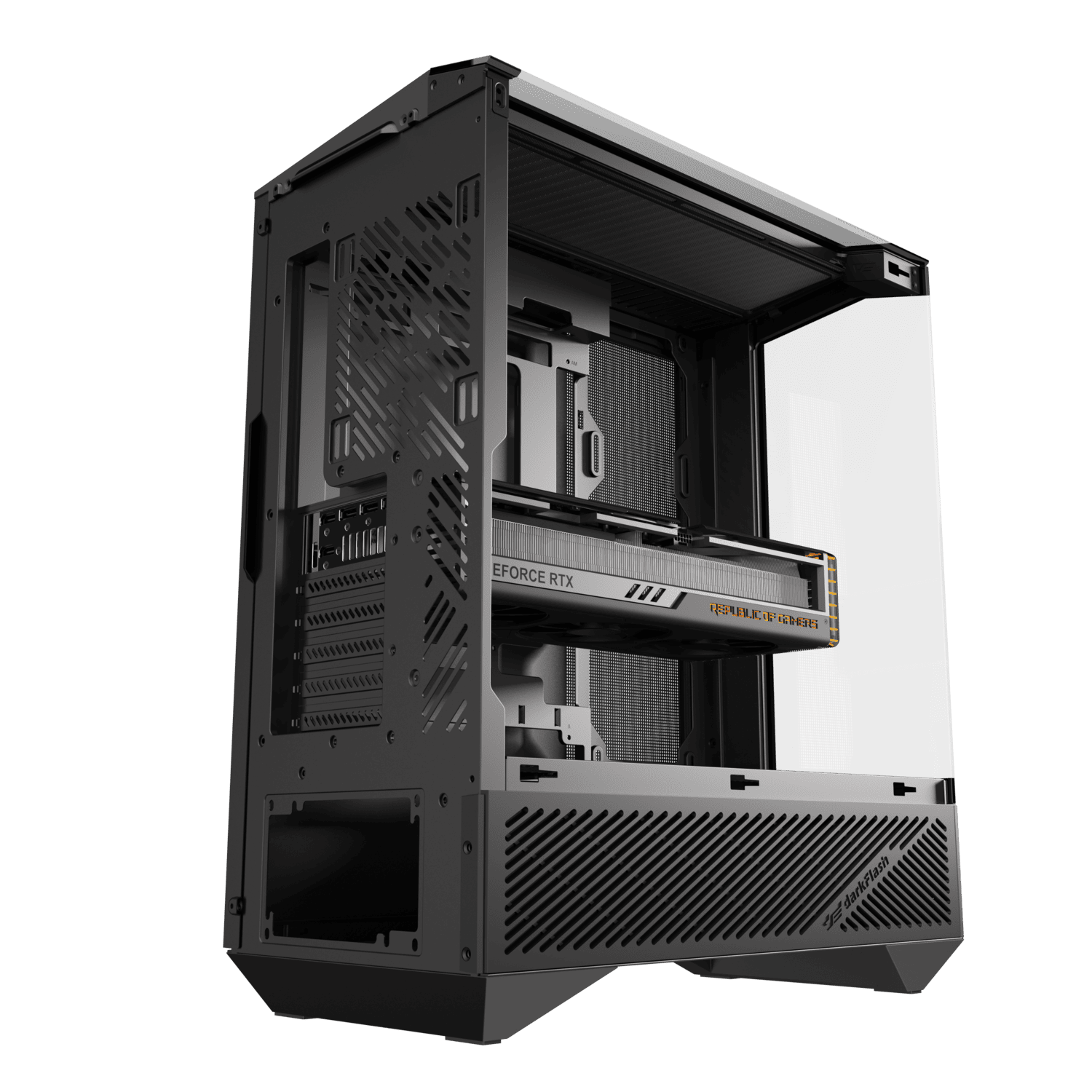

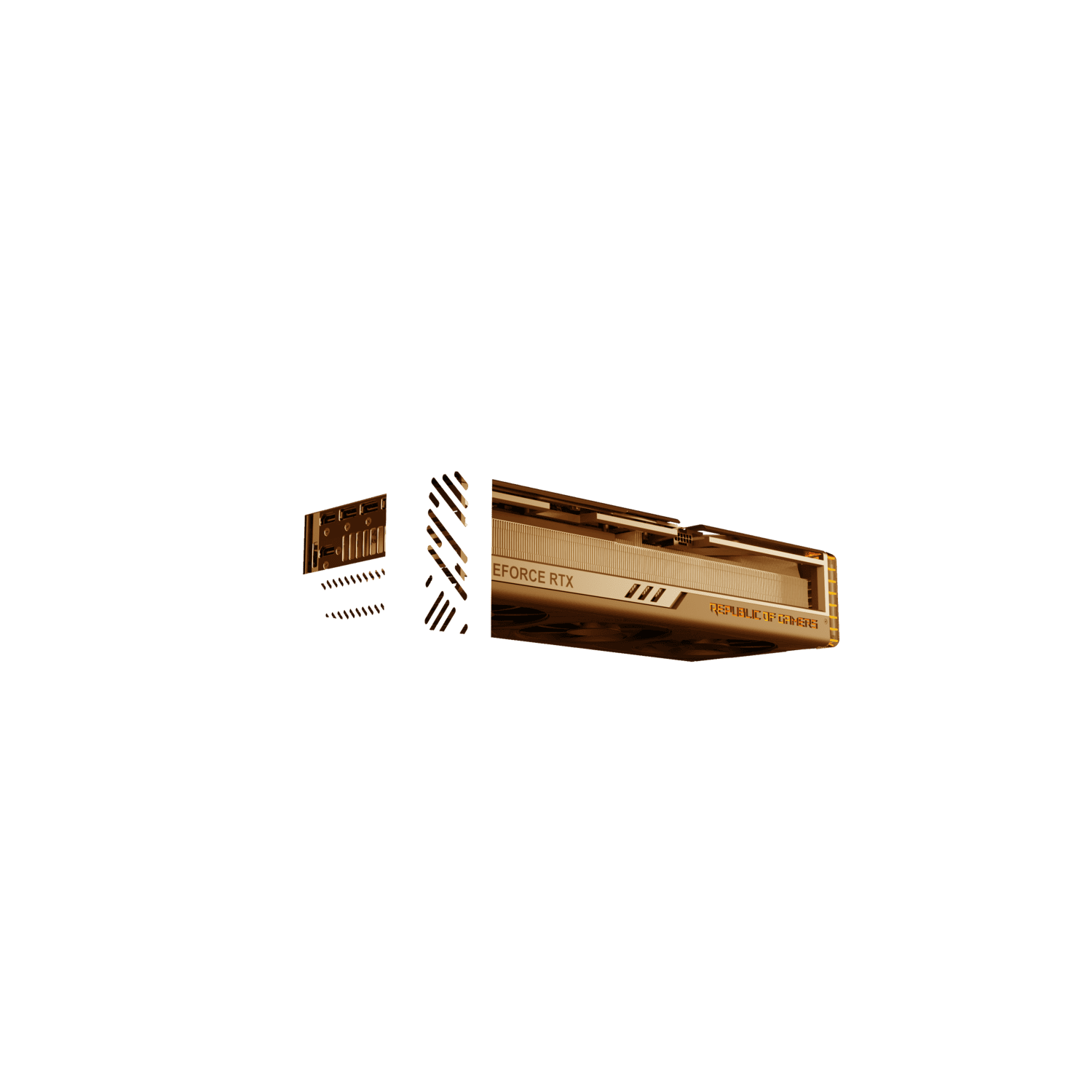

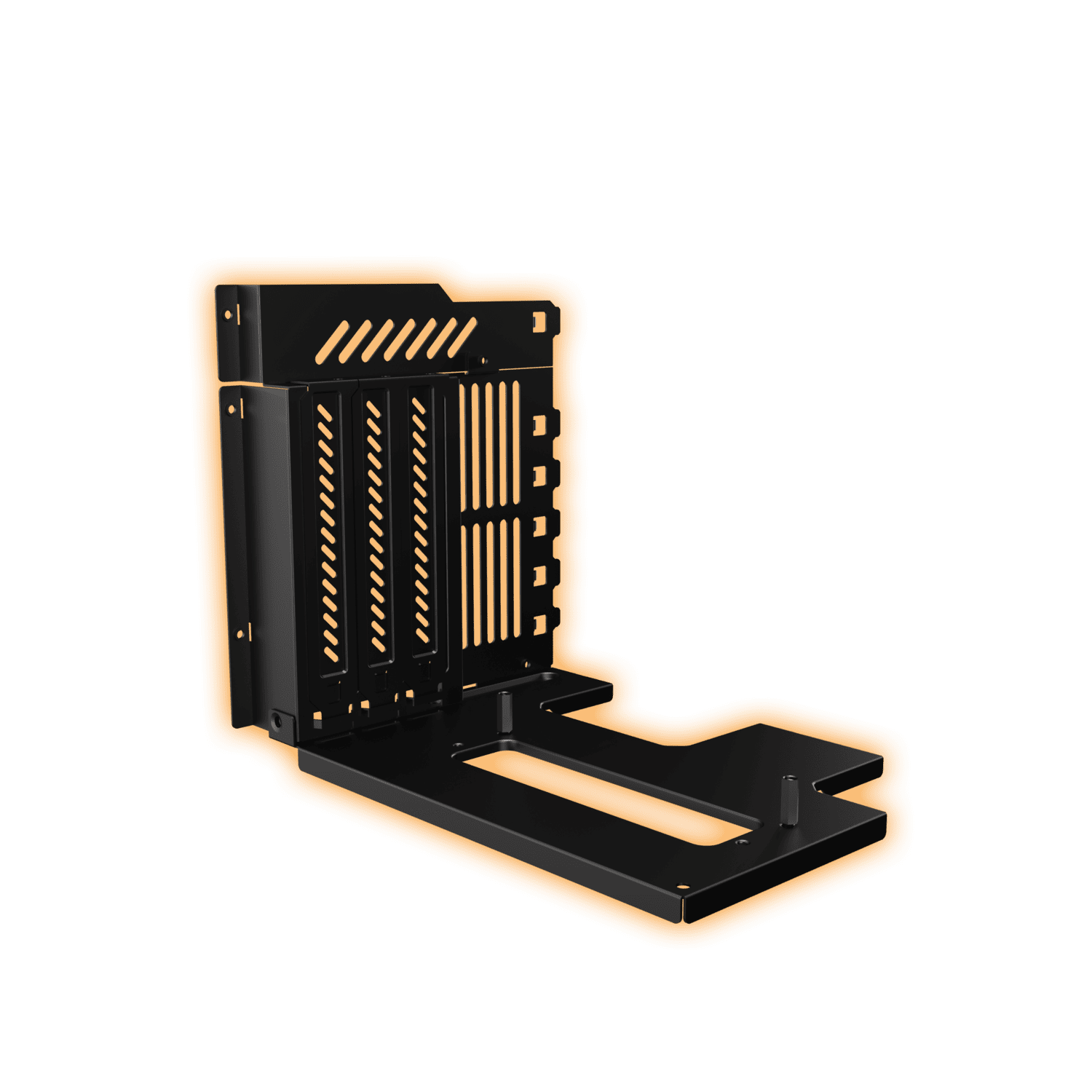

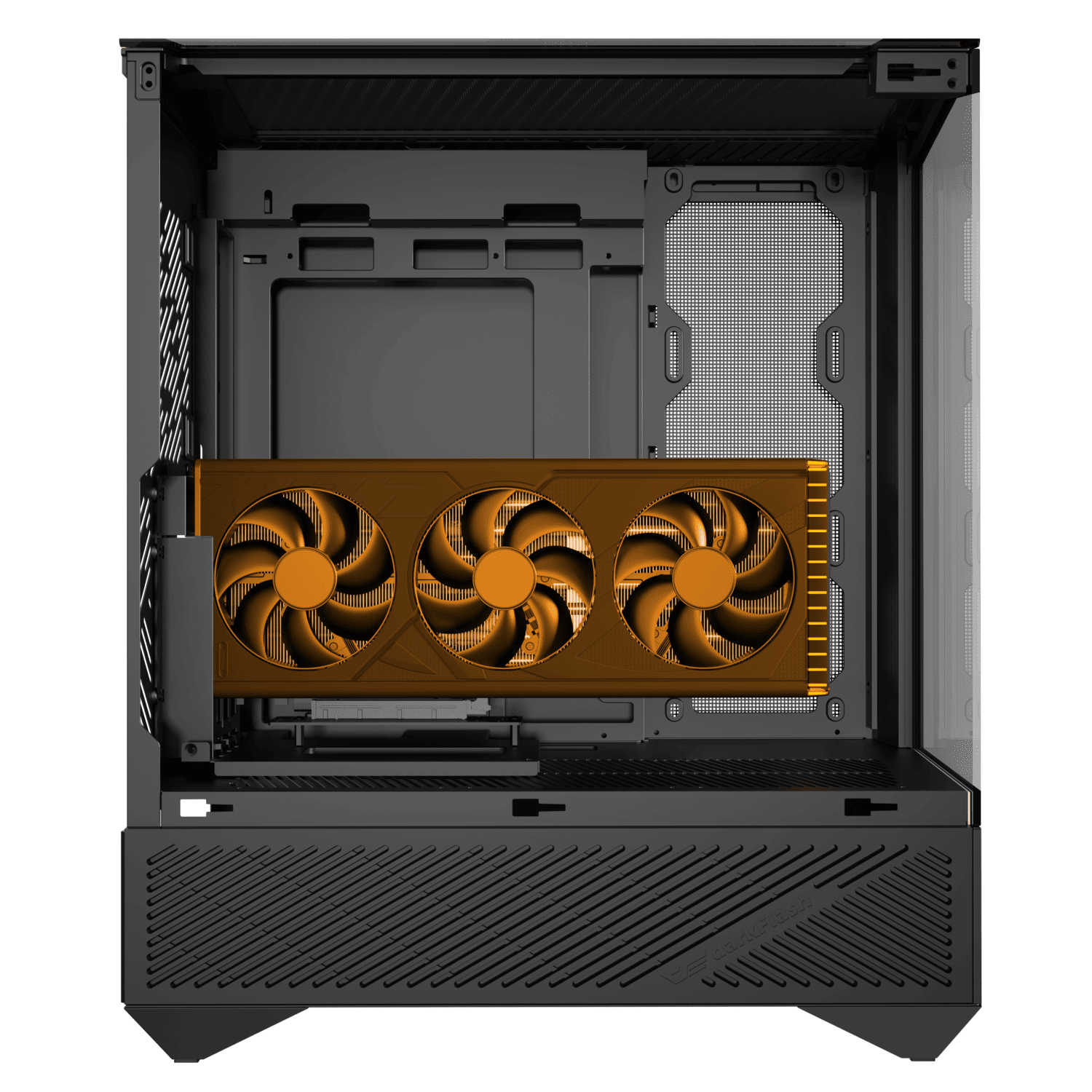

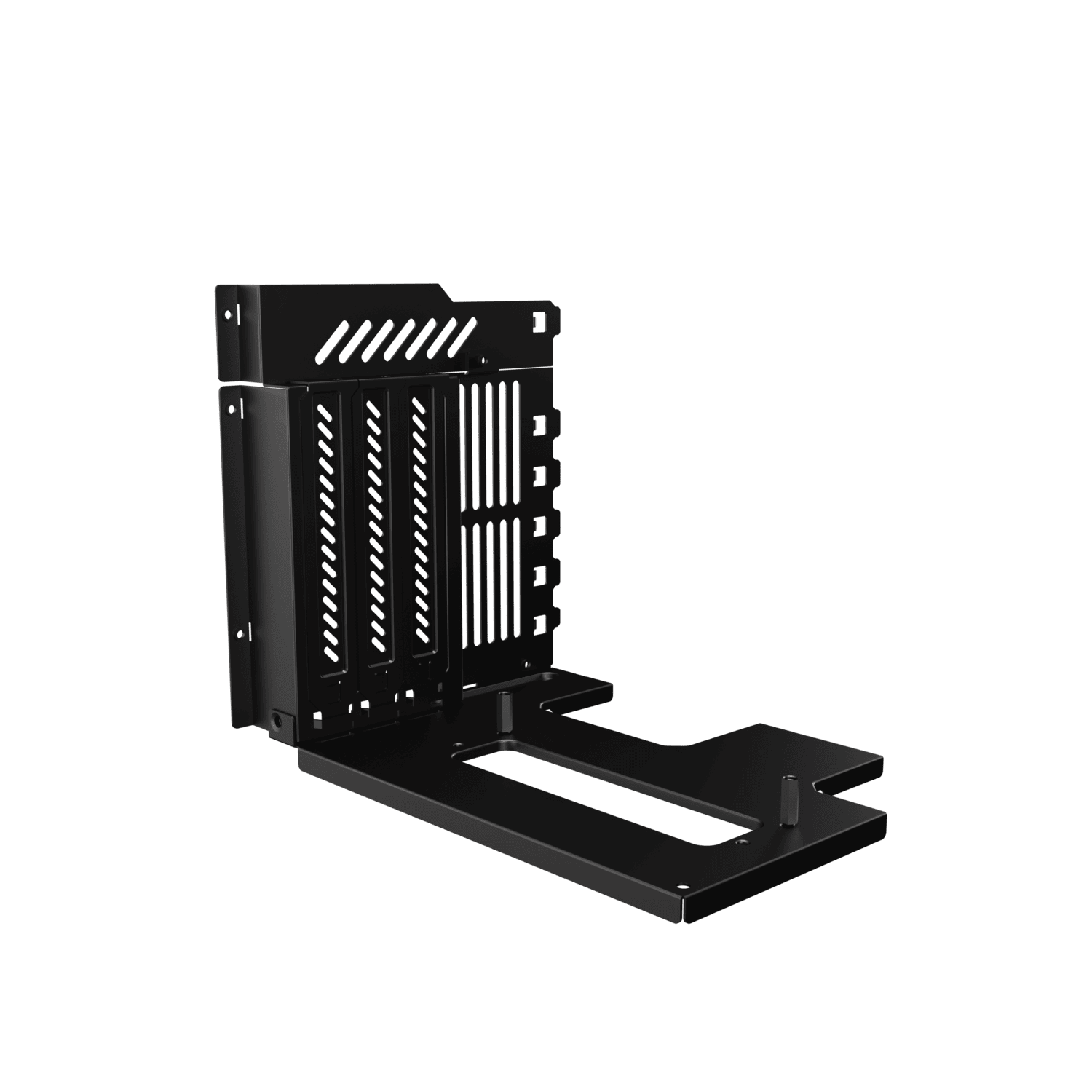

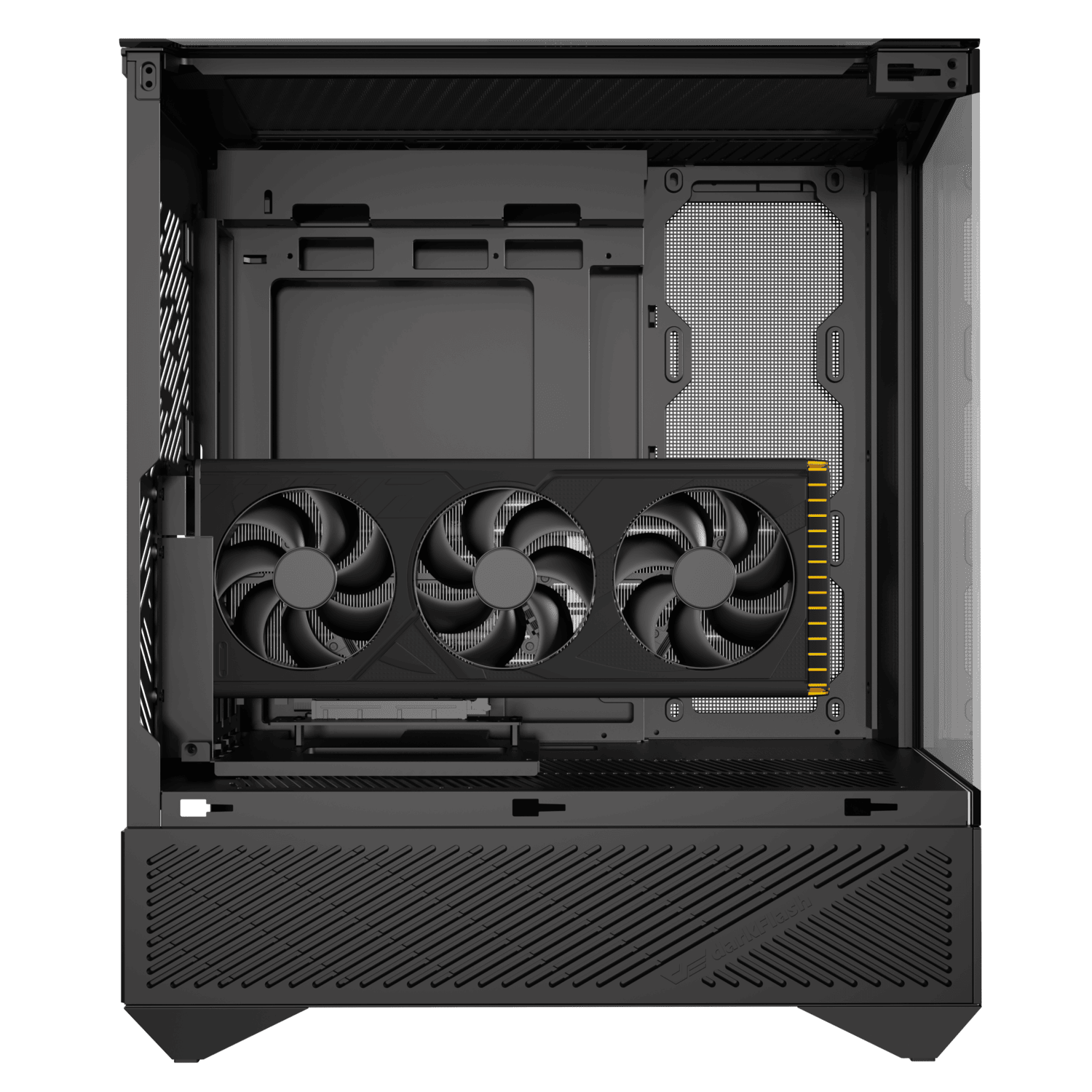

- Max GPU Clearance：Horizontal: 400mmVertical: 385mm

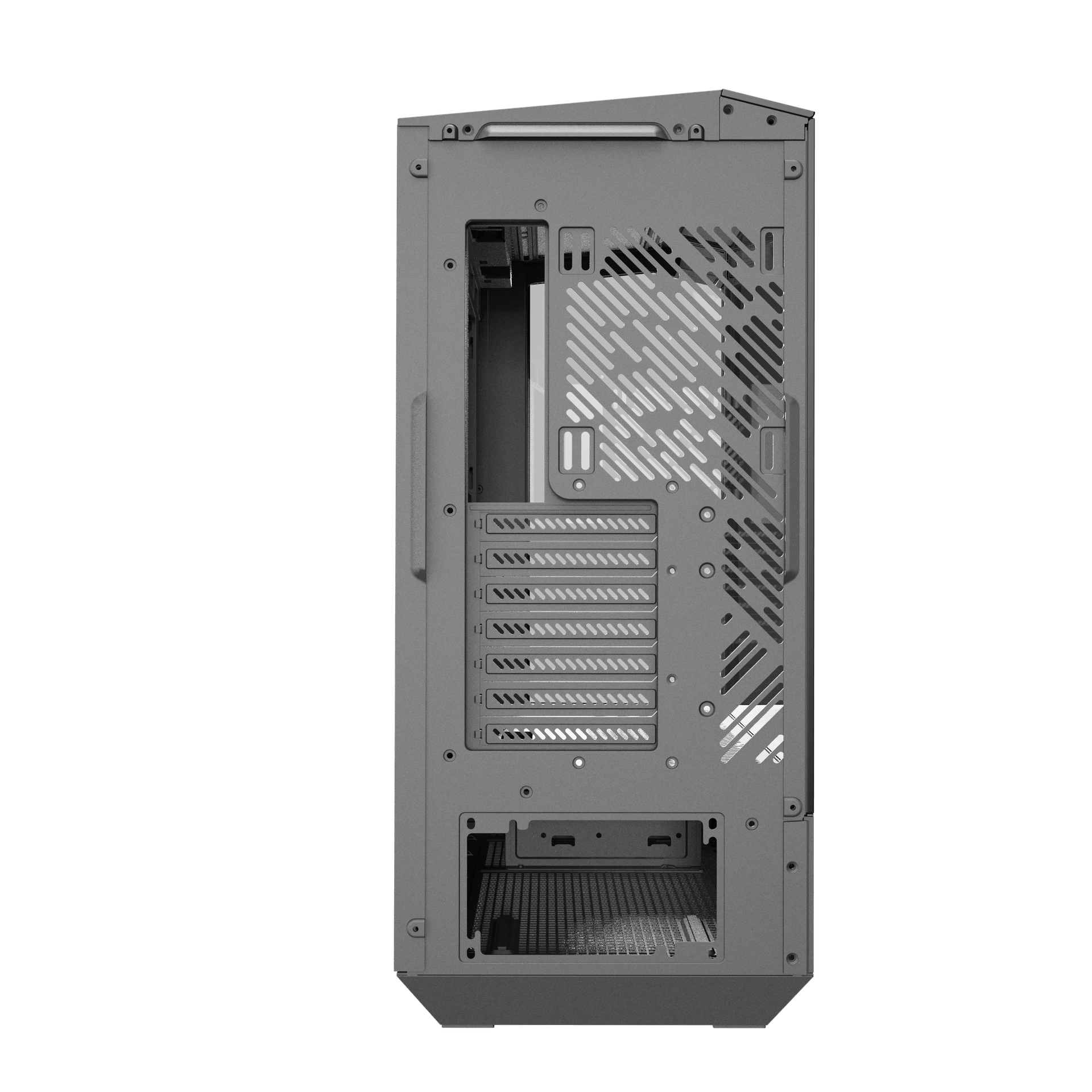

- PCIE Slot：7

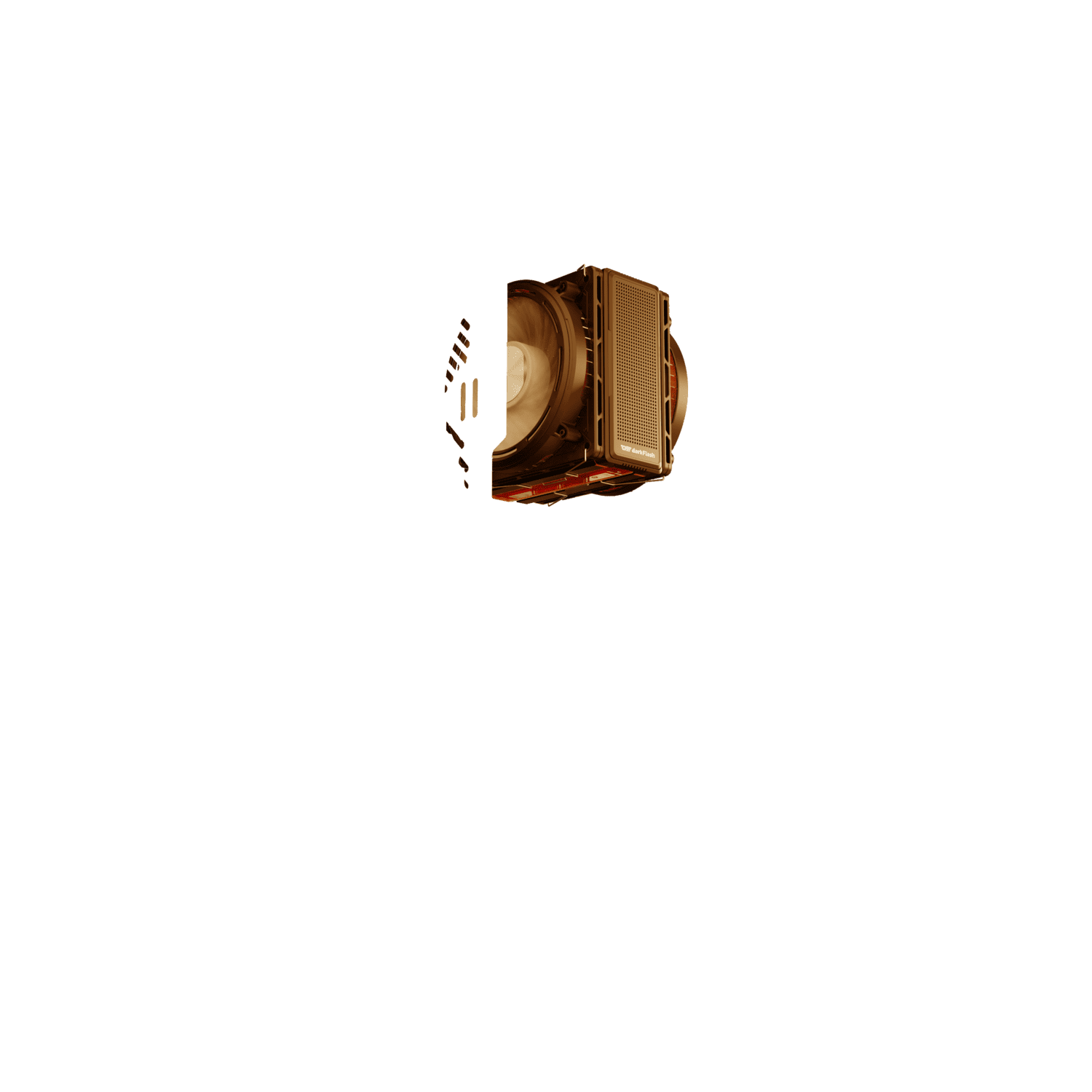

- Max CPU Cooler Clearance：185mm
- Drive Bays

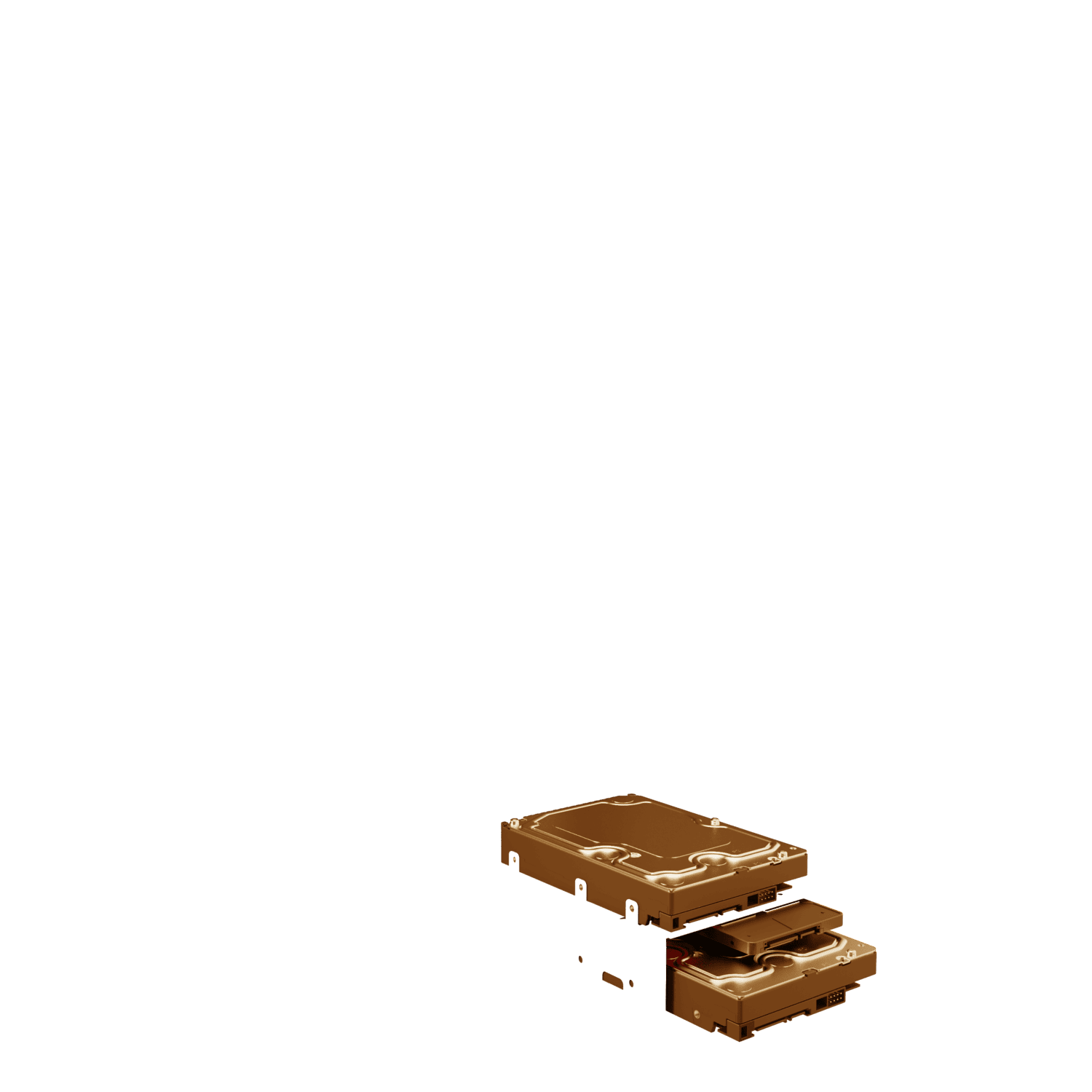

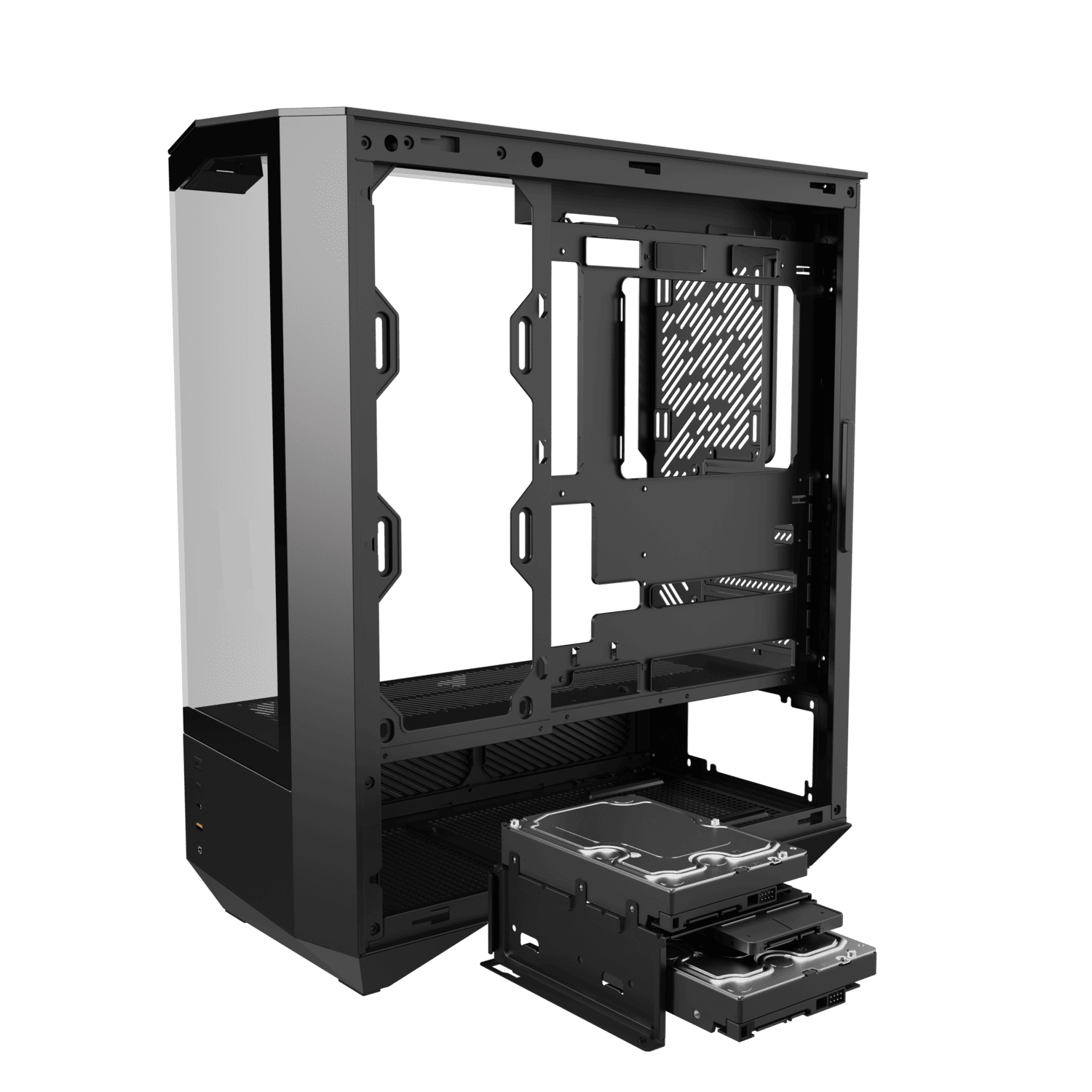

- SSD / HDD：1 / 2

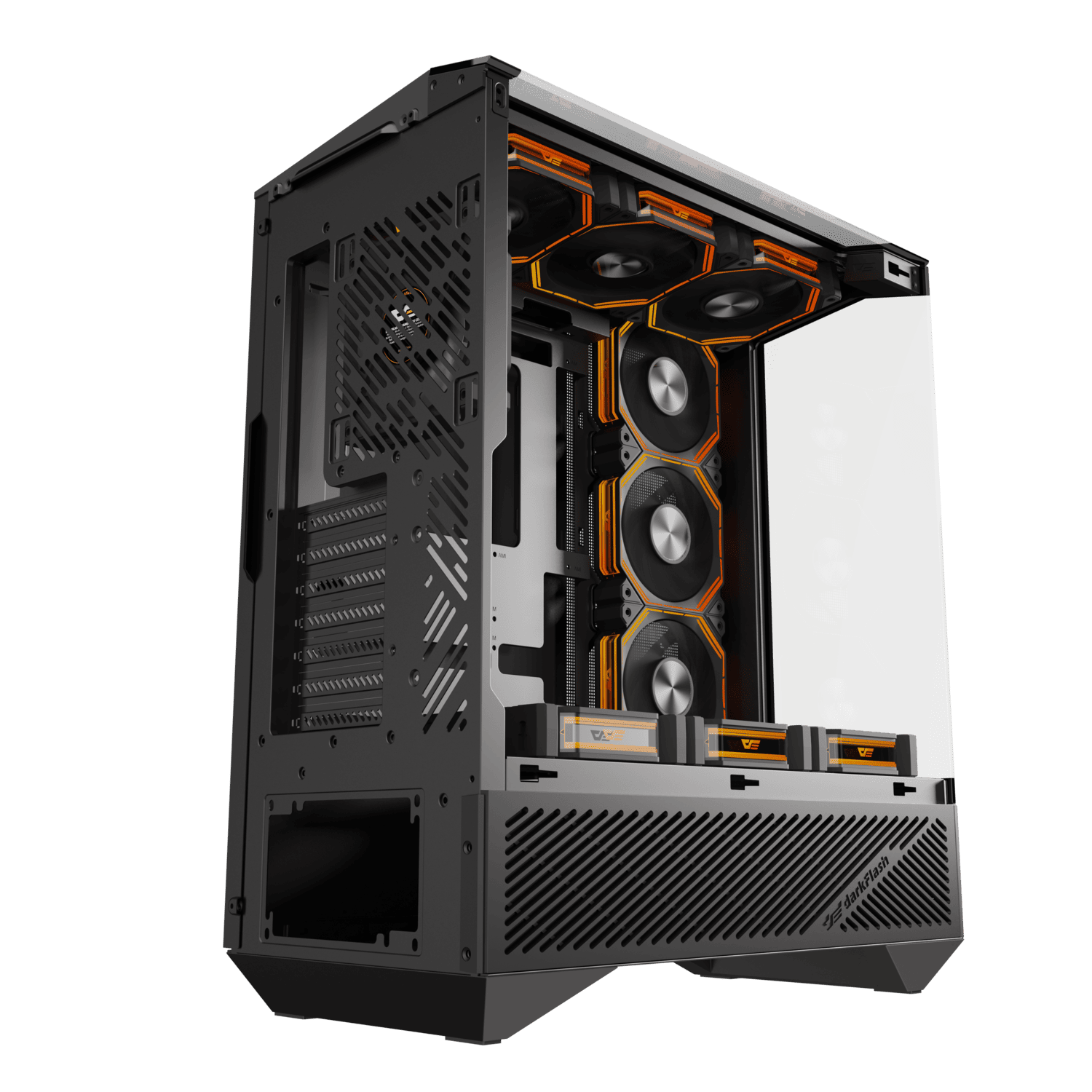

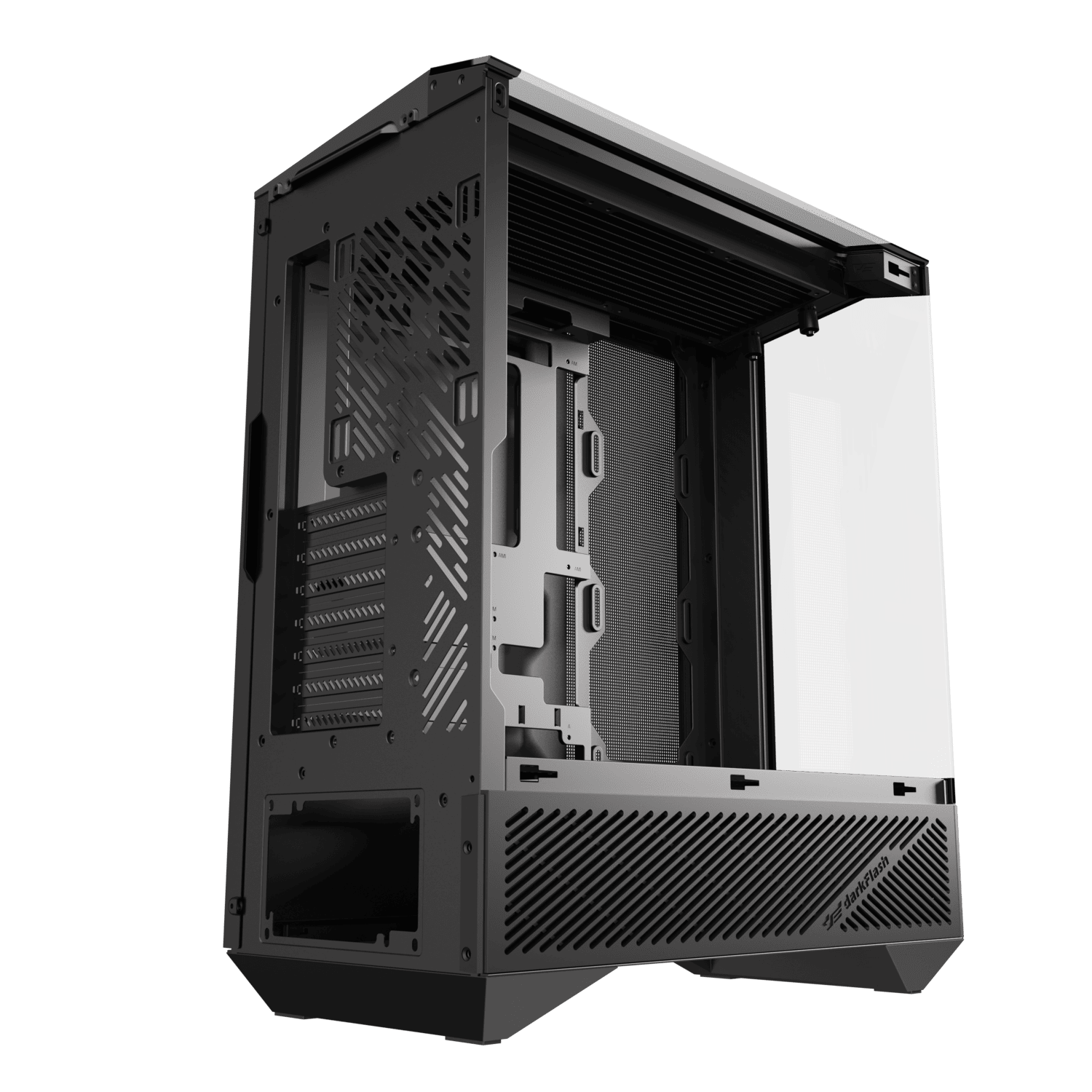

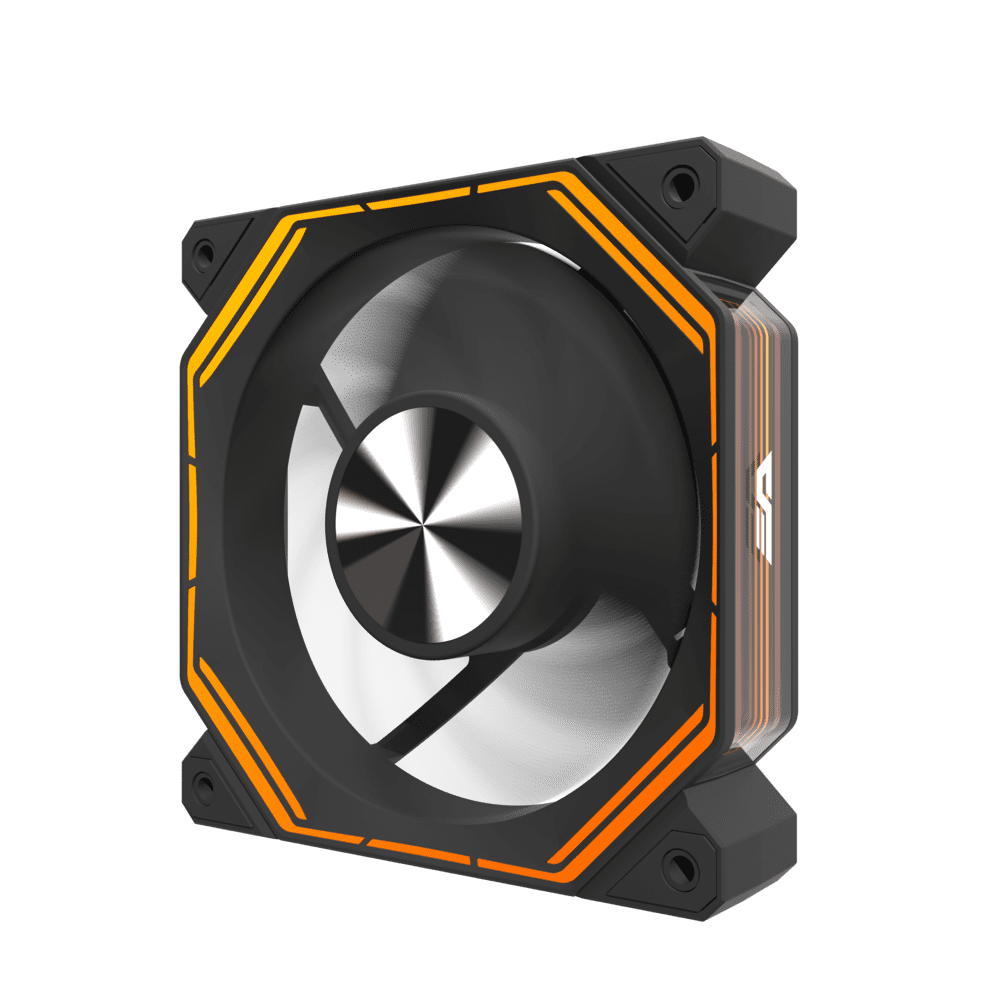

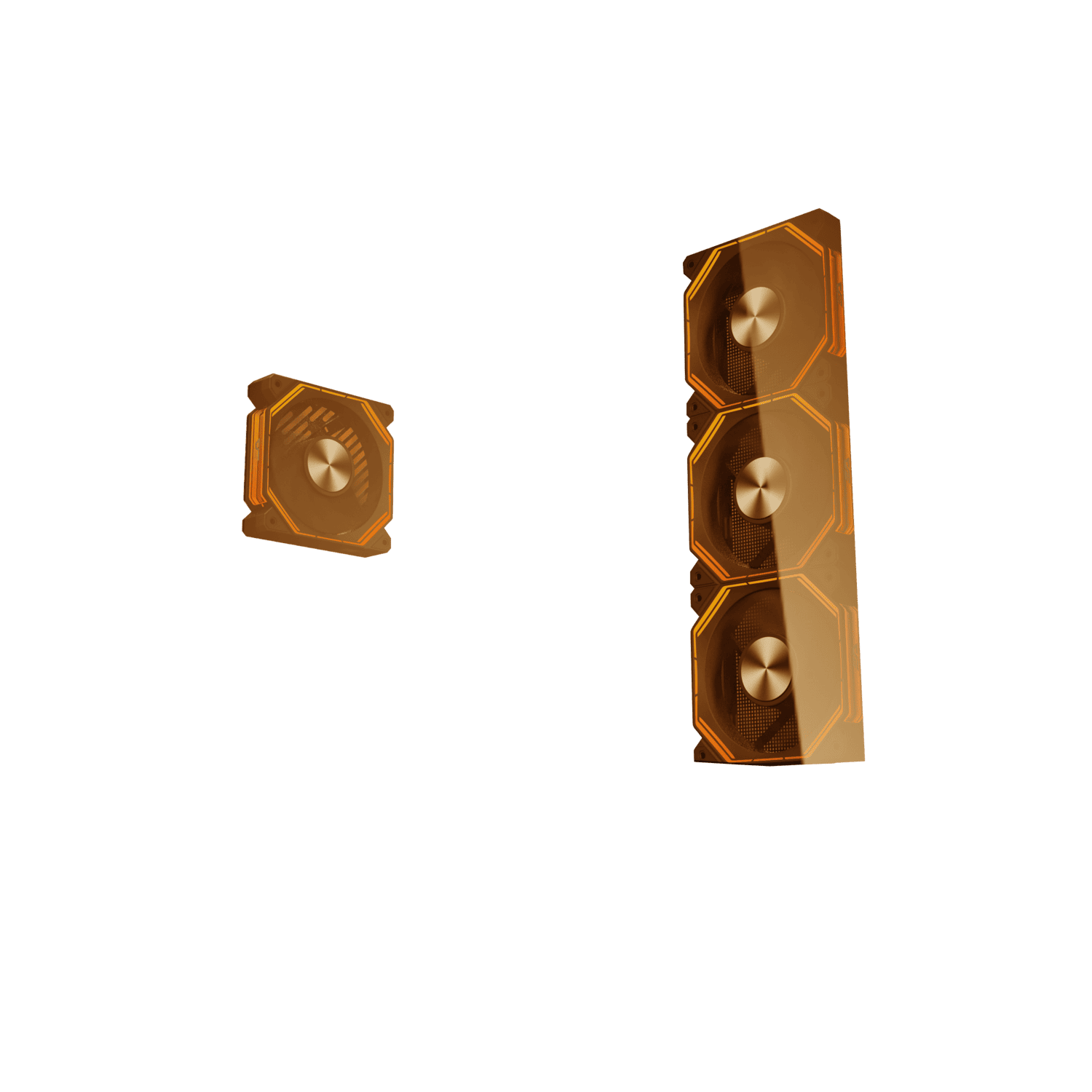

- Fan Support
- Top：120mm*3

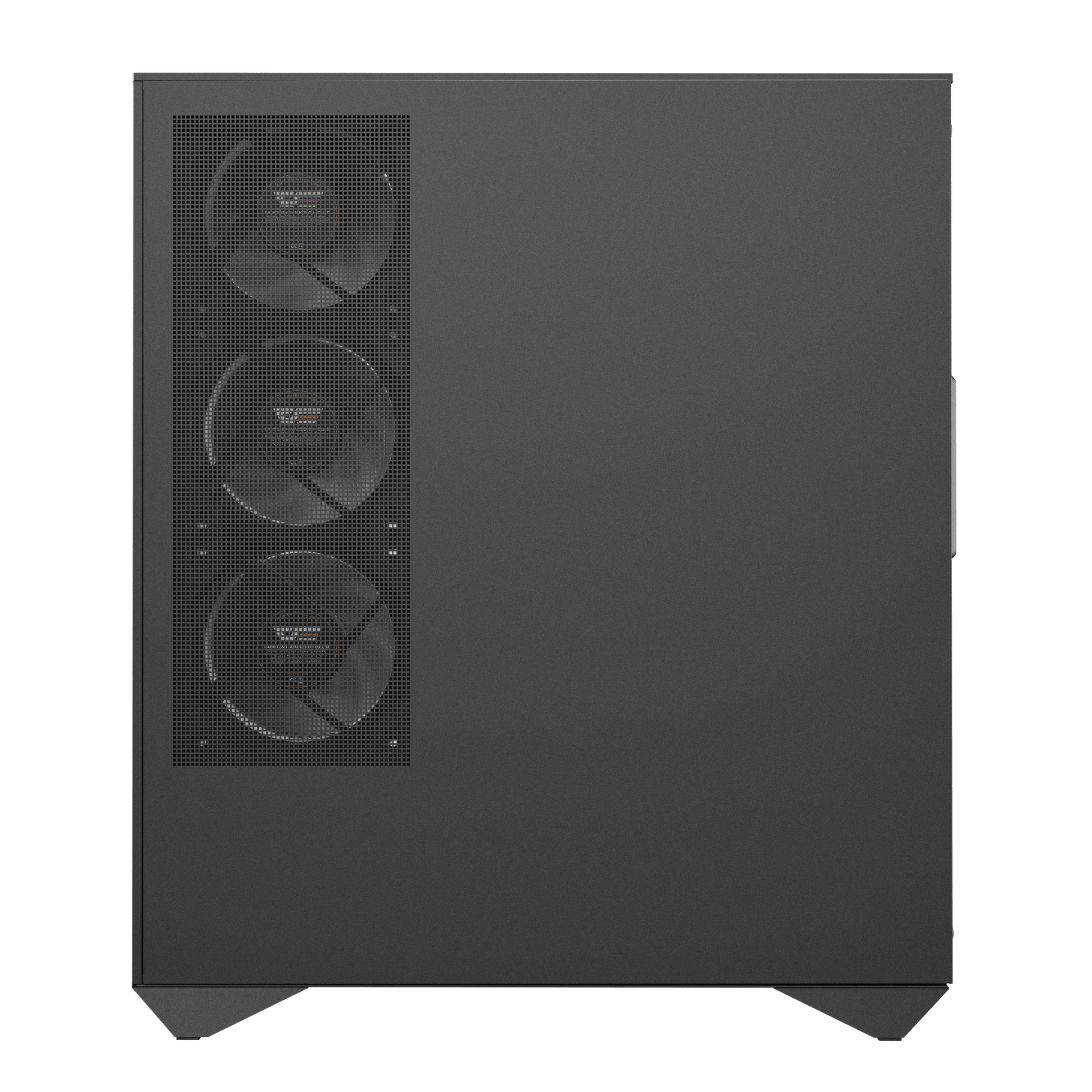

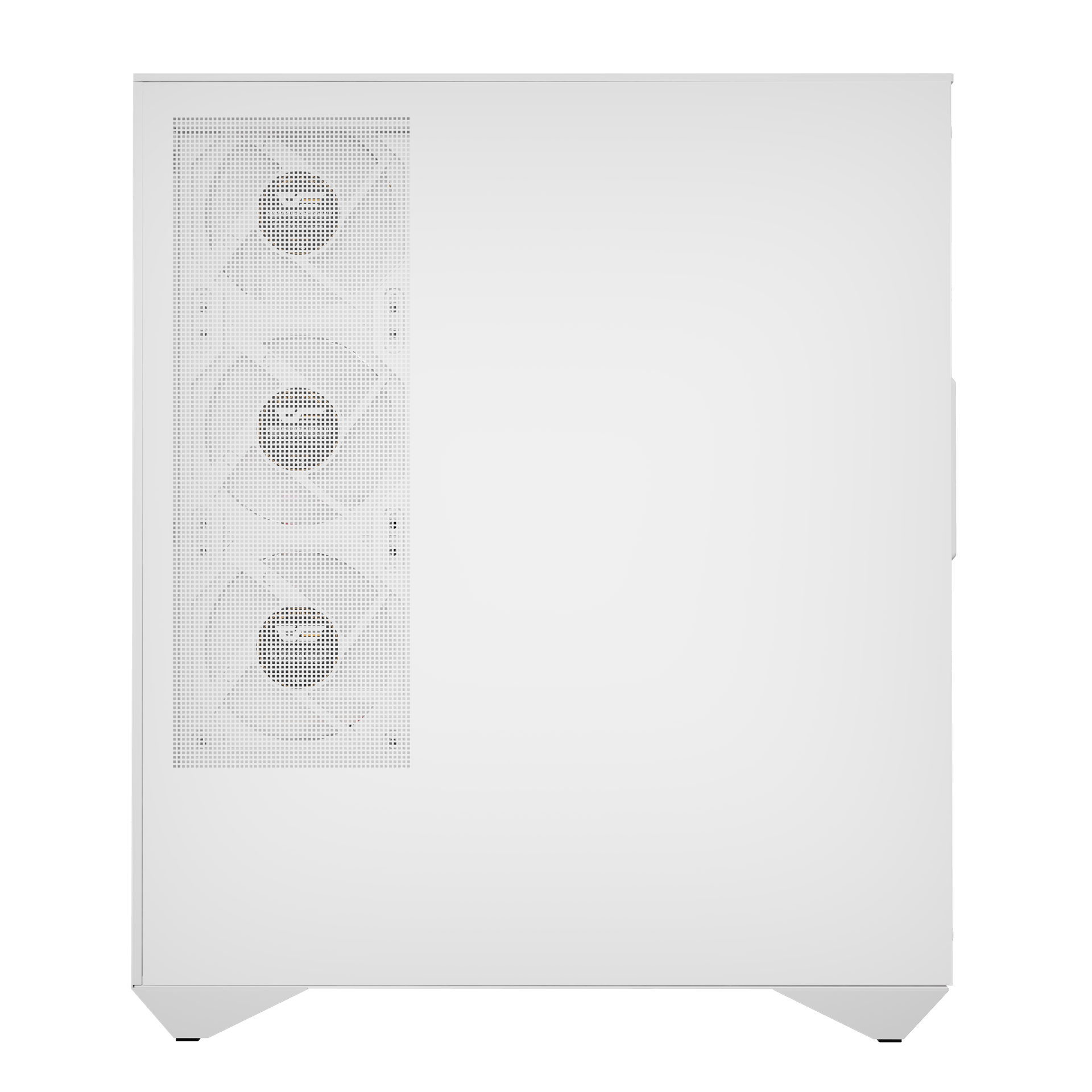

- Side：120mm*3
- Rear：120mm*1
- Bottom：120mm*1

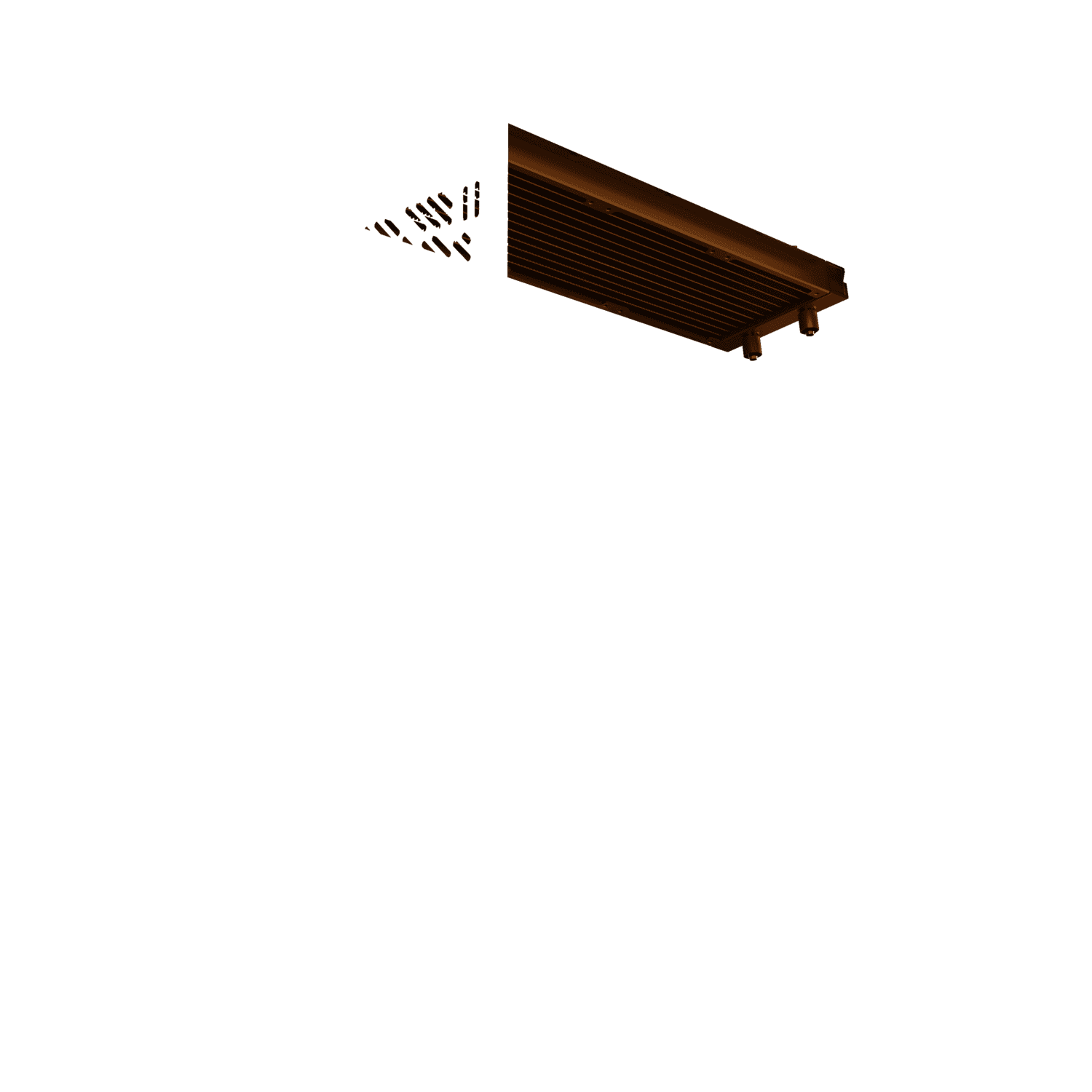

- Radiator Support
- Top：360mm
- Rear：120mm140mm
- Front I/O

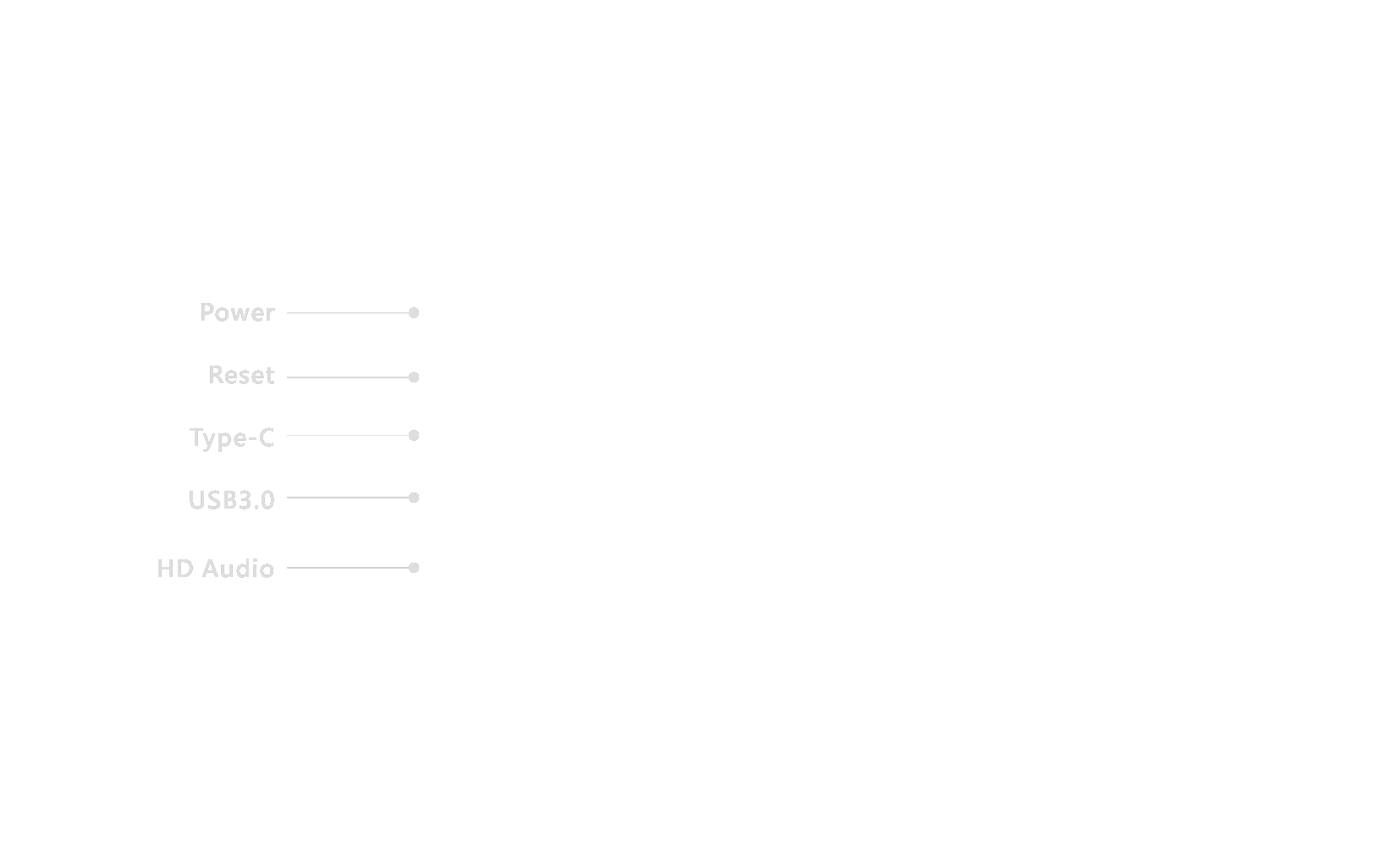

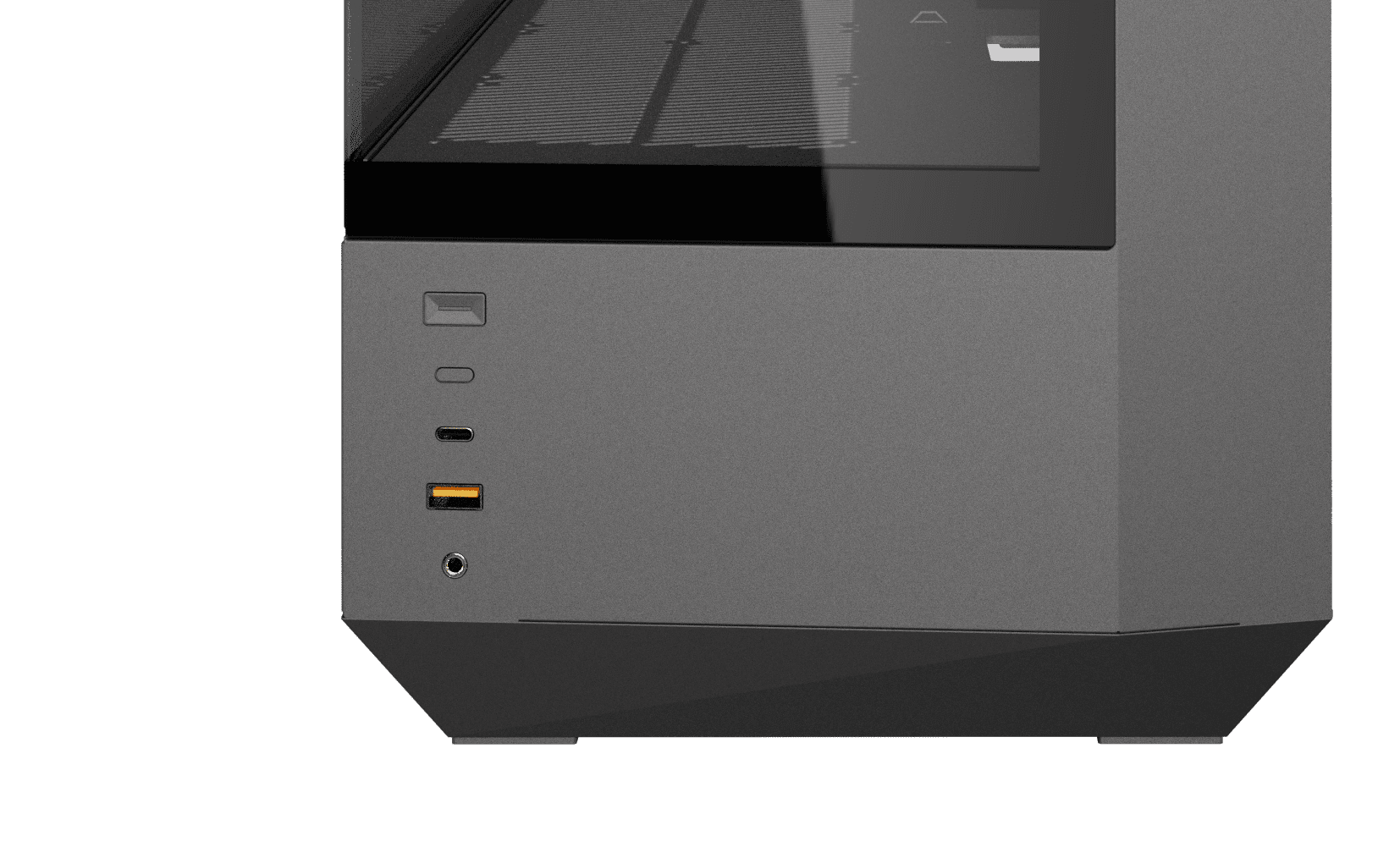

- I/O：Type-C*1USB3.0*1HD AudioPowerReset

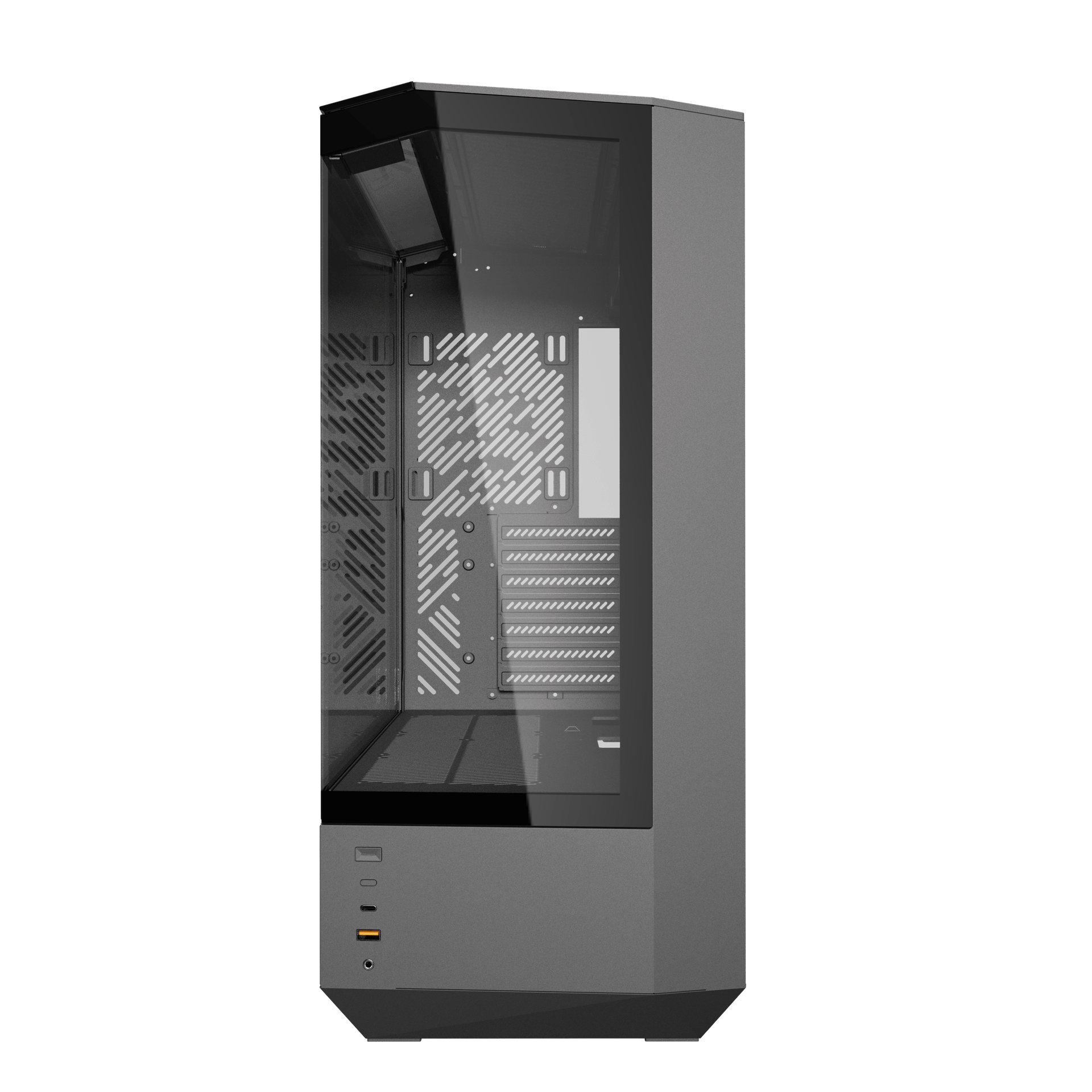

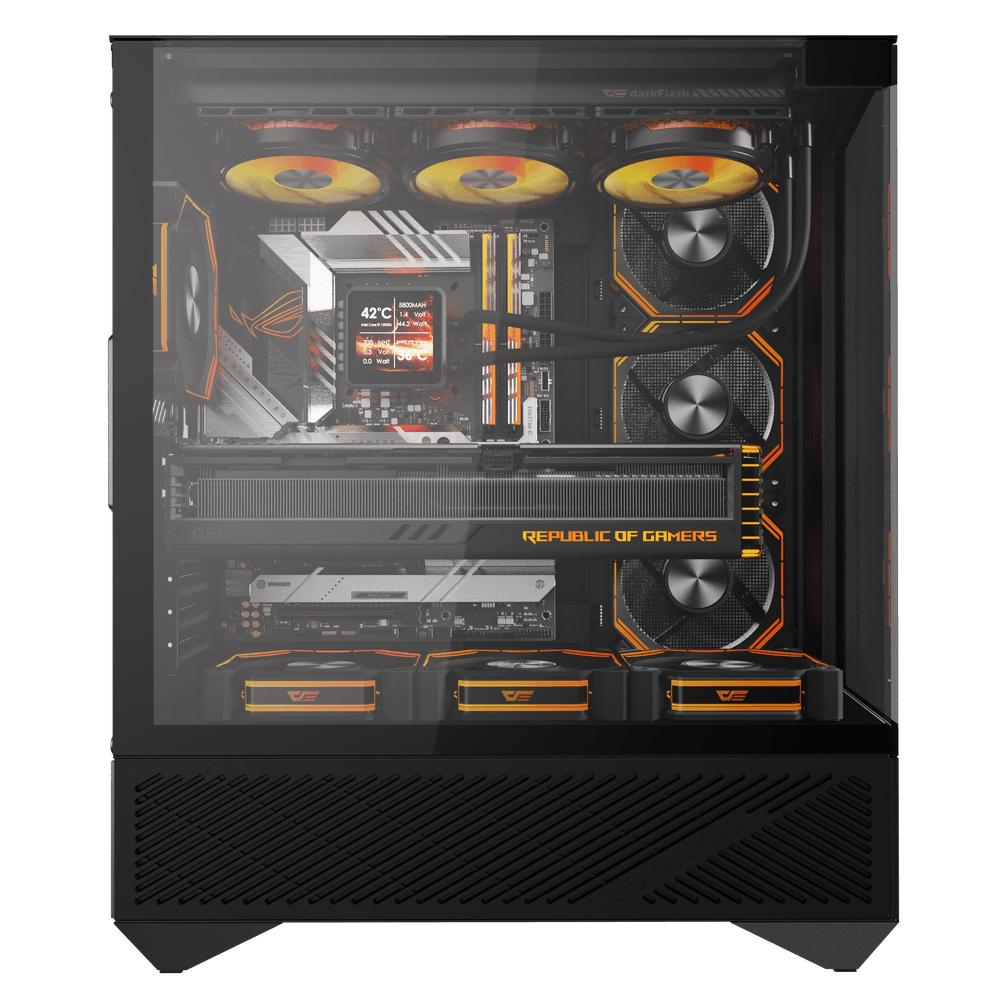

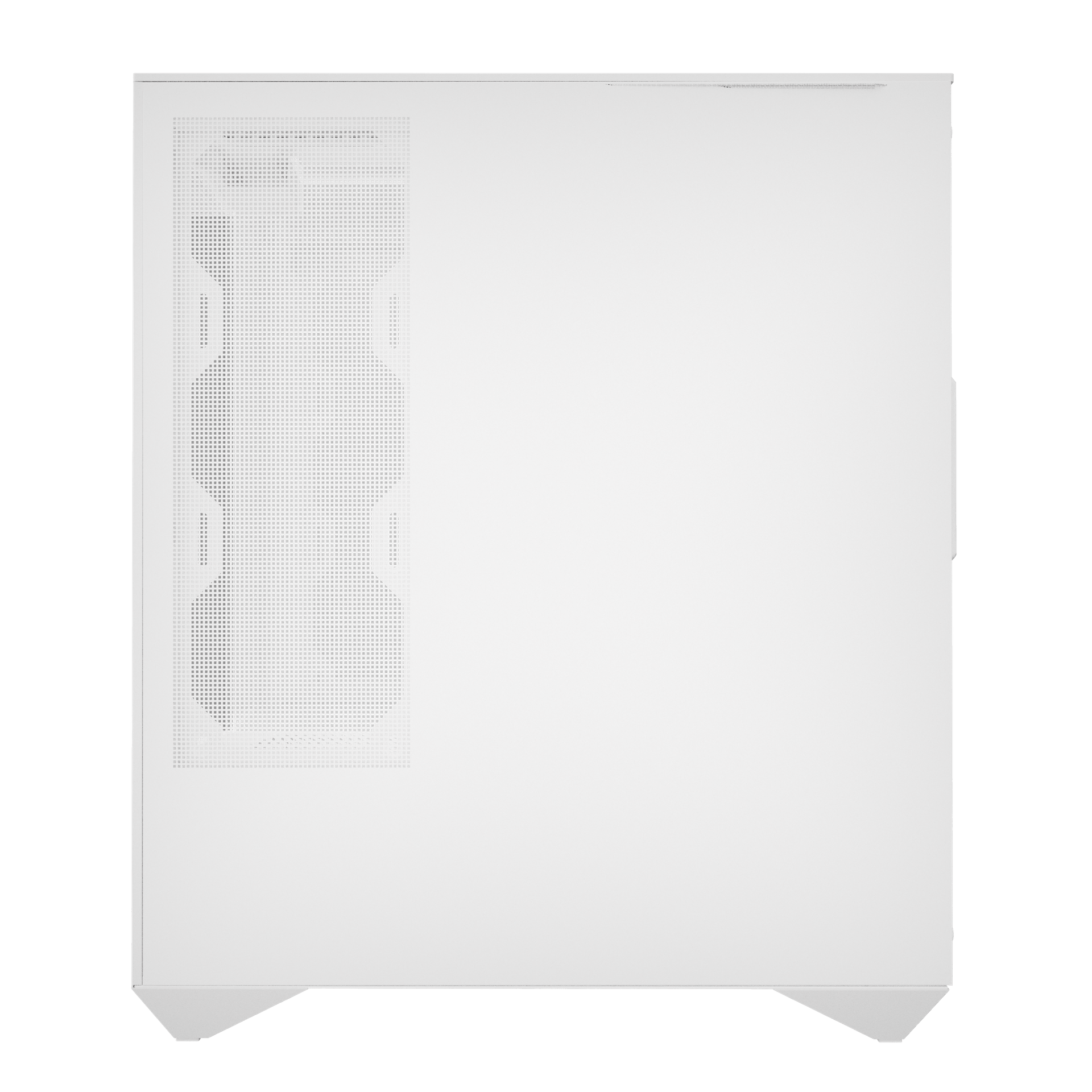

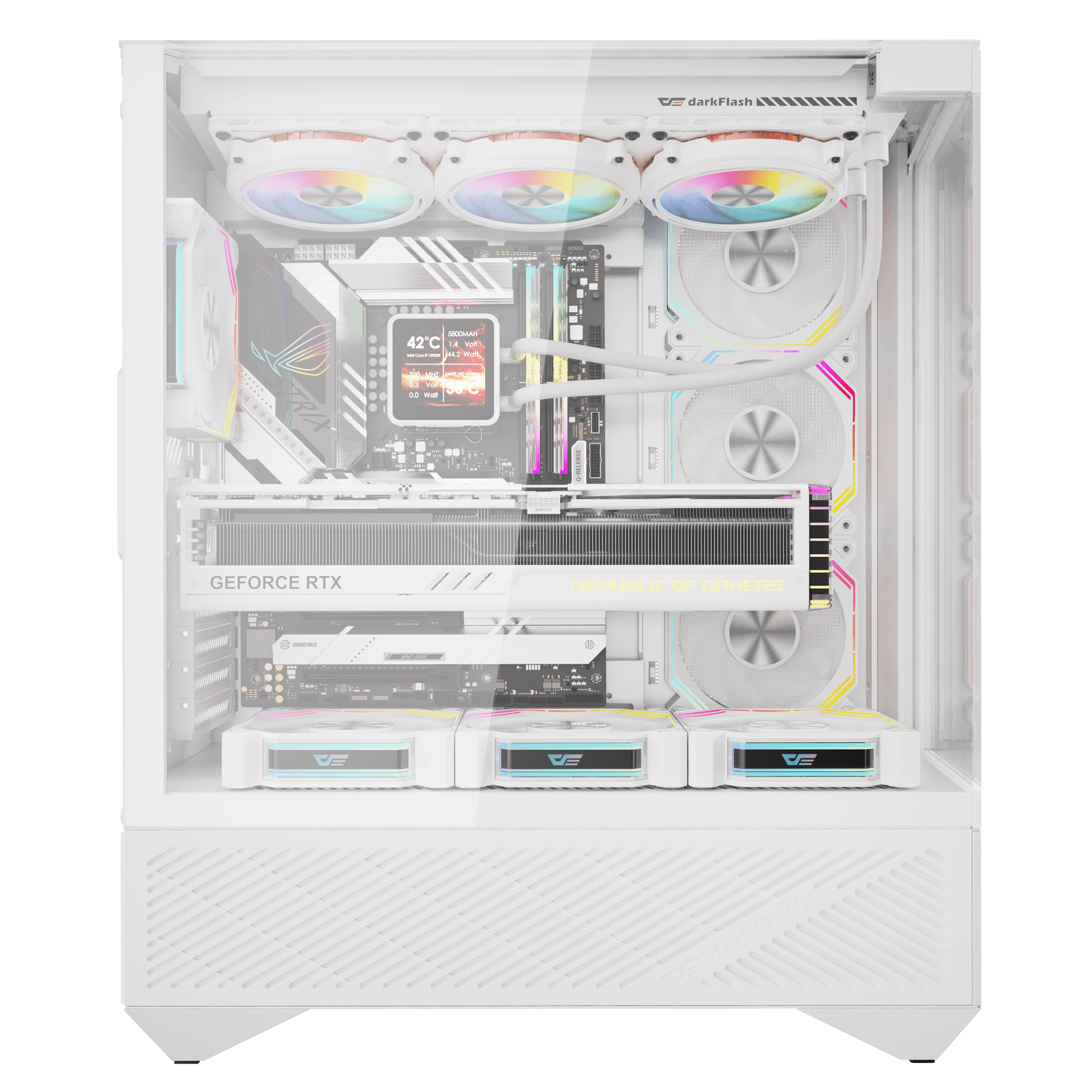

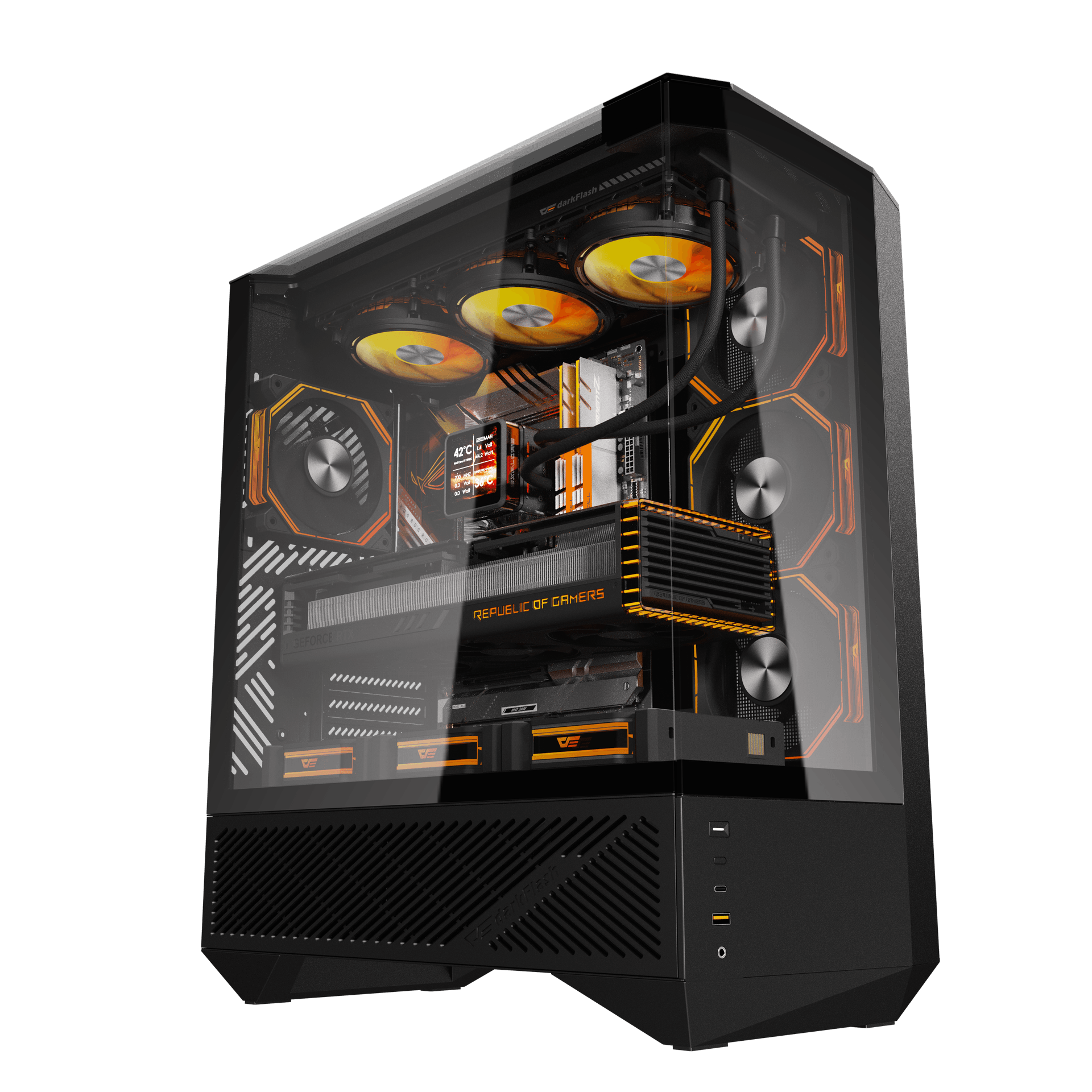

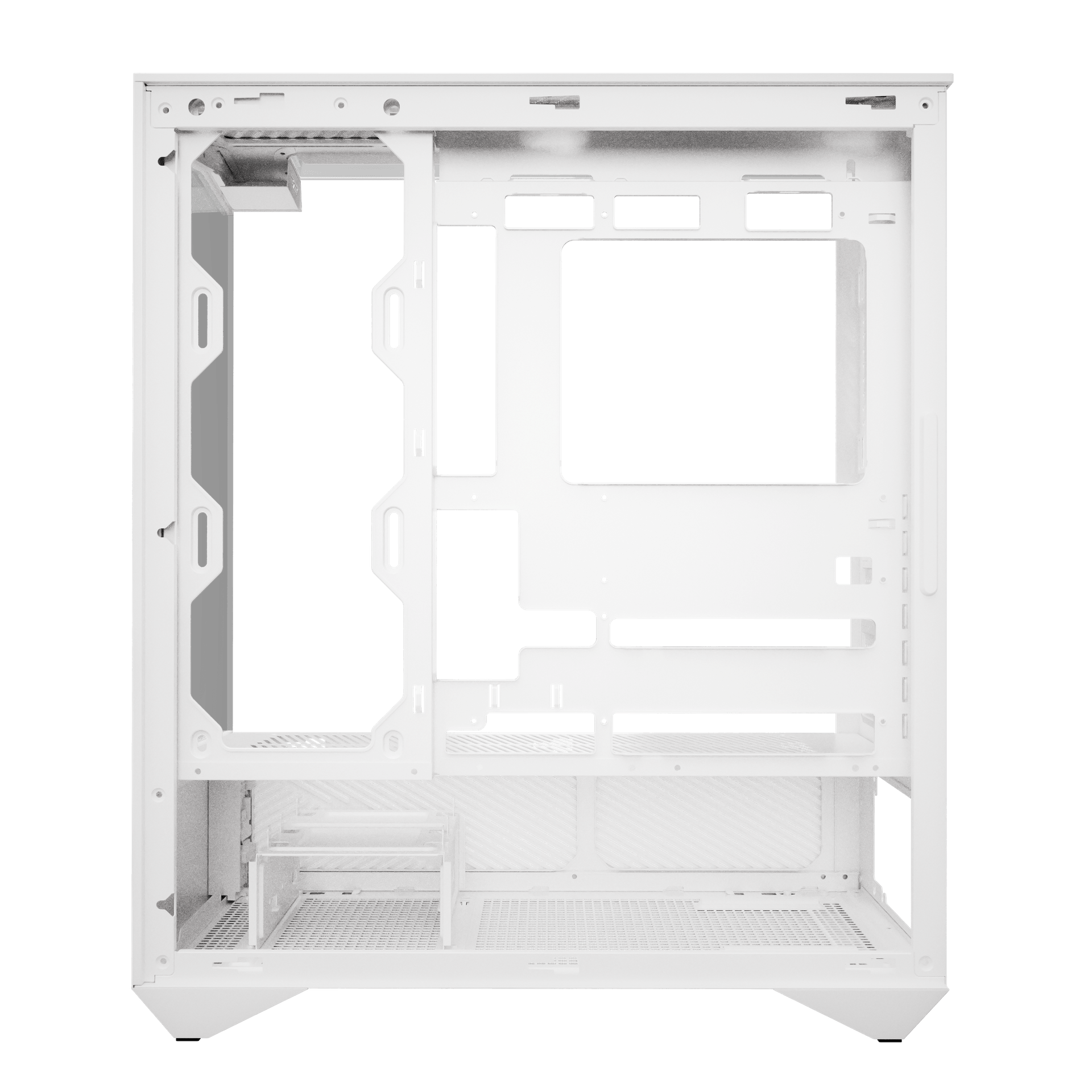

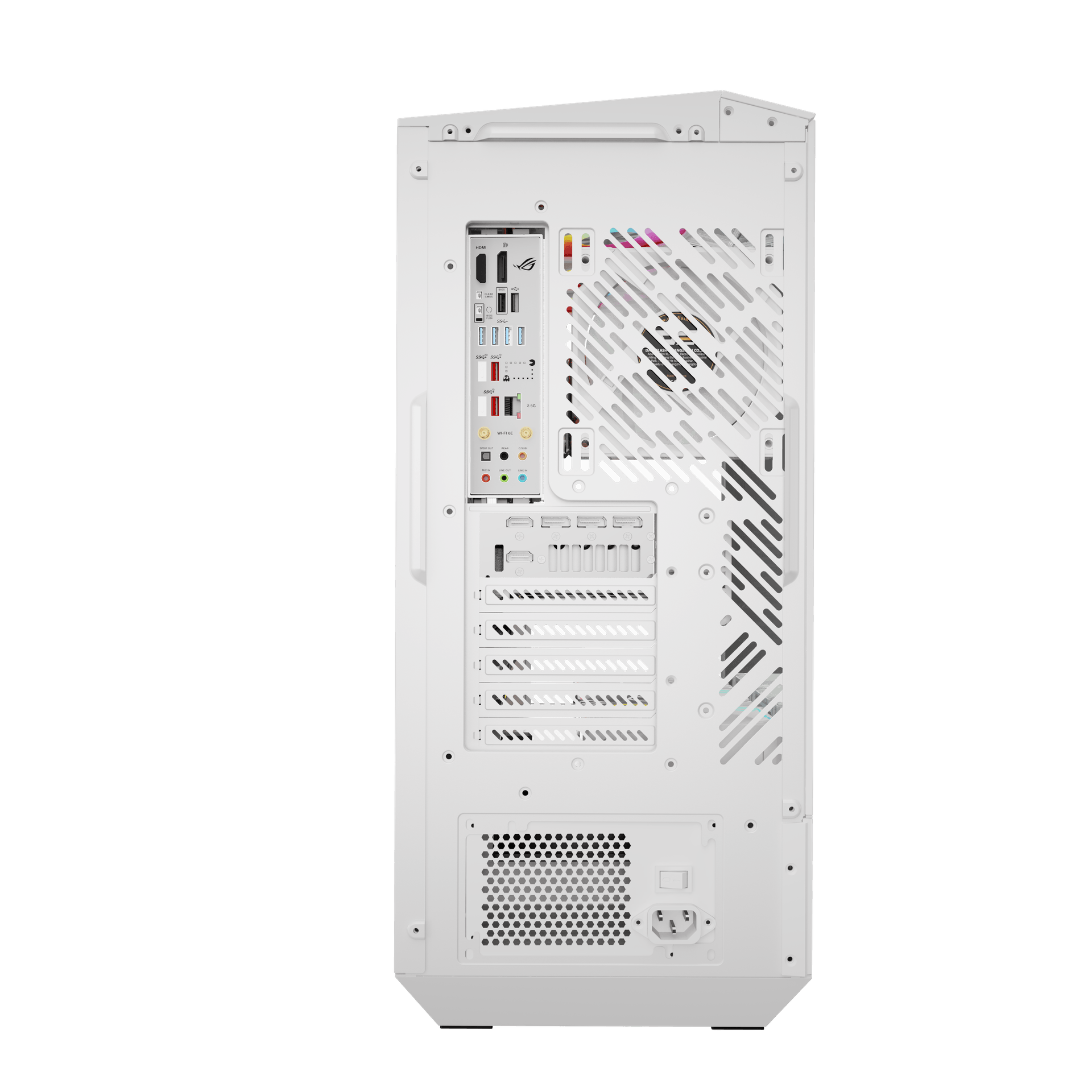

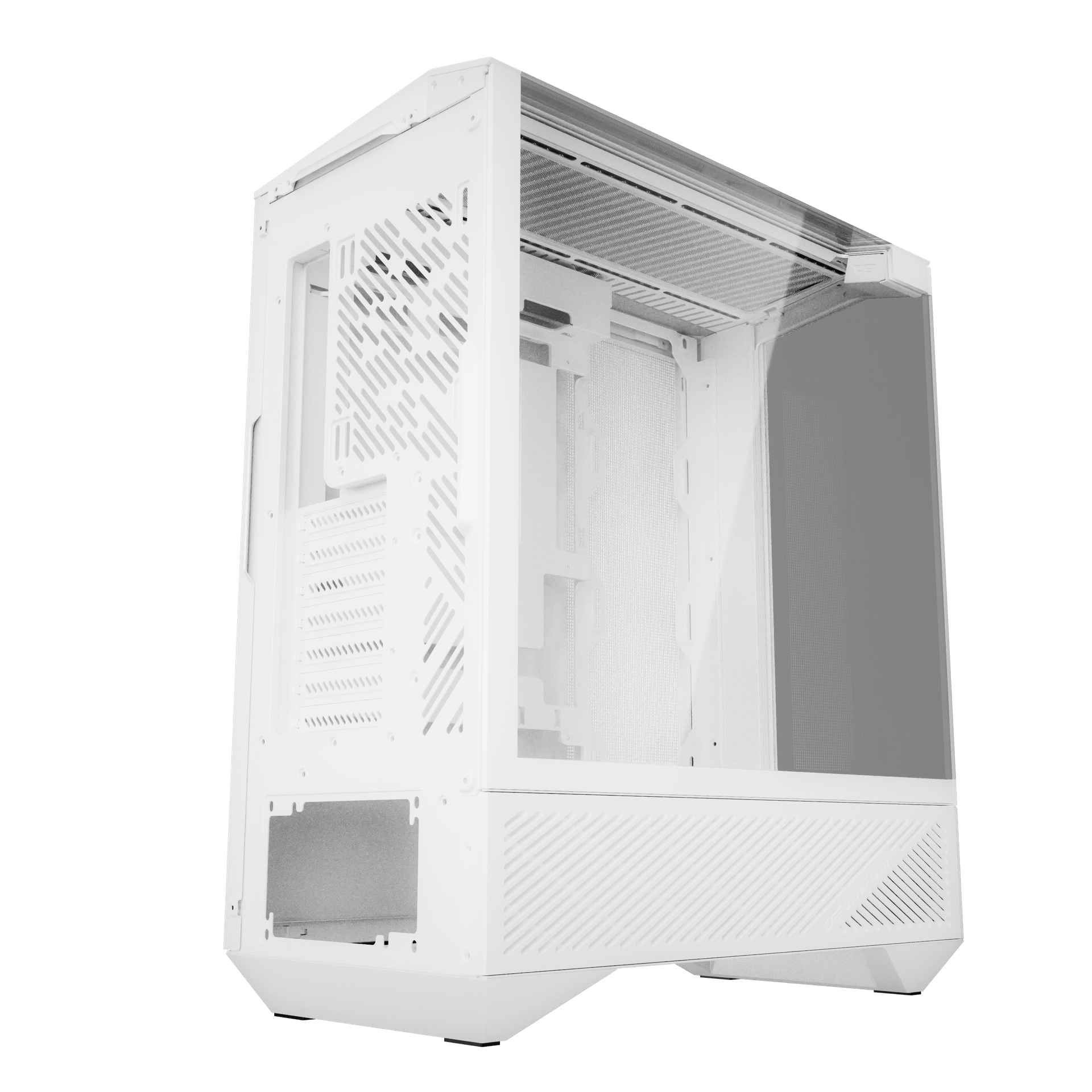

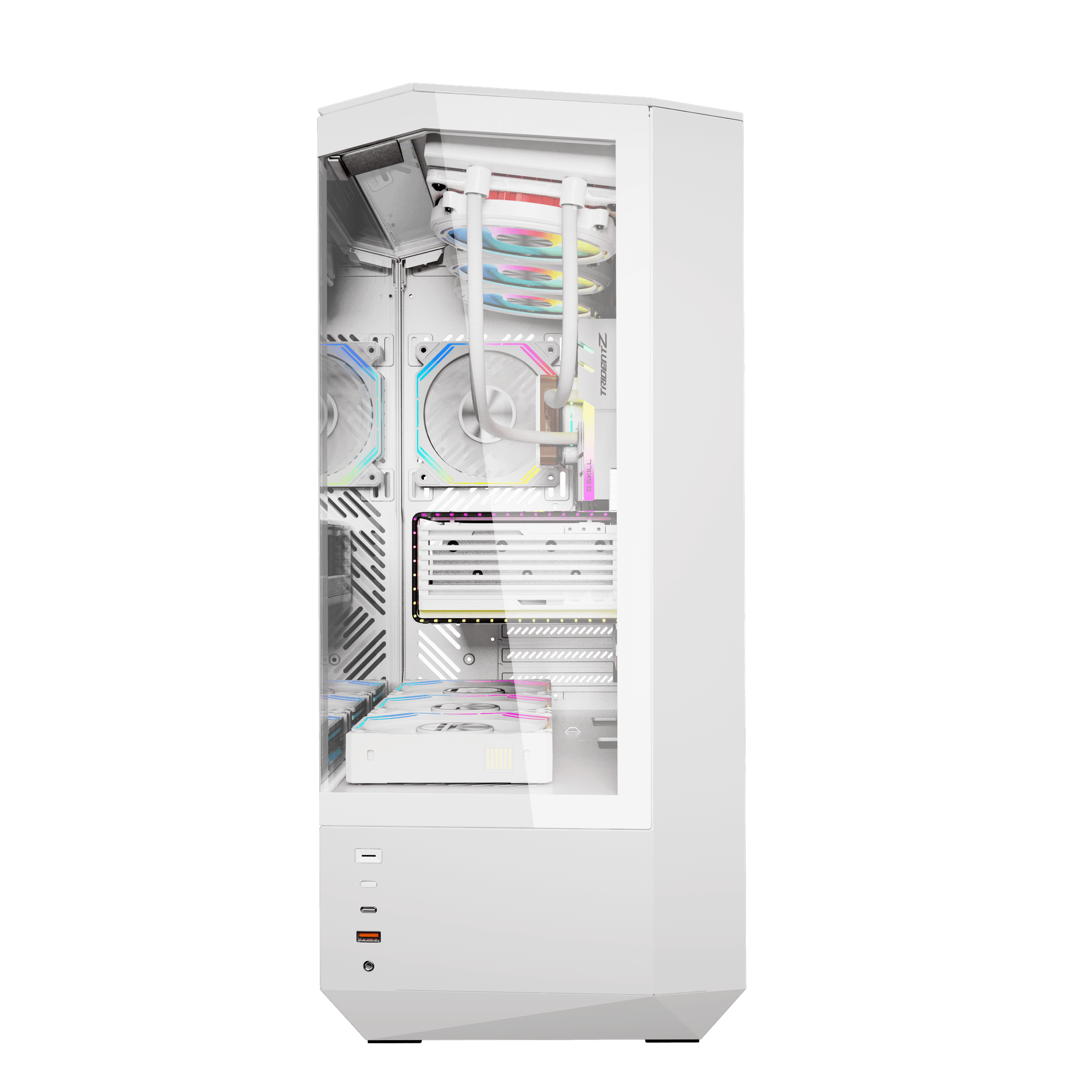

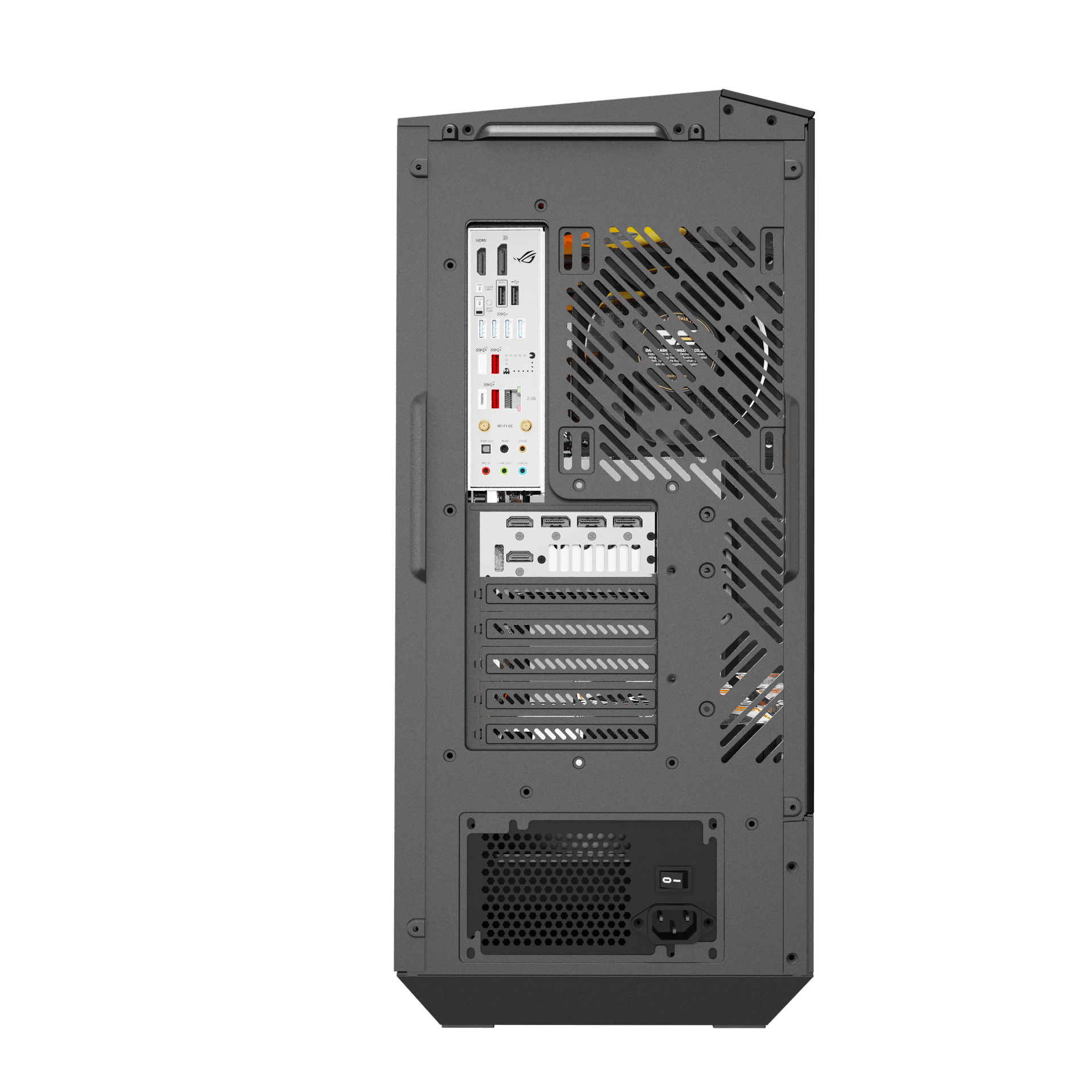

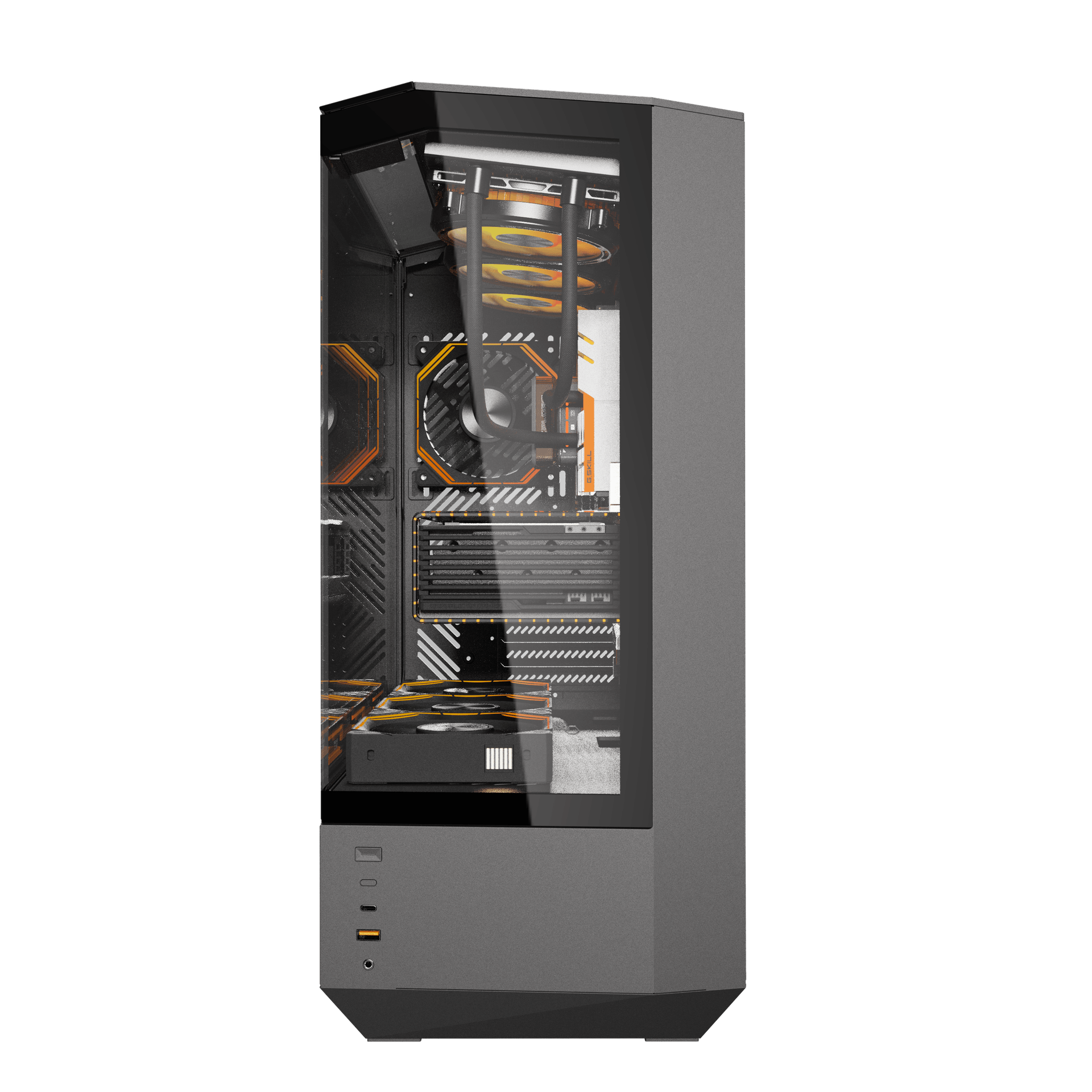

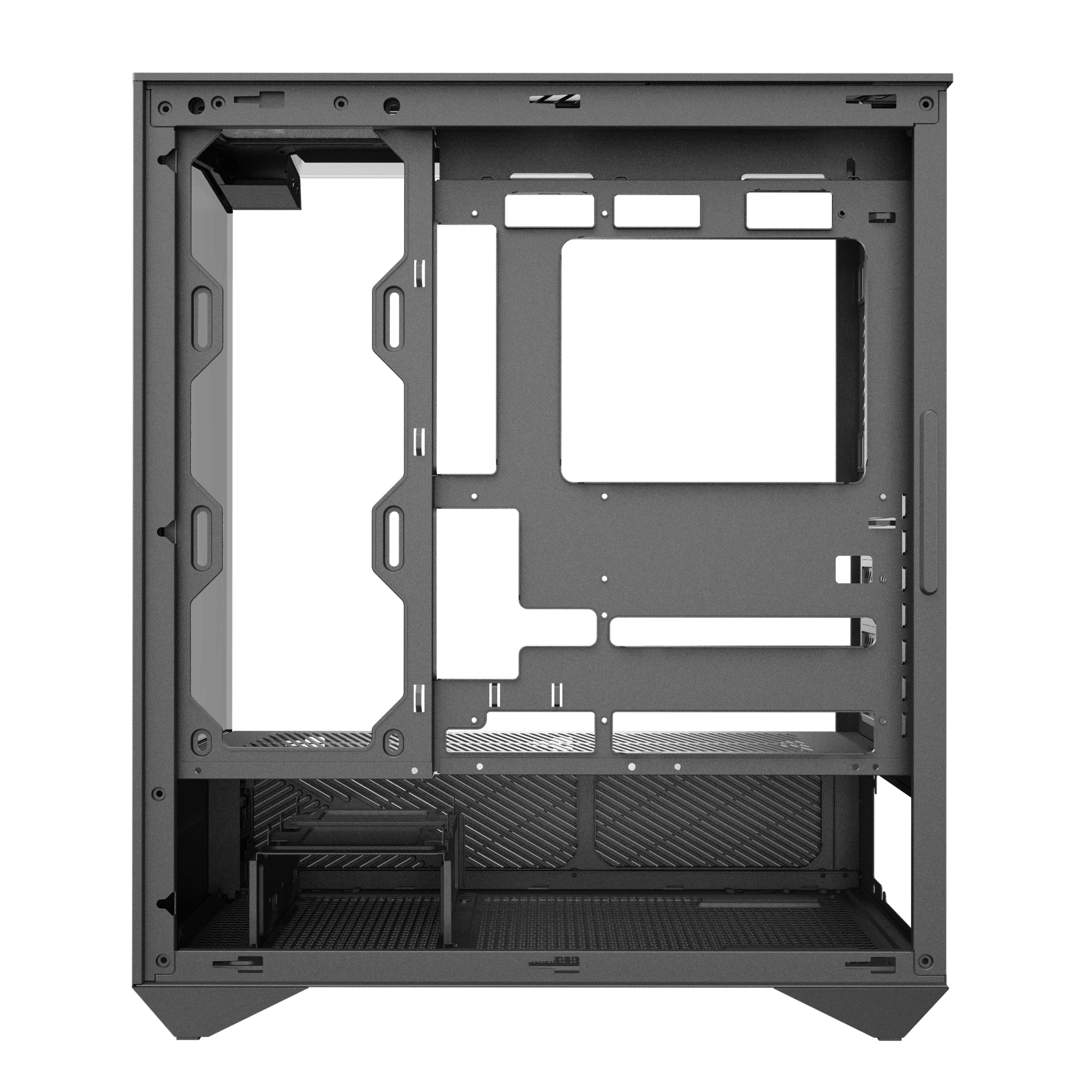

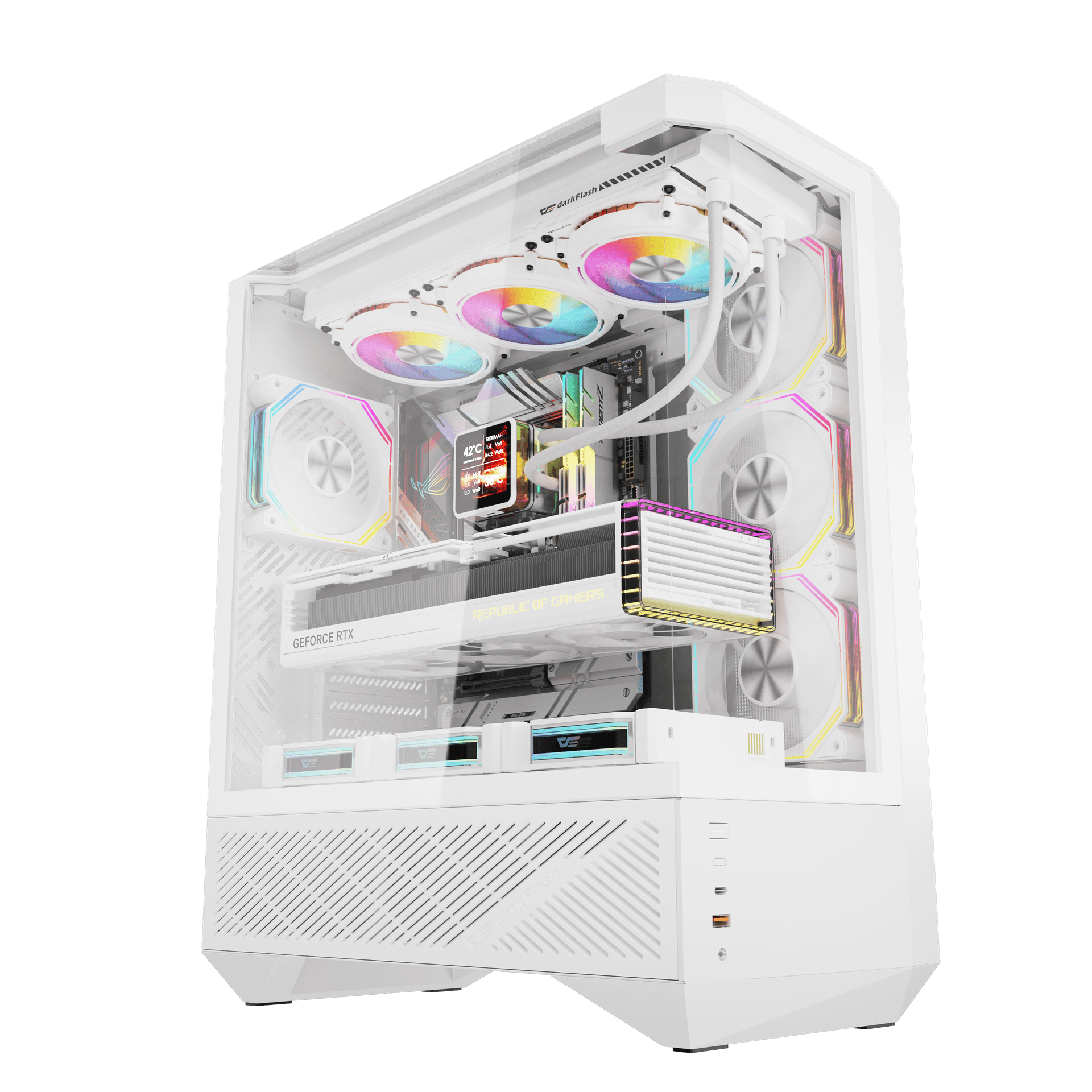

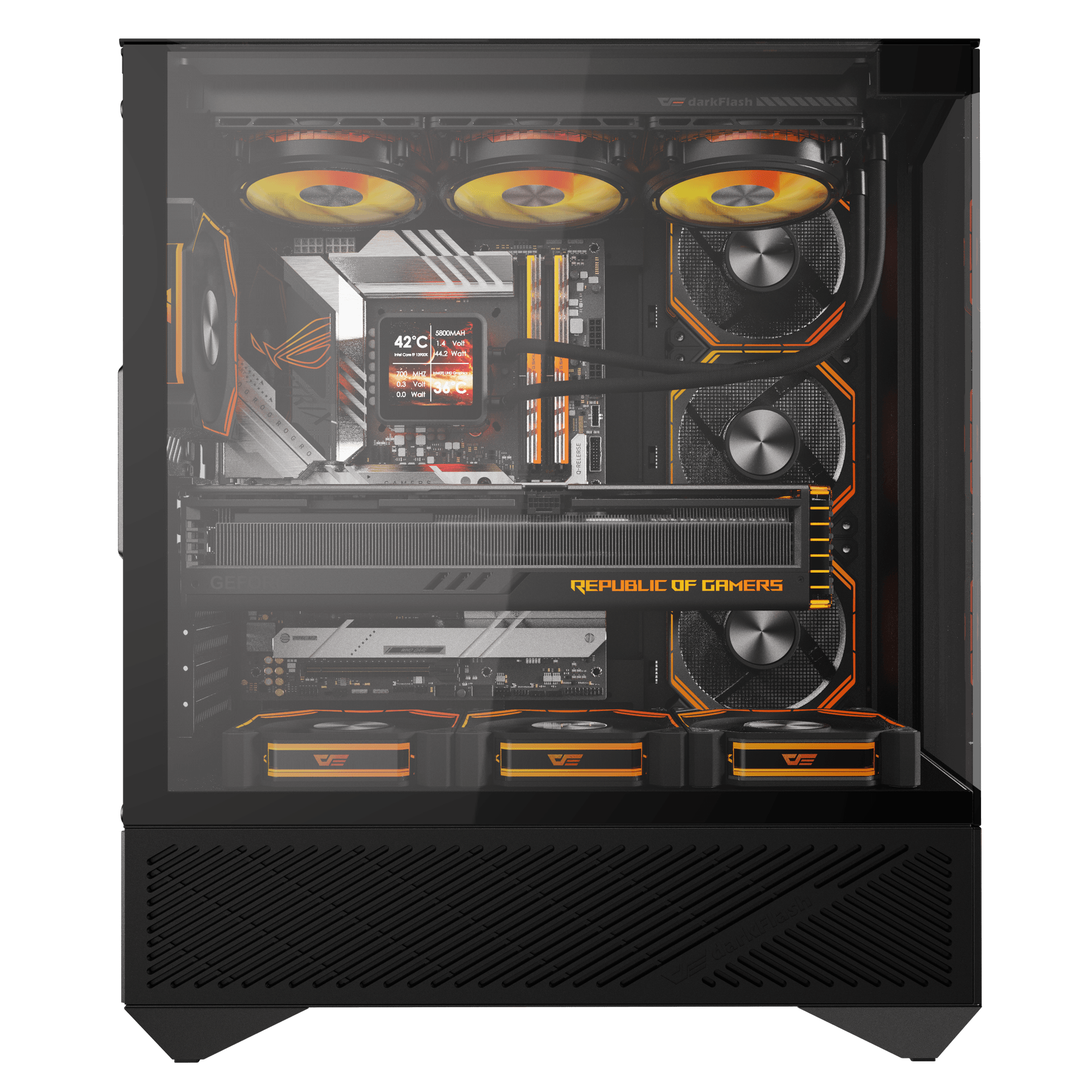

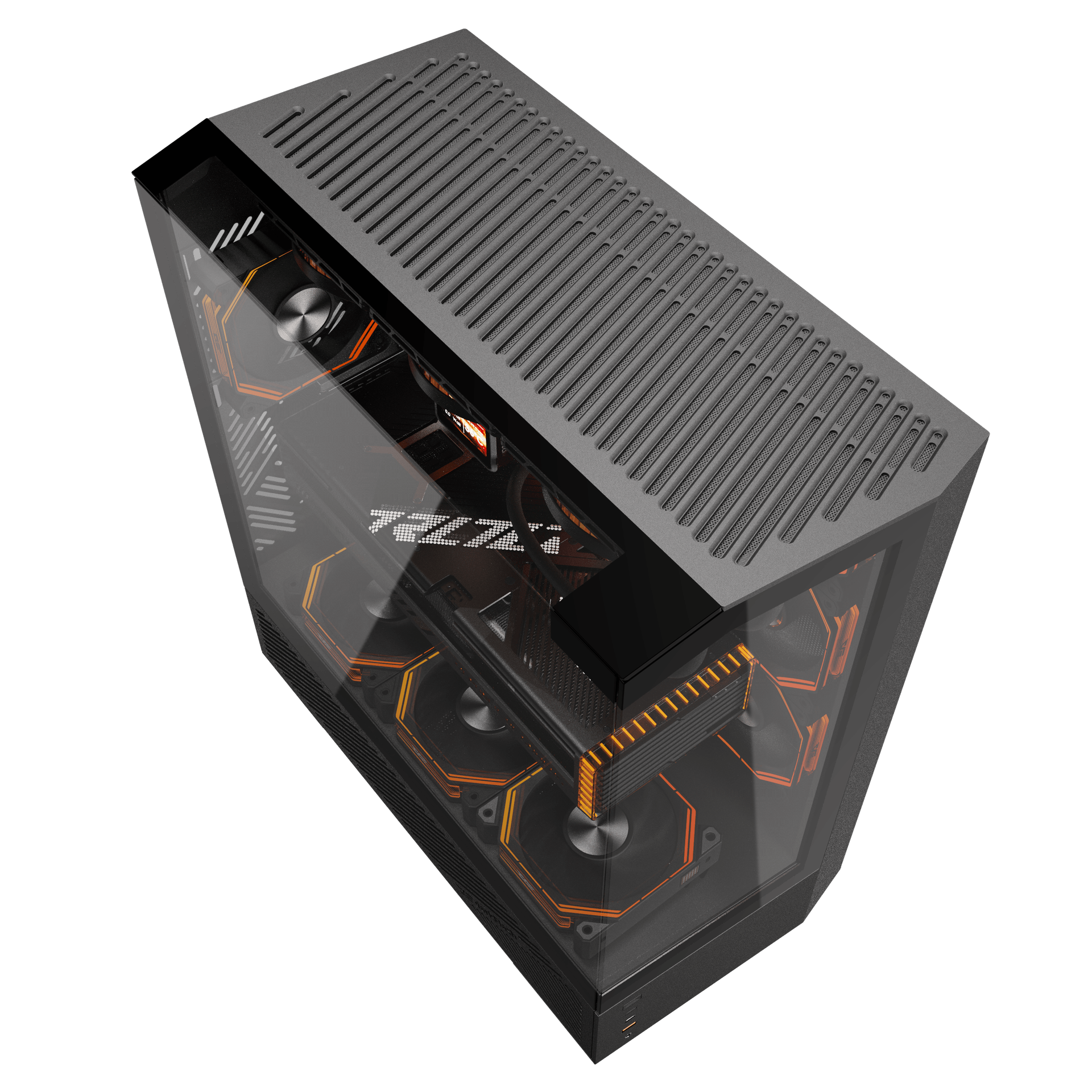

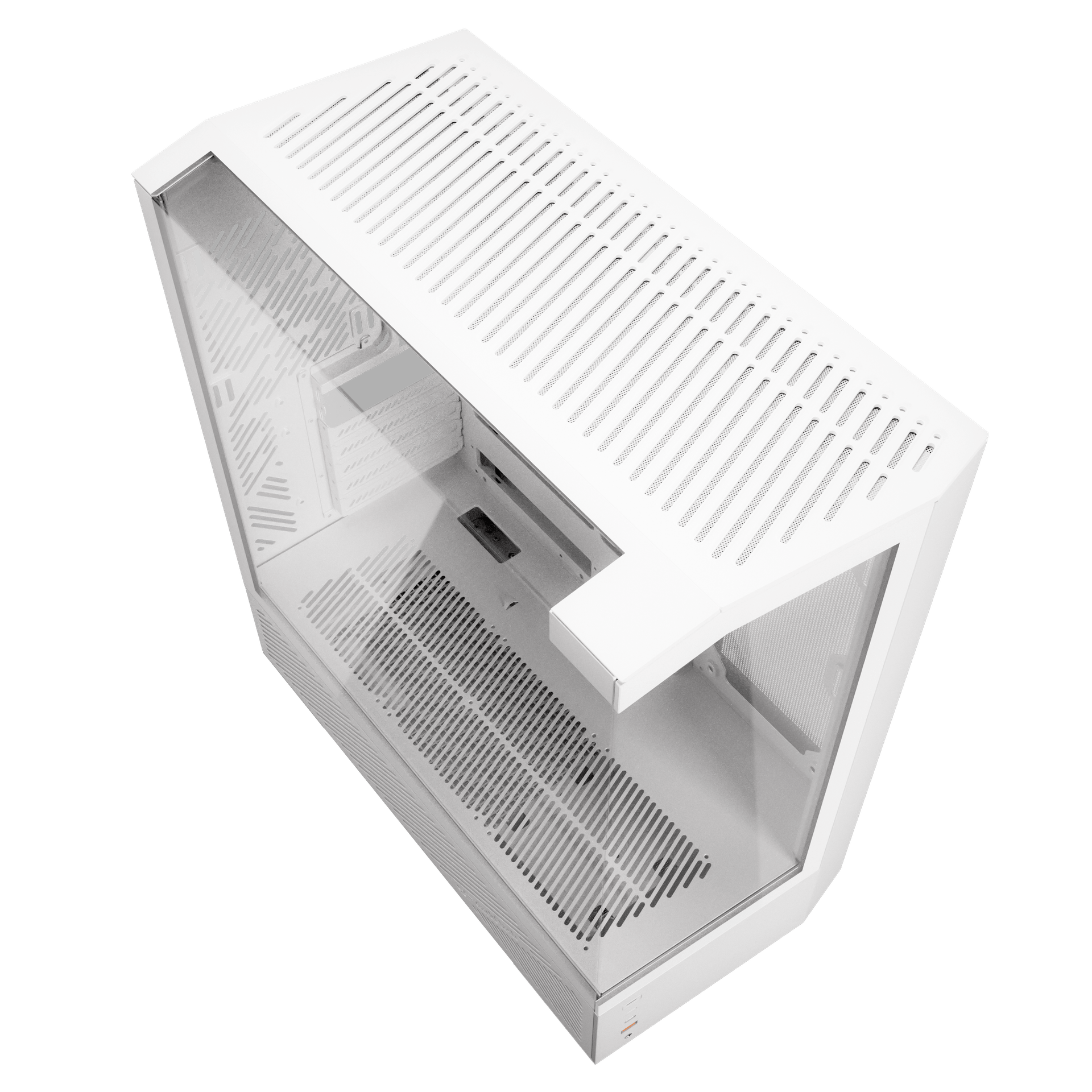

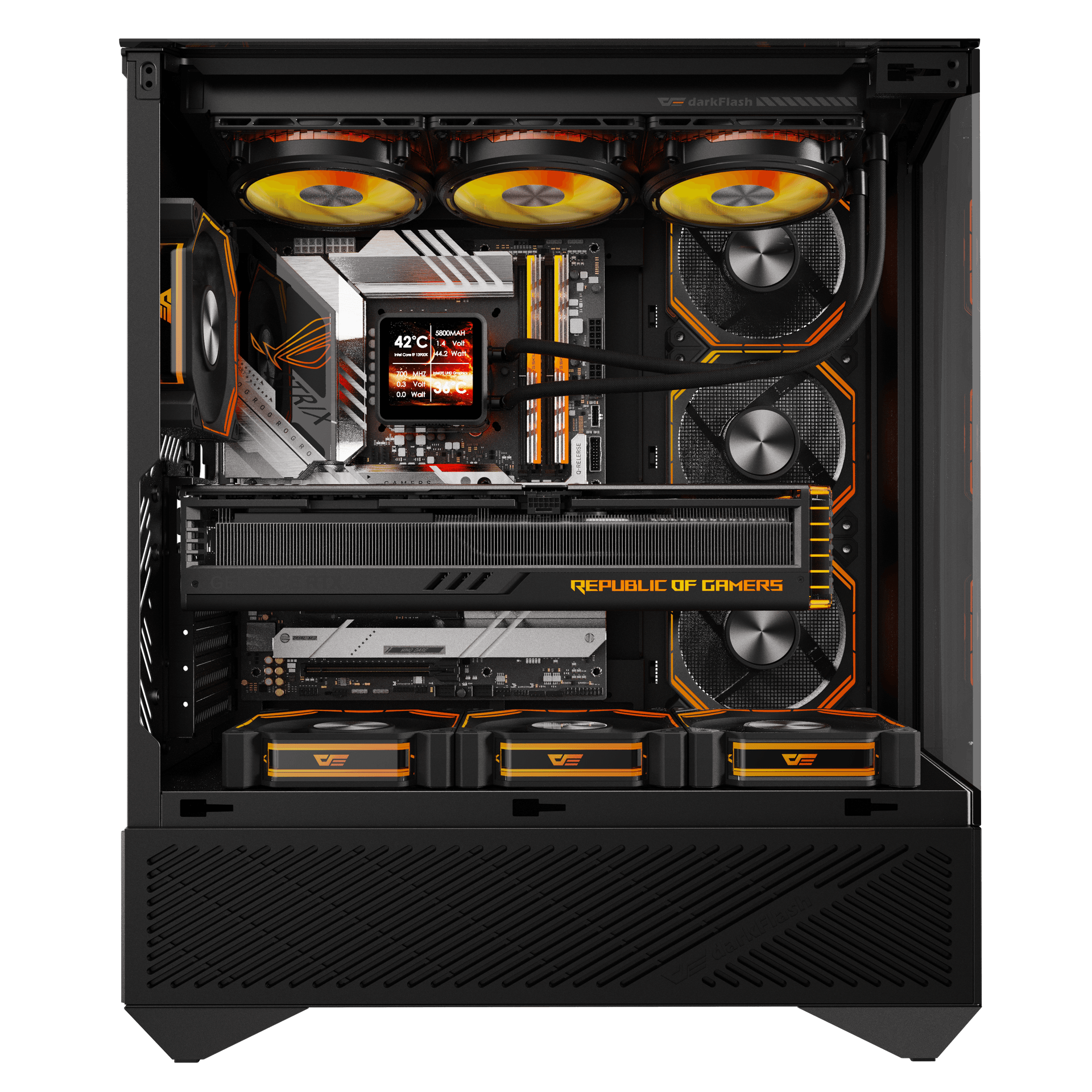

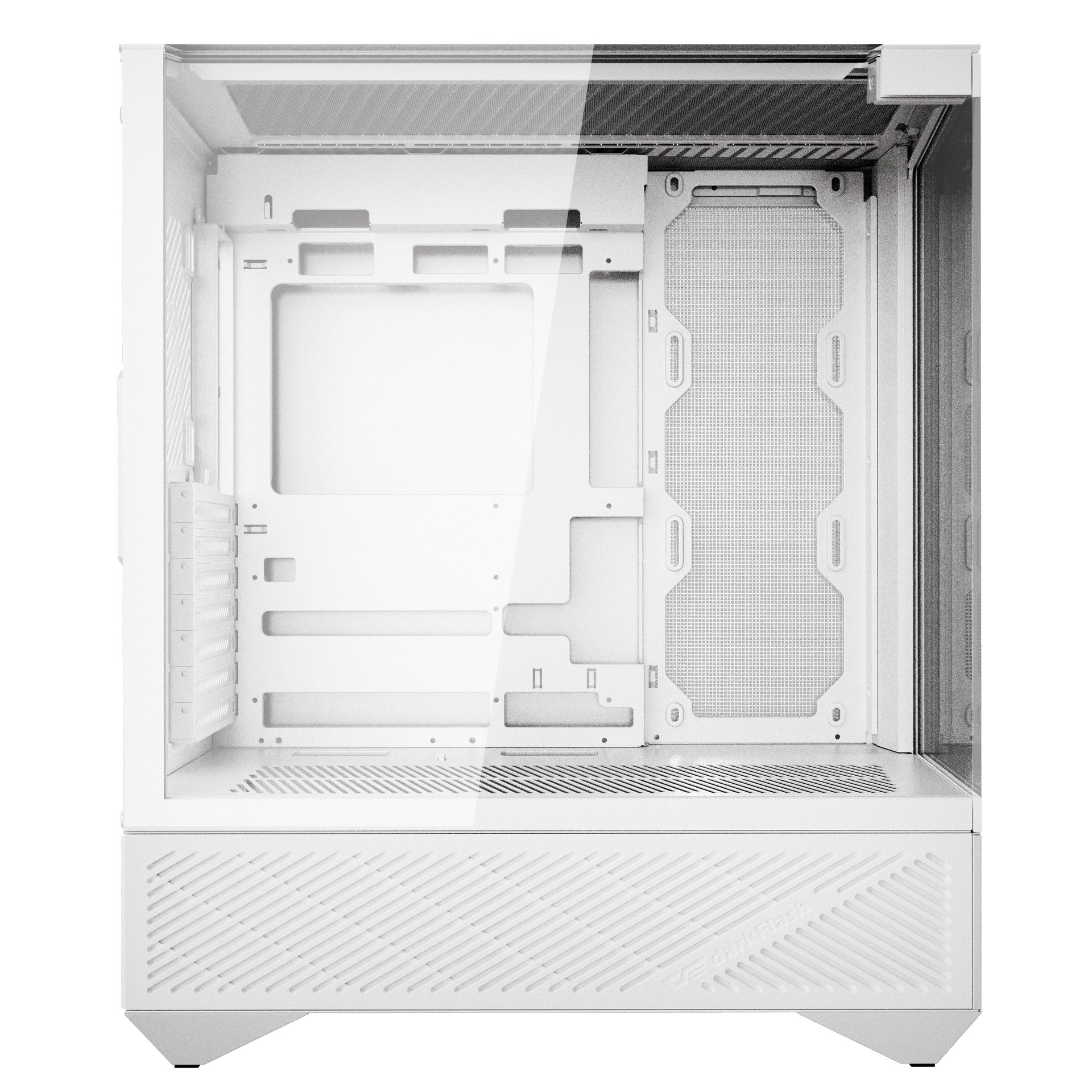

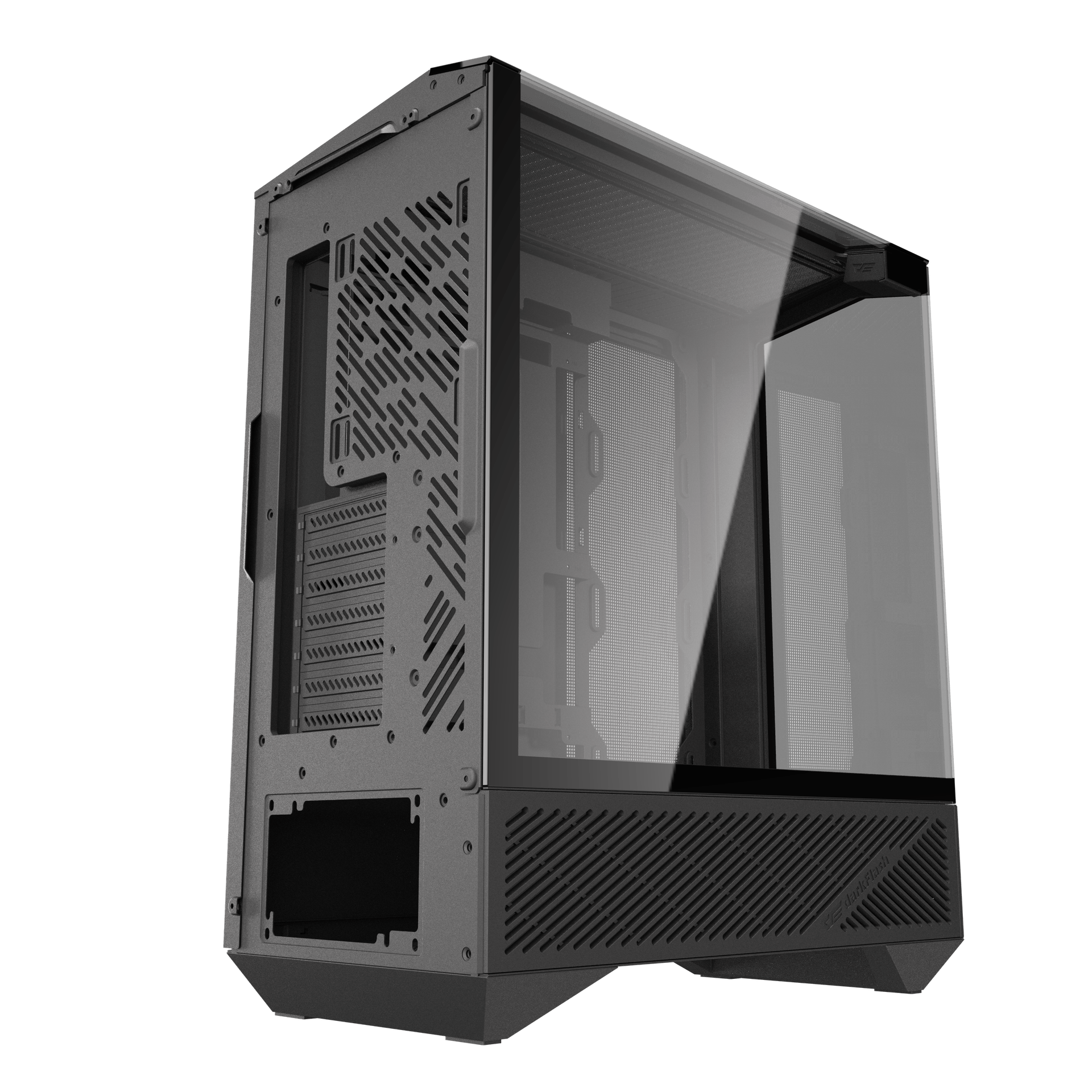

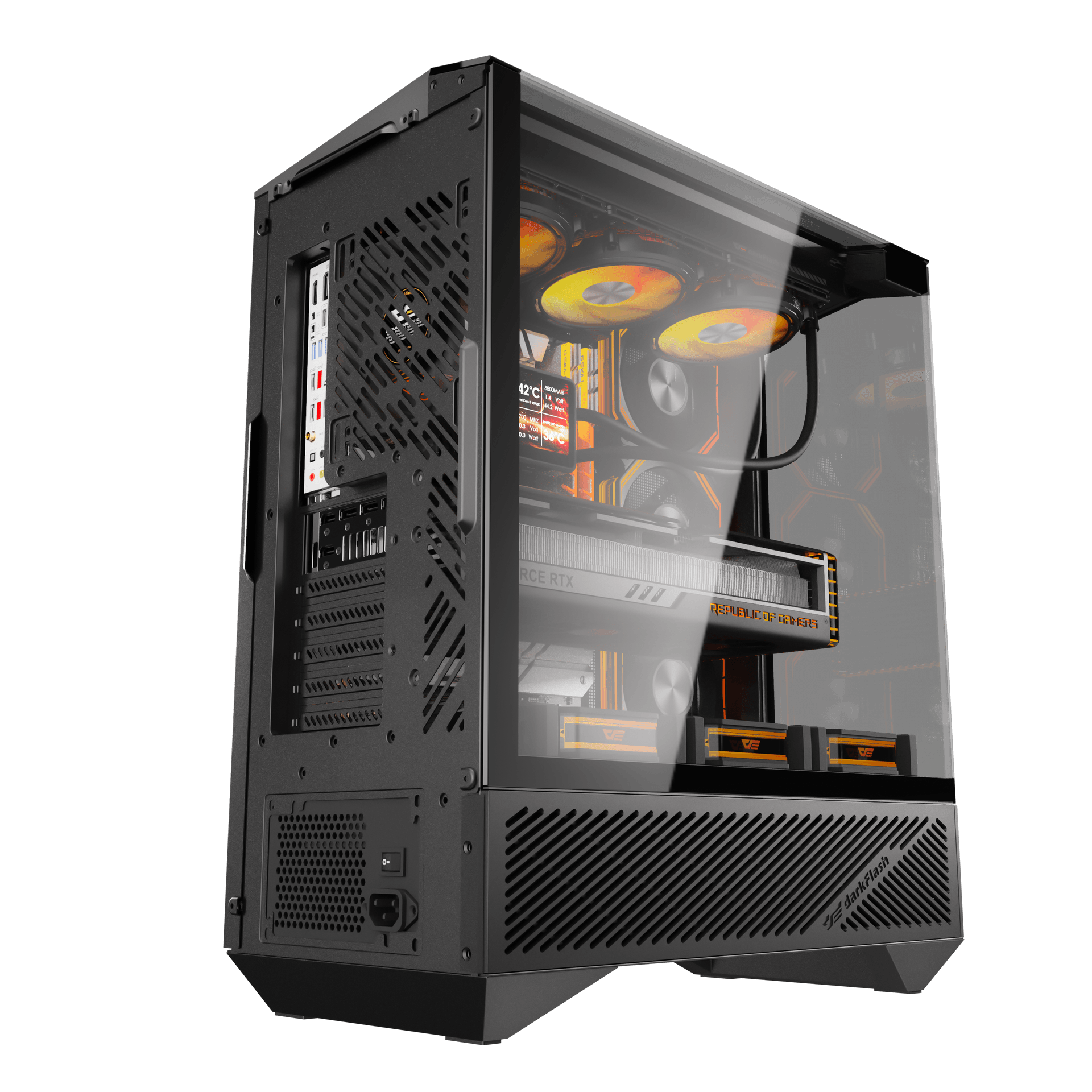

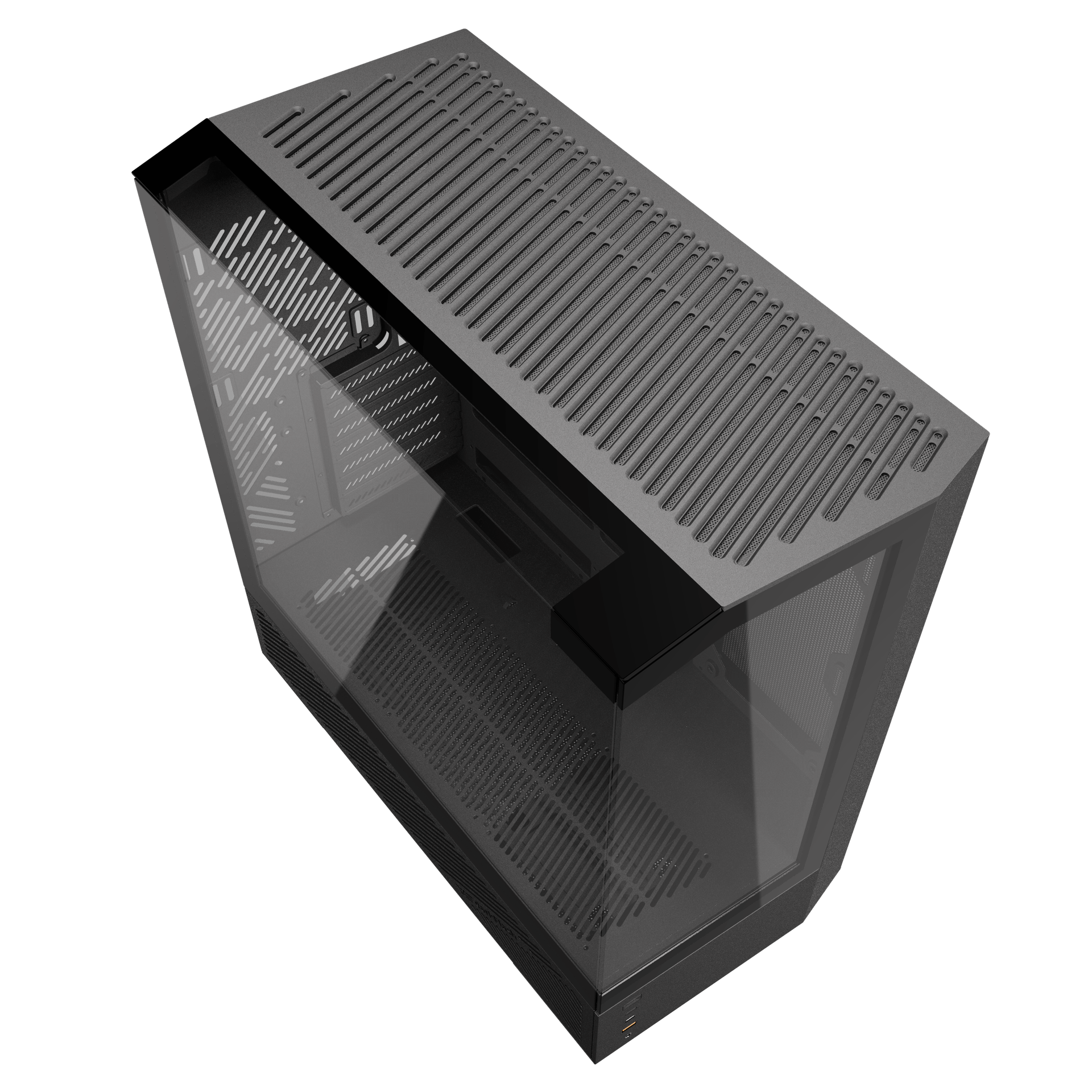

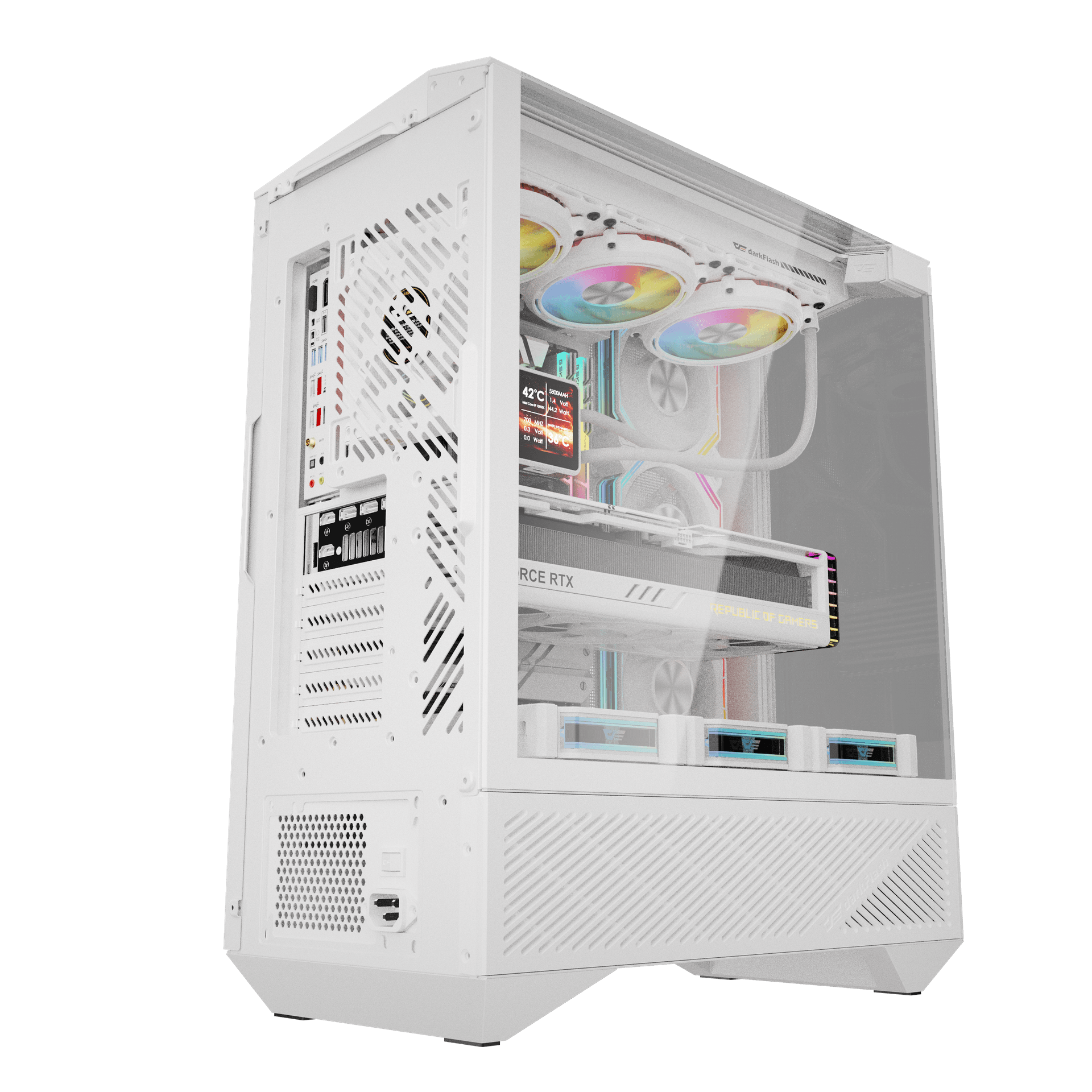

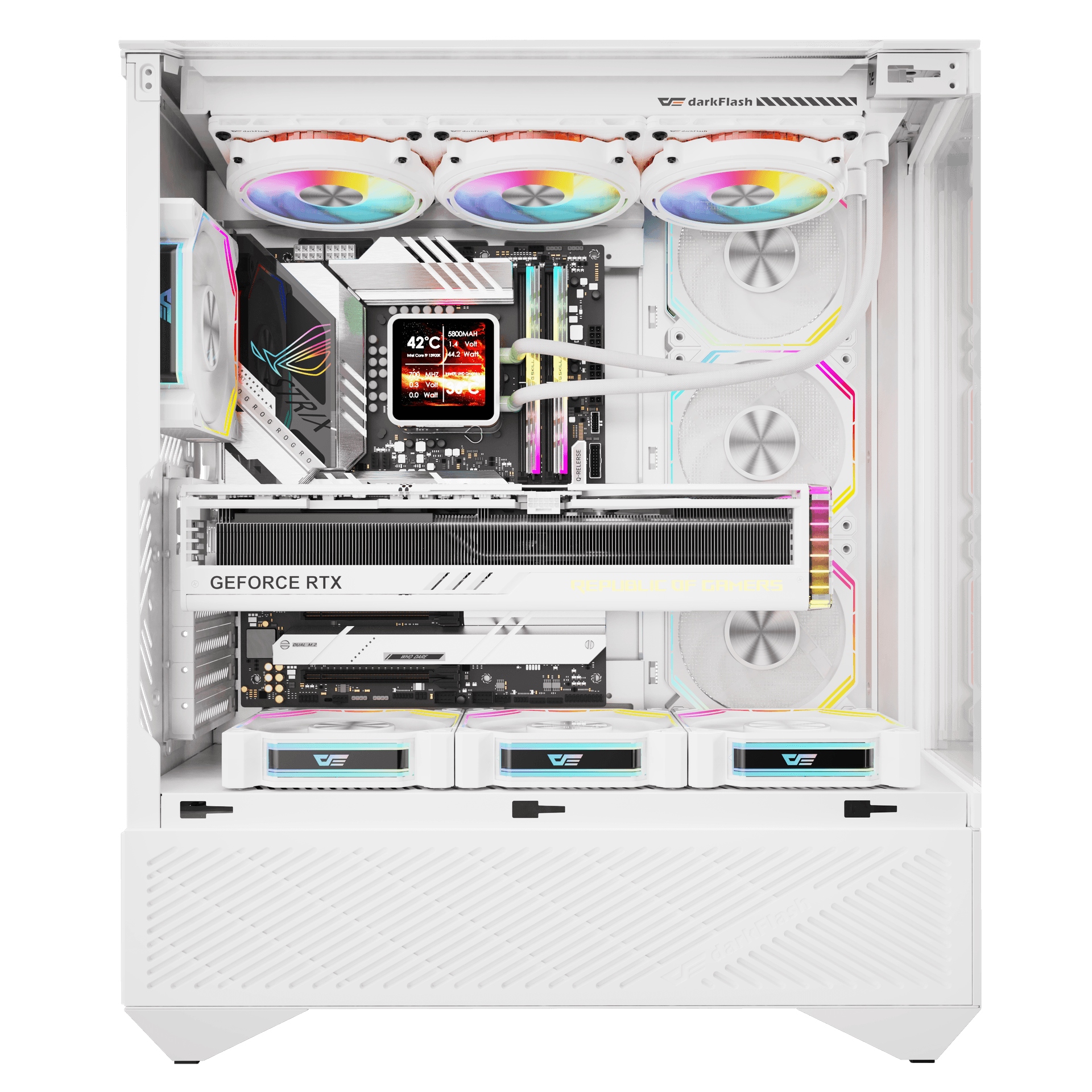

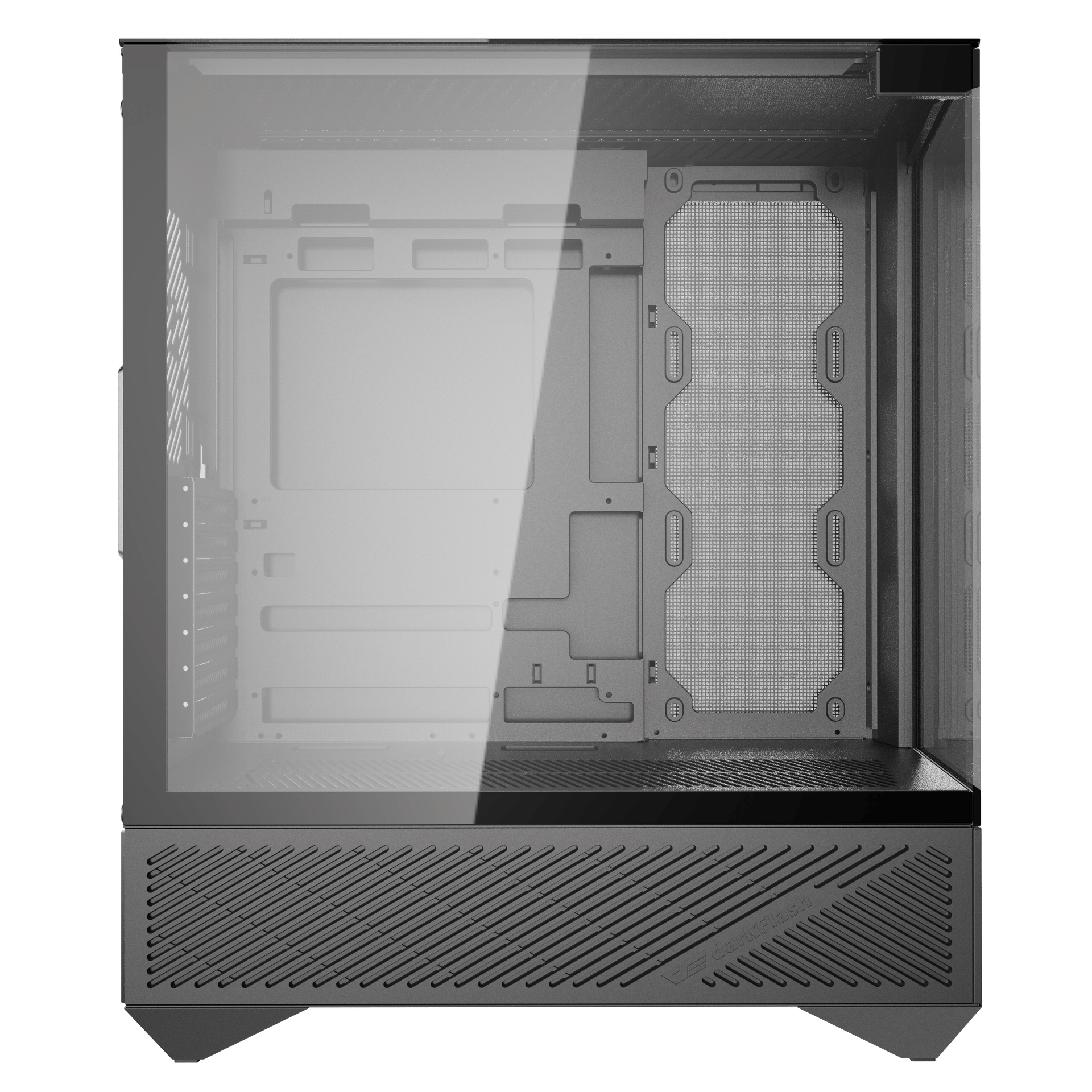

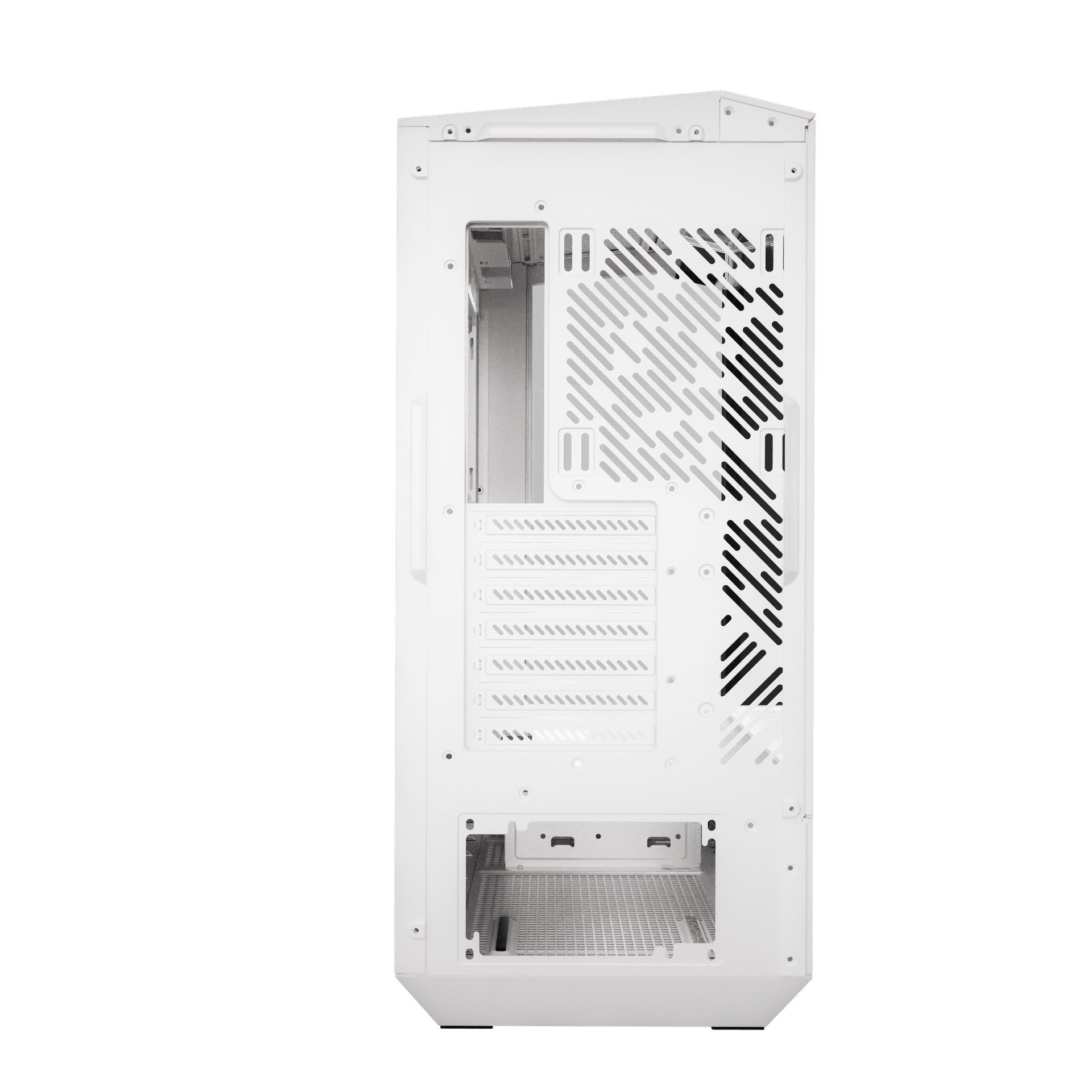

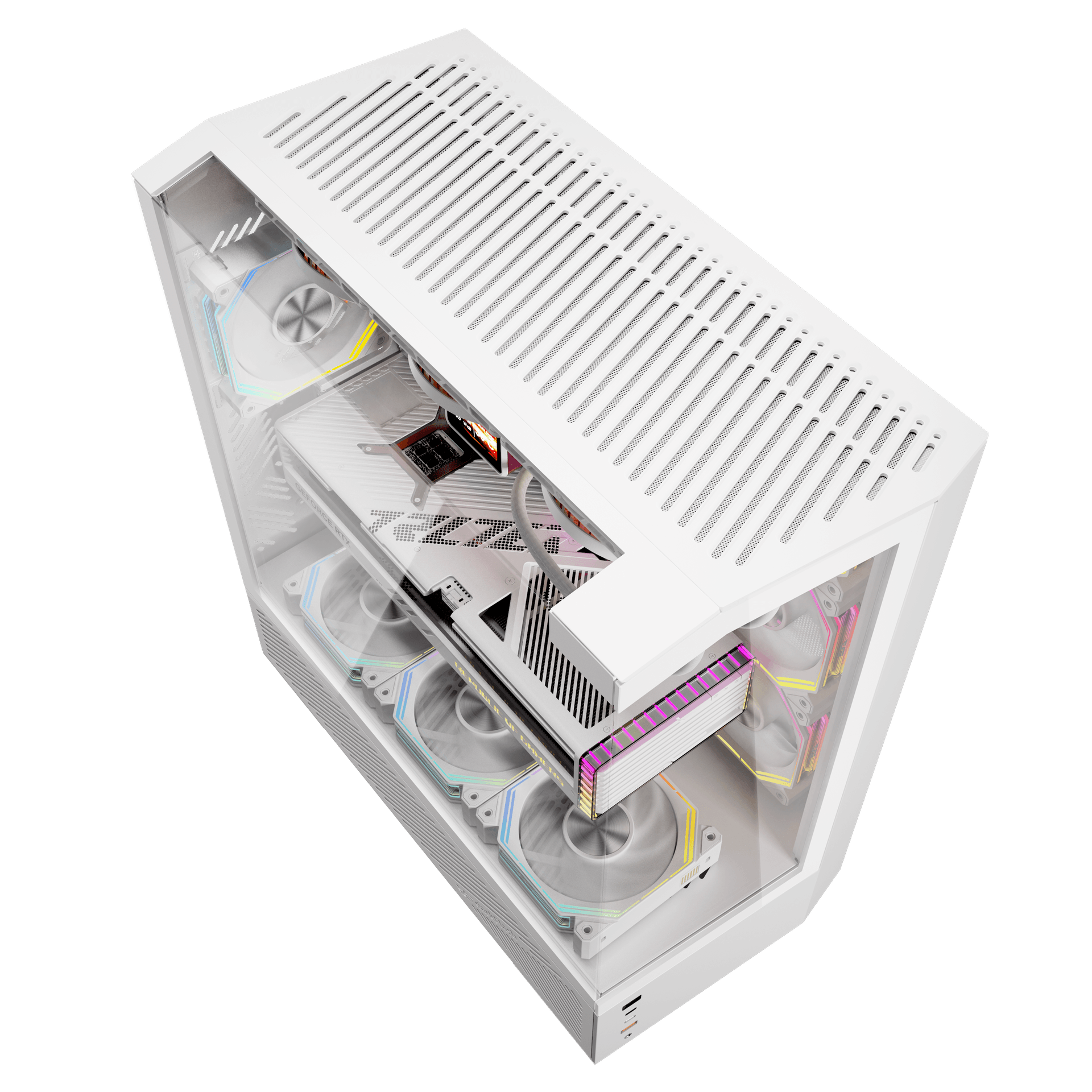

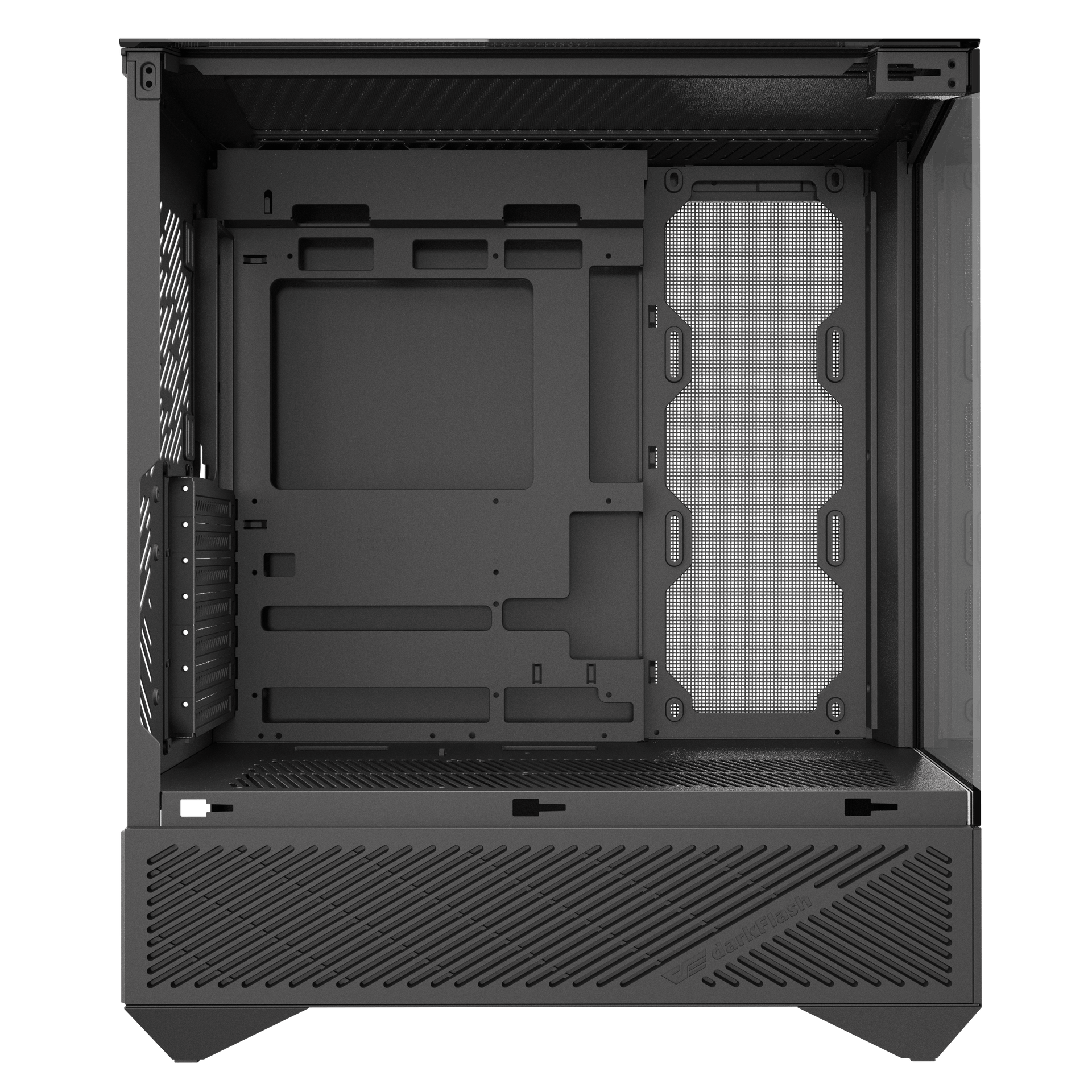

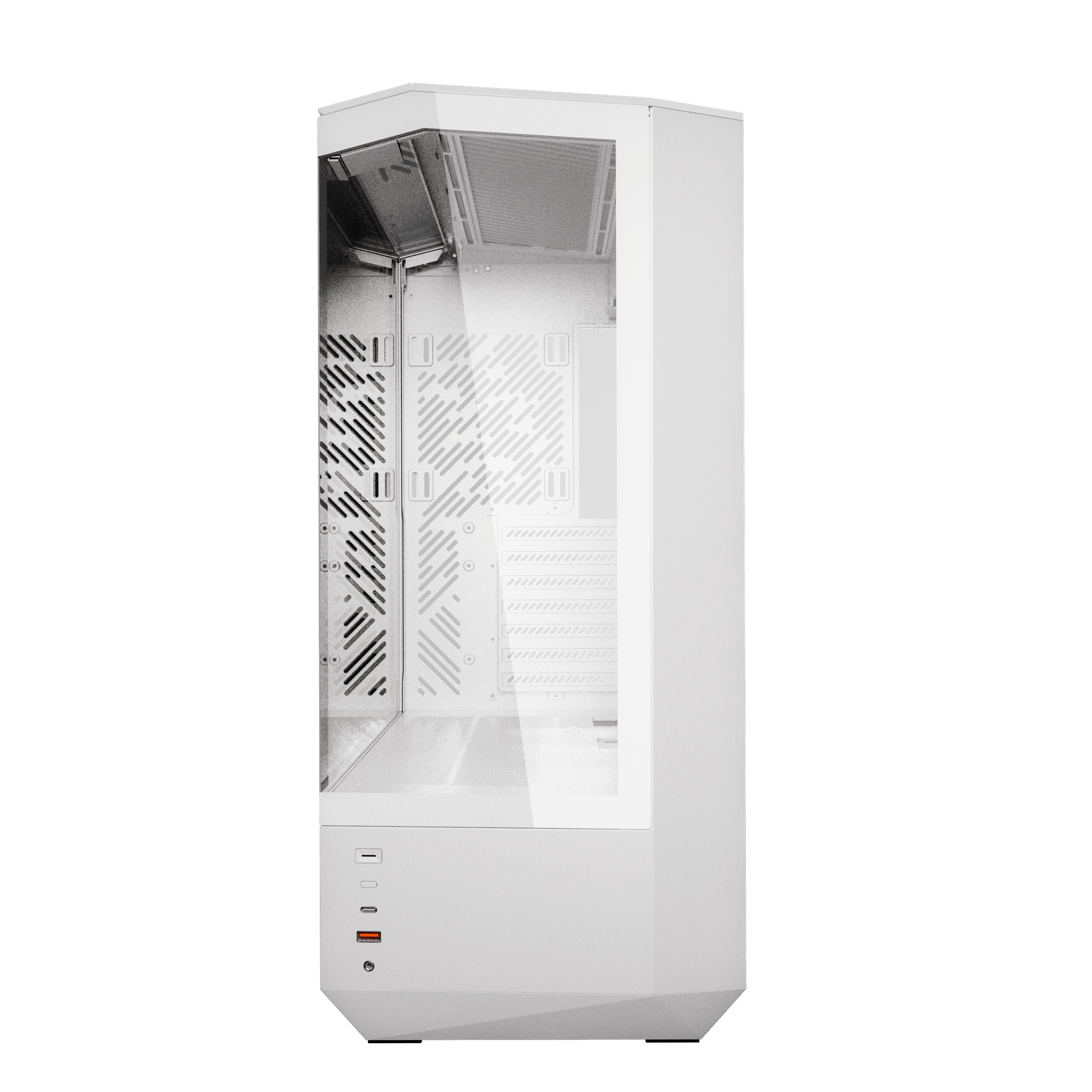

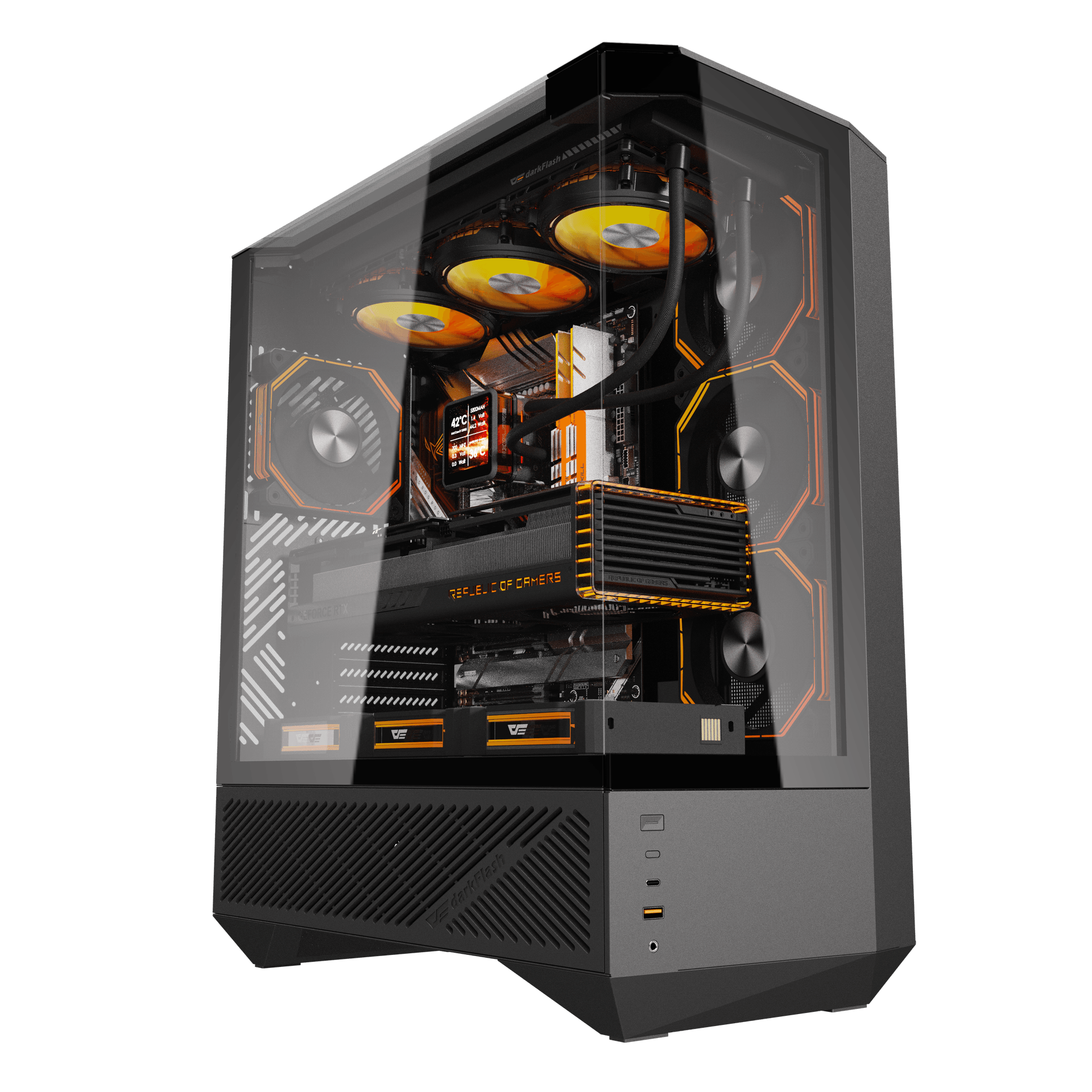

Product Galleries
