Can bottom intake fans lower CPU temperatures? They can reduce the amount of hot GPU exhaust reaching the CPU cooler, but the widely reported 13°C improvement refers to cooler intake air in one simulation, not a guaranteed 13°C drop in CPU core temperature.

A recent computational fluid dynamics simulation from Inviscid AI has renewed the debate over traditional PC airflow. Its results suggest that adding fresh air from the bottom of a gaming PC may reduce heat recirculation around the graphics card and CPU cooler.

The findings are interesting, especially for modern systems with large, high-power GPUs. However, they should be understood as the result of one simulated configuration rather than a universal rule for every PC case.





(inviscidai @instagram)



Why GPU Exhaust Can Raise CPU Cooler Intake Temperatures

The traditional gaming PC airflow layout uses front fans as intake, with rear and top fans exhausting warm air. This configuration is simple, widely supported, and still effective in many systems.

The potential problem is what happens after the incoming air passes through the graphics card. Most modern graphics cards draw air through their heatsinks and release the warmed air back inside the case. Part of that heat can rise toward the CPU area before reaching the rear or top exhaust fans.

In the standard configuration modeled by Inviscid AI, the air entering the case began at approximately 22°C. As the simulation continued, GPU exhaust accumulated around the upper portion of the case, and the air reaching the tower CPU cooler reportedly rose to approximately 35°C.

This does not mean the CPU itself reached only 35°C. It means the CPU cooler was attempting to remove processor heat while drawing in air that was already considerably warmer than the room.



What the 13°C Bottom Intake Result Actually Means

Inviscid AI then simulated an alternative configuration that supplied ambient air from the bottom of the case. This upward airflow delivered cooler air more directly toward the graphics card and helped move GPU exhaust toward the case’s exhaust openings.

Under the conditions used in the simulation:





CPU cooler intake air remained close to the 22°C ambient temperature.



The conventional configuration produced CPU cooler intake air of approximately 35°C.



The resulting difference was as much as 13°C.



Air below the graphics card was reportedly reduced from approximately 30°C to 26°C.

The important distinction is that these figures describe air temperature at specific measurement locations. They do not prove that the processor’s package or core temperature will fall by the same amount.

Cooler design, CPU power consumption, fan speed, thermal paste, ambient temperature, GPU cooler orientation, and case geometry will determine how much of that cooler intake air translates into lower component temperatures. Other coverage of the simulation has raised the same qualification: the result is promising, but it is not a guaranteed improvement for every PC. One analysis of the simulation explains the limitation here.





(OpenReynolds Website)



How OpenReynolds Uses AI for PC Airflow Simulation

The experiment was created with OpenReynolds, an open-source project that combines an AI agent with a real OpenFOAM computational fluid dynamics workspace.

Traditional CFD analysis requires engineers to define the geometry, divide the space into a computational mesh, select appropriate solvers, configure boundary conditions, monitor convergence, and interpret the results. The calculations still come from a numerical physics solver, but preparing and managing the workflow can require considerable specialist knowledge.

According to the official OpenReynolds repository, users can describe the geometry, fluid, speed, and measurement goal. The agent then helps create the case, generate the mesh, launch the OpenFOAM solver, read residuals, inspect rendered results, and return the relevant files.





(OpenReynolds GitHub)



This does not mean AI is guessing the temperature distribution or replacing fluid dynamics with an image generator. The AI manages the workflow, while OpenFOAM performs the numerical calculation. The results still depend on the accuracy of the geometry, heat loads, fan curves, boundary conditions, turbulence model, mesh quality, and convergence.

For that reason, CFD is valuable for comparing airflow concepts, but physical measurements inside a real PC remain necessary before treating a simulated temperature difference as a confirmed product benchmark.







Should You Add Bottom Intake Fans to Your Gaming PC?

Bottom intake is most useful when the fans have a clear path to the graphics card. Panoramic and dual-chamber cases commonly use this layout because their glass front panels do not provide conventional front intake airflow.

Before adding bottom fans, check the following:





The case must have compatible bottom fan mounts.



There should be enough clearance below the case for air to enter.



A dust filter should cover the bottom intake.



Cables and the power-supply chamber must not obstruct airflow.



The GPU should have enough space above the fans.



Top and rear exhaust capacity should be sufficient to remove the added air.



Fan curves should be adjusted to balance cooling and noise.

More fans do not automatically produce better temperatures. A bottom fan positioned against a solid panel, thick cable bundle, or restrictive filter may deliver very little usable airflow. Excessive turbulence can also reduce efficiency or increase noise.

Cases designed around bottom and side intake provide more flexibility. For example, the global darkFlash FLOATRON F1 ATX PC Case supports three 120 mm fans at the bottom, two at the side, three at the top, and one at the rear. This allows builders to create a direct bottom-to-GPU airflow path while using the top and rear positions for exhaust.

Users should still test their own system. Record CPU and GPU temperatures, hotspot readings, fan speeds, and noise under the same workload before and after changing the fan configuration. Real measurements are more useful than assuming a specific simulation result will apply unchanged.





(darkFlash FLOATRON F1 ATX PC Case)



Final Thoughts: Is Bottom Intake Better Than Traditional Airflow?

Bottom intake can be highly effective in modern gaming PCs because it supplies fresh air directly beneath the graphics card and may reduce the amount of GPU exhaust recirculating into the CPU cooler.

However, the reported 13°C result should be described accurately. It was a difference in simulated CPU cooler intake-air temperature under a specific set of conditions, not a measured 13°C reduction in CPU core temperature and not a promise for every PC.

The practical lesson is not that traditional front-to-back airflow has suddenly become obsolete. It is that airflow should match the internal layout of the case. Conventional mesh-front cases may continue to perform well with front intake, while panoramic cases and systems with large GPUs may benefit more from bottom and side intake.

Choose a case with unobstructed fan mounts, adequate underside clearance, removable dust filters, and enough exhaust capacity. Then verify the result with your own temperature and noise testing rather than relying on fan direction alone.

An AI-assisted CFD simulation suggests bottom intake fans can reduce the temperature of air reaching a CPU cooler by as much as 13°C. Here is what the result actually means for real gaming PCs.

Can Bottom Intake Fans Lower CPU Temperatures? AI Airflow Simulation Explained

Build Guides

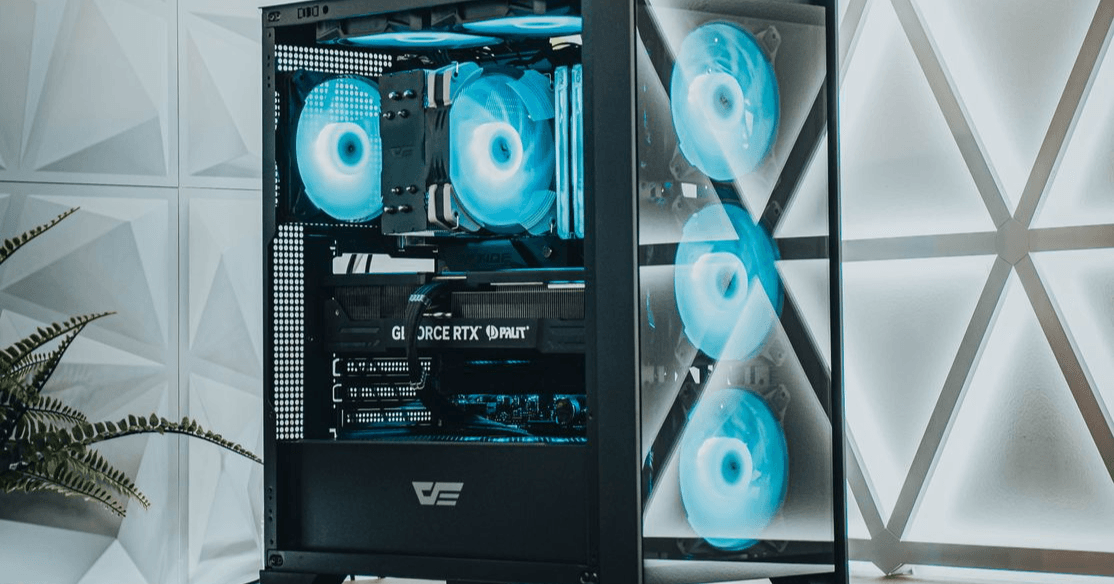

Currently, the most common case fans on the market are 120 mm and 140 mm. However, fans pre-installed in cases are still predominantly 120 mm. What are the differences between these two sizes, and should you consider upgrading to a 140 mm fan?

| Differences Between 120 mm and 140 mm Fans |

The primary differences between 120 mm and 140 mm fans are airflow, cooling performance, noise levels, and case compatibility.

When operating at the same speed, a 140 mm fan will generate higher airflow, resulting in better cooling performance compared to a 120 mm fan.

At the same noise level, a 140 mm fan operates at a lower speed while providing stronger airflow. However, at the same fan speed, a 120 mm fan will produce less noise.

Since 140 mm fans require larger spaces and screw holes that specifically fit the 140 mm size, not all cases support 140 mm fans. It’s important to check compatibility before purchasing.

| Who Should Upgrade to 140 mm Case Fans? |

140 mm fans offer higher airflow at full speed, lowering internal temperatures more effectively than 120 mm fans.

140 mm fans tend to be noisier than 120 mm fans. They are ideal for users who typically wear headphones while gaming or using their PC for extended periods.

| Why Aren’t 140 mm Case Fans the Mainstream Choice? |

While some cases come pre-installed with 140 mm fans, 120 mm fans are still the most common choice. This is due to several reasons:

140 mm fans tend to be slightly more expensive than their 120 mm counterparts. For example, the Owl NF-P12 and NF-P14 fans are priced at $20 and $23, respectively. The price difference of $3 per fan can add up to $9 for 3 to 4 fans. However, real-world testing shows that a 140 mm fan only reduces temperatures by about 1 degree compared to a 120 mm fan, which may not justify the higher cost.

Most consumers do not run their PCs at full speed for extended periods. The airflow and cooling performance of 120 mm fans are sufficient for everyday use, so upgrading to 140 mm fans is often unnecessary.





Currently, the most common case fans on the market are 120 mm and 140 mm. However, fans pre-installed in cases are still predominantly 120 mm. What are the differences between these two sizes, and should you consider upgrading to a 140 mm fan?



| Differences Between 120 mm and 140 mm Fans |

The primary differences between 120 mm and 140 mm fans are airflow, cooling performance, noise levels, and case compatibility.



Airflow and Cooling Performance

When operating at the same speed, a 140 mm fan will generate higher airflow, resulting in better cooling performance compared to a 120 mm fan.







Speed and Noise Levels

At the same noise level, a 140 mm fan operates at a lower speed while providing stronger airflow. However, at the same fan speed, a 120 mm fan will produce less noise.



Case Compatibility

Since 140 mm fans require larger spaces and screw holes that specifically fit the 140 mm size, not all cases support 140 mm fans. It’s important to check compatibility before purchasing.



| Who Should Upgrade to 140 mm Case Fans? |

Users with Higher Cooling Needs:

140 mm fans offer higher airflow at full speed, lowering internal temperatures more effectively than 120 mm fans.



Users Less Concerned About Noise:

140 mm fans tend to be noisier than 120 mm fans. They are ideal for users who typically wear headphones while gaming or using their PC for extended periods.







| Why Aren’t 140 mm Case Fans the Mainstream Choice? |

While some cases come pre-installed with 140 mm fans, 120 mm fans are still the most common choice. This is due to several reasons:



Lower Cost-Effectiveness

140 mm fans tend to be slightly more expensive than their 120 mm counterparts. For example, the Owl NF-P12 and NF-P14 fans are priced at $20 and $23, respectively. The price difference of $3 per fan can add up to $9 for 3 to 4 fans. However, real-world testing shows that a 140 mm fan only reduces temperatures by about 1 degree compared to a 120 mm fan, which may not justify the higher cost.



Not Aligned with Market Demand

Most consumers do not run their PCs at full speed for extended periods. The airflow and cooling performance of 120 mm fans are sufficient for everyday use, so upgrading to 140 mm fans is often unnecessary.





140 mm case fans offer better cooling performance, but due to cost-effectiveness and market demand, 120 mm fans remain the mainstream choice.

What Are the Differences Between 140 mm and 120 mm Case Fans?

Hardware Tips

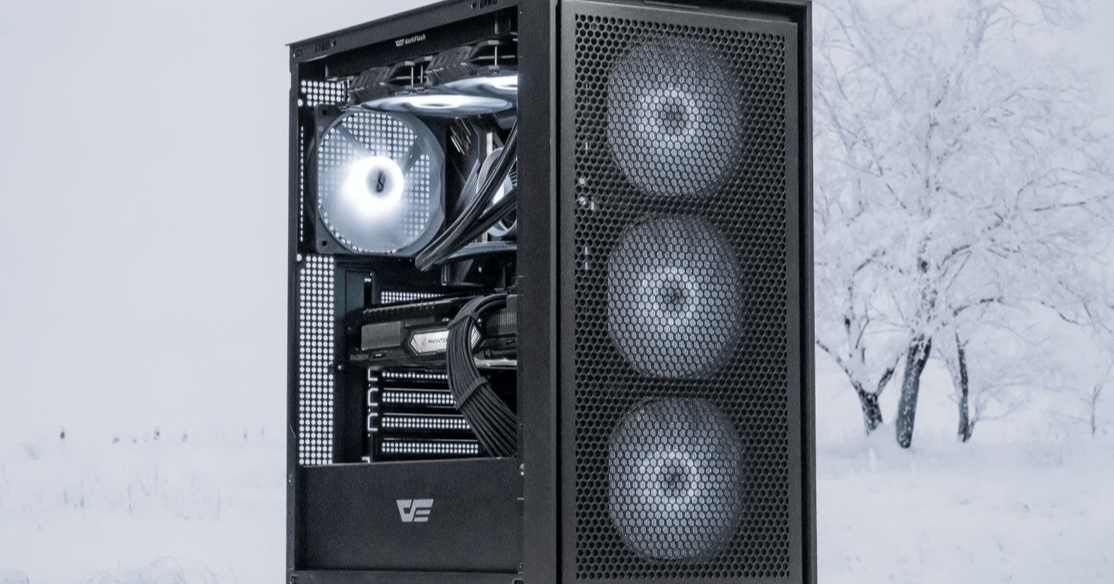

PWM stands for "Pulse Width Modulation," and it controls the fan speed by adjusting the frequency of current pulses. This allows for more accurate fan speed control, which helps optimize both performance and noise reduction.

How to Identify a PWM Fan vs Non-PWM Fan?

A PWM fan typically uses a small 4-pin connector. When this 4-pin connector is plugged into the motherboard, it receives PWM signals from the motherboard, adjusting the current switching frequency through pulses, which in turn controls the fan speed. Therefore, any fan with a 4-pin connector is likely a PWM fan, while fans with fewer pins are generally not PWM-controlled.

PWM fans adjust their speed based on system temperature, allowing for precise regulation of fan speed. Some software even enables manual adjustment of fan speed.

Because the system adjusts the fan speed based on the computer’s load, the fan is not constantly running at high speeds. This reduces wear and tear on the fan and helps extend its lifespan.

At lower loads, the fan can run at slower speeds, reducing noise. At higher loads, the fan speed increases to ensure effective cooling and gaming performance.

The DM12 Pro is a 4-pin PWM fan that doesn’t require a control box to daisy-chain multiple fans. The fan frame features a sleek design with LED lights that create a more even glow across the fan. The DM12 Pro also offers both positive and negative blade options, making it an essential fan for a "sea-view" style case.

The Gauss G24 ARGB Fan is darkFlash's first fan to use magnetic connections, eliminating the need for messy cables between fans. This enhances the efficiency of building a DIY PC. Despite using magnetic connections, the fan doesn’t compromise on performance and boasts a maximum speed of 2000 RPM, making it ideal for use as a radiator fan in water cooling setups.

PWM Fans: The Best Choice for Efficient Cooling and Silence

PWM fans are an excellent choice for combining high cooling efficiency with low noise levels, especially for gaming PCs and systems under high-load conditions.





PWM stands for "Pulse Width Modulation," and it controls the fan speed by adjusting the frequency of current pulses. This allows for more accurate fan speed control, which helps optimize both performance and noise reduction.



How to Identify a PWM Fan vs Non-PWM Fan?

A PWM fan typically uses a small 4-pin connector. When this 4-pin connector is plugged into the motherboard, it receives PWM signals from the motherboard, adjusting the current switching frequency through pulses, which in turn controls the fan speed. Therefore, any fan with a 4-pin connector is likely a PWM fan, while fans with fewer pins are generally not PWM-controlled.







Reasons to Choose a PWM Fan

1. Precise Fan Speed Control

PWM fans adjust their speed based on system temperature, allowing for precise regulation of fan speed. Some software even enables manual adjustment of fan speed.







2. Extended Fan Lifespan

Because the system adjusts the fan speed based on the computer’s load, the fan is not constantly running at high speeds. This reduces wear and tear on the fan and helps extend its lifespan.







3. Better Noise Control

At lower loads, the fan can run at slower speeds, reducing noise. At higher loads, the fan speed increases to ensure effective cooling and gaming performance.







Recommended PWM Fans

DM12 Pro A-RGB Cooling Fan

The DM12 Pro is a 4-pin PWM fan that doesn’t require a control box to daisy-chain multiple fans. The fan frame features a sleek design with LED lights that create a more even glow across the fan. The DM12 Pro also offers both positive and negative blade options, making it an essential fan for a "sea-view" style case.







Gauss G24 ARGB Fan

The Gauss G24 ARGB Fan is darkFlash's first fan to use magnetic connections, eliminating the need for messy cables between fans. This enhances the efficiency of building a DIY PC. Despite using magnetic connections, the fan doesn’t compromise on performance and boasts a maximum speed of 2000 RPM, making it ideal for use as a radiator fan in water cooling setups.







PWM Fans: The Best Choice for Efficient Cooling and Silence

PWM fans are an excellent choice for combining high cooling efficiency with low noise levels, especially for gaming PCs and systems under high-load conditions.

A PWM fan utilizes current adjustments to control the fan's speed, enabling precise fan speed regulation. This helps achieve a balance between fan performance and noise levels.

What is a PWM Fan?

How-to Guides

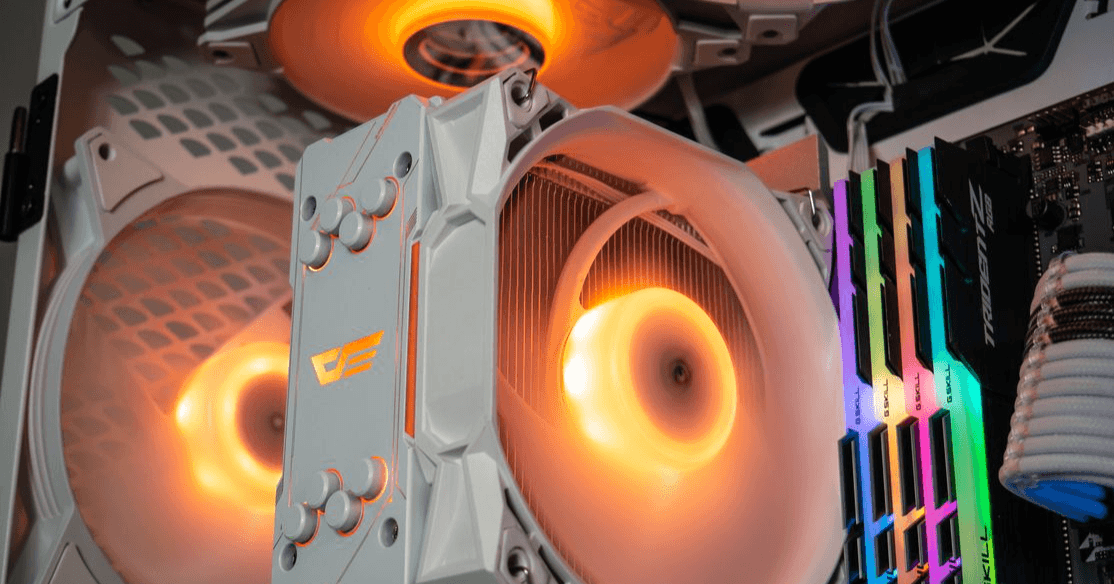

Whether you're choosing a fan for an air cooler or a water cooler, the fan's role in dissipating heat from the case is essential. To help you make an informed decision, here are the five key factors to consider when picking a fan:

Common fan sizes on the market are 120mm (12cm) and 140mm (14cm). Larger fans, such as the 140mm ones, can provide greater airflow and thus better cooling performance, especially at the same RPM (revolutions per minute). However, not all cases can accommodate 140mm fans, so it's important to check the size compatibility of your case before purchasing. If you can fit the larger fan, it’s generally worth opting for it due to its superior airflow.

A fan with a higher RPM can deliver more airflow and pressure, which means it can move heat more efficiently. However, the trade-off is that higher speeds often result in increased noise and potential fan vibrations. To address this, many fans now come with PWM (Pulse Width Modulation) speed control, allowing the fan to adjust its speed based on the system’s temperature. Under heavy load, the fan will increase its speed to cool down the components quickly, and when the system is under light load, the speed will decrease to maintain basic cooling while minimizing noise.

Airflow (CFM - Cubic Feet per Minute): Airflow refers to the volume of air the fan can move per minute. A higher airflow means the fan can remove heat more effectively from the case.

Static Pressure (mmH2O): This measures the fan's ability to overcome resistance to airflow, such as when there are radiators or cooling fins in the way. A fan with higher static pressure is better suited for use with radiators or heat sinks, where airflow is obstructed and needs extra force to pass through the components.

There are various types of bearings used in computer fans, such as Fluid Dynamic Bearings (FDB), Hydraulic Bearings, and Sleeve Bearings. The type of bearing affects the fan’s lifespan, noise level, and stability. Fluid Dynamic Bearings (FDB) are often considered the best because they provide a balance of low noise and high performance. A well-designed fan with quality bearings can provide high airflow and pressure while maintaining quieter operation over time.

The position where you install your fan is just as important as the fan itself. Even with a high-performance fan, poor airflow management in your case could prevent the fan from performing at its best. Ensuring that your case has a good airflow path is essential for optimal cooling. The fan should ideally create a smooth intake and exhaust airflow system, directing cool air into the case and pushing hot air out. For tips on the best installation directions for case fans, consider exploring guides on

The Best Fan Installation Direction for Your PC Case.

The performance of your computer fan is influenced by several factors, including size, speed, airflow, pressure, bearing type, installation position, and environmental conditions. When choosing and installing a fan, it’s essential to balance all these elements to achieve the best cooling performance and overall user experience. Additionally, regular maintenance and cleaning of your fans will help extend their lifespan and maintain stable performance. A little extra care will go a long way in ensuring your cooling system works efficiently for years to come.





Whether you're choosing a fan for an air cooler or a water cooler, the fan's role in dissipating heat from the case is essential. To help you make an informed decision, here are the five key factors to consider when picking a fan:



1. Fan Size

Common fan sizes on the market are 120mm (12cm) and 140mm (14cm). Larger fans, such as the 140mm ones, can provide greater airflow and thus better cooling performance, especially at the same RPM (revolutions per minute). However, not all cases can accommodate 140mm fans, so it's important to check the size compatibility of your case before purchasing. If you can fit the larger fan, it’s generally worth opting for it due to its superior airflow.



2. Fan Speed

A fan with a higher RPM can deliver more airflow and pressure, which means it can move heat more efficiently. However, the trade-off is that higher speeds often result in increased noise and potential fan vibrations. To address this, many fans now come with PWM (Pulse Width Modulation) speed control, allowing the fan to adjust its speed based on the system’s temperature. Under heavy load, the fan will increase its speed to cool down the components quickly, and when the system is under light load, the speed will decrease to maintain basic cooling while minimizing noise.







3. Airflow and Static Pressure

Airflow (CFM - Cubic Feet per Minute): Airflow refers to the volume of air the fan can move per minute. A higher airflow means the fan can remove heat more effectively from the case.

Static Pressure (mmH2O): This measures the fan's ability to overcome resistance to airflow, such as when there are radiators or cooling fins in the way. A fan with higher static pressure is better suited for use with radiators or heat sinks, where airflow is obstructed and needs extra force to pass through the components.



4. Bearing Type

There are various types of bearings used in computer fans, such as Fluid Dynamic Bearings (FDB), Hydraulic Bearings, and Sleeve Bearings. The type of bearing affects the fan’s lifespan, noise level, and stability. Fluid Dynamic Bearings (FDB) are often considered the best because they provide a balance of low noise and high performance. A well-designed fan with quality bearings can provide high airflow and pressure while maintaining quieter operation over time.







5. Installation Position

The position where you install your fan is just as important as the fan itself. Even with a high-performance fan, poor airflow management in your case could prevent the fan from performing at its best. Ensuring that your case has a good airflow path is essential for optimal cooling. The fan should ideally create a smooth intake and exhaust airflow system, directing cool air into the case and pushing hot air out. For tips on the best installation directions for case fans, consider exploring guides on The Best Fan Installation Direction for Your PC Case.







The performance of your computer fan is influenced by several factors, including size, speed, airflow, pressure, bearing type, installation position, and environmental conditions. When choosing and installing a fan, it’s essential to balance all these elements to achieve the best cooling performance and overall user experience. Additionally, regular maintenance and cleaning of your fans will help extend their lifespan and maintain stable performance. A little extra care will go a long way in ensuring your cooling system works efficiently for years to come.

When selecting a computer fan, several factors come into play that can affect its performance. These include fan size, speed, airflow and pressure, bearing type, and installation position.

How to Choose the Right Computer Fan: Key Factors to Consider

Product Reviews

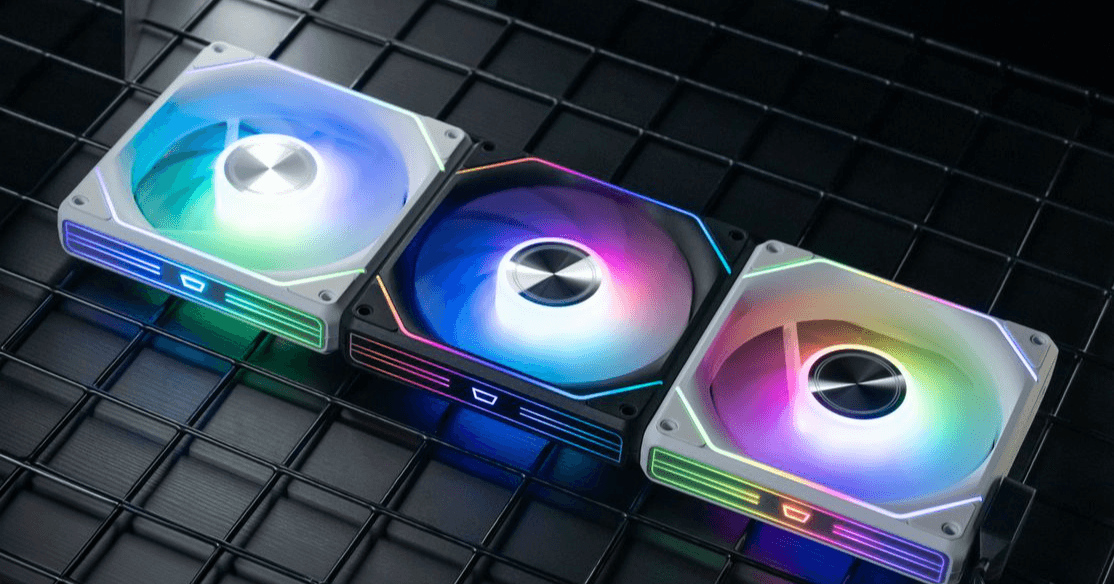

When it comes to PC building, one of the most tedious tasks is often managing the cables that connect your fans. Thankfully, recent innovations in fan technology have made things much easier, especially with the advent of snap-on fans. These fans, similar to a puzzle, allow you to connect them without the need for any cables — just touch points that complete the connection and power up the fan. Snap-on fans come in two main designs: magnetic and clip-on.

As the name suggests, magnetic snap-on fans rely on magnets to connect the fans together. Typically, these fans have magnets placed along the touch points on both sides and the bottom. This ensures a strong and stable connection between the fans, allowing them to easily connect and function properly without the need for wires.

To connect magnetic fans, all you need to do is bring the magnetic connection points close together. The fans will automatically attract each other and power on once they make contact. It’s a simple, hassle-free process that eliminates the need for traditional cables.

Clip-on snap-on fans use a different method for connection. These fans rely on clips or slots that secure the fans into place. Once the fans are clipped together, the touch points make contact, powering on the fan and allowing it to operate. This method requires a bit more effort in terms of installation, but it provides a secure, stable connection.

| Magnetic Fans vs. Clip-on Fans: Pros and Cons |

 offer unique benefits, depending on what you're looking for in a fan setup. If you prefer a quick and easy installation process with less effort,

 are the way to go. However, if you want a more secure and long-lasting connection,

 may be the better choice, despite the extra effort required during installation.

For DIY builders who want to reduce cable clutter and make the building process easier, snap-on fans are an excellent option — and with the right choice between magnetic and clip-on designs, you can find the fan system that best suits your needs.




When it comes to PC building, one of the most tedious tasks is often managing the cables that connect your fans. Thankfully, recent innovations in fan technology have made things much easier, especially with the advent of snap-on fans. These fans, similar to a puzzle, allow you to connect them without the need for any cables — just touch points that complete the connection and power up the fan. Snap-on fans come in two main designs: magnetic and clip-on.



| Magnetic Snap-on Fans: How They Work |

As the name suggests, magnetic snap-on fans rely on magnets to connect the fans together. Typically, these fans have magnets placed along the touch points on both sides and the bottom. This ensures a strong and stable connection between the fans, allowing them to easily connect and function properly without the need for wires.





How to Connect Magnetic Fans

To connect magnetic fans, all you need to do is bring the magnetic connection points close together. The fans will automatically attract each other and power on once they make contact. It’s a simple, hassle-free process that eliminates the need for traditional cables.







| Clip-on Snap-on Fans: How They Work |

Clip-on snap-on fans use a different method for connection. These fans rely on clips or slots that secure the fans into place. Once the fans are clipped together, the touch points make contact, powering on the fan and allowing it to operate. This method requires a bit more effort in terms of installation, but it provides a secure, stable connection.







| Magnetic Fans vs. Clip-on Fans: Pros and Cons |

Magnetic Fans

Pros:





Simple Connection: Magnetic fans are incredibly easy to install. You just align the touch points, and the magnets do the rest. The process is quick and straightforward, perfect for those looking to minimize the hassle of building their PC.



Flexible Installation: Since there are no clips or slots, you can quickly rearrange or reposition the fans without worrying about securing or damaging connections.

Cons:





Potential Weakening Over Time: If you frequently install and remove the fans, the magnetic connection could weaken over time. This might lead to instability, with the fan not working properly or even disconnecting.



Less Secure Over Time: While magnetic connections are initially strong, they can lose their grip after repeated handling, leading to less reliable performance.

Clip-on Fans

Pros:





Stable and Secure: Clip-on fans provide a more stable connection, making them ideal for long-term use. Once they are installed, you don’t need to worry about them becoming loose or unstable.



Less Risk of Weakening: Unlike magnetic fans, clip-on fans are not subject to weakening magnets. Their mechanical connections are more durable over time.

Cons:





More Complicated Installation: Installing clip-on fans can be a bit more cumbersome, as you need to align and secure the clips properly. This could be a bit of a hassle if you need to make adjustments or reinstall fans.



Risk of Damage: The clips on these fans can be fragile. If you’re not careful during installation, you could break the clips, rendering the fan unusable. If you're unlucky, you might break two clips at once, necessitating the purchase of replacement fans.



Both magnetic snap-on fans and clip-on snap-on fans offer unique benefits, depending on what you're looking for in a fan setup. If you prefer a quick and easy installation process with less effort, magnetic fans are the way to go. However, if you want a more secure and long-lasting connection, clip-on fans may be the better choice, despite the extra effort required during installation.



For DIY builders who want to reduce cable clutter and make the building process easier, snap-on fans are an excellent option — and with the right choice between magnetic and clip-on designs, you can find the fan system that best suits your needs.

When it comes to PC building, one of the most tedious tasks is often managing the cables that connect your fans.

The Best Option for Lazy PC Builders: Snap-on Fans

Nowadays, most PC cases come with pre-installed fans for DIY builders. However, many cases only include up to four fans by default. For those who seek peak cooling performance, it's common to purchase additional fans to improve airflow. But did you know? The key to effective cooling isn't just about the number of fans; the direction of airflow is just as crucial. So, how should you position your fans to achieve the best cooling performance?

Whether you have a standard case with a front panel or a popular “seaview” (open-frame) case, the principle of airflow remains the same. There’s a simple rule to follow: "Front and bottom intake, rear and top exhaust." This means that the front (or side panel, for seaview cases) and bottom of the case should have intake fans, while the top and rear panels should have exhaust fans.

Why is this so effective? Because heat naturally rises within the case. The exhaust fans at the top and rear are placed closest to the hot air, helping to quickly expel it from the system. Meanwhile, the intake fans at the front and bottom draw in cool air, creating a constant flow of fresh air into the case. This setup ensures that hot air is efficiently removed, and cool air is consistently drawn in, leading to optimal cooling performance.

With the growing popularity of seaview cases (cases with a more open design, often without a front panel for fan installation), manufacturers have had to rethink fan positioning. Since these cases lack space for fans at the front panel, fans are often mounted on the side panel instead. However, if you follow the traditional fan placement method for optimal cooling, the fan's back will face the inside of the case. This results in unsightly exposed cables and can make cable management a hassle.

To address both aesthetic and cable management concerns, many fan manufacturers have introduced

 versions of their models. These reverse-blade fans allow the fan’s back to face outward, offering a cleaner look while maintaining optimal airflow.

The best airflow configuration for your PC case should be based on the design of the case, the internal component layout, and your specific cooling needs. Generally speaking, a "front-bottom intake and rear-top exhaust" design provides stable and efficient airflow circulation.

To further enhance your system's cooling efficiency:

By properly configuring the fans and optimizing airflow, you can keep your PC’s components cool, quiet, and running efficiently.

Whether you’re building a PC for gaming, content creation, or productivity, understanding the right fan installation direction is key to achieving optimal cooling performance. By following the principle of "front and bottom intake, rear and top exhaust," you’ll create an effective airflow system that ensures your PC stays cool, even during heavy loads. Keep in mind that your case’s design, component placement, and cooling needs should guide your fan setup, and don’t forget to manage cables for both aesthetics and efficiency!





Nowadays, most PC cases come with pre-installed fans for DIY builders. However, many cases only include up to four fans by default. For those who seek peak cooling performance, it's common to purchase additional fans to improve airflow. But did you know? The key to effective cooling isn't just about the number of fans; the direction of airflow is just as crucial. So, how should you position your fans to achieve the best cooling performance?



| Understanding Airflow in PC Cases |

Whether you have a standard case with a front panel or a popular “seaview” (open-frame) case, the principle of airflow remains the same. There’s a simple rule to follow: "Front and bottom intake, rear and top exhaust." This means that the front (or side panel, for seaview cases) and bottom of the case should have intake fans, while the top and rear panels should have exhaust fans.



Why is this so effective? Because heat naturally rises within the case. The exhaust fans at the top and rear are placed closest to the hot air, helping to quickly expel it from the system. Meanwhile, the intake fans at the front and bottom draw in cool air, creating a constant flow of fresh air into the case. This setup ensures that hot air is efficiently removed, and cool air is consistently drawn in, leading to optimal cooling performance.



| The Rise of Reverse Blade Fans |

With the growing popularity of seaview cases (cases with a more open design, often without a front panel for fan installation), manufacturers have had to rethink fan positioning. Since these cases lack space for fans at the front panel, fans are often mounted on the side panel instead. However, if you follow the traditional fan placement method for optimal cooling, the fan's back will face the inside of the case. This results in unsightly exposed cables and can make cable management a hassle.



To address both aesthetic and cable management concerns, many fan manufacturers have introduced reverse-blade fan versions of their models. These reverse-blade fans allow the fan’s back to face outward, offering a cleaner look while maintaining optimal airflow.







| Ideal Airflow Configuration |

The best airflow configuration for your PC case should be based on the design of the case, the internal component layout, and your specific cooling needs. Generally speaking, a "front-bottom intake and rear-top exhaust" design provides stable and efficient airflow circulation.

To further enhance your system's cooling efficiency:





Position fans strategically: Place intake fans at the front and bottom of the case and exhaust fans at the rear and top.



Ensure dust filters: Install dust filters on intake fans to keep your PC clean and prevent dust buildup inside the case.



Adjust fan numbers if needed: While four fans might be sufficient for some setups, adding extra fans or using higher-quality fans can help improve airflow and cooling performance.

By properly configuring the fans and optimizing airflow, you can keep your PC’s components cool, quiet, and running efficiently.



| Conclusion |

Whether you’re building a PC for gaming, content creation, or productivity, understanding the right fan installation direction is key to achieving optimal cooling performance. By following the principle of "front and bottom intake, rear and top exhaust," you’ll create an effective airflow system that ensures your PC stays cool, even during heavy loads. Keep in mind that your case’s design, component placement, and cooling needs should guide your fan setup, and don’t forget to manage cables for both aesthetics and efficiency!

When it comes to cooling performance, it's not just about the number of fans in your system — the direction of airflow is equally important.

The Best Fan Installation Direction for Your PC Case

The size of a PC case is typically determined by the size of the motherboard it supports. The most common case sizes, from largest to smallest, are E-ATX, ATX, M-ATX, and ITX. It's important to note that while an E-ATX case can support smaller motherboards like ITX, an ITX case cannot accommodate larger motherboards such as E-ATX.

E-ATX cases are designed to fit the largest motherboards, typically used for high-end, flagship systems. These cases offer the most room for expansion and cooling options. An E-ATX case can support more fans, radiators, and other components compared to smaller cases. For example, the

 is a flagship E-ATX case that allows for up to 8 x 120mm fans and can accommodate a 360mm AIO cooler at the top. Its modular rear panel design even allows it to support ATX motherboards with just a slight adjustment.

E-ATX cases are ideal for users who need top-tier performance, lots of expansion options, and ample space for powerful cooling solutions.

ATX cases are the most common case size on the market, supporting a wide range of ATX motherboards. This size strikes a balance between expandability, cooling, and compactness. ATX cases are compatible with a variety of motherboards, from entry-level H-series boards to high-end Z-series boards.

A great example of a value-driven ATX case is the

. It offers solid build quality and a magnetic front panel, making assembly and maintenance much easier. It's an excellent choice for those looking for a practical, high-performance case without breaking the bank.

Micro-ATX (M-ATX) cases are a popular choice for those who prefer more compact builds. M-ATX motherboards are smaller than their ATX counterparts, and while they offer fewer PCIe slots and M.2 SSD mounting points, they are well-suited for users with fewer expansion needs.

If you're looking for a smaller case with good cooling potential, the MOTI Mirror Island M-ATX case is a standout. Despite its compact size, it can still support a 360mm radiator at the top, making it an excellent option for gamers or DIY enthusiasts who want a compact yet capable cooling solution.

M-ATX cases are perfect for those who need a smaller footprint without compromising too much on performance. They also work well in environments with limited space for a PC.

ITX cases are the smallest of all case sizes and are designed to fit ITX motherboards. These cases are known for their compact size and excellent space efficiency, making them a popular choice among gamers and enthusiasts who want a portable or space-saving PC.

One of the biggest advantages of an ITX case is its ability to expel heat quickly, thanks to its small size. However, ITX cases typically only support SFX or SFX-L power supplies, so it's important to check compatibility before purchasing.

 ITX case is a great example of an ITX case that balances style and performance. With a cute, air purifier-like design and a bottom LED light strip, it’s a fantastic choice for ITX enthusiasts who value aesthetics along with performance.

When selecting a PC case, it’s important to consider your other hardware requirements, cooling needs, expandability, and personal preferences. Make sure the case is compatible with your motherboard and other components, as this will ensure a smoother and more efficient build process.

By understanding the differences in case sizes, you’ll be better equipped to choose the right case for your needs, ensuring that your PC build is not only high-performing but also looks great and fits perfectly in your workspace.





Understanding PC Case Sizes

The size of a PC case is typically determined by the size of the motherboard it supports. The most common case sizes, from largest to smallest, are E-ATX, ATX, M-ATX, and ITX. It's important to note that while an E-ATX case can support smaller motherboards like ITX, an ITX case cannot accommodate larger motherboards such as E-ATX.



1. E-ATX Cases

E-ATX cases are designed to fit the largest motherboards, typically used for high-end, flagship systems. These cases offer the most room for expansion and cooling options. An E-ATX case can support more fans, radiators, and other components compared to smaller cases. For example, the DLX4000 is a flagship E-ATX case that allows for up to 8 x 120mm fans and can accommodate a 360mm AIO cooler at the top. Its modular rear panel design even allows it to support ATX motherboards with just a slight adjustment.



E-ATX cases are ideal for users who need top-tier performance, lots of expansion options, and ample space for powerful cooling solutions.







2. ATX Cases

ATX cases are the most common case size on the market, supporting a wide range of ATX motherboards. This size strikes a balance between expandability, cooling, and compactness. ATX cases are compatible with a variety of motherboards, from entry-level H-series boards to high-end Z-series boards.



A great example of a value-driven ATX case is the DRX70. It offers solid build quality and a magnetic front panel, making assembly and maintenance much easier. It's an excellent choice for those looking for a practical, high-performance case without breaking the bank.







3. M-ATX Cases

Micro-ATX (M-ATX) cases are a popular choice for those who prefer more compact builds. M-ATX motherboards are smaller than their ATX counterparts, and while they offer fewer PCIe slots and M.2 SSD mounting points, they are well-suited for users with fewer expansion needs.



If you're looking for a smaller case with good cooling potential, the MOTI Mirror Island M-ATX case is a standout. Despite its compact size, it can still support a 360mm radiator at the top, making it an excellent option for gamers or DIY enthusiasts who want a compact yet capable cooling solution.



M-ATX cases are perfect for those who need a smaller footprint without compromising too much on performance. They also work well in environments with limited space for a PC.







4. ITX Cases

ITX cases are the smallest of all case sizes and are designed to fit ITX motherboards. These cases are known for their compact size and excellent space efficiency, making them a popular choice among gamers and enthusiasts who want a portable or space-saving PC.



One of the biggest advantages of an ITX case is its ability to expel heat quickly, thanks to its small size. However, ITX cases typically only support SFX or SFX-L power supplies, so it's important to check compatibility before purchasing.



The DLH21 ITX case is a great example of an ITX case that balances style and performance. With a cute, air purifier-like design and a bottom LED light strip, it’s a fantastic choice for ITX enthusiasts who value aesthetics along with performance.







Choosing the Right Case for You

When selecting a PC case, it’s important to consider your other hardware requirements, cooling needs, expandability, and personal preferences. Make sure the case is compatible with your motherboard and other components, as this will ensure a smoother and more efficient build process.



By understanding the differences in case sizes, you’ll be better equipped to choose the right case for your needs, ensuring that your PC build is not only high-performing but also looks great and fits perfectly in your workspace.

The PC case is one of the most important components in your build. Not only does it house all your parts, but it also plays a crucial role in protecting your hardware and ensuring proper cooling. Understanding case sizes and compatibility with your motherboard is key to selecting the right case for your needs.

How to Choose the Right PC Case for Your Build

RGB and ARGB: An Essential Guide for Gamers

RGB lighting has become a must-have feature for gamers, commonly found in peripherals like fans, keyboards, and other computer components. But you may have heard terms like RGB and ARGB used interchangeably—are they the same thing? What’s the difference? Let’s dive in.

RGB combines three primary colors—red, green, and blue—to create a wide range of colors. Traditional RGB lighting systems can only display one color at a time, meaning all LEDs light up in the same color.

The "A" in ARGB stands for "Addressable," meaning each LED can be individually controlled. This allows for dynamic and varied lighting effects, such as gradients, flowing patterns, and more. ARGB is more versatile and visually impressive than RGB but is typically more expensive.

RGB devices usually connect to a motherboard or controller via a 4-pin interface, which includes 12V, R, G, and B pins. It’s crucial to follow the motherboard’s manual when installing, as incorrect connections can damage the RGB fan.

ARGB devices connect using a 3-pin interface, which includes 5V, Data, and Ground. ARGB connectors are designed with a foolproof mechanism to prevent incorrect installation, reducing the risk of damage.

Cannot control individual LEDs; all LEDs show the same color or pattern.

Enables complex and customizable lighting effects, such as flowing rainbows or dynamic waves.

The current standard for gaming fans, keyboards, and other peripherals.

Ideal for gamers on a budget who still want a splash of lighting. RGB fans are straightforward and offer limited lighting options, making them perfect for those who prefer a plug-and-play solution without extra configuration.

Perfect for gamers with a larger budget and a passion for customization. ARGB fans allow users to create unique lighting effects through motherboard software or third-party tools. If you enjoy tweaking settings and want a standout aesthetic, ARGB fans are the way to go.

By understanding the key differences between RGB and ARGB, you can make a more informed decision when purchasing peripherals that fit your preferences and setup. Whether you prioritize simplicity or customization, there's a lighting solution that’s perfect for you!





RGB and ARGB: An Essential Guide for Gamers

RGB lighting has become a must-have feature for gamers, commonly found in peripherals like fans, keyboards, and other computer components. But you may have heard terms like RGB and ARGB used interchangeably—are they the same thing? What’s the difference? Let’s dive in.



What Are RGB and ARGB?

RGB (Red, Green, Blue):

RGB combines three primary colors—red, green, and blue—to create a wide range of colors. Traditional RGB lighting systems can only display one color at a time, meaning all LEDs light up in the same color.



ARGB (Addressable RGB):

The "A" in ARGB stands for "Addressable," meaning each LED can be individually controlled. This allows for dynamic and varied lighting effects, such as gradients, flowing patterns, and more. ARGB is more versatile and visually impressive than RGB but is typically more expensive.







Connection Methods

RGB Devices:

RGB devices usually connect to a motherboard or controller via a 4-pin interface, which includes 12V, R, G, and B pins. It’s crucial to follow the motherboard’s manual when installing, as incorrect connections can damage the RGB fan.



ARGB Devices:

ARGB devices connect using a 3-pin interface, which includes 5V, Data, and Ground. ARGB connectors are designed with a foolproof mechanism to prevent incorrect installation, reducing the risk of damage.







Lighting Effects

RGB:

Simpler lighting effects.

Cannot control individual LEDs; all LEDs show the same color or pattern.

Suitable for basic lighting needs.



ARGB:

Supports individually controlled LEDs.

Enables complex and customizable lighting effects, such as flowing rainbows or dynamic waves.

The current standard for gaming fans, keyboards, and other peripherals.







RGB vs. ARGB Fan Selection Guide

RGB Fans:

Ideal for gamers on a budget who still want a splash of lighting. RGB fans are straightforward and offer limited lighting options, making them perfect for those who prefer a plug-and-play solution without extra configuration.



ARGB Fans:

Perfect for gamers with a larger budget and a passion for customization. ARGB fans allow users to create unique lighting effects through motherboard software or third-party tools. If you enjoy tweaking settings and want a standout aesthetic, ARGB fans are the way to go.







By understanding the key differences between RGB and ARGB, you can make a more informed decision when purchasing peripherals that fit your preferences and setup. Whether you prioritize simplicity or customization, there's a lighting solution that’s perfect for you!

Understanding the difference between RGB and ARGB will help you choose the right product for your setup.

RGB vs. ARGB: What's the Difference?

By observing two key characteristics, you can quickly identify whether a fan is a normal-blade or reverse-blade design. Choosing the right fan ensures optimal cooling performance and aesthetic appeal for your PC.

Fan blades tilt backward, meaning the leading edge is higher than the trailing edge.

Fan blades tilt forward, meaning the leading edge is lower than the trailing edge.

Air enters from the front of the fan and exits through the back.

Air enters from the back of the fan and exits through the front.

Normal-blade fans dominate the market due to their versatility and compatibility with most cooling setups. Reverse-blade fans cater to specific aesthetic or airflow needs, particularly when you want a consistent look across all fans while maintaining effective cooling.

By understanding the differences in blade tilt and airflow direction, and strategically installing fans in suitable positions, you can significantly improve your system’s cooling efficiency and maintain stable performance.





By observing two key characteristics, you can quickly identify whether a fan is a normal-blade or reverse-blade design. Choosing the right fan ensures optimal cooling performance and aesthetic appeal for your PC.



Key Differences

1. Blade Tilt Direction

Normal-Blade Fans:

Fan blades tilt backward, meaning the leading edge is higher than the trailing edge.



Reverse-Blade Fans:

Fan blades tilt forward, meaning the leading edge is lower than the trailing edge.





2. Airflow Direction

Normal-Blade Fans:

Air enters from the front of the fan and exits through the back.



Reverse-Blade Fans:

Air enters from the back of the fan and exits through the front.







Recommended Installation Positions

Normal-Blade Fans:





Designed for the interior-facing installation where the fan's front faces the inside of the case.



Recommended placement: Top panel of the case / Rear panel of the case

Reverse-Blade Fans:





Suited for maintaining uniform aesthetics and airflow when fans are installed with the back facing the interior.



Recommended placement: Side panel of the case / Above the power supply shroud



Considerations for Installation

Airflow Requirements:





Decide based on your cooling strategy: intake or exhaust airflow.



Normal-blade fans are the default and most versatile choice.

Placement and Clearance:





Ensure the fan fits without obstruction and doesn’t interfere with other components.

Cooling Efficiency:





Test the thermal performance in your setup to confirm the fan type and placement meet your needs.







Summary

Normal-blade fans dominate the market due to their versatility and compatibility with most cooling setups. Reverse-blade fans cater to specific aesthetic or airflow needs, particularly when you want a consistent look across all fans while maintaining effective cooling.



By understanding the differences in blade tilt and airflow direction, and strategically installing fans in suitable positions, you can significantly improve your system’s cooling efficiency and maintain stable performance.

Learn how blade orientation affects airflow, efficiency, and the proper use of fan systems in different environments.

What's the Difference Between Normal-Blade and Reverse-Blade Fans?

Born from a shared passion for gaming and PC building, darkFlash is dedicated to creating products that combine distinctive design, reliable performance, and thoughtful innovation.

By personally building, testing, and using our PC cases, cooling solutions, case fans, gaming furniture, and accessories, we gain a deeper understanding of what users truly need. Every product is developed with purpose, refined through experience, and engineered to elevate the way people build, play, and create.

Our goal is simple: to empower every user with products that perform at their best and inspire them to build without limits.
