L285 ATX PC Case
- Curve glass design fully showcases the hardware
- Support back-connect motherboard
- ARGB lighting strip on the side
- Using modular shunting for cooling
- USB3.0 Ready
- Support up to 10 pcs 120mm fans
Colors

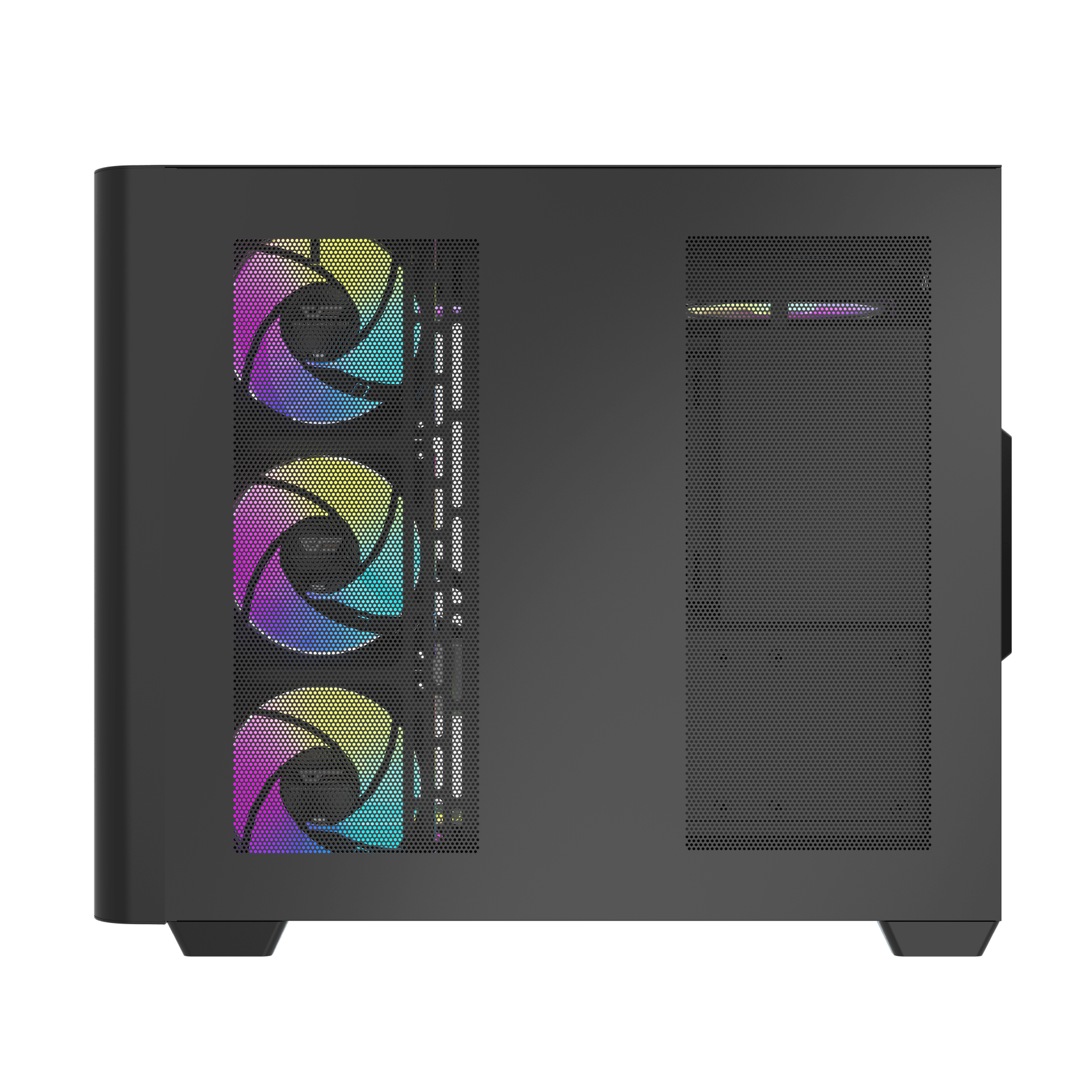

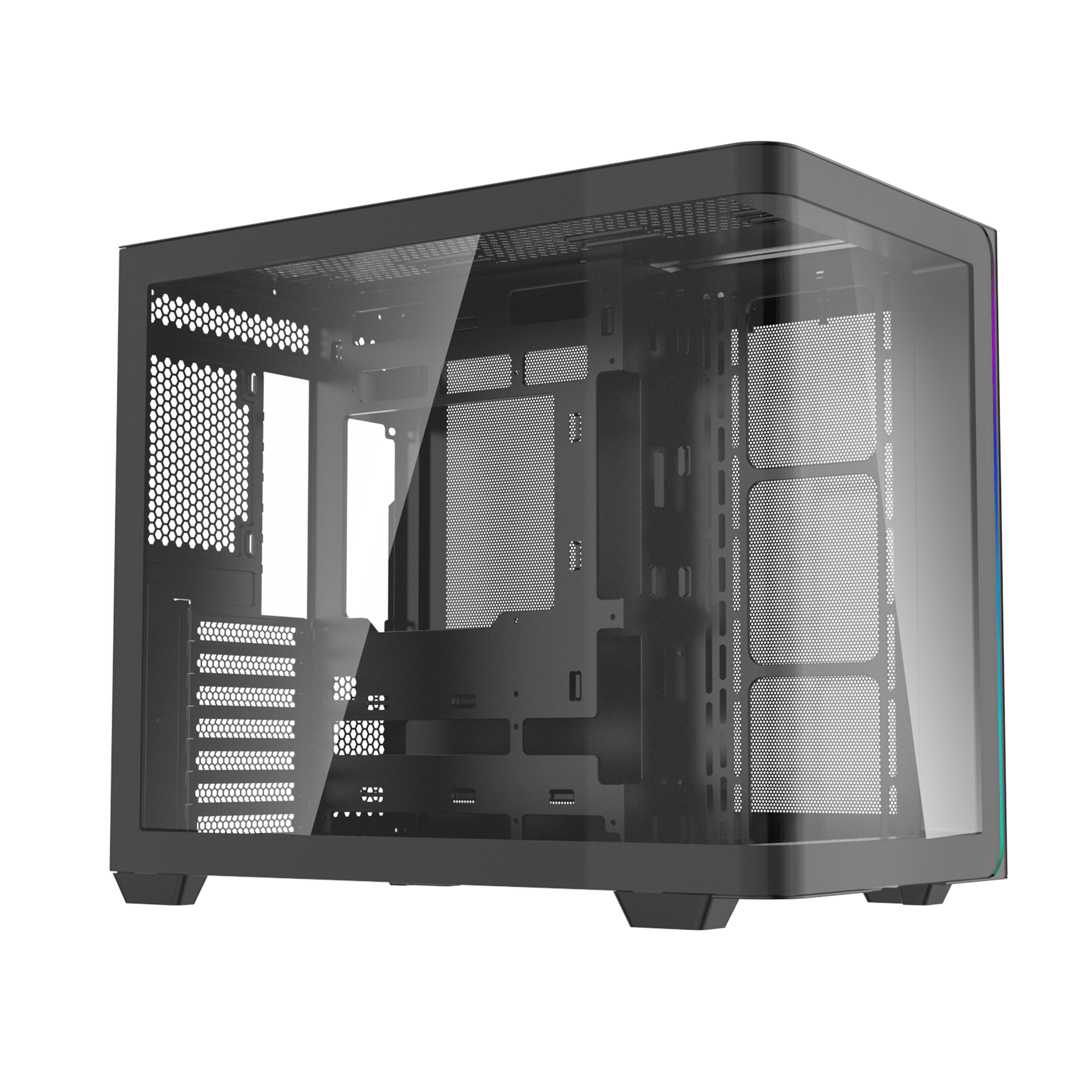

Black

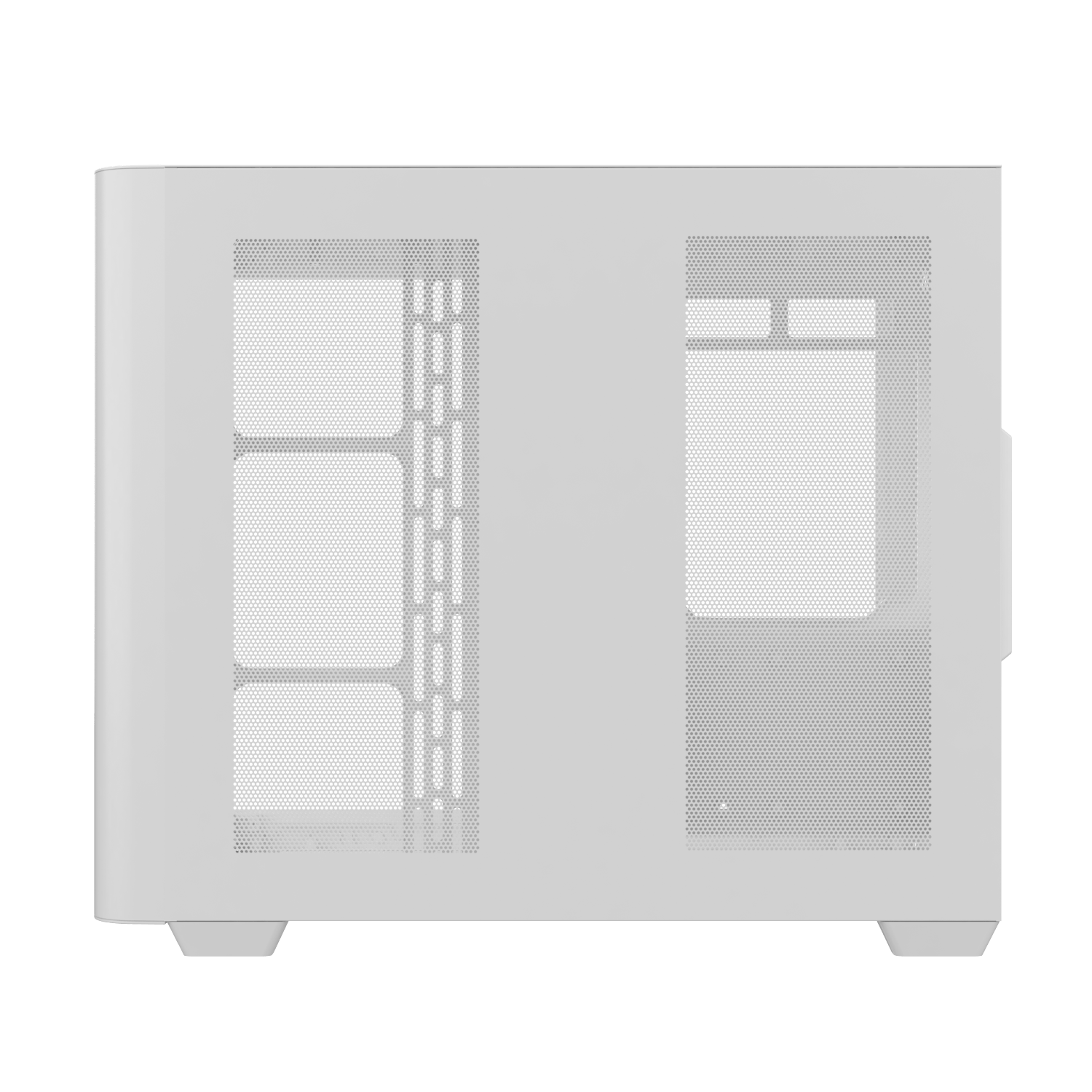

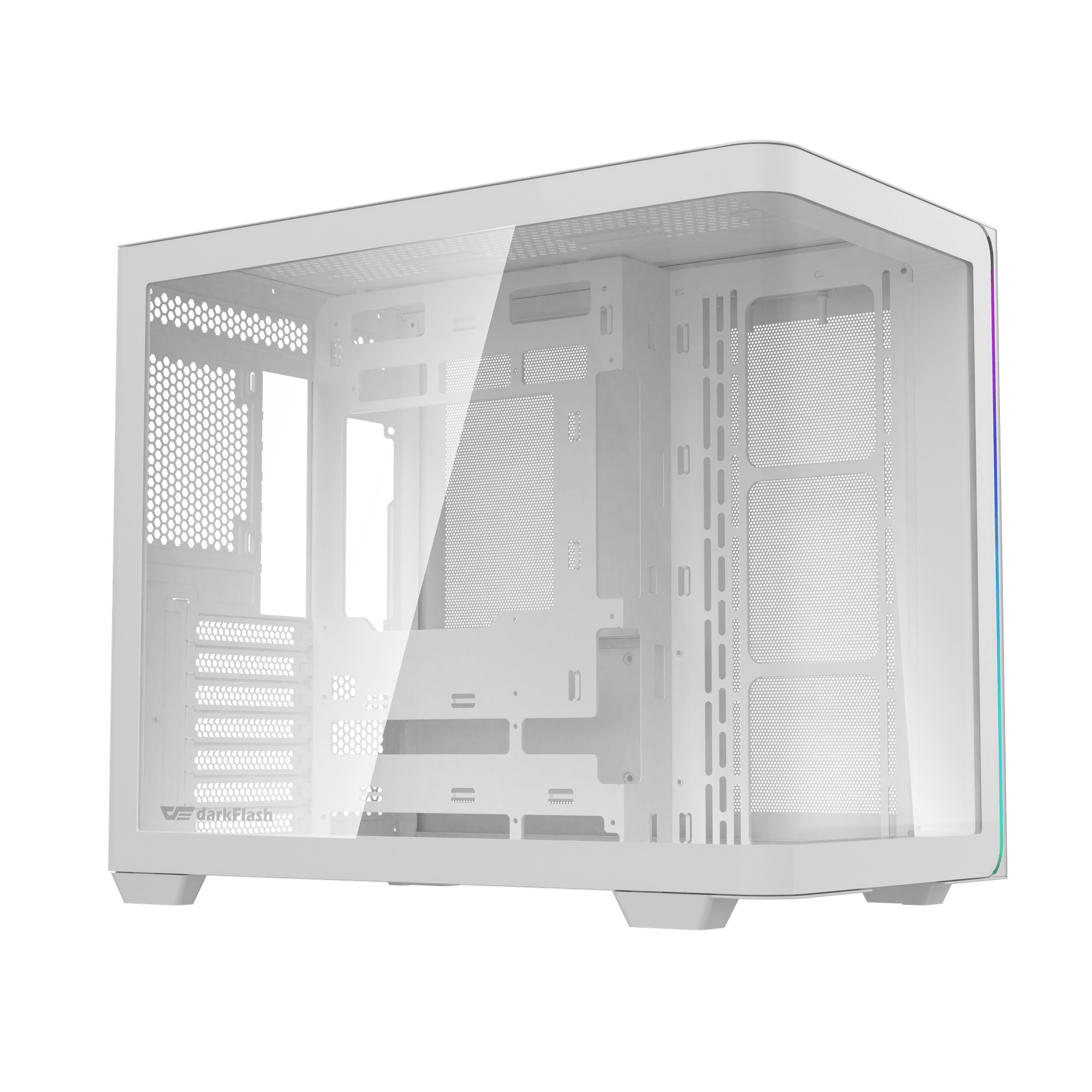

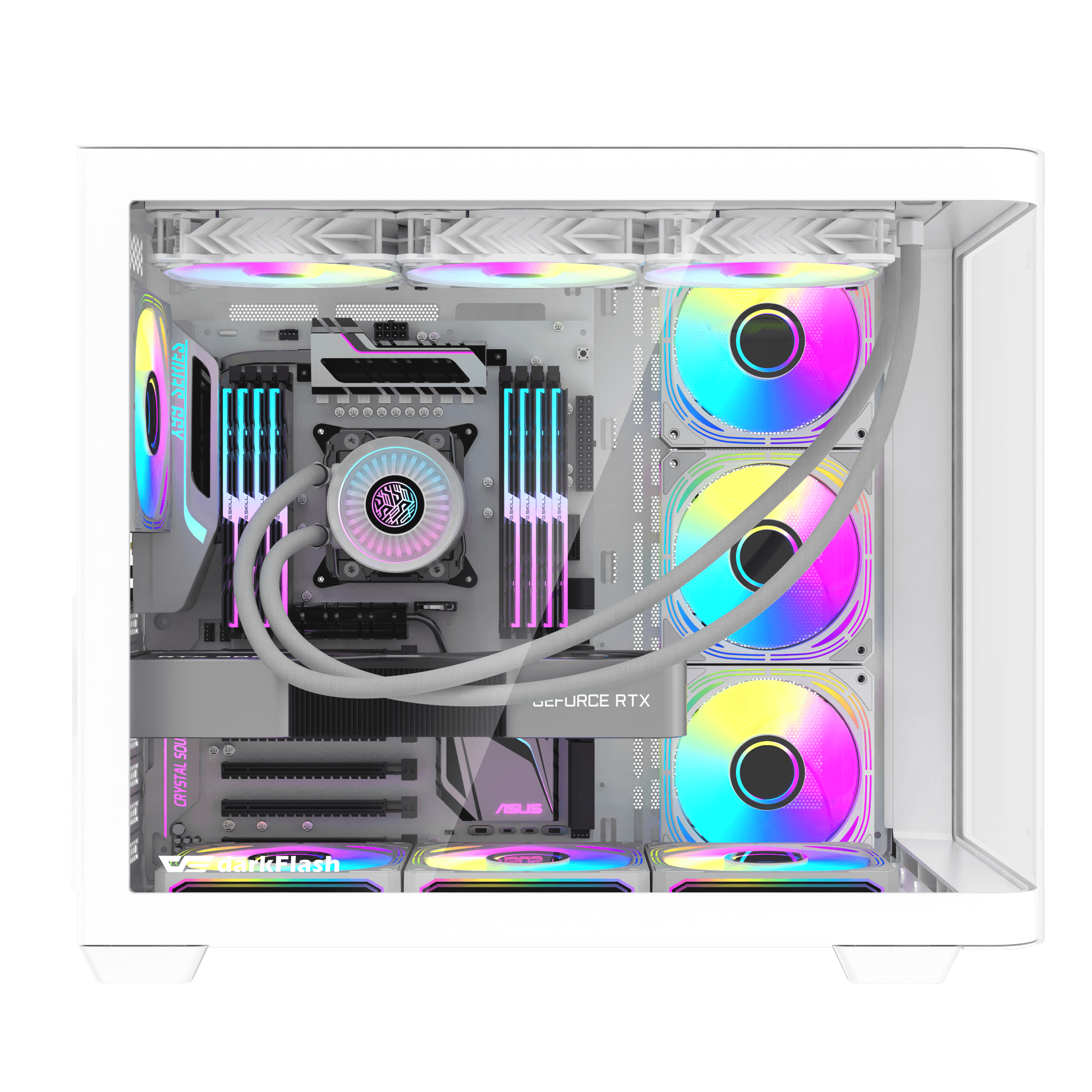

White
Spec
- Key Specs
- Motherboard Support：ATXM-ATXITX
- Case Material：0.7mm SPCC
- Dimensions
- Case Size：420*285*398mm
- Compatibility & Clearance
- Max GPU Clearance：445mm
- PCIE Slot：7
- Max CPU Cooler Clearance：160mm
- Drive Bays
- SSD / HDD：2 / 3
- Fan Support
- Top：120mm*3140mm*2
- Side：120mm*3140mm*2
- Rear：120mm*1
- Bottom：120mm*3
- Radiator Support
- Top：240mm280mm360mm
- Side：240mm280mm
- Bottom：240mm360mm
- Front I/O
- I/O：USB3.0*1USB2.0*2PowerResetHD AudioLED

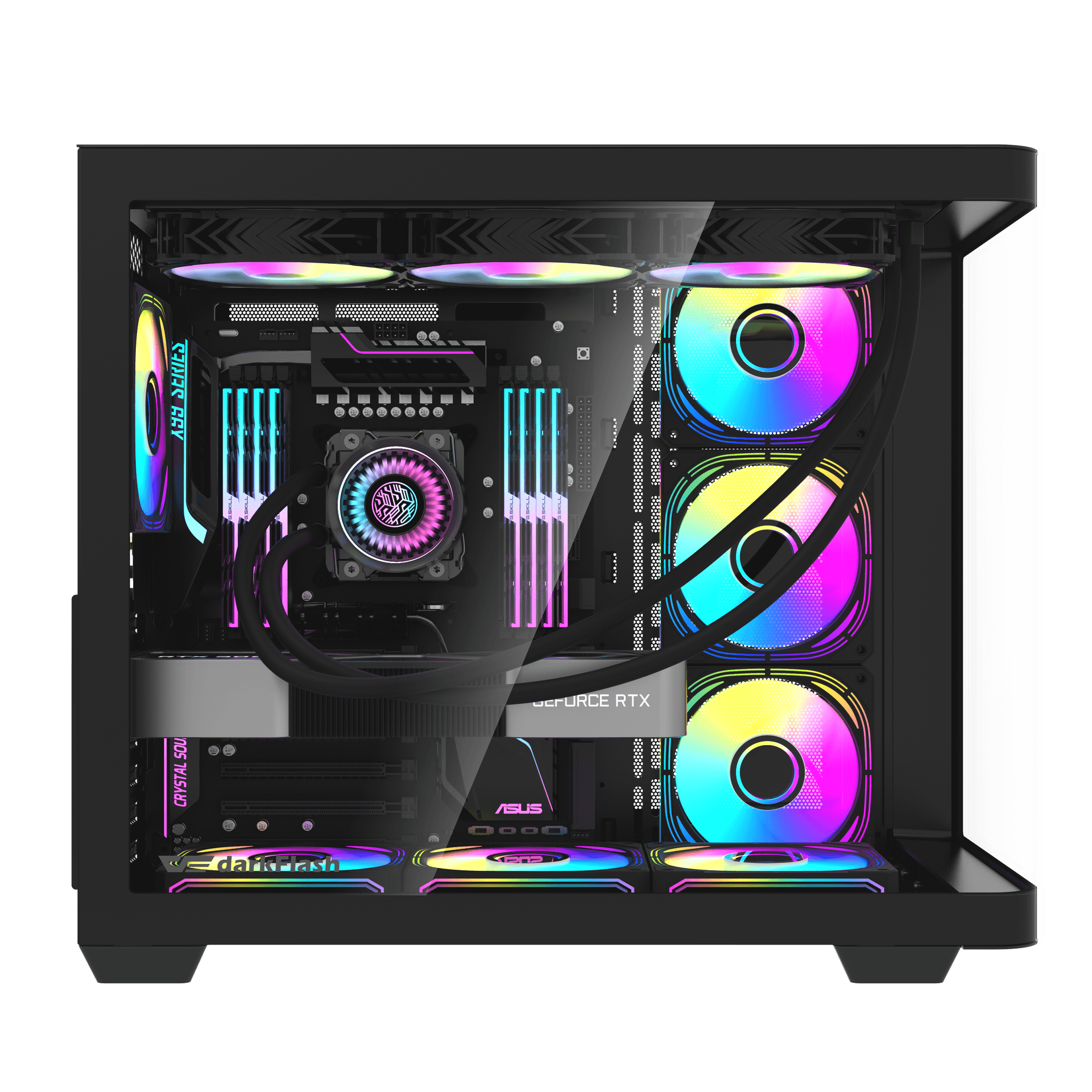

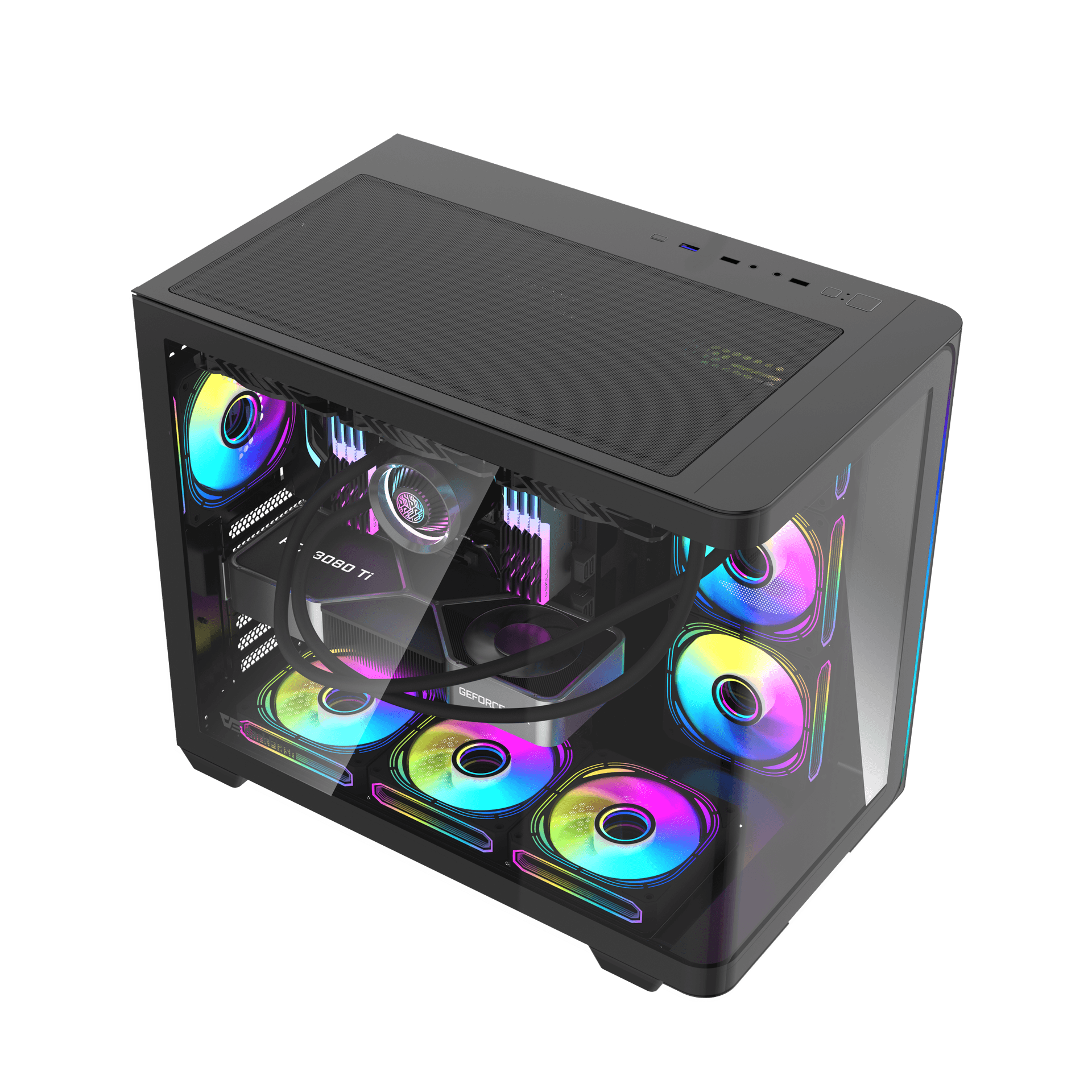

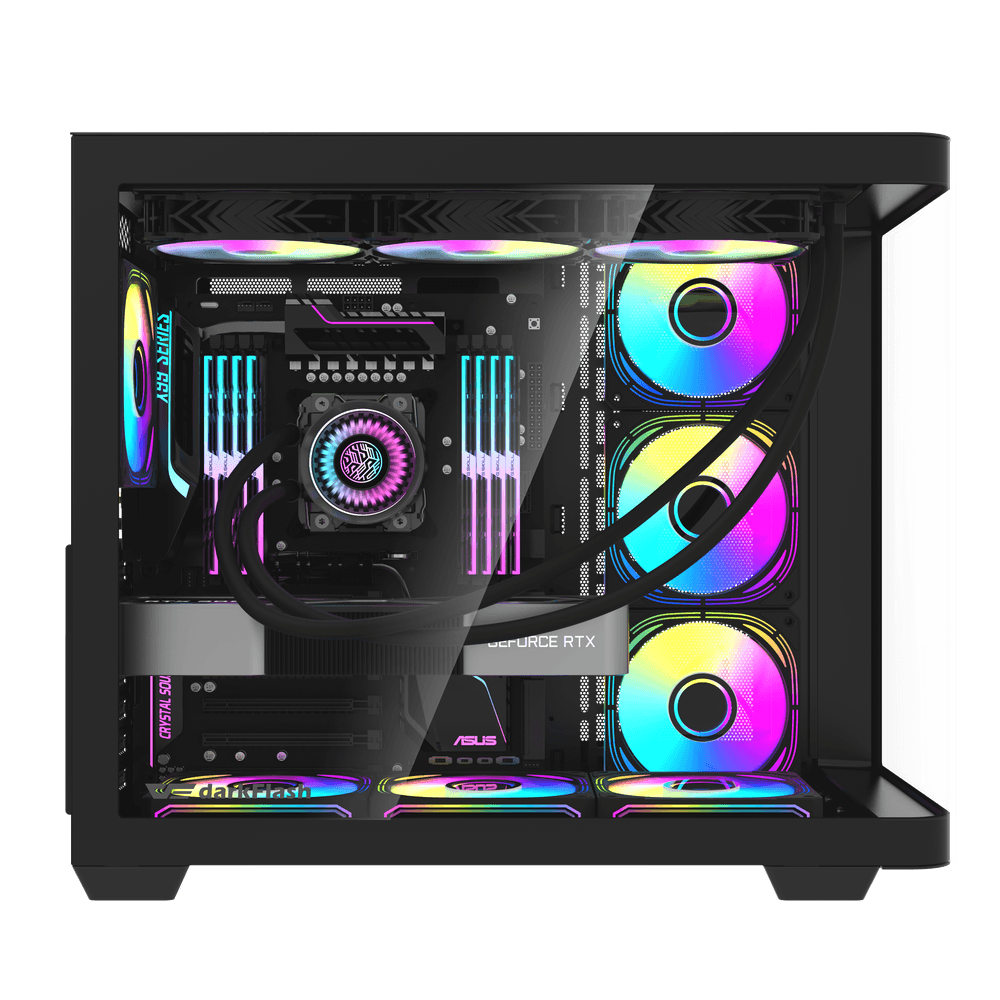

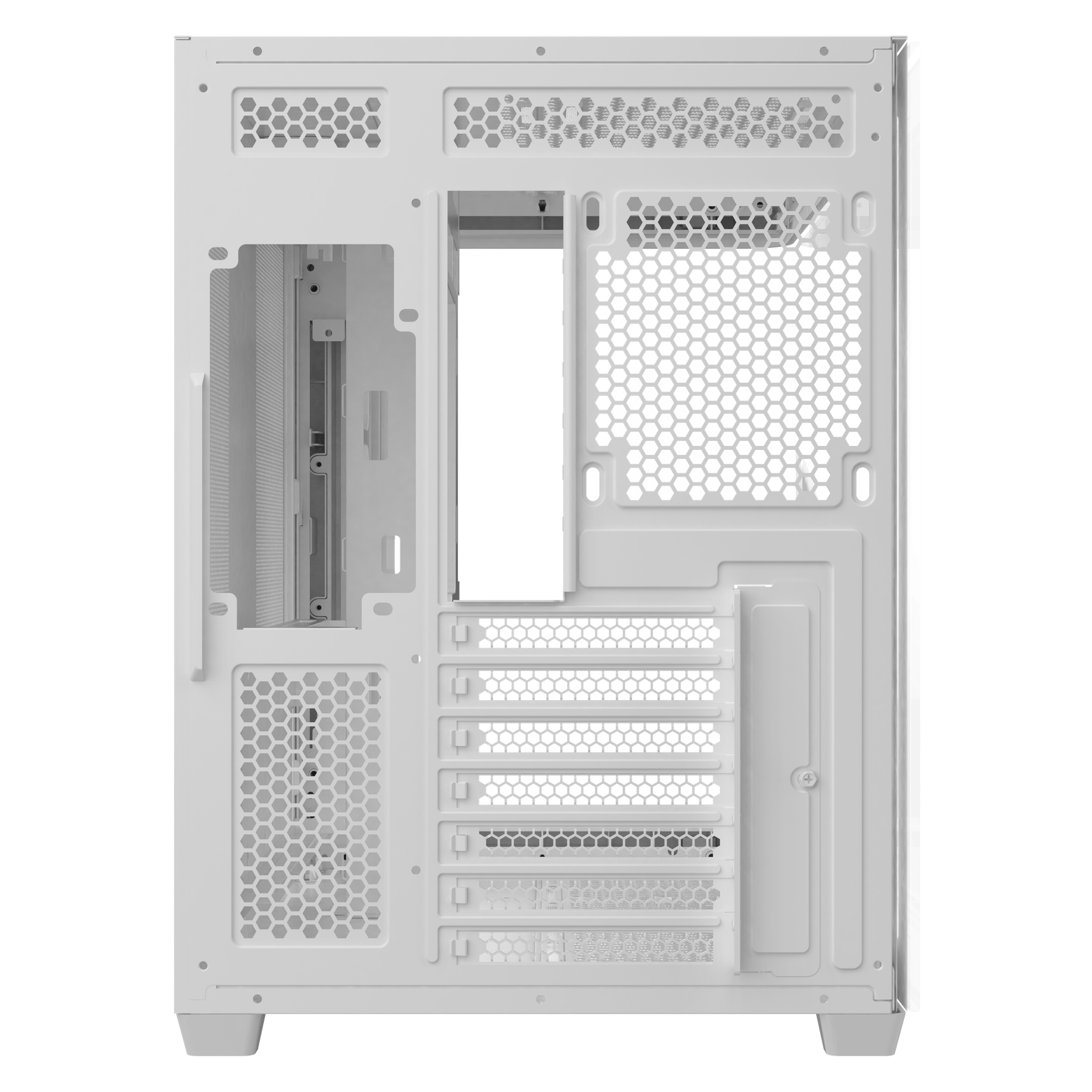

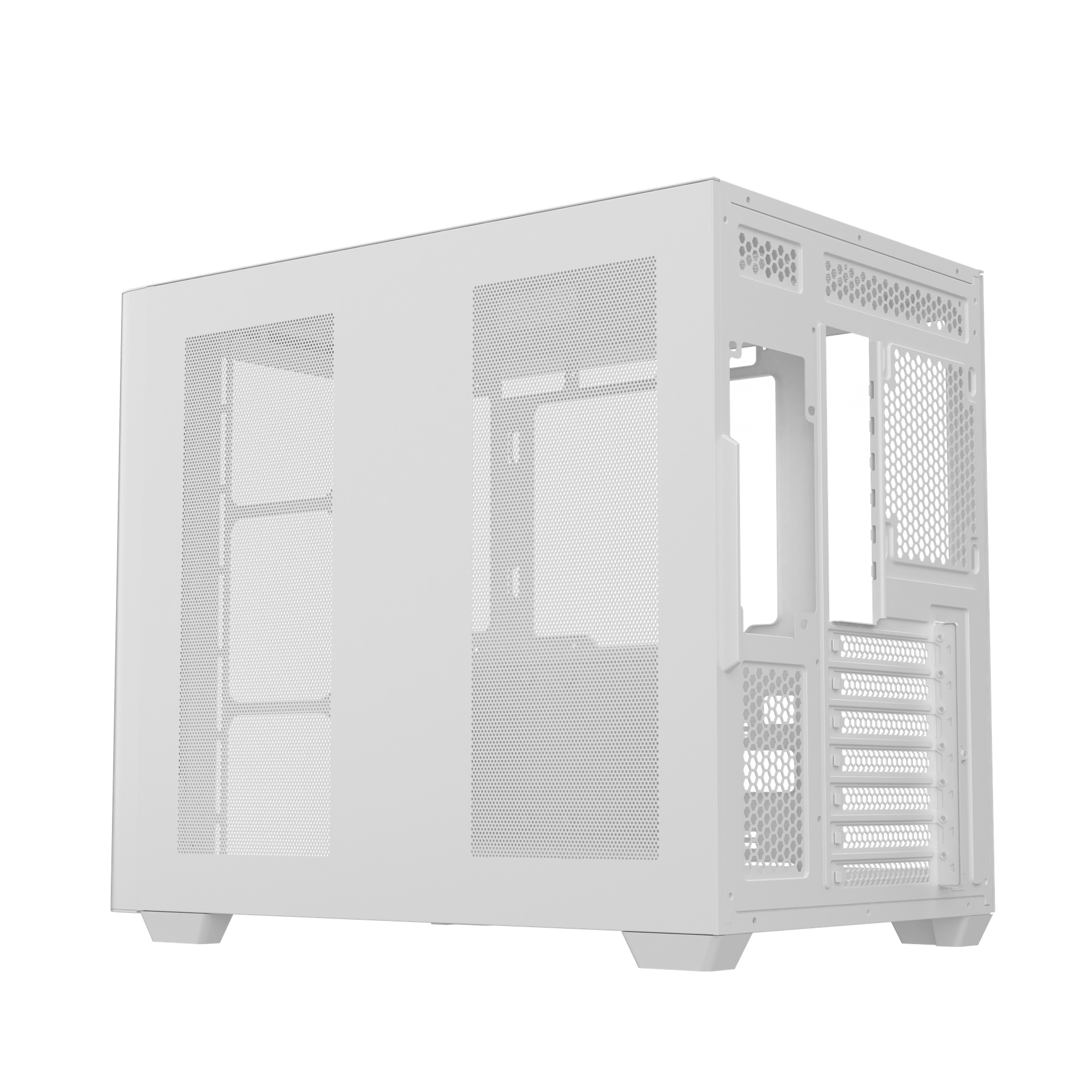

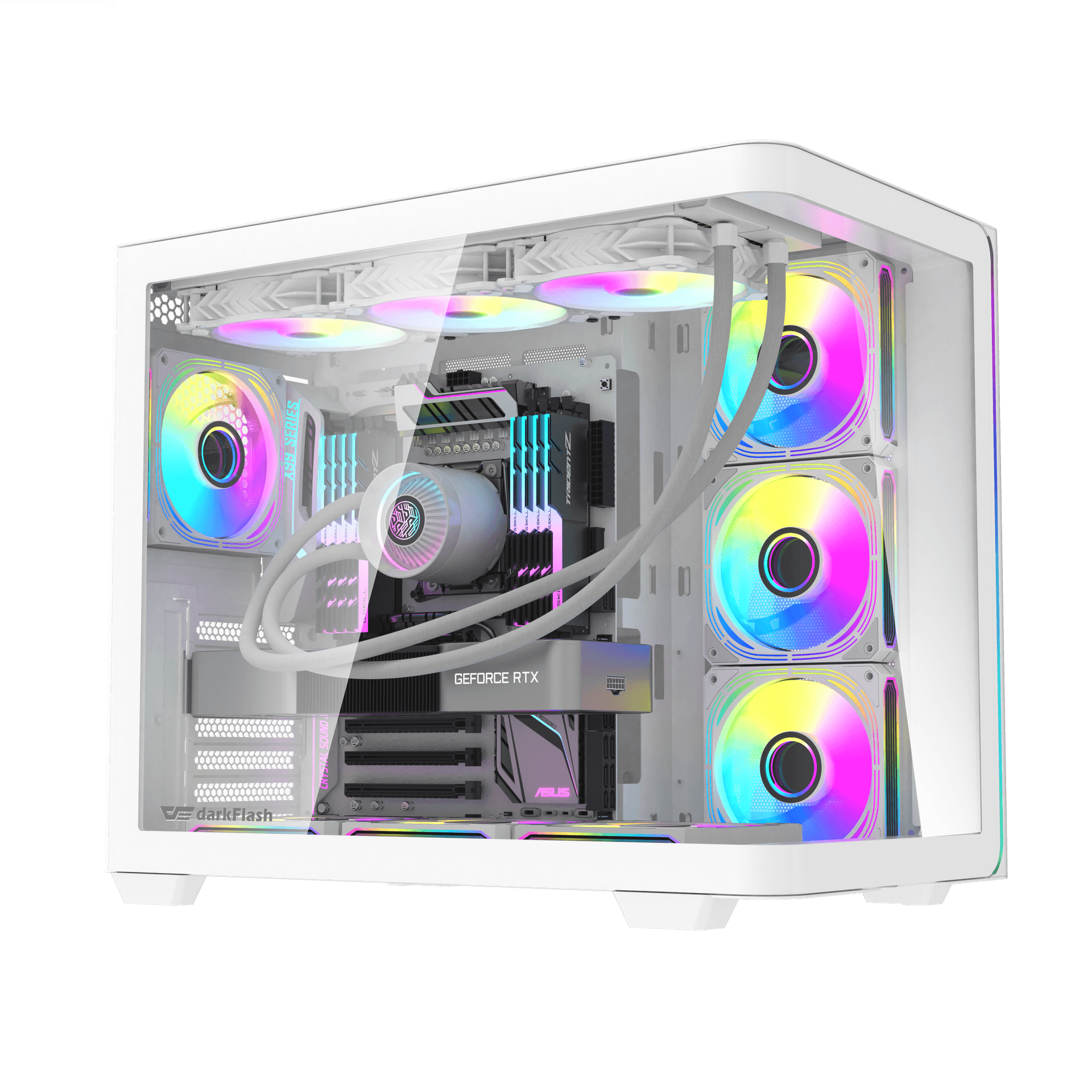

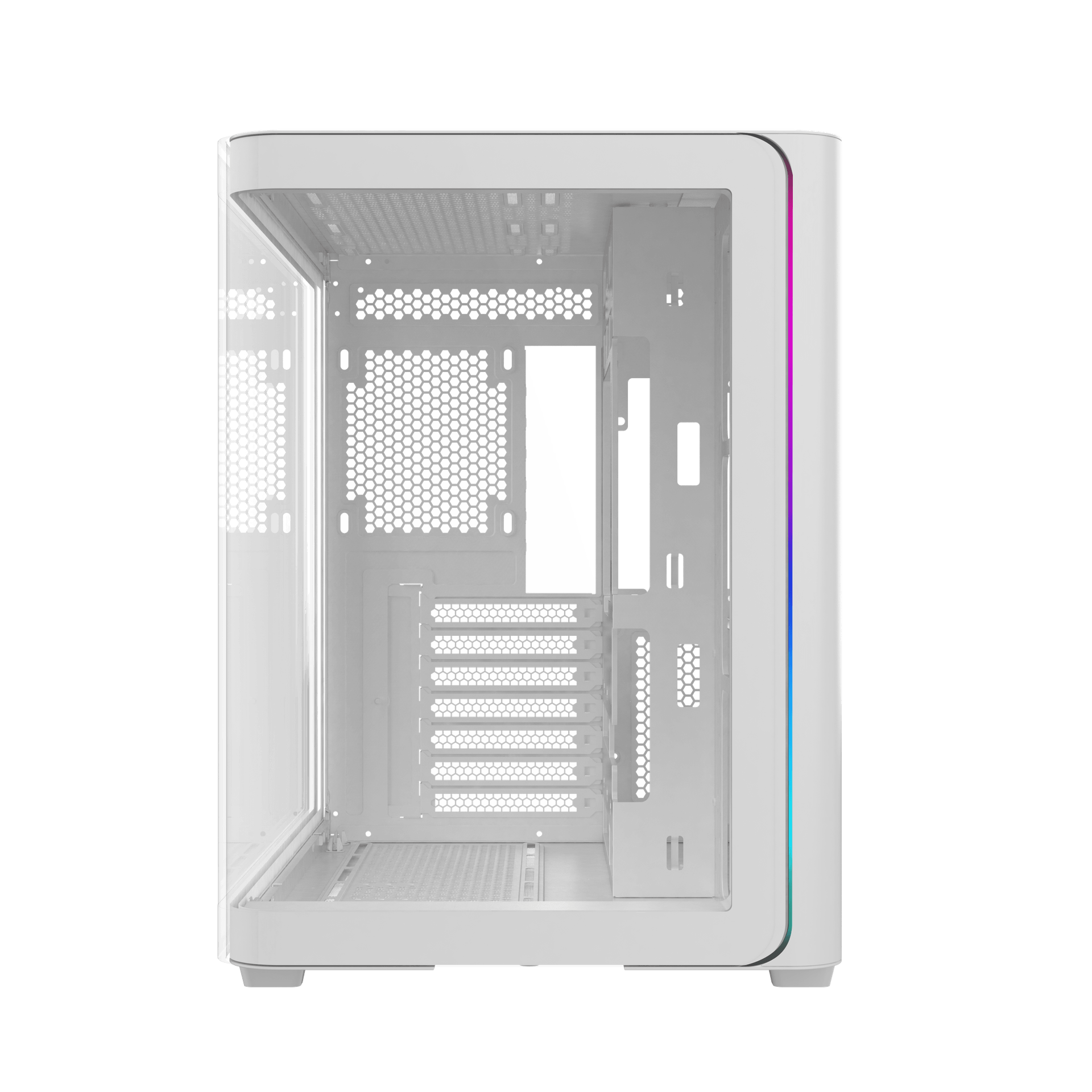

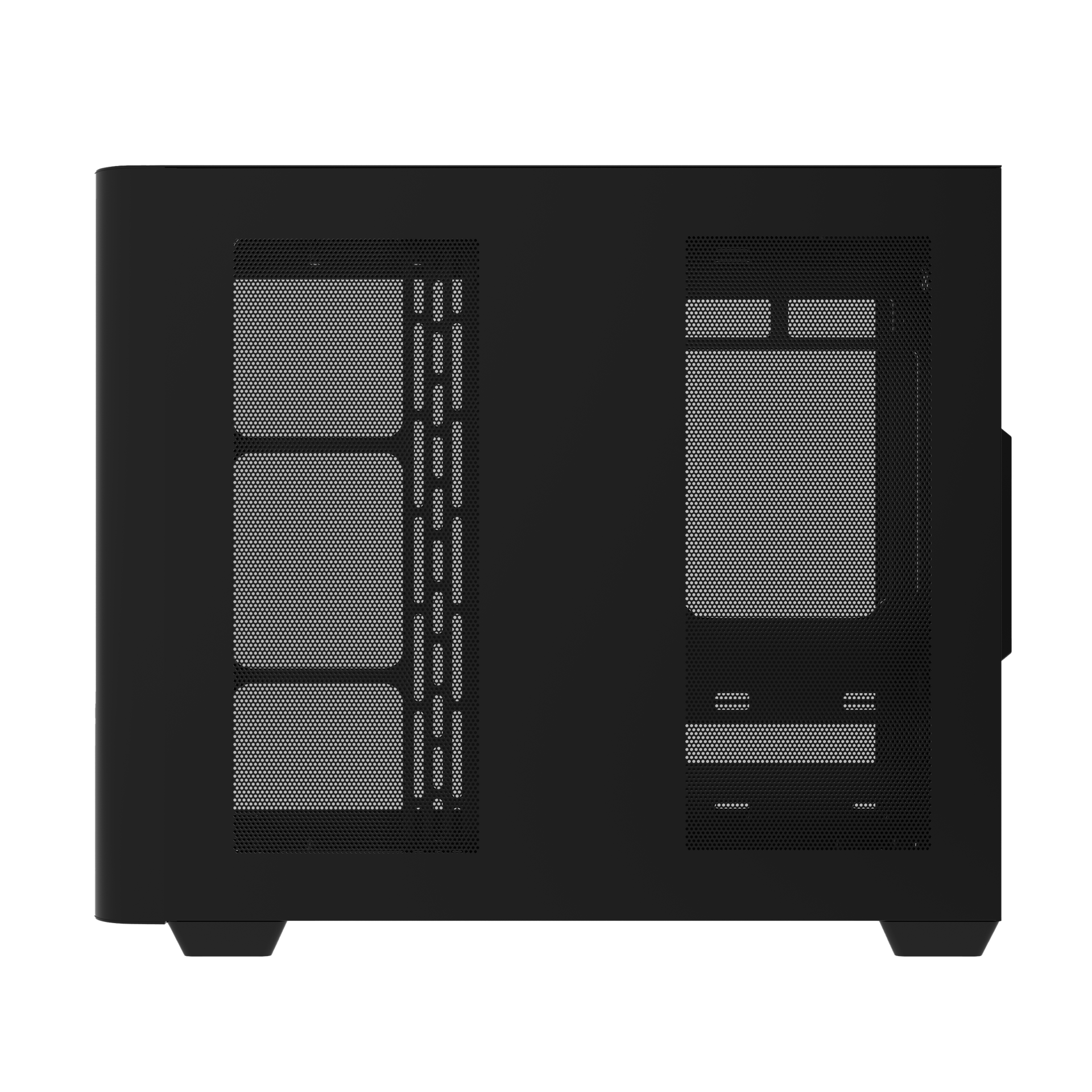

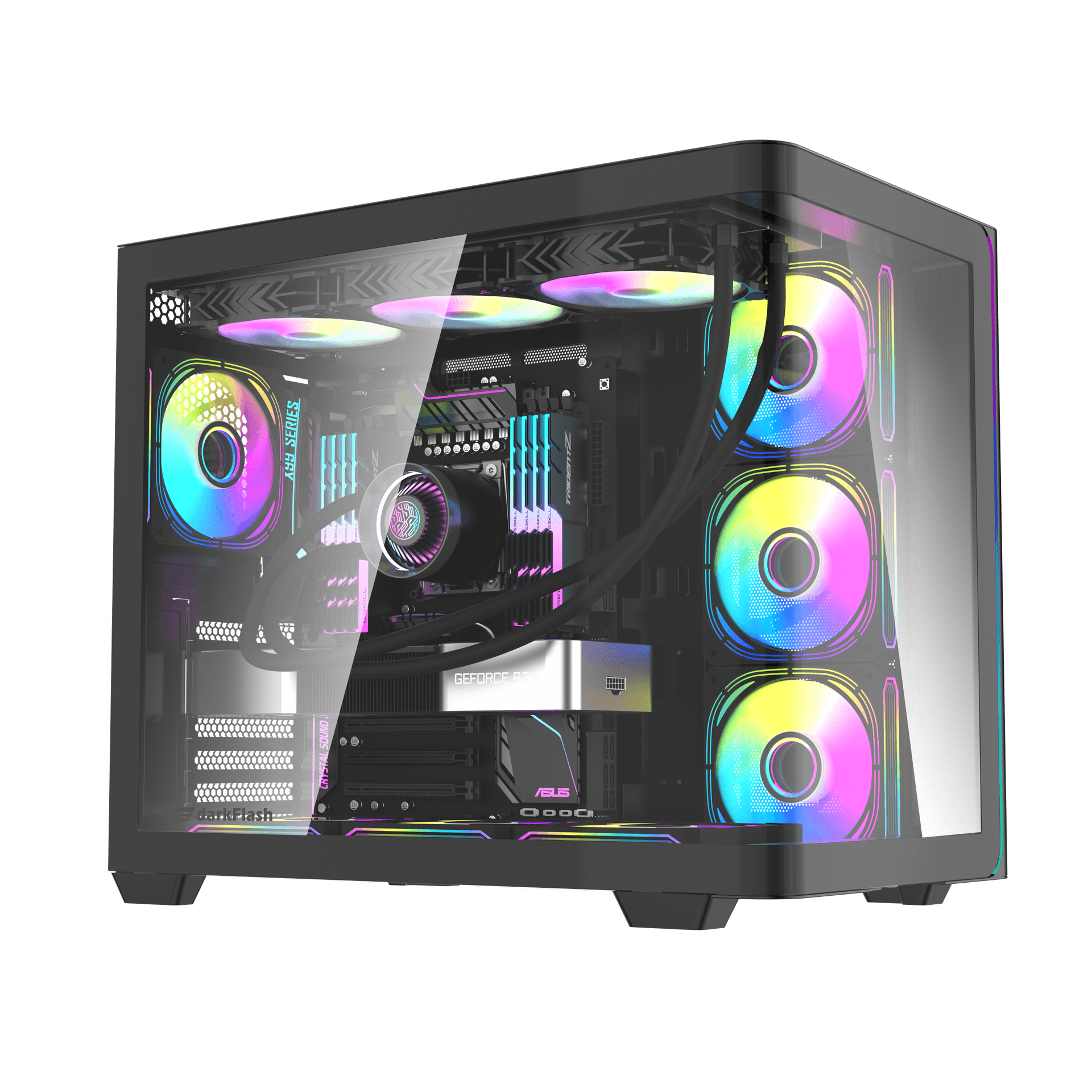

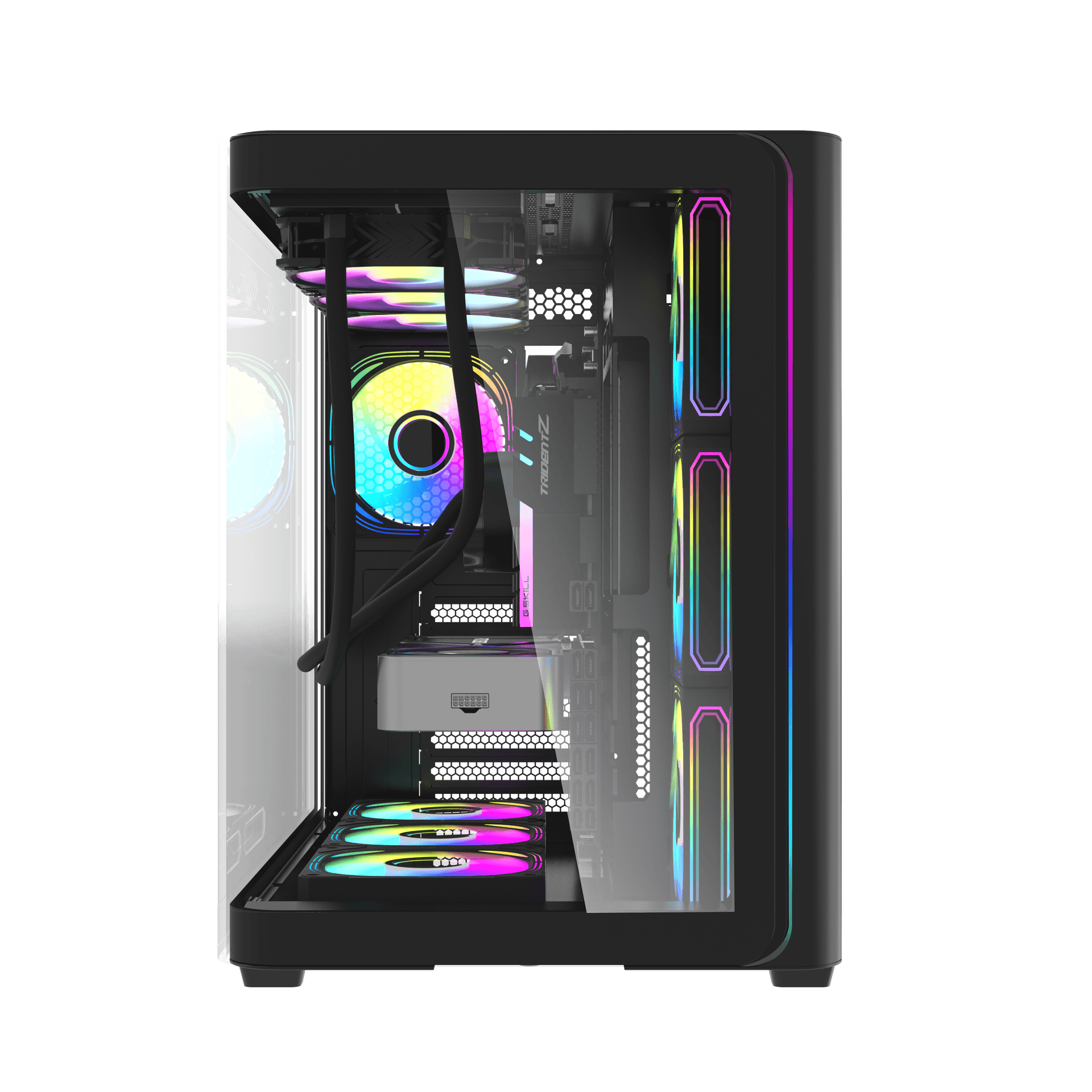

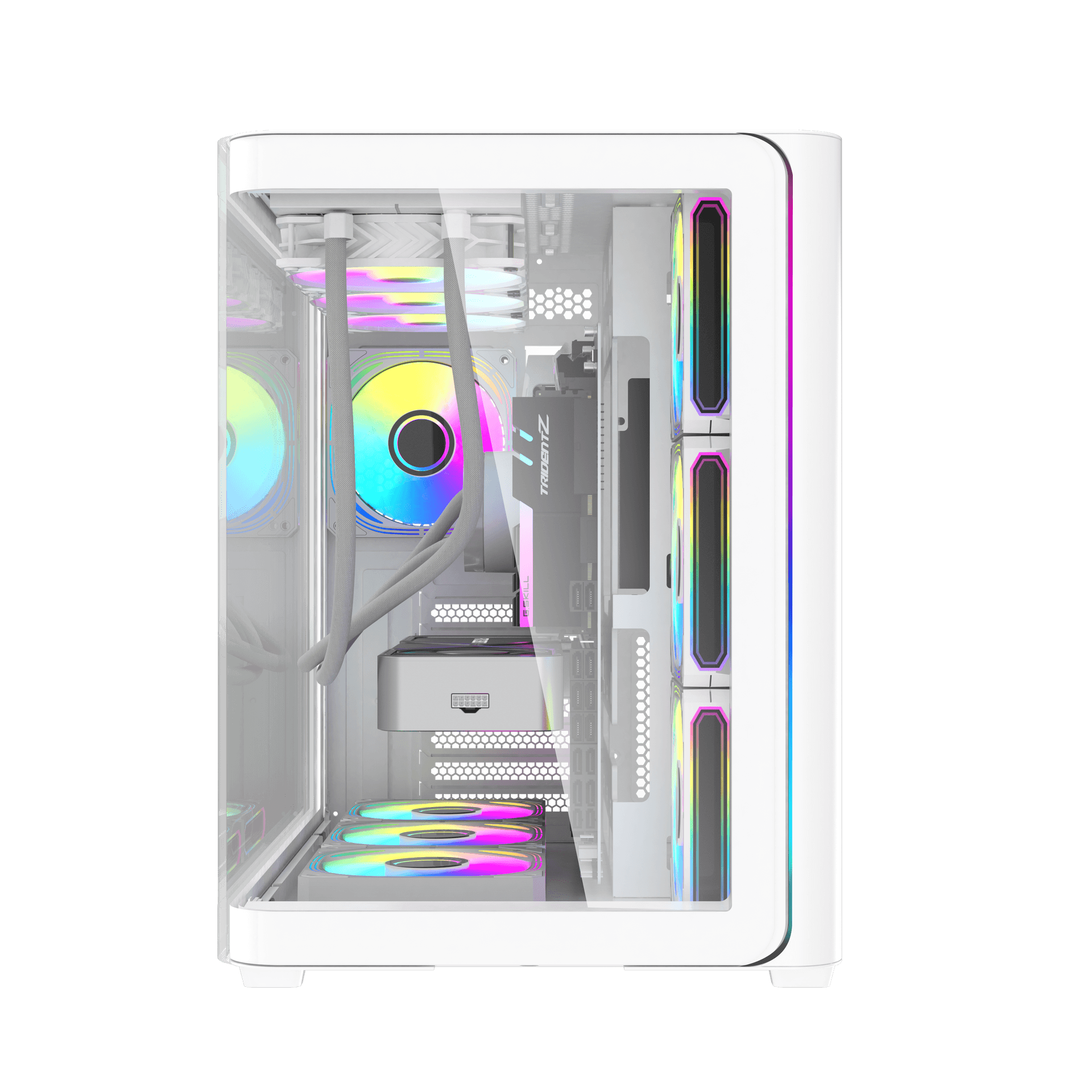

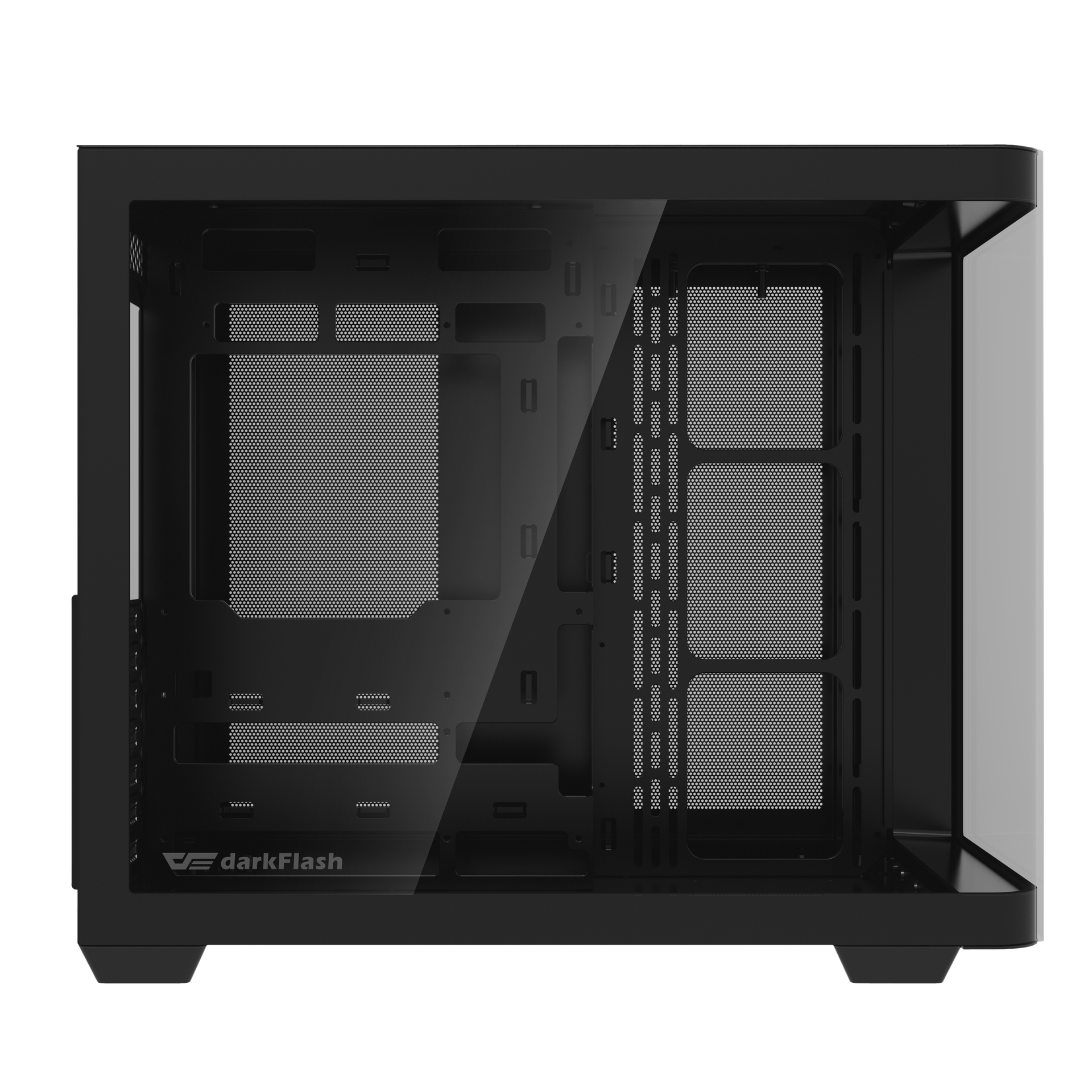

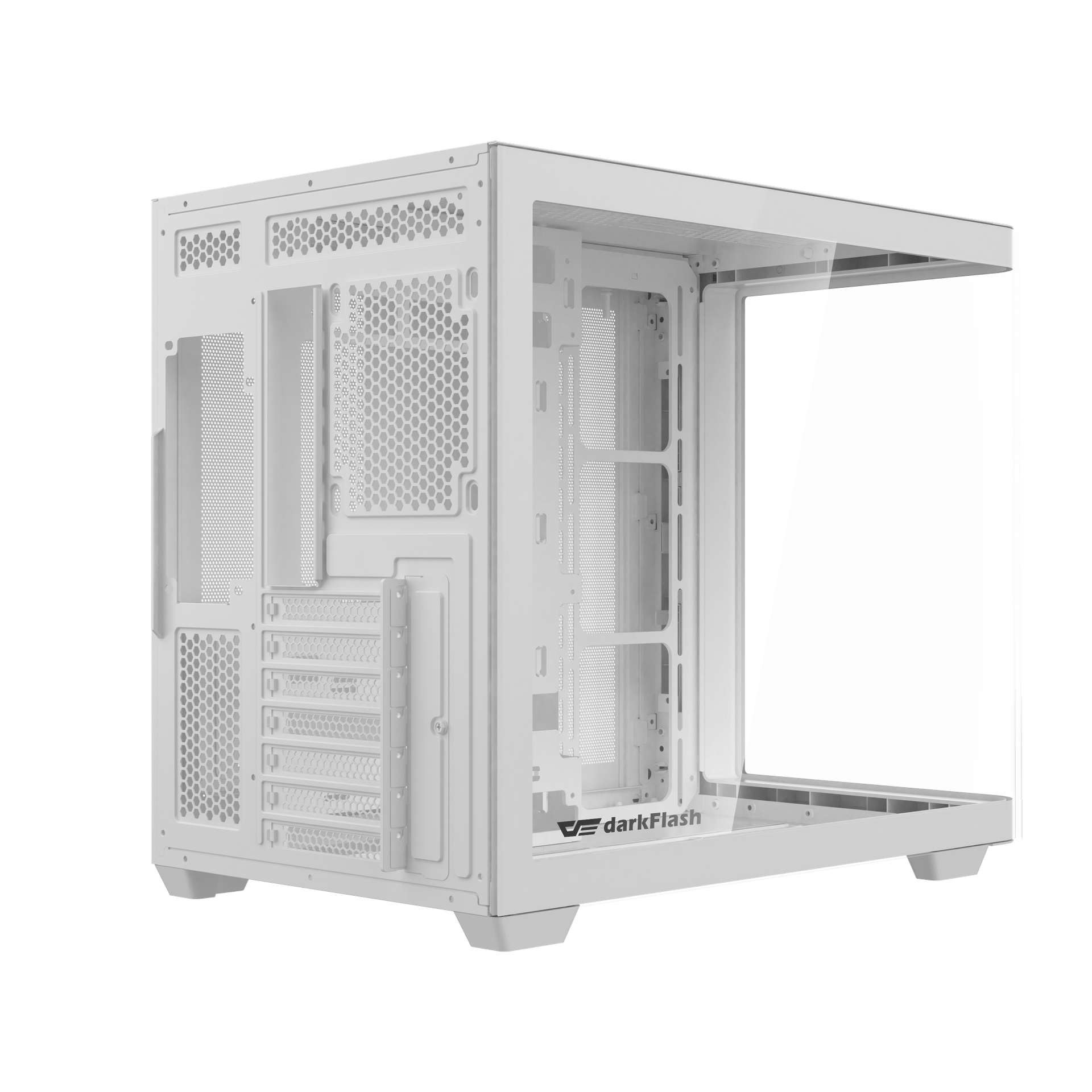

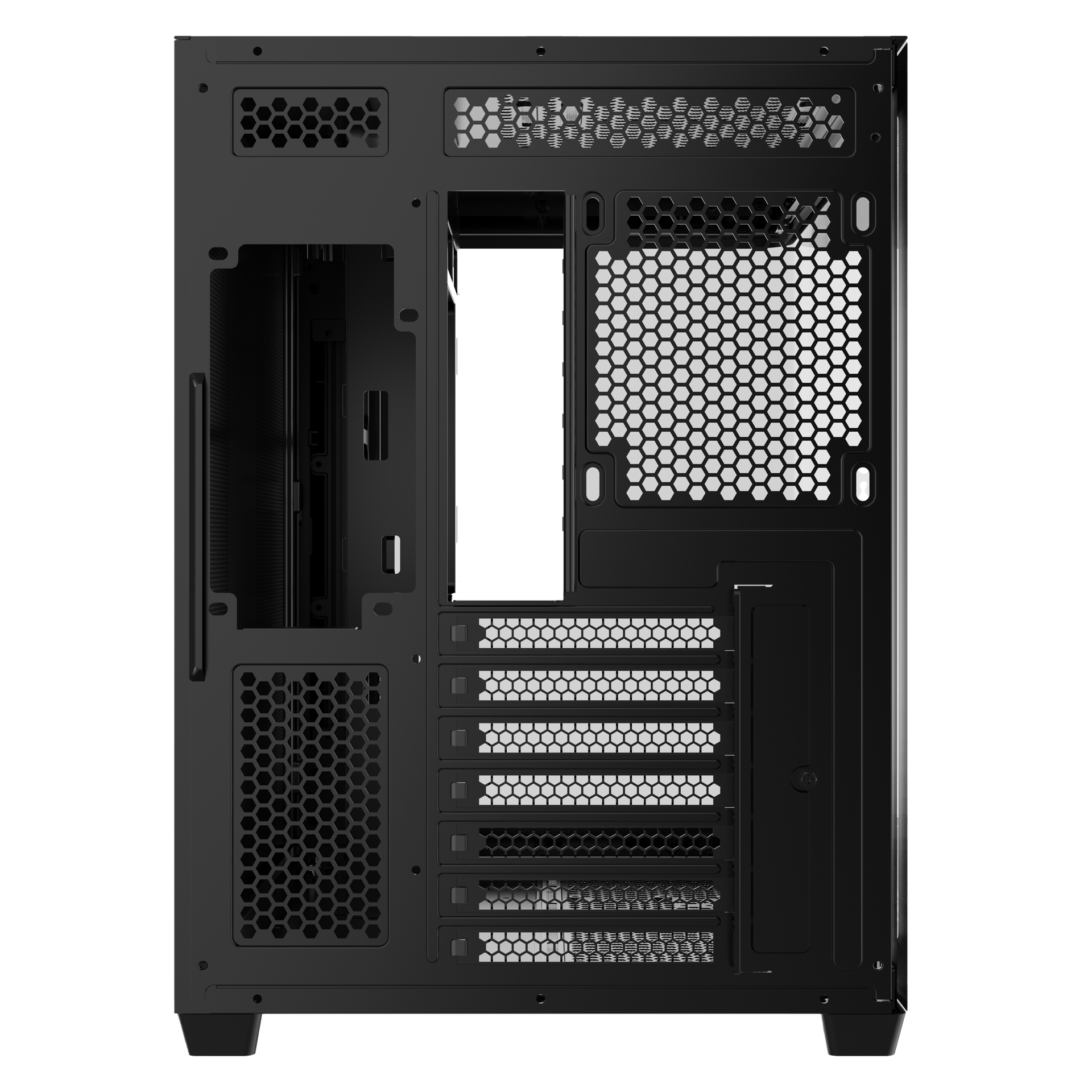

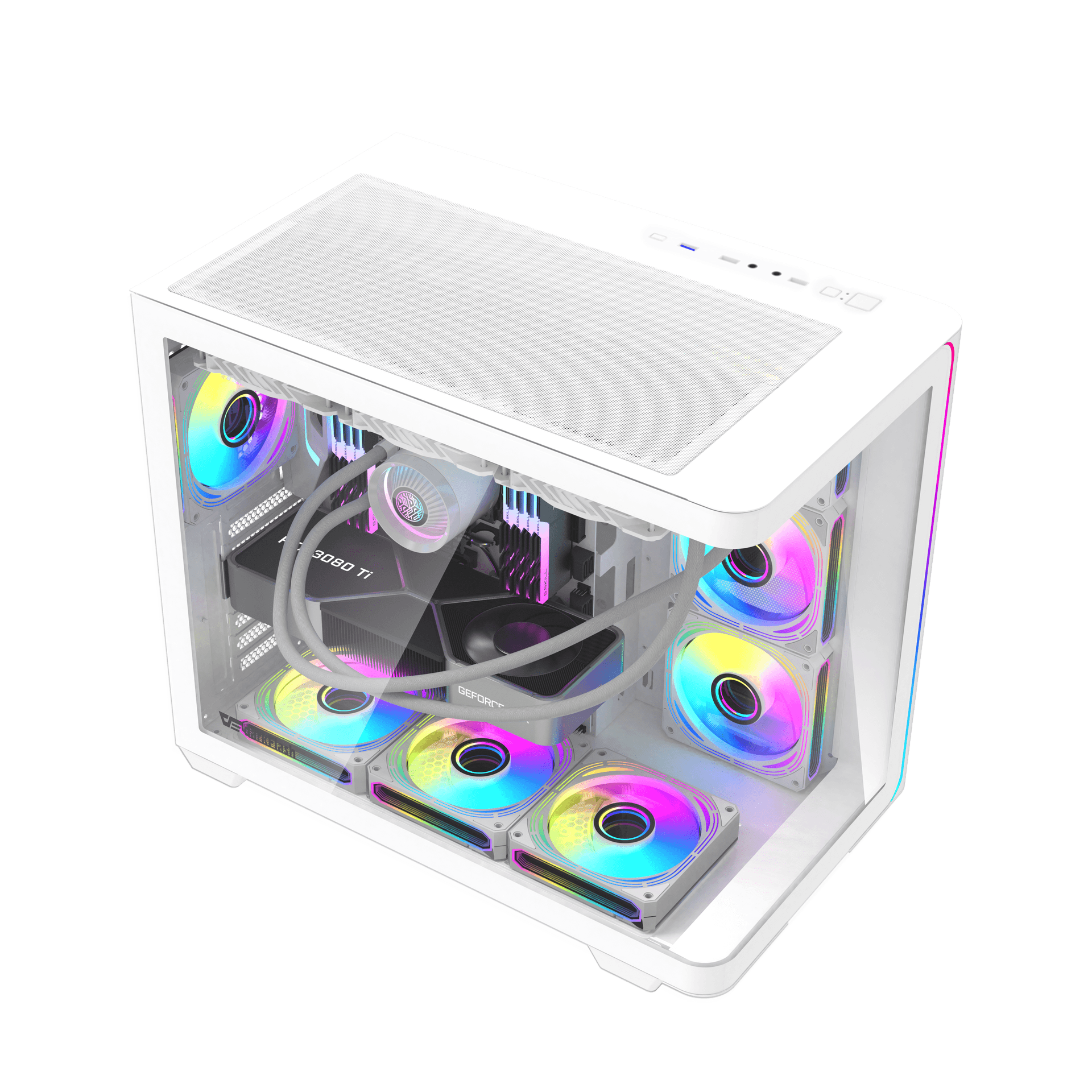

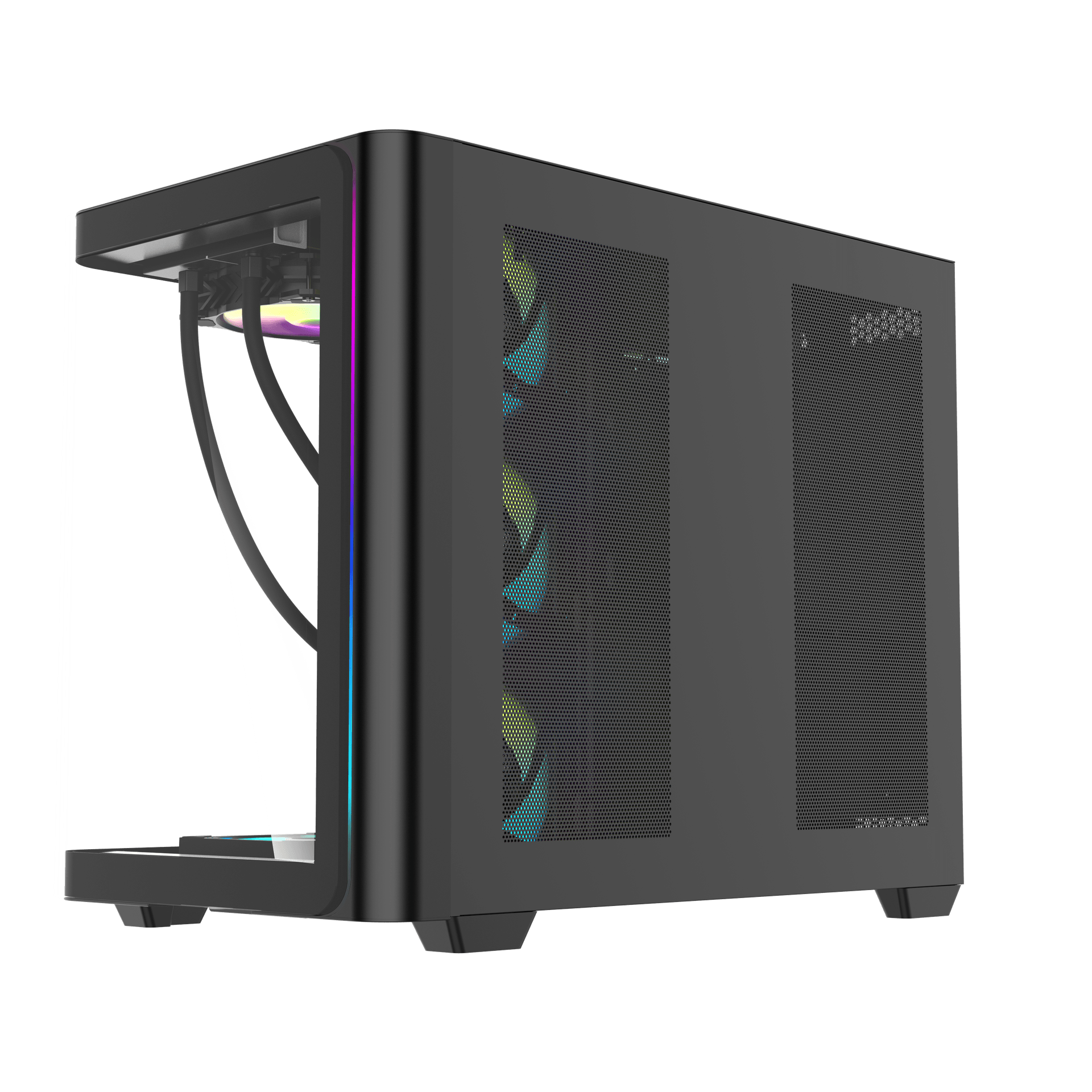

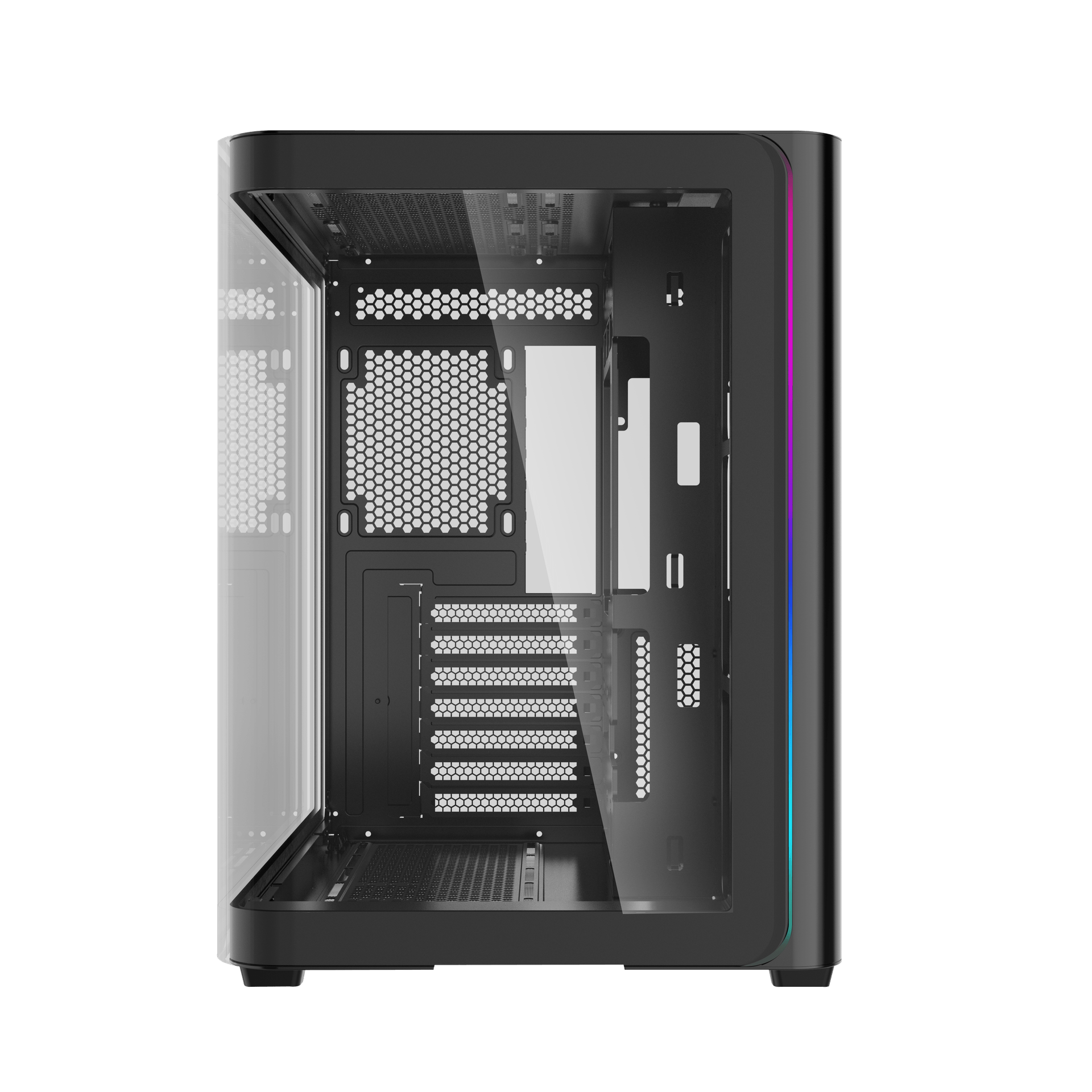

Product Galleries
