DK230 ATX PC Case

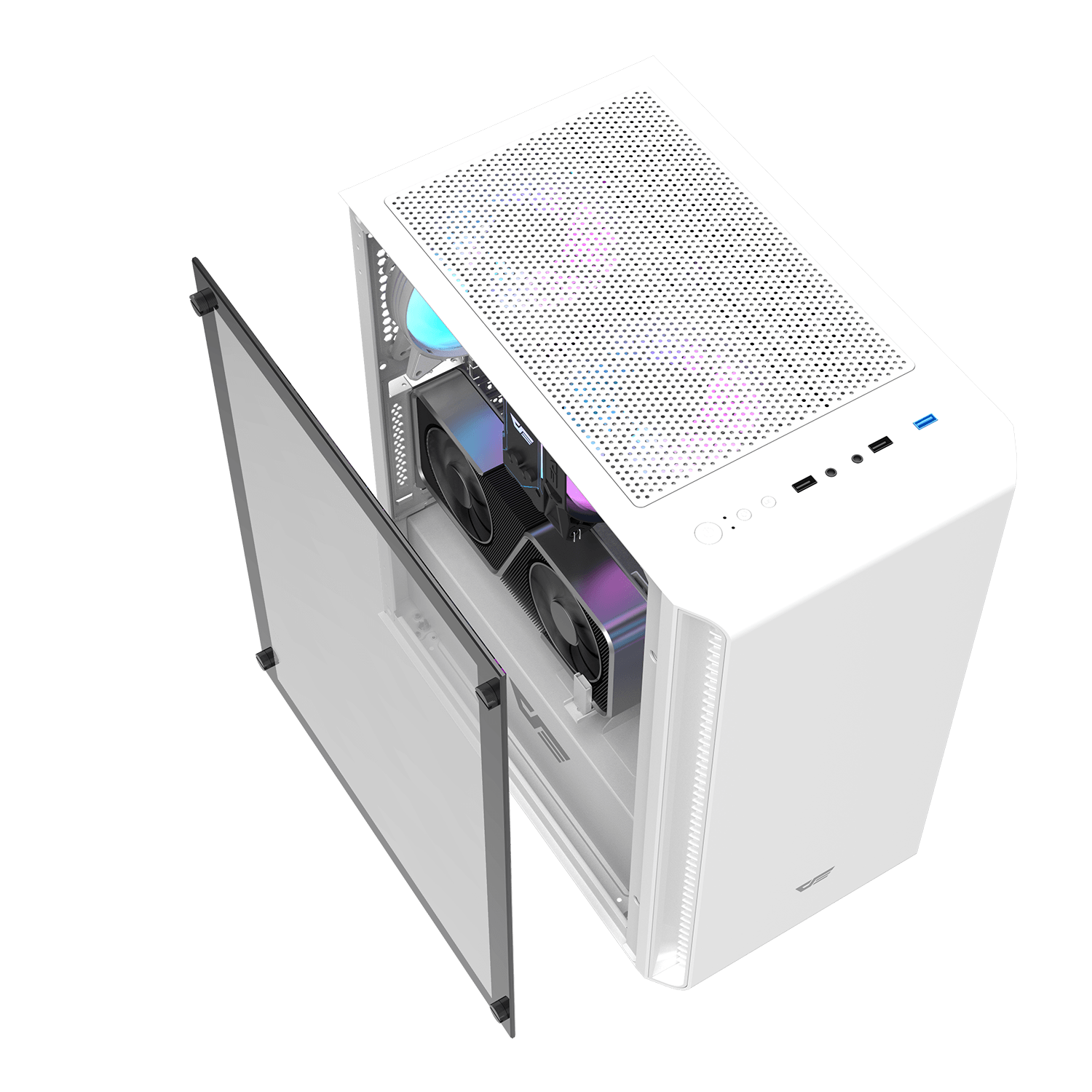

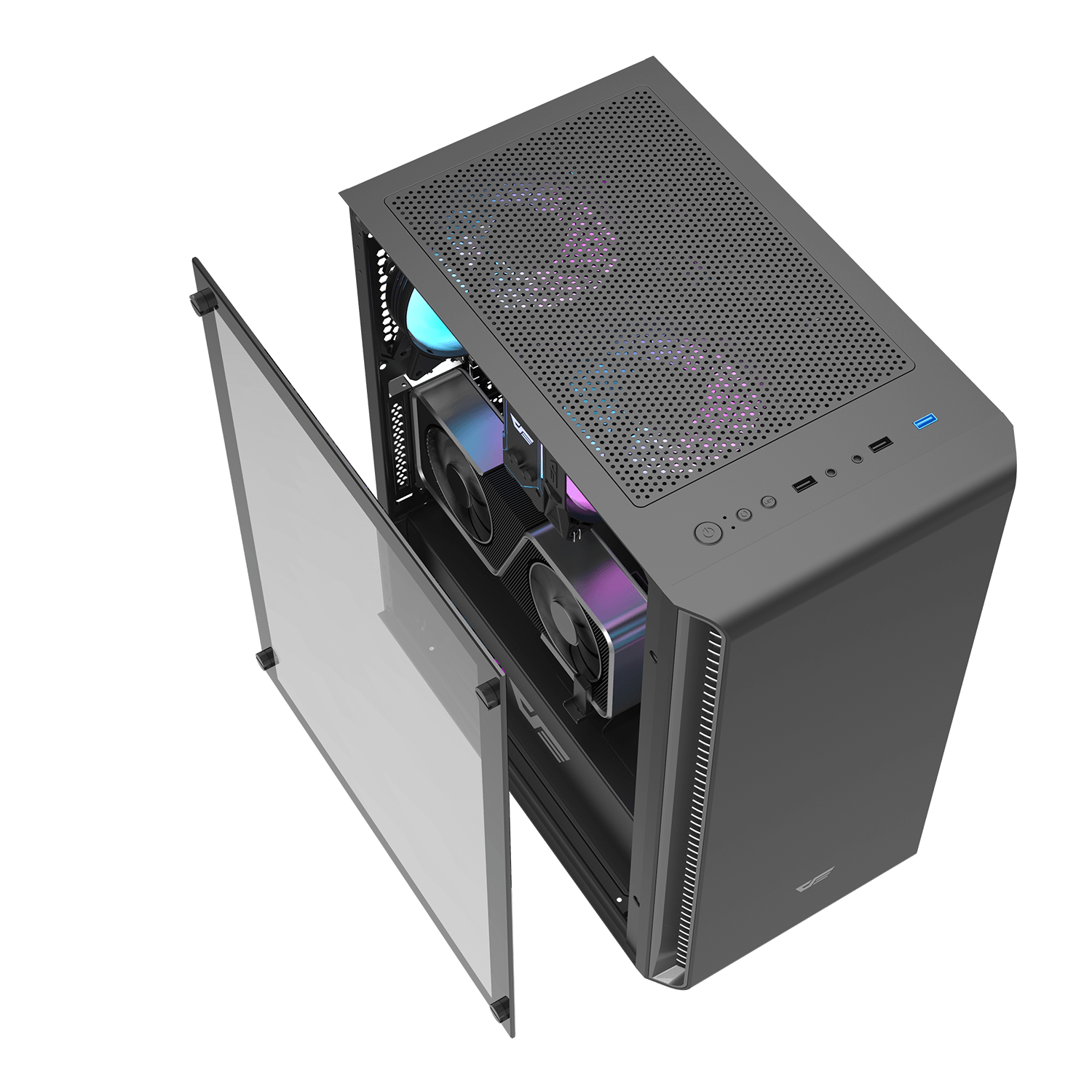

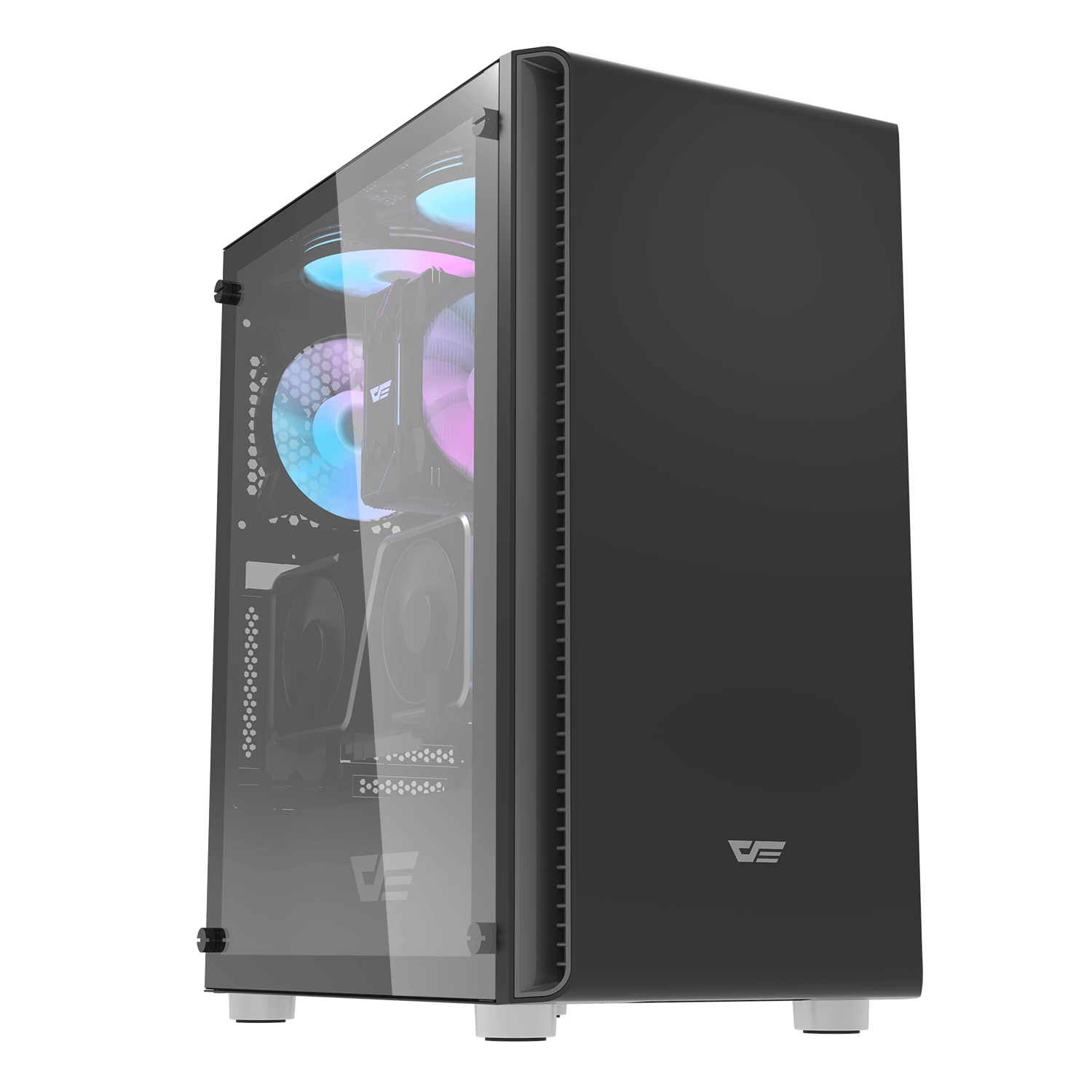

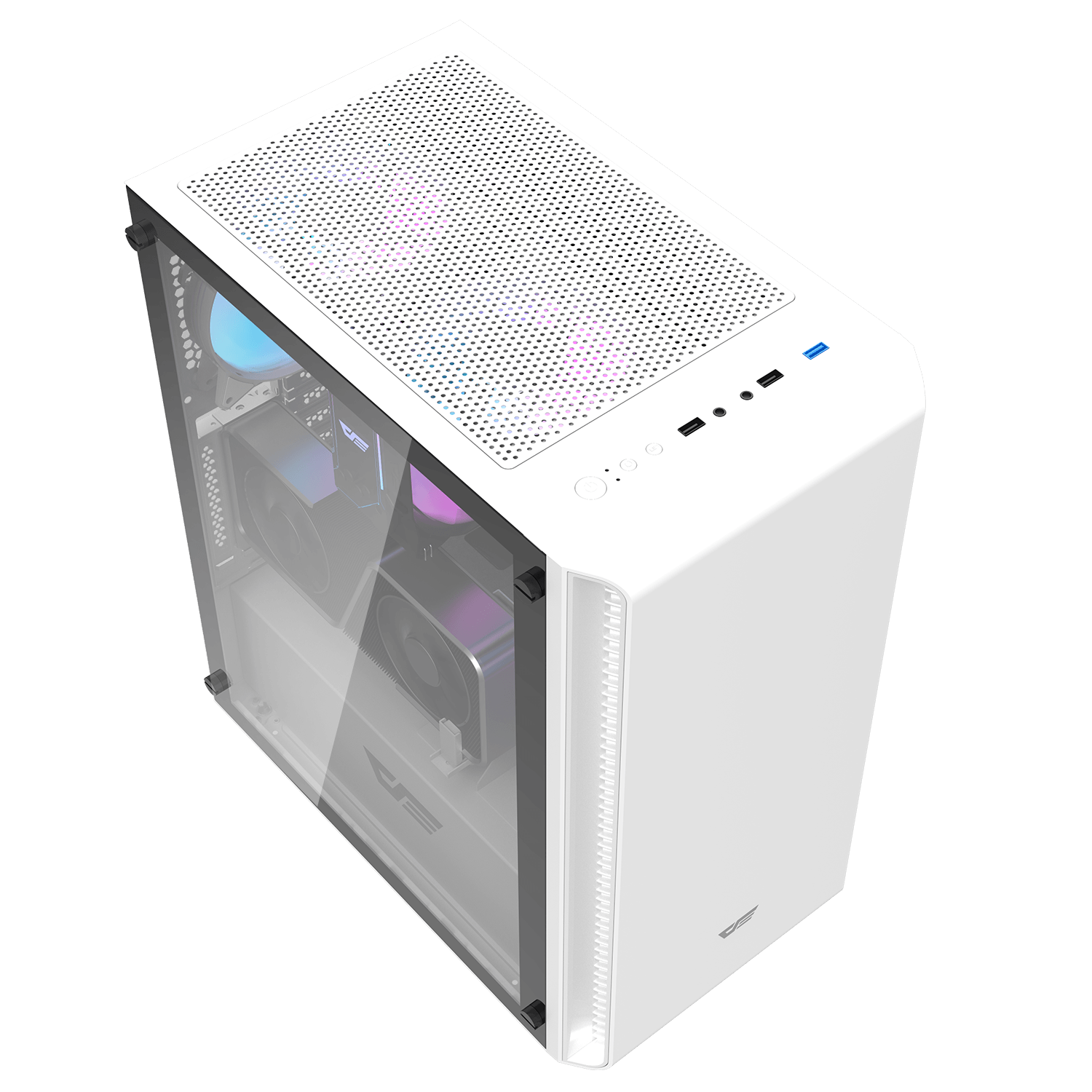

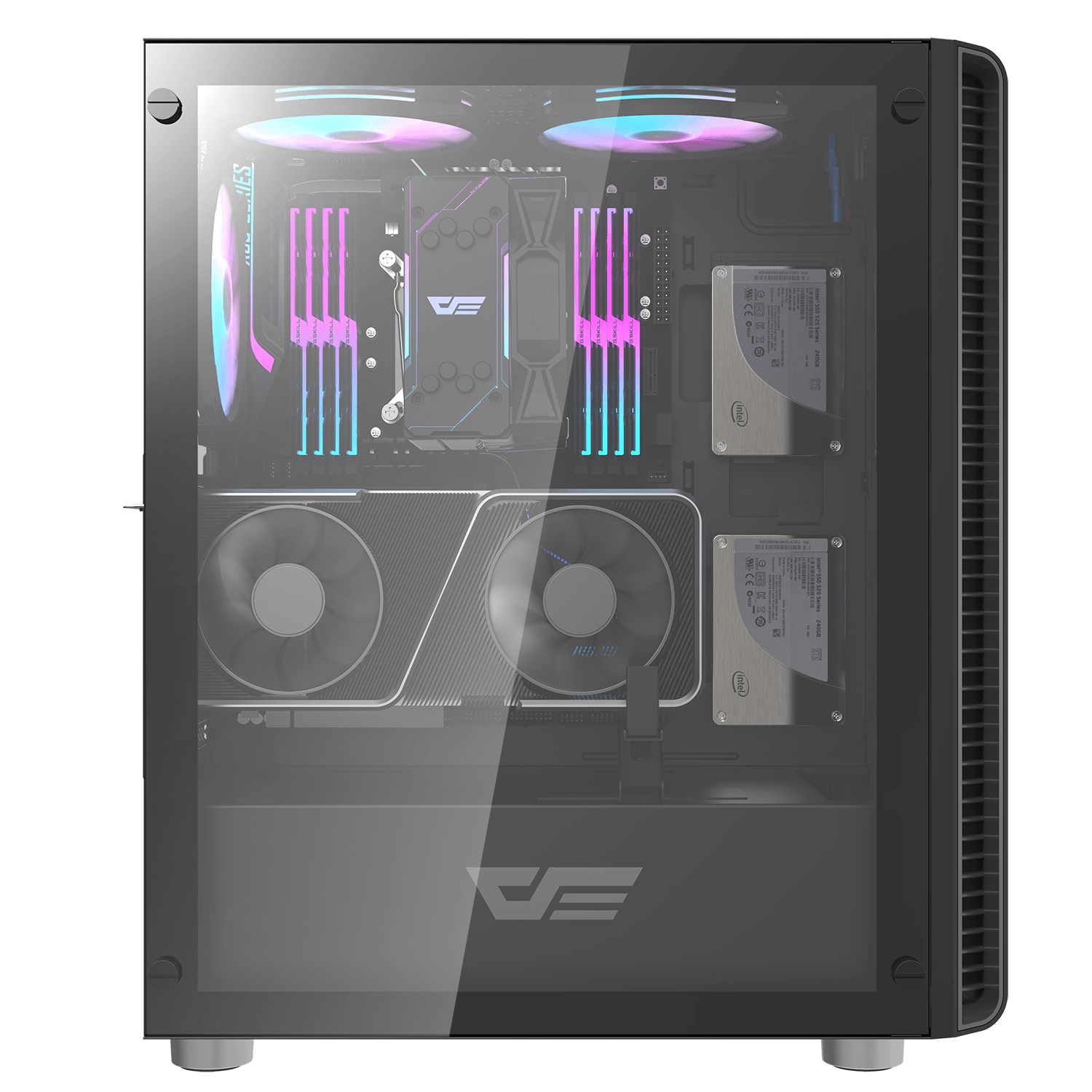

- Tempered glass side panel fastened by thumbscrews.

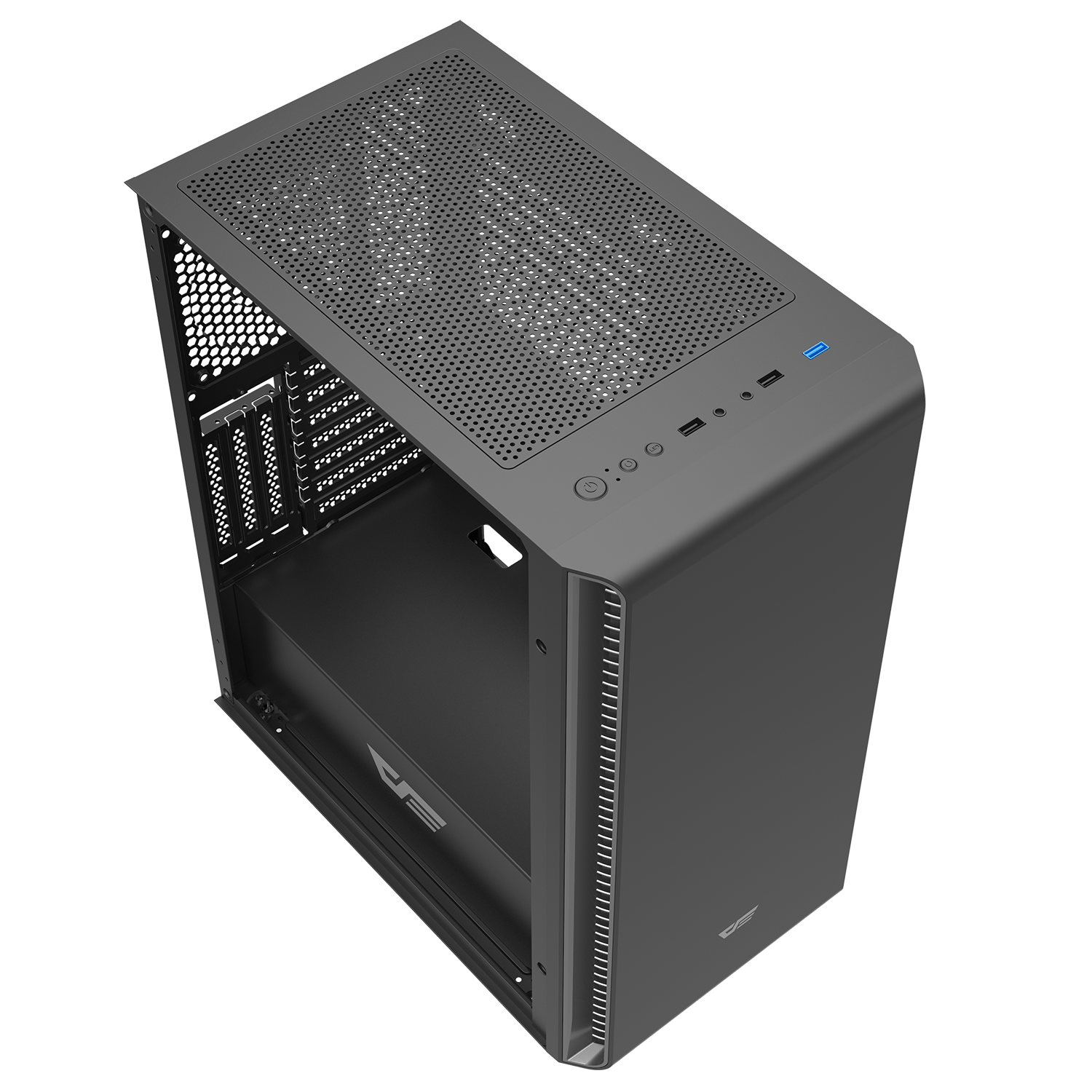

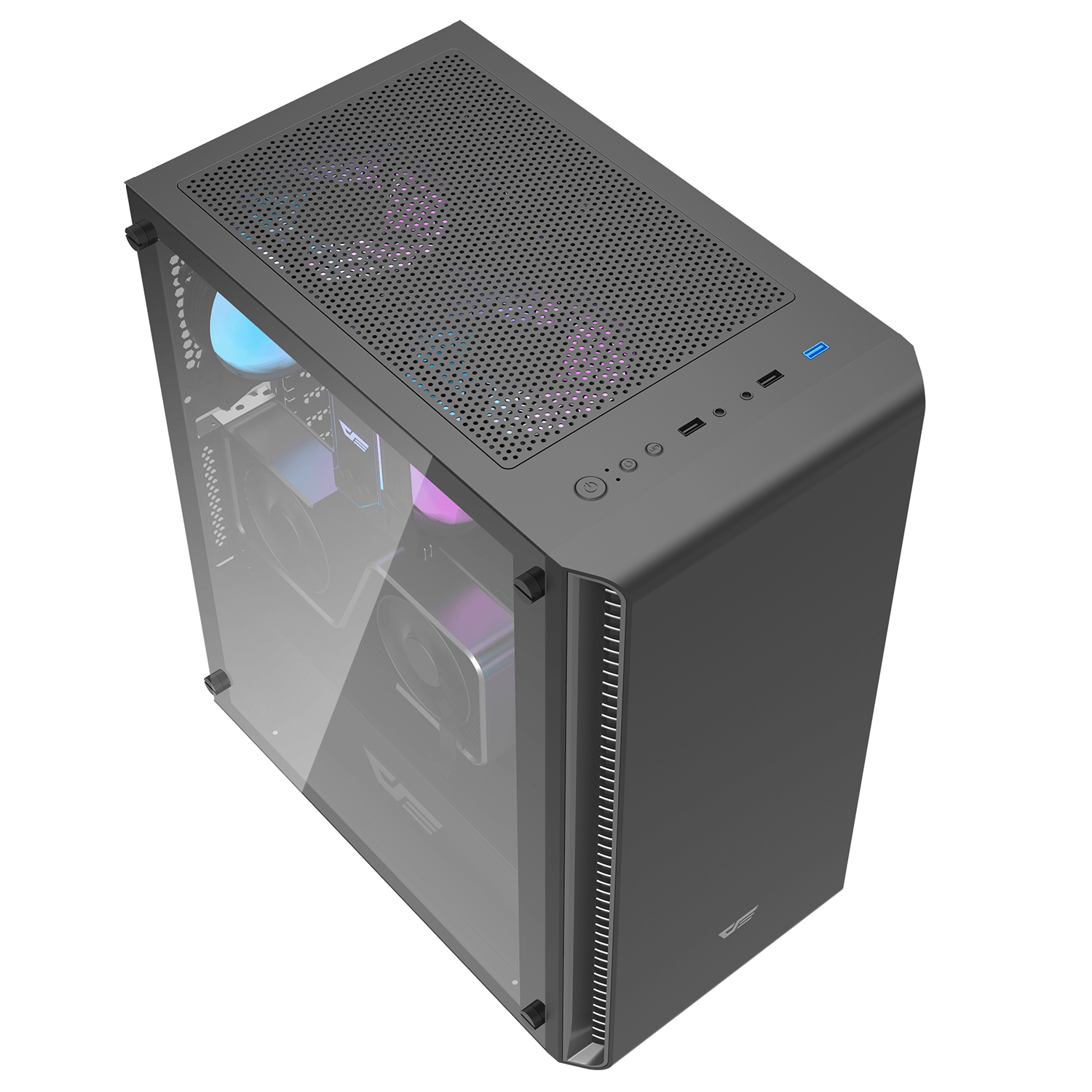

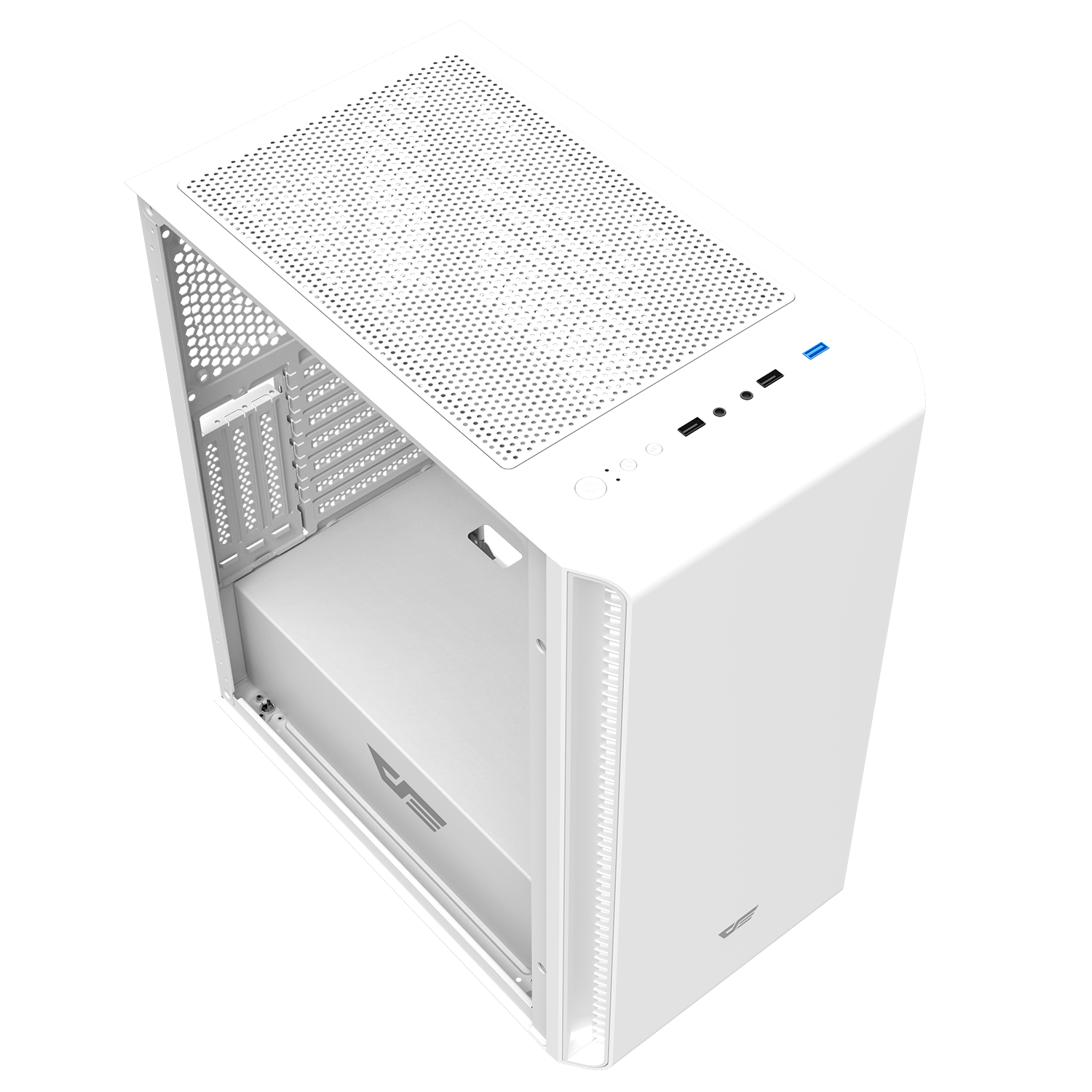

- Topside I/O port for easy cable routing.

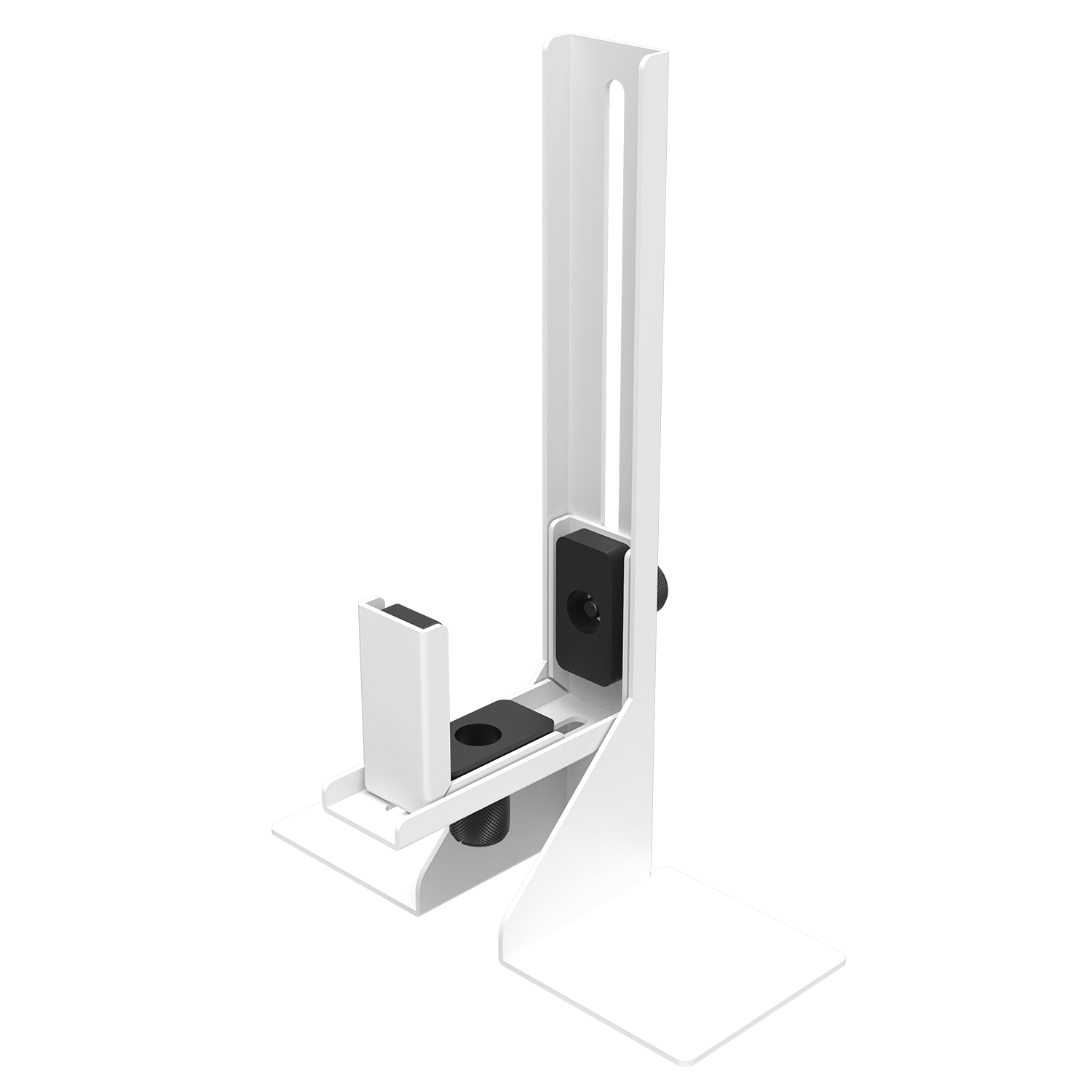

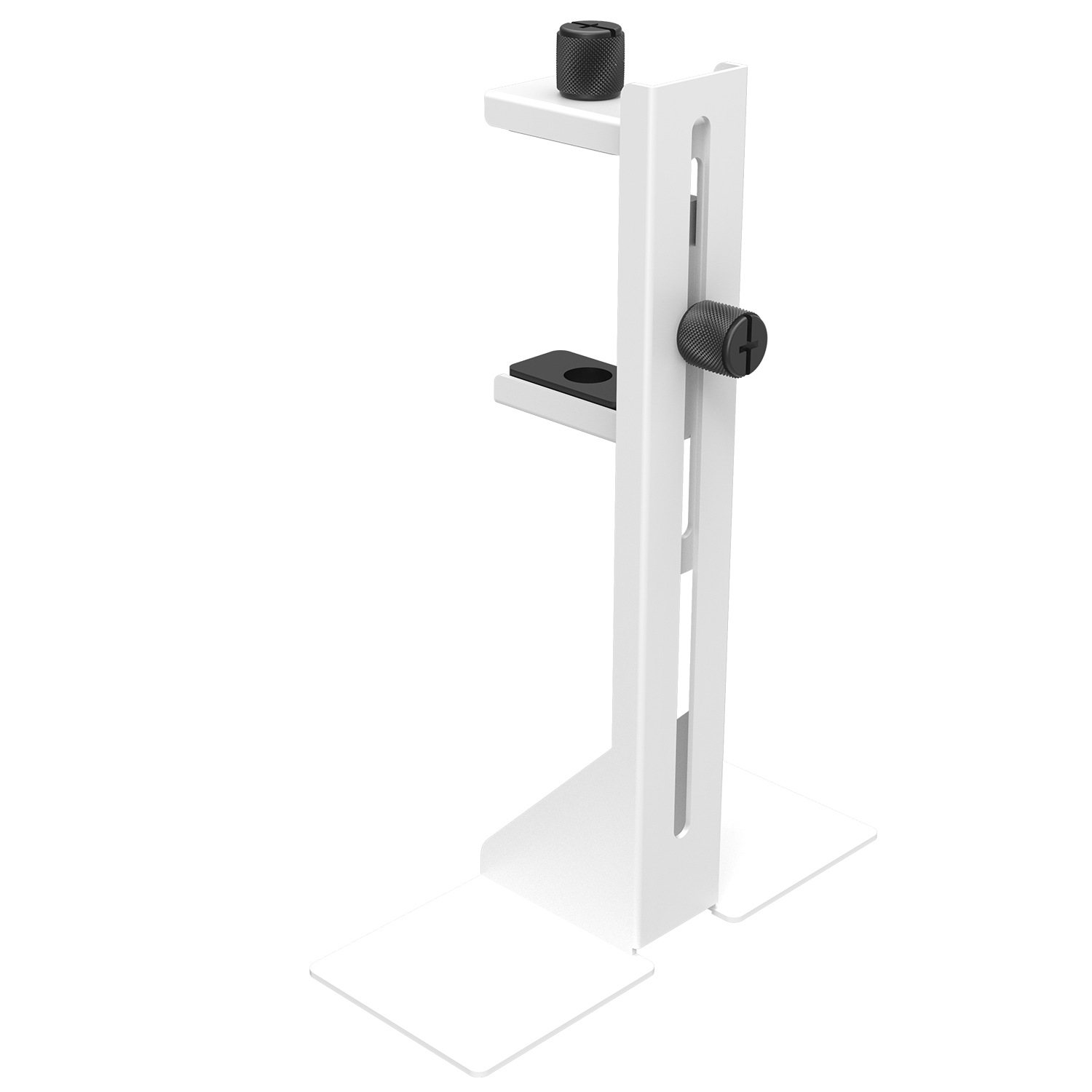

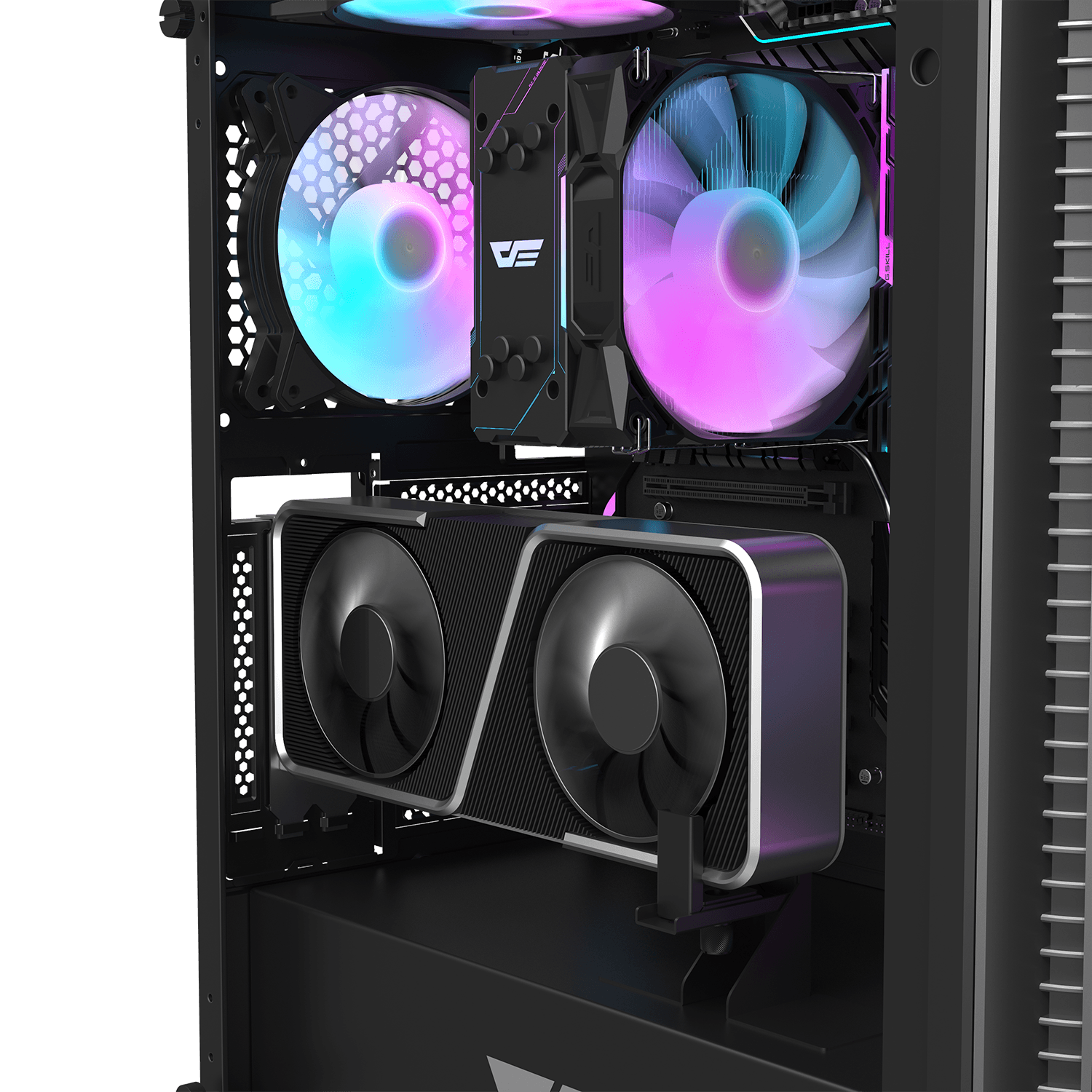

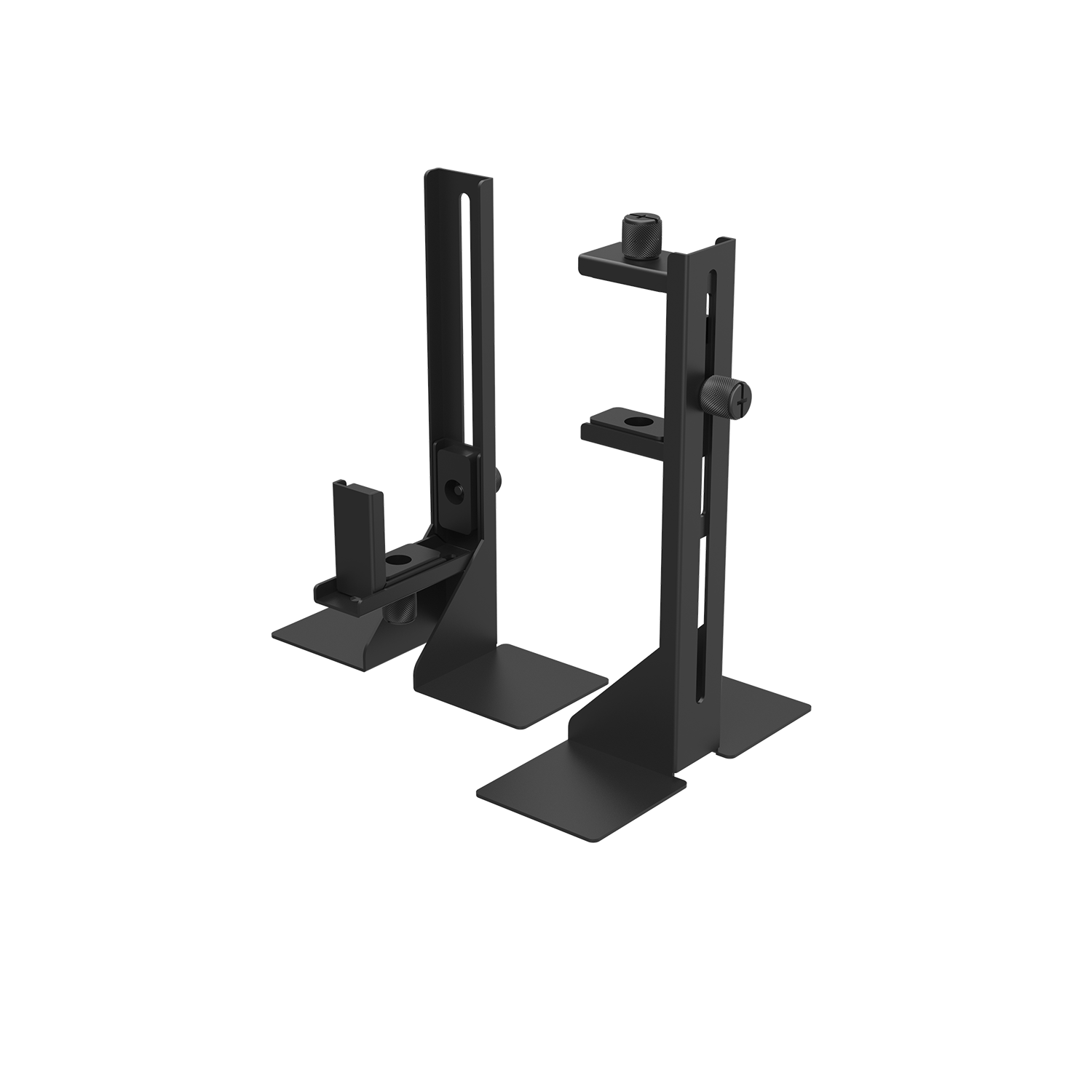

- Pre-installed GPU stand prevents graphics cards from sagging.
- Air inlets on both sides of front panel, enhancing performance.
Colors
Black

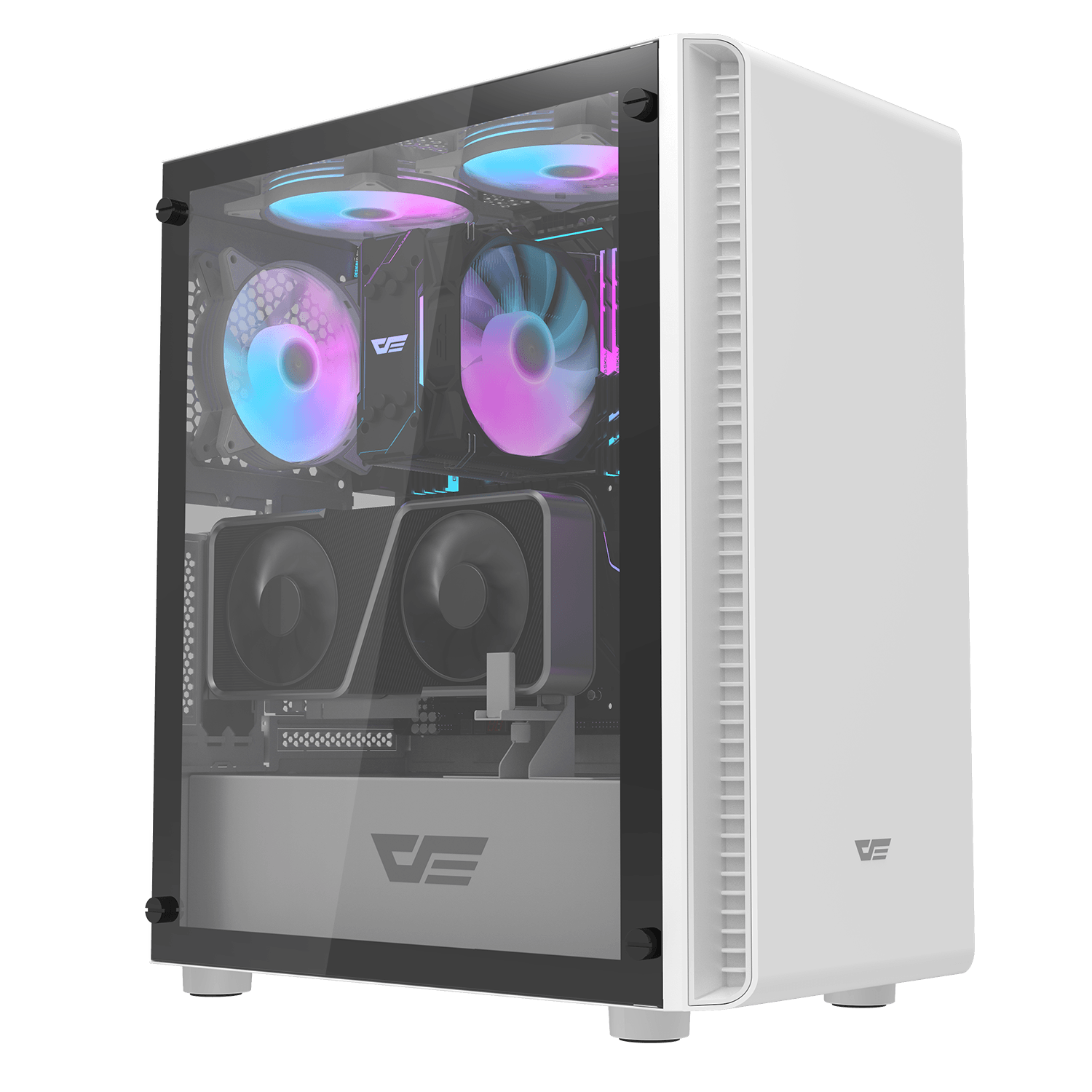

White
Spec
- Key Specs
- Motherboard Support：ATXM-ATX ITX
- Case Material：PlasticTempered Glass
- Dimensions
- Case Size：445*230*390mm
- Compatibility & Clearance
- Max GPU Clearance：340mm
- PCIE Slot：7
- Max CPU Cooler Clearance：190mm

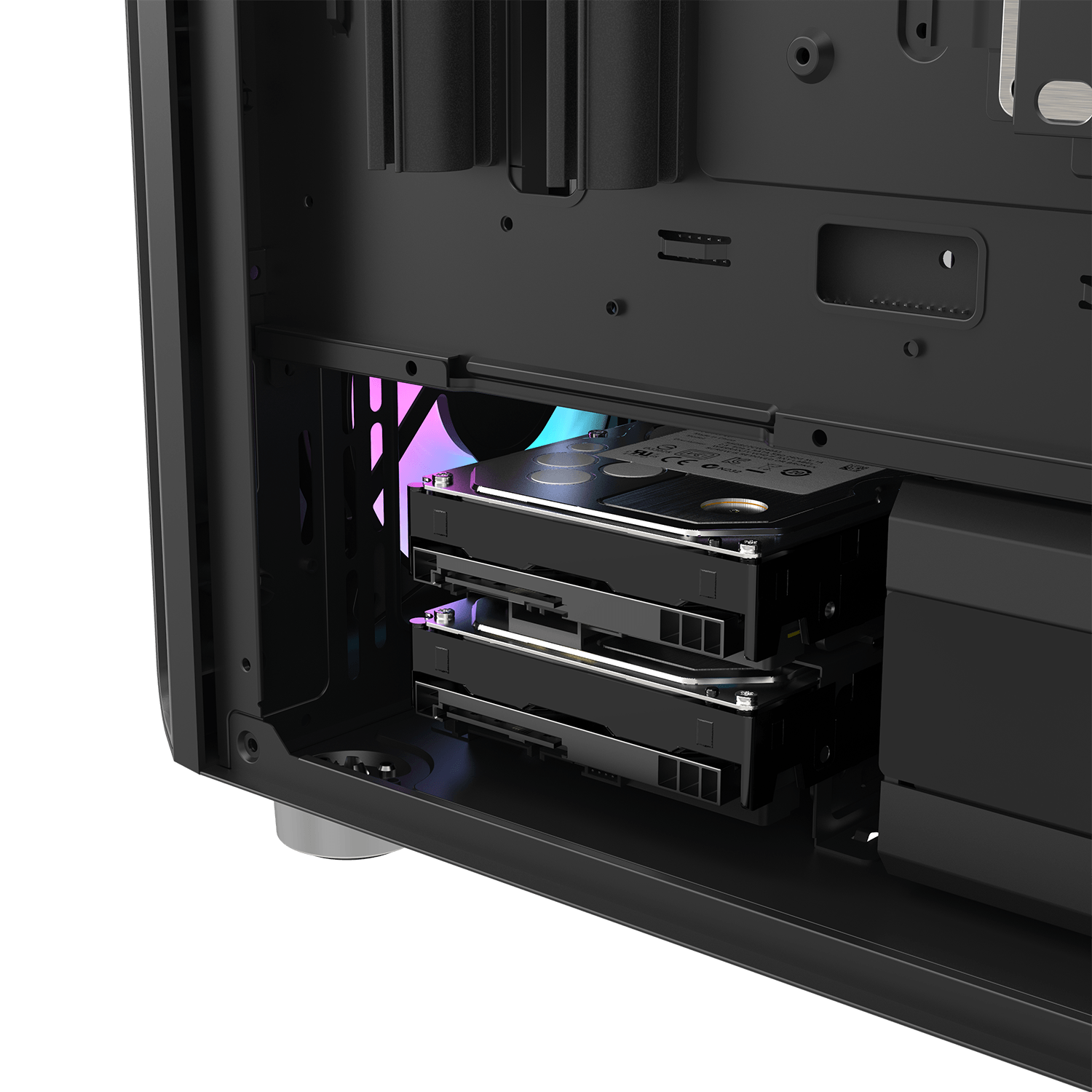

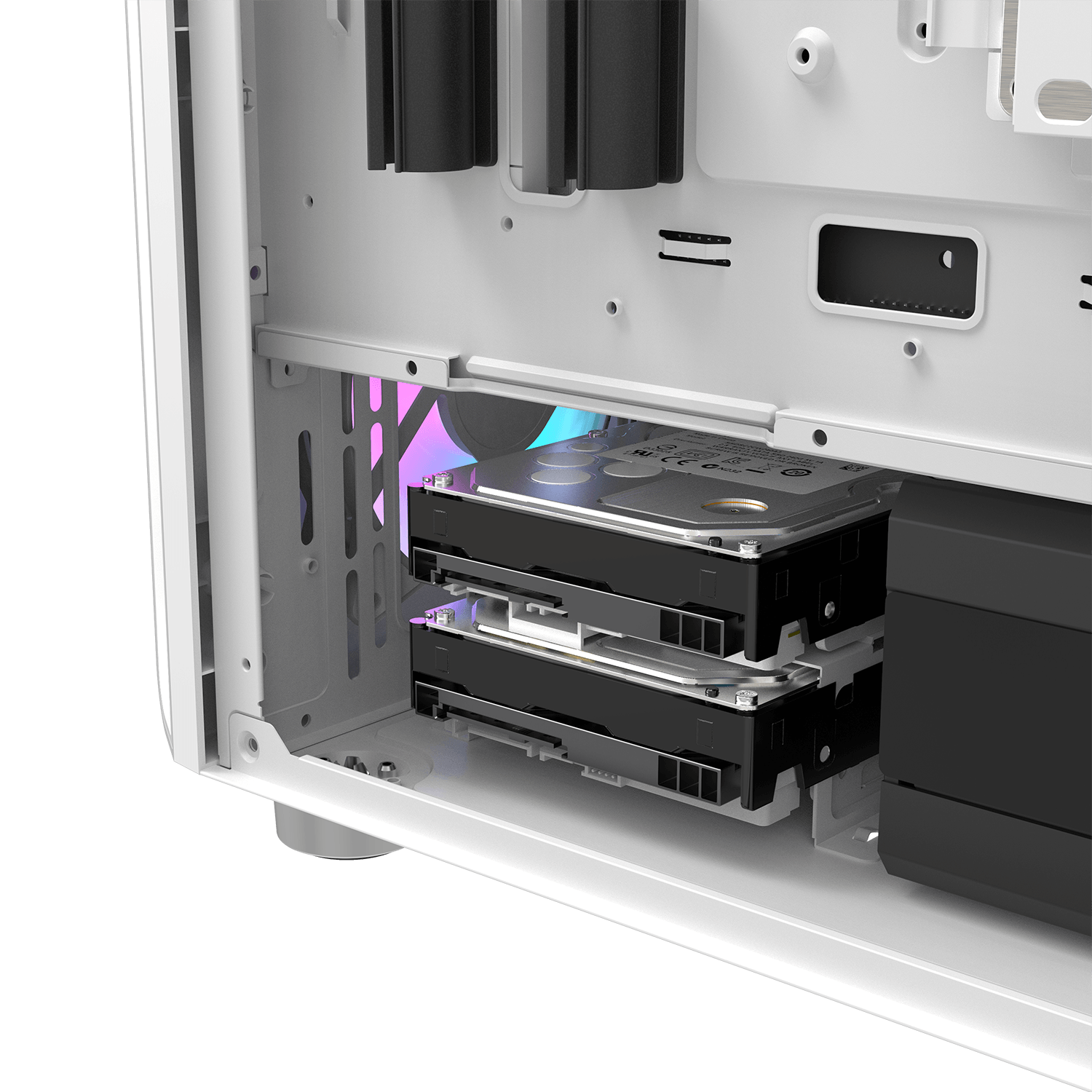

- Drive Bays
- SSD / HDD：2/11/2
- Fan Support
- Top：120mm*3140mm*2
- Front：120mm*3140mm*3200mm*2
- Rear：120mm*1140mm*1
- Radiator Support
- Top：240mm
- Front：240mm280mm360mm
- Front I/O
- I/O：USB 3.0USB 2.0HD AudioResetPower

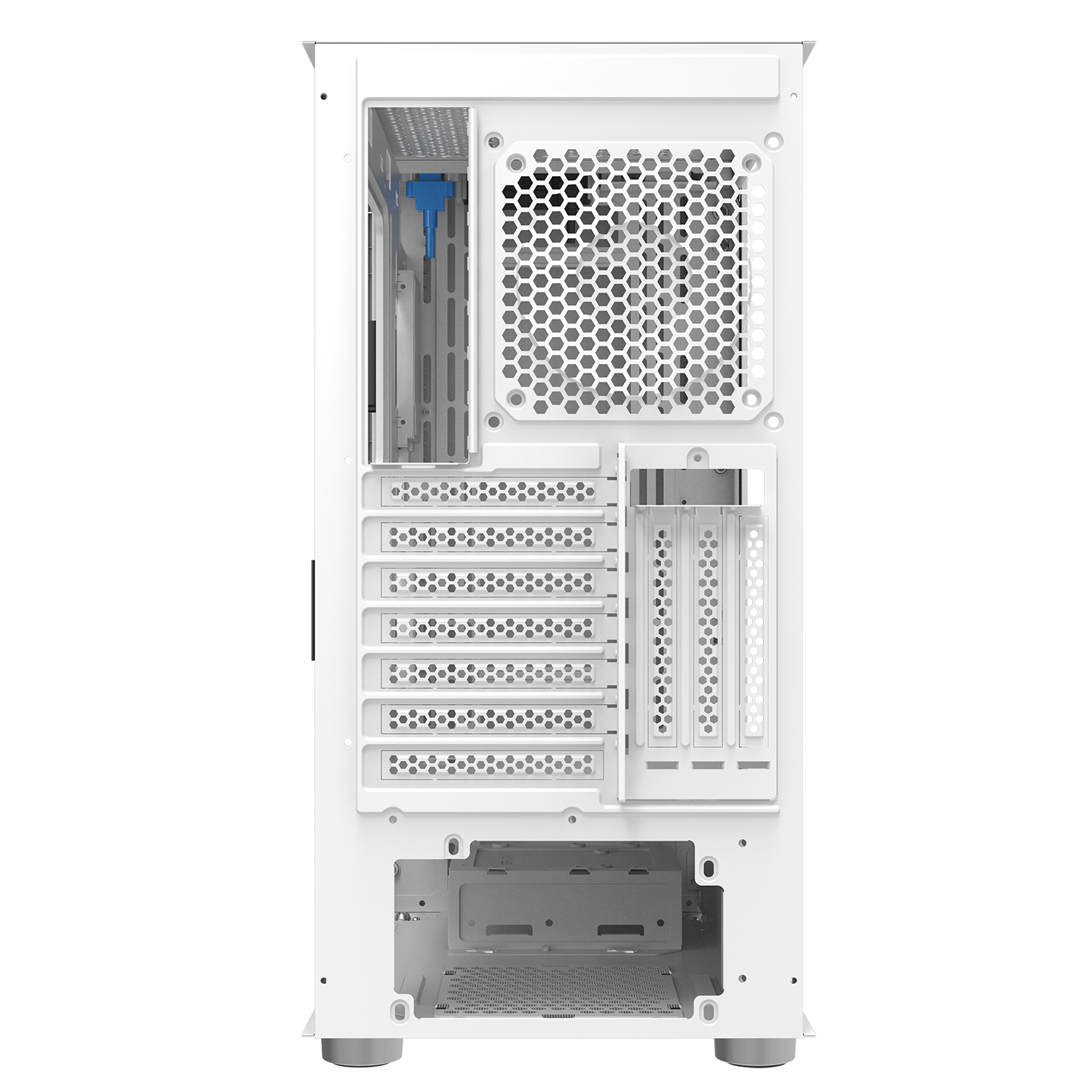

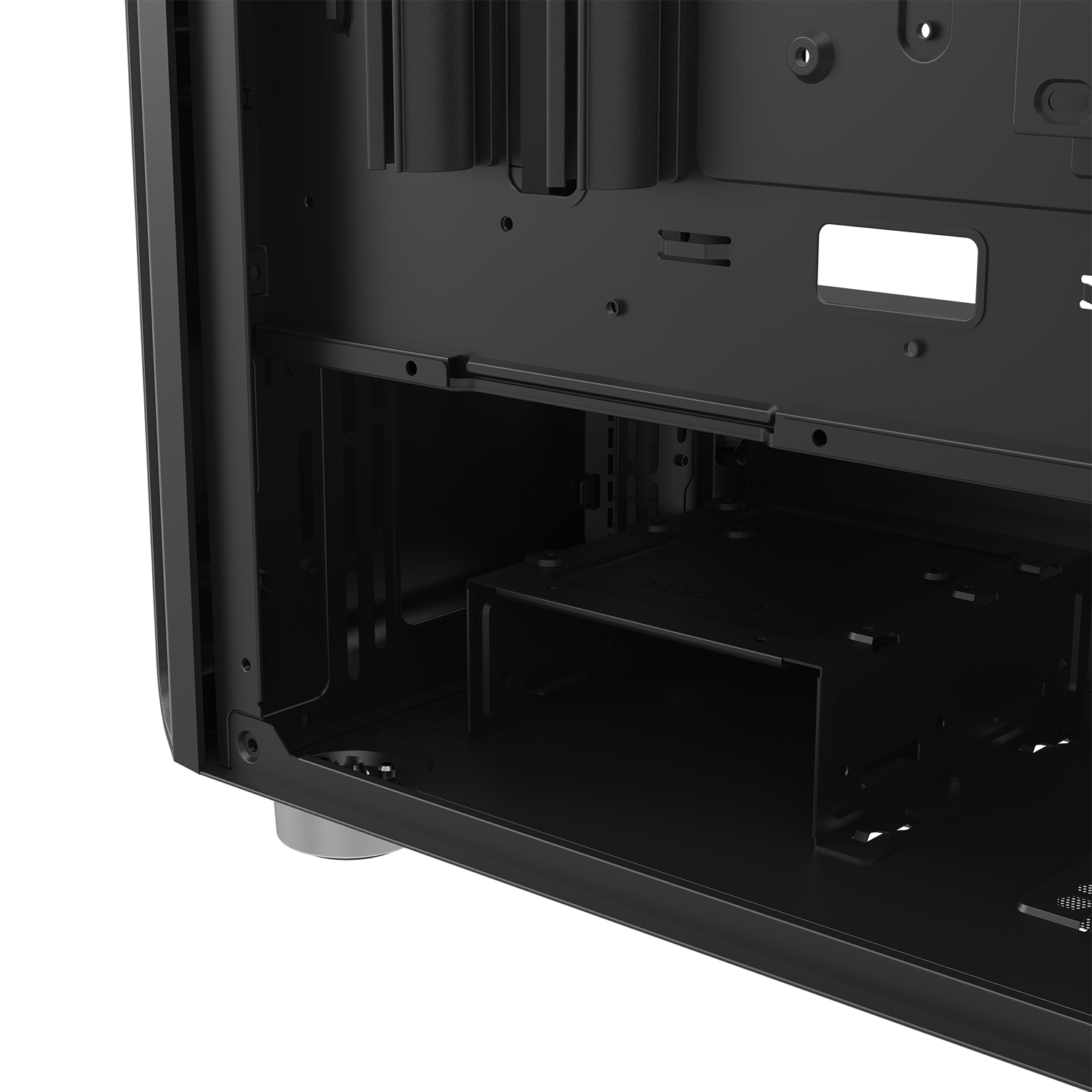

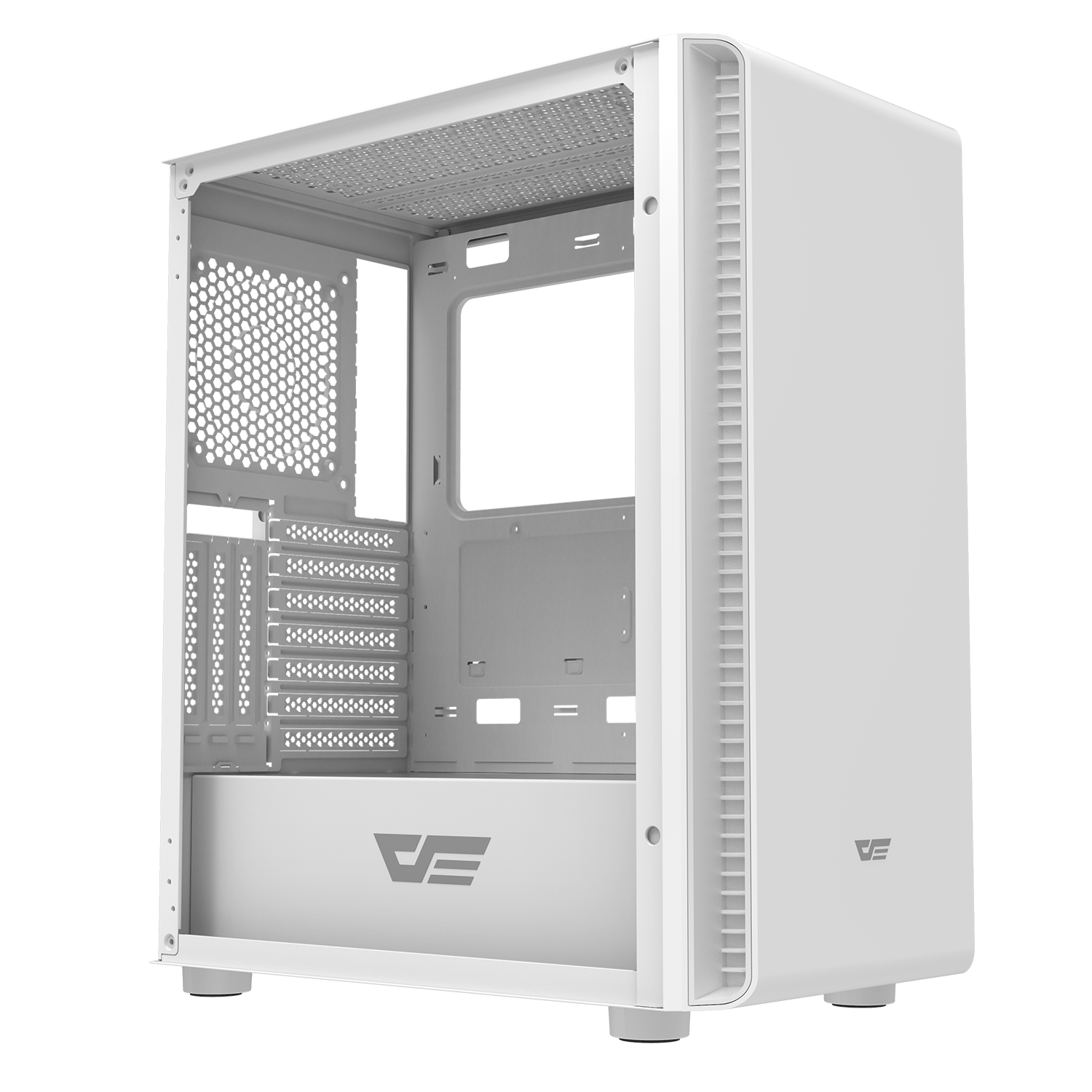

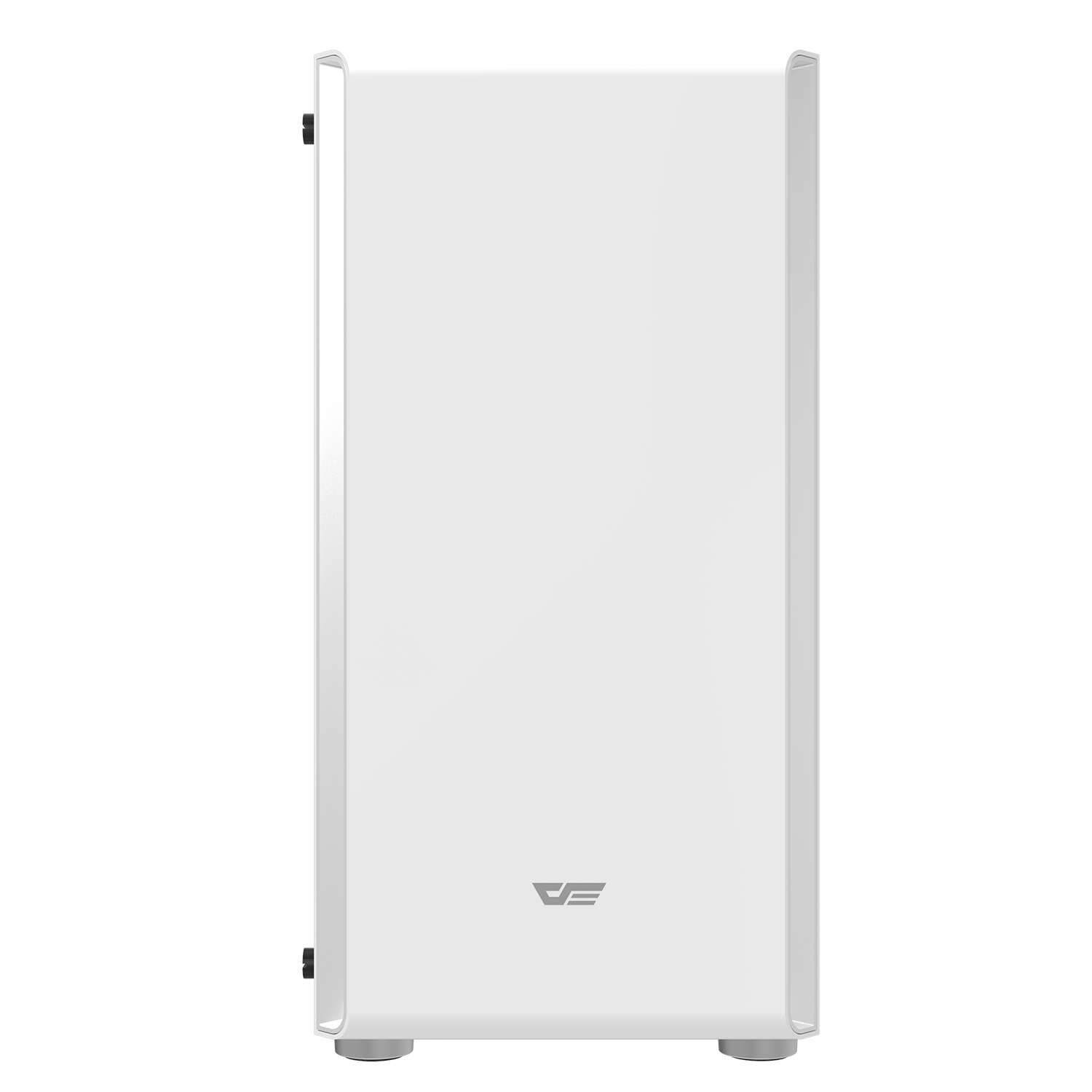

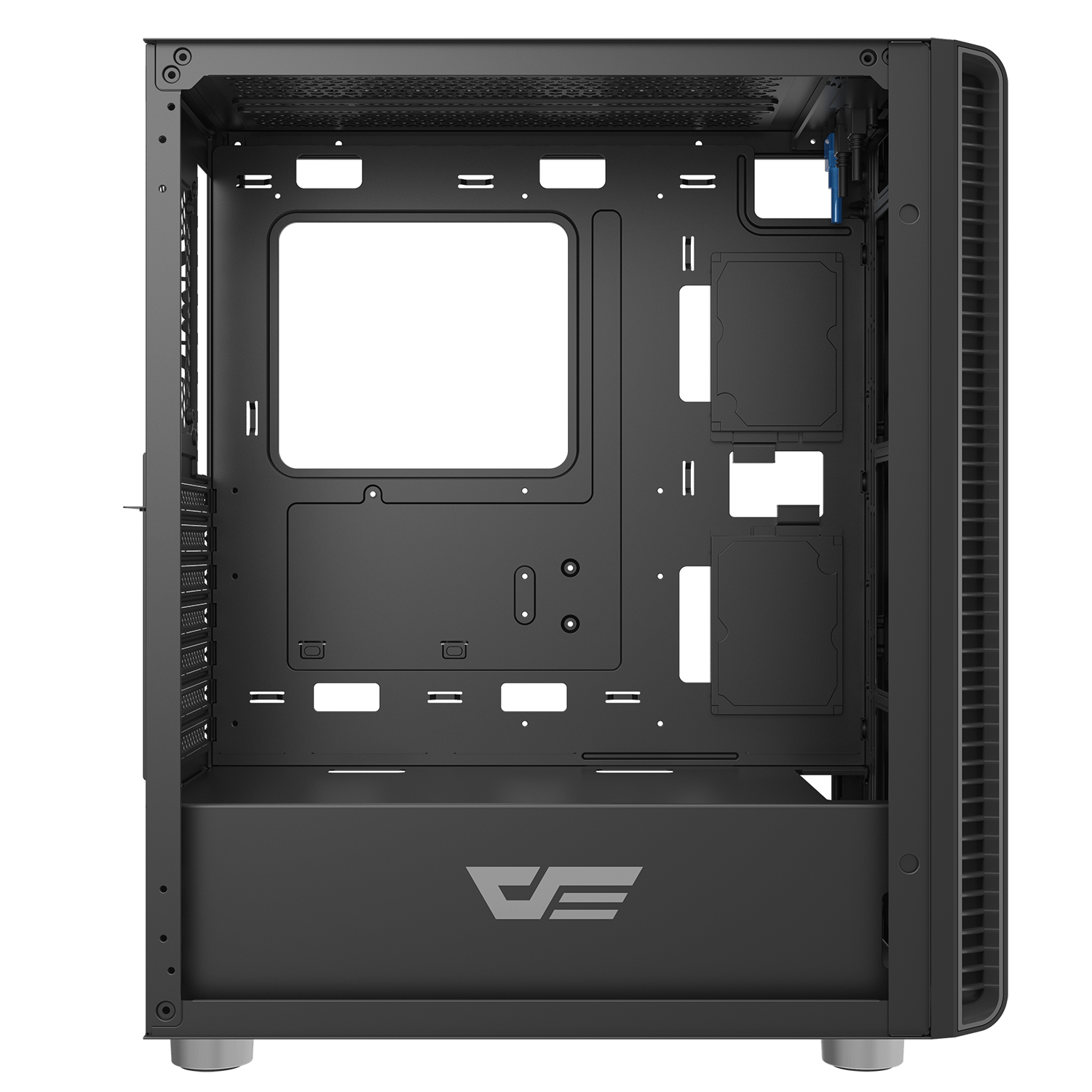

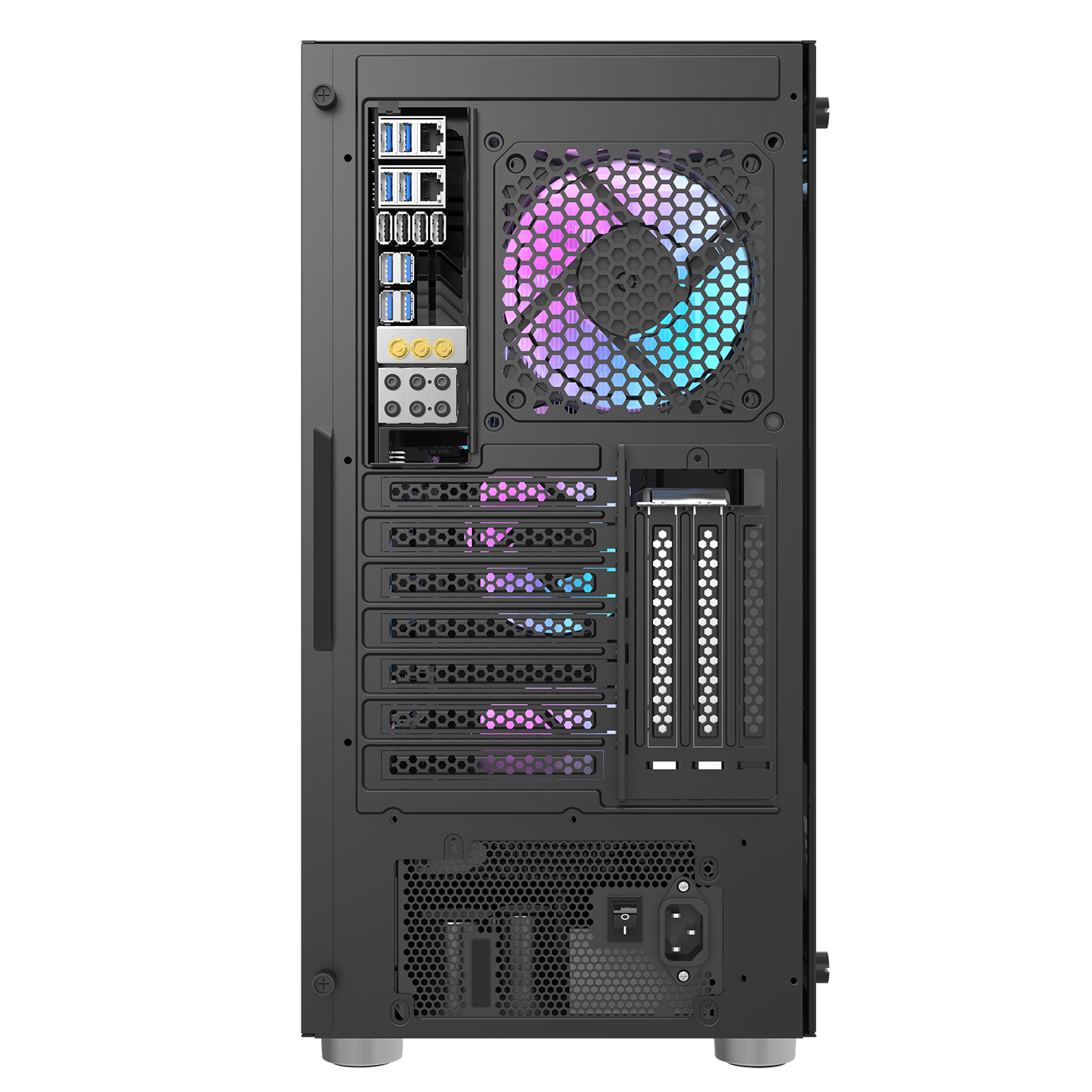

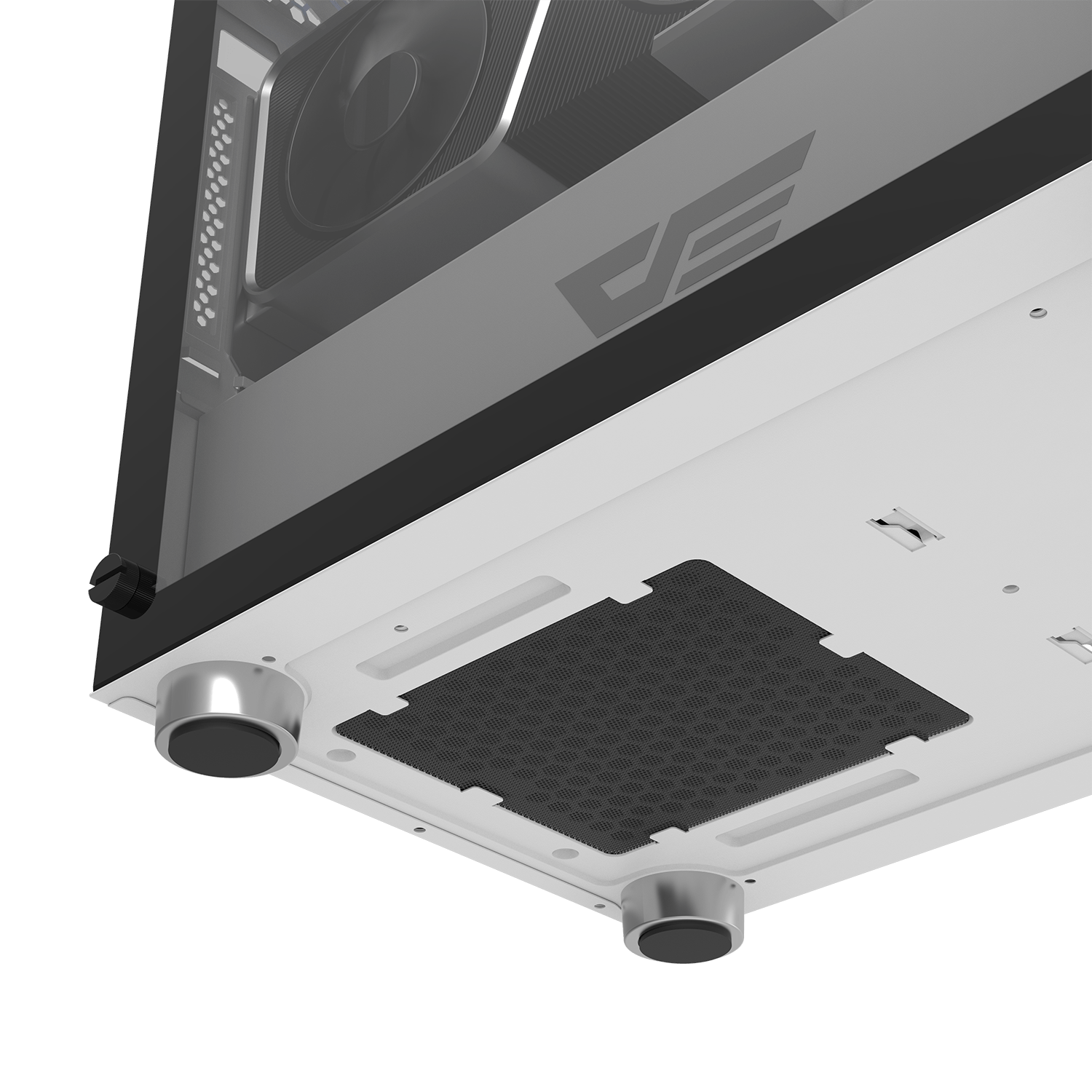

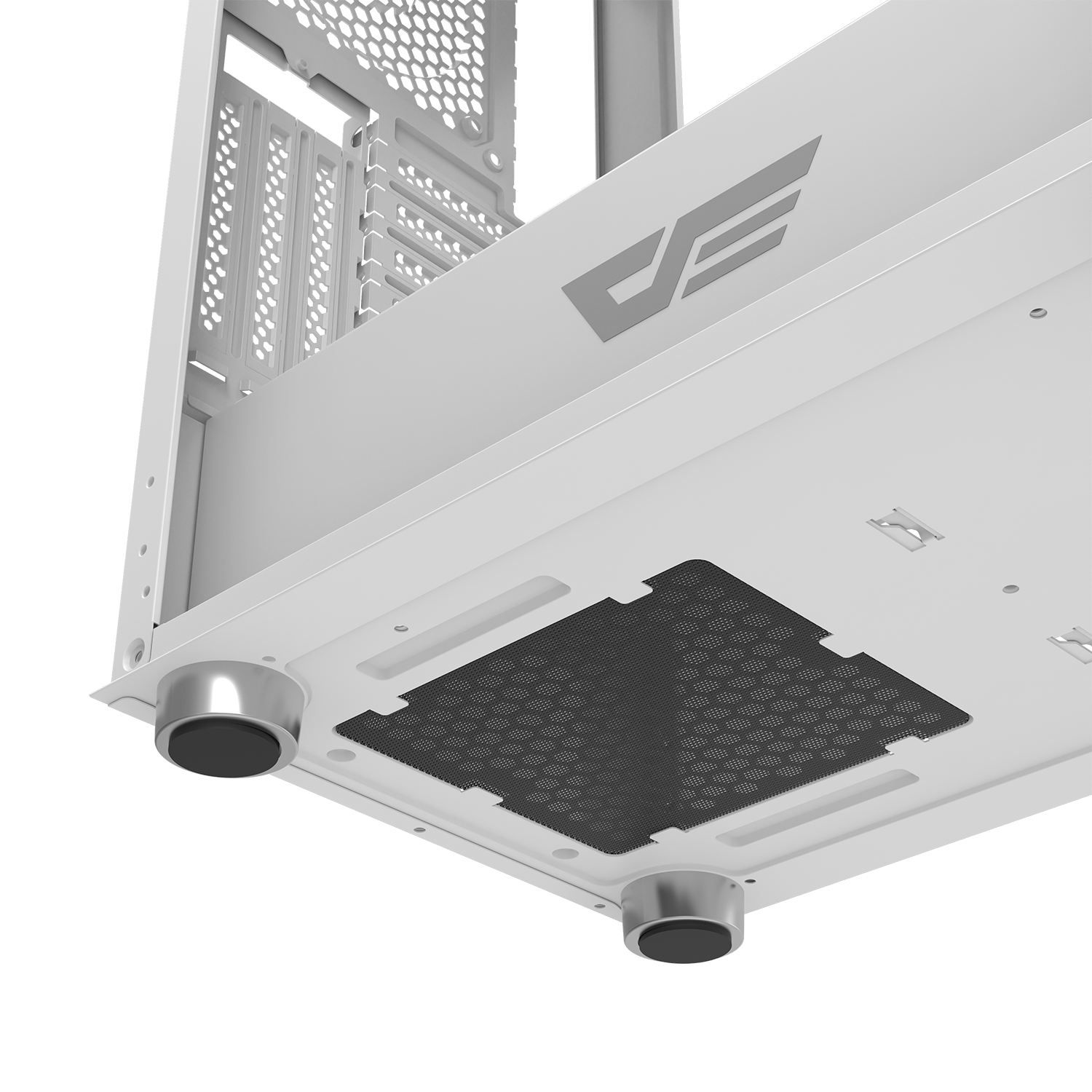

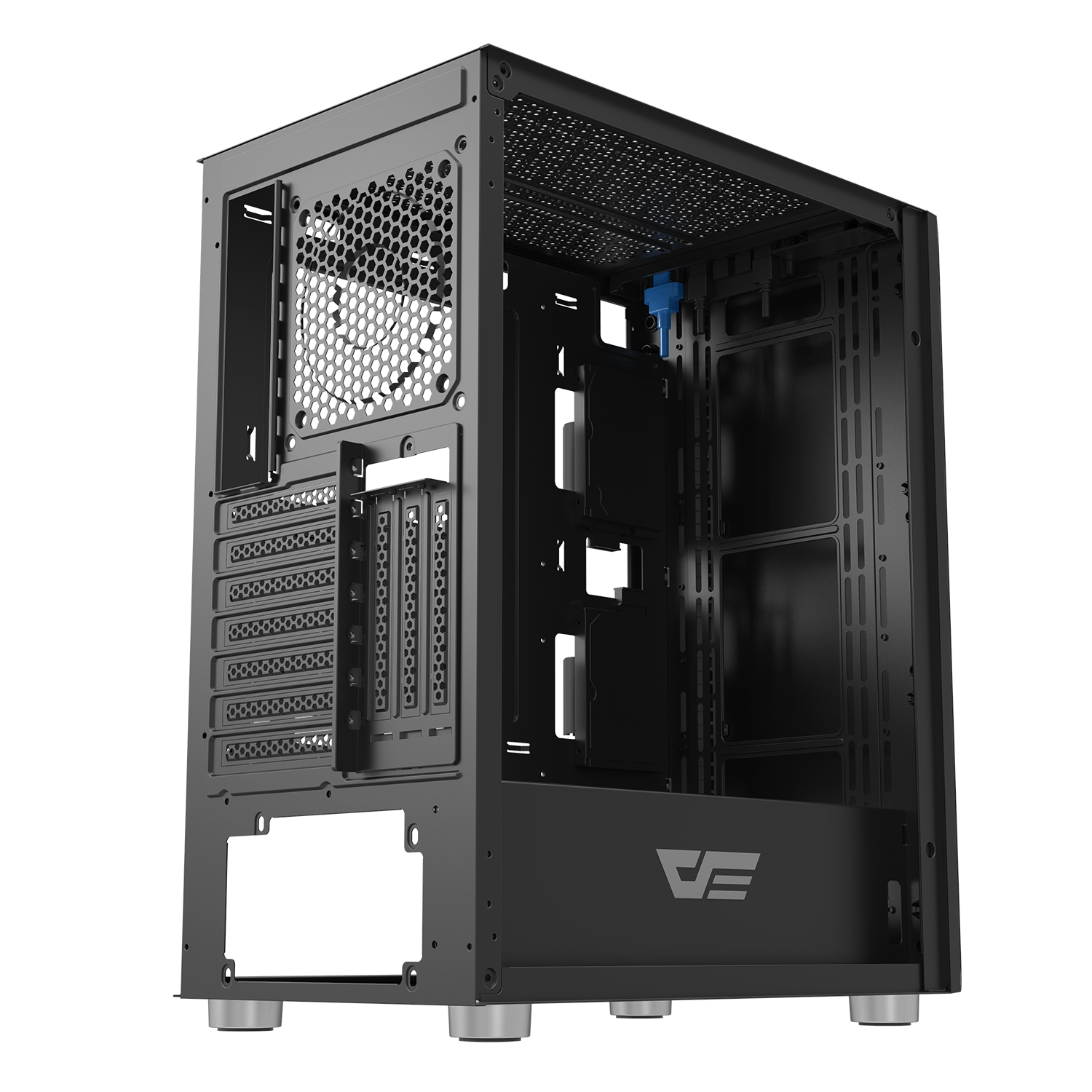

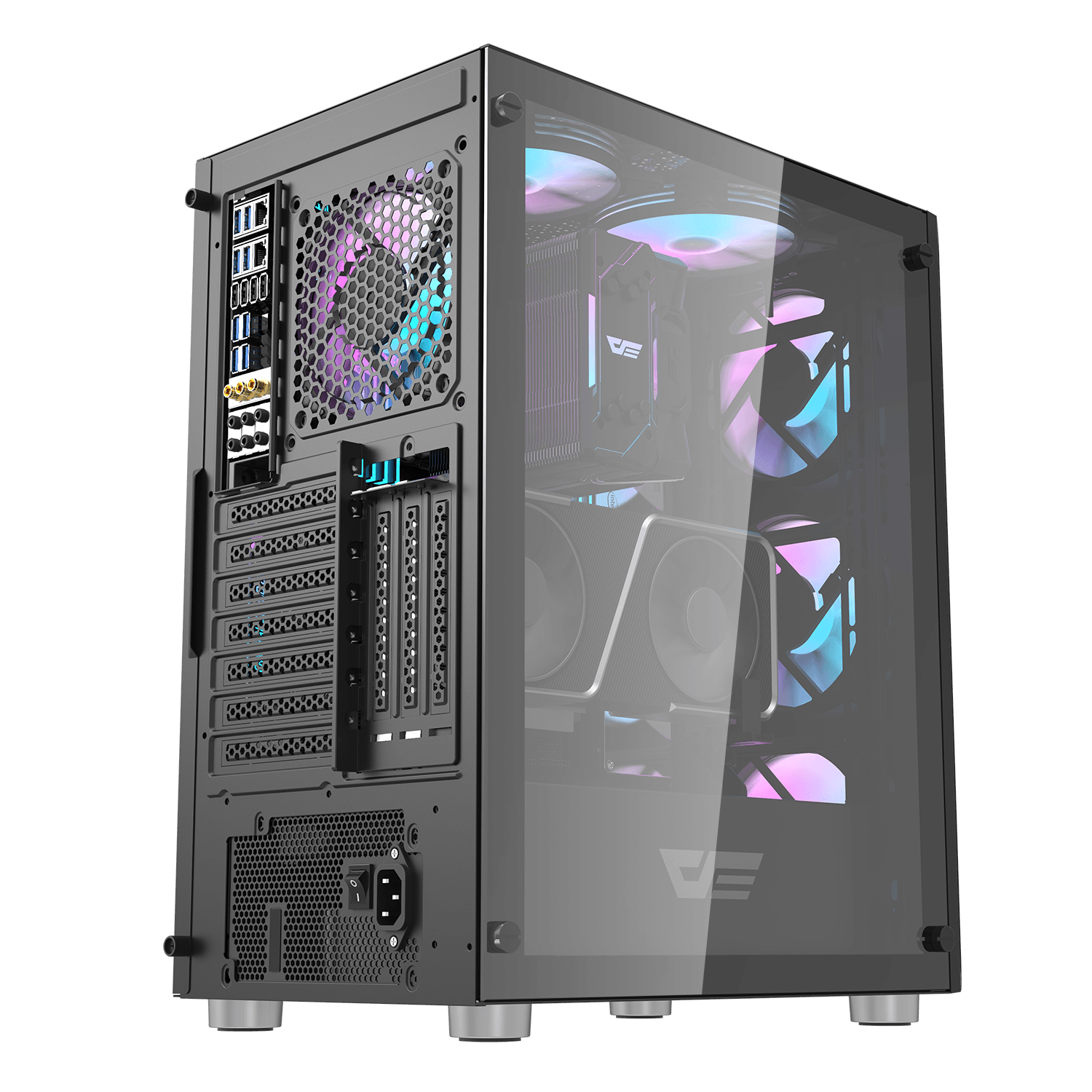

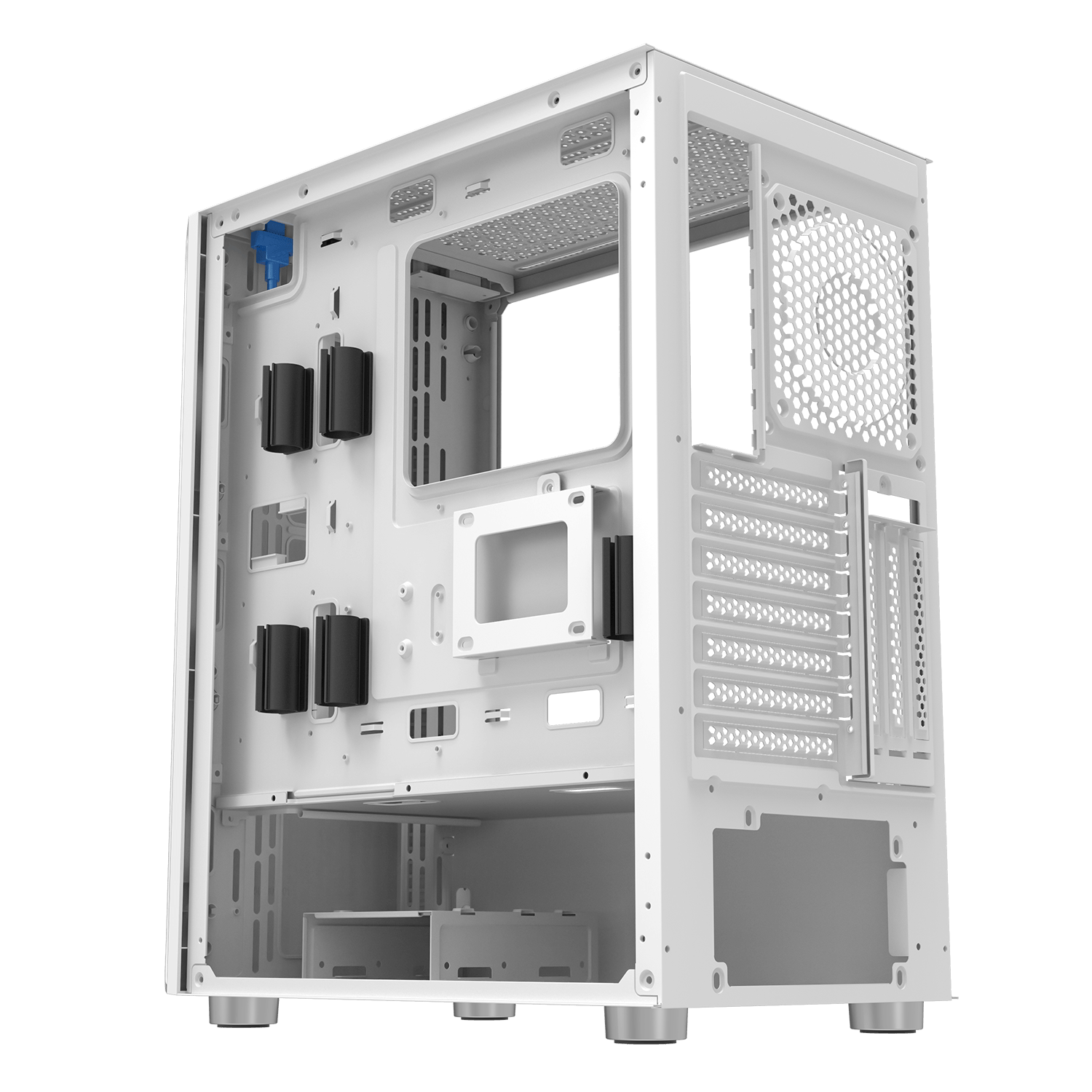

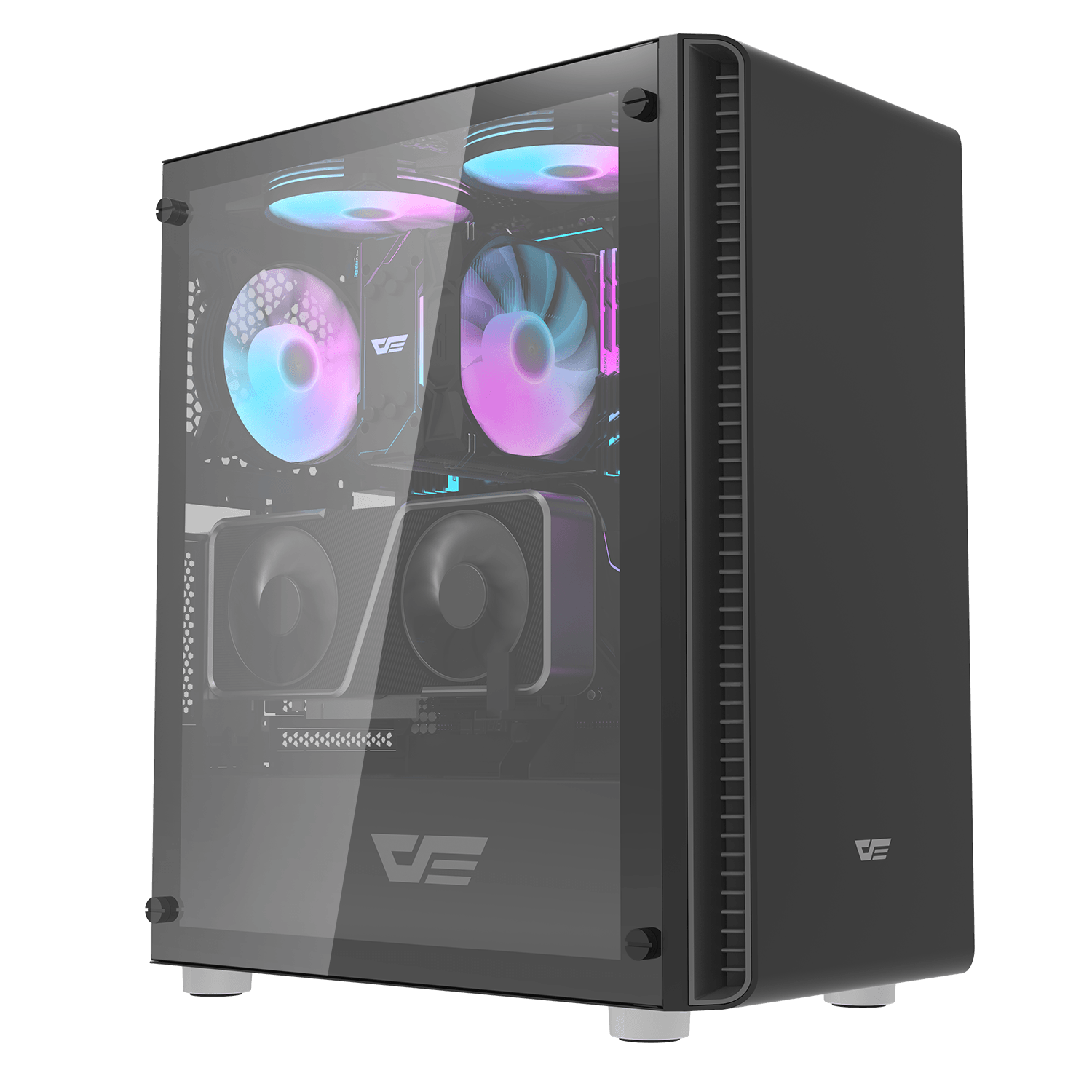

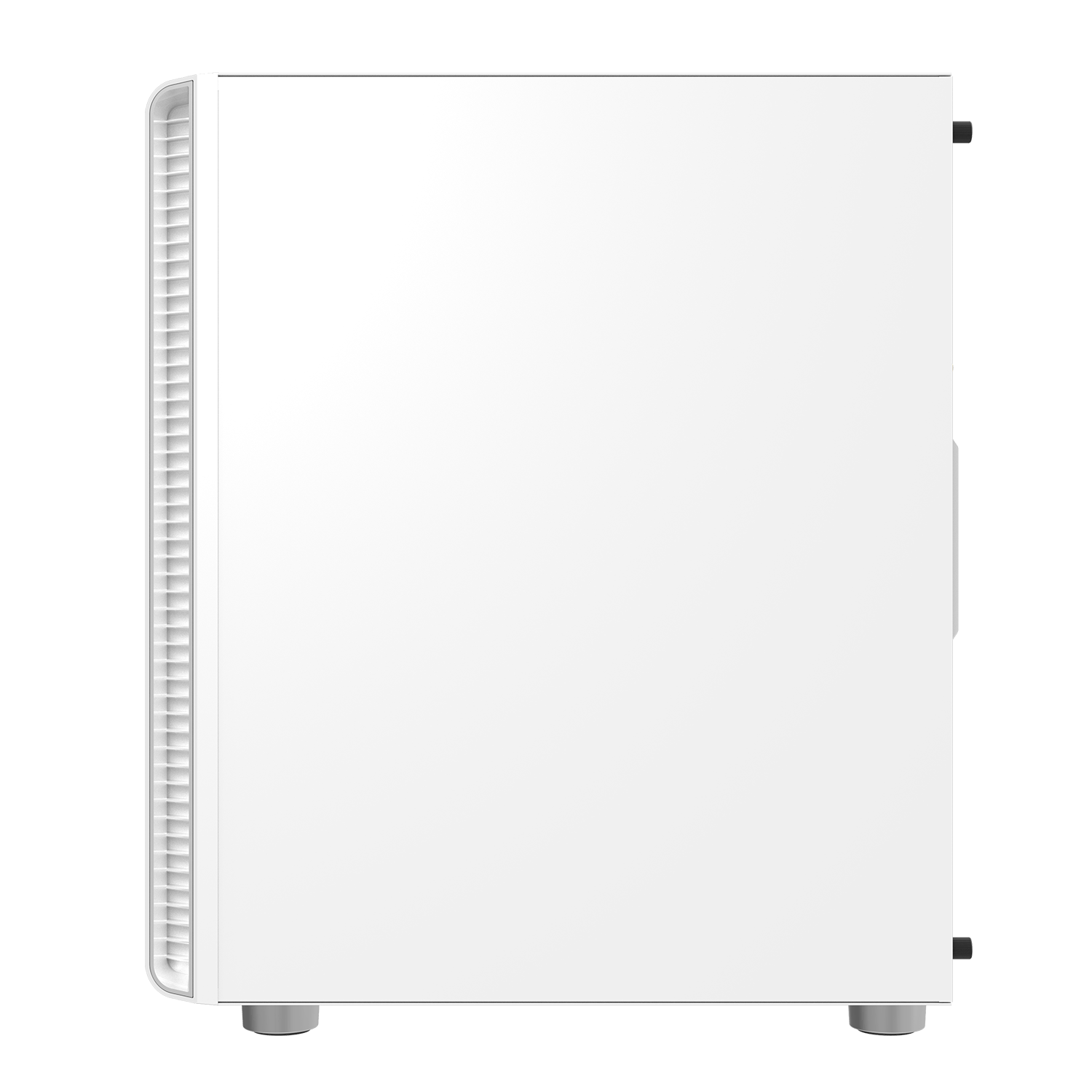

Product Galleries
