DLM 22

LUXURY M-ATX

Pink
Door Opening of Tempered Glass.

darkFlash

DLM22 M-ATX Pink

Gaming PC Case

Add some pink color in your daily life! The minimalist design of darkFlash DLM22 M-ATX Pink is recommended to those who are looking for PC cases with good space utilization, thermal solution and a good product design.



Tempered glass side panel with magnetic design for a clean looking exterior with full interior visibility. Feel free to tool for your PC build.



The mechanical hard disk and the power supply are placed at the bottom for a cleaner looking interior free of airflow obstructions.



Especially, the air inlet and outlet designs of the right panel and the top panel create an unobstructed airflow path. With 6 case fans allow for extensive air cooling to achieve excellent thermal solution.

DOOR
OPENING
DESIGN

Door opening side panel with magnetic design,
it is easy to disassemble and tool free.

Door Opening

Design

MINIMALIST
DESIGN

The full steel design is to display the charm of simplicity, in which classic sense can be felt by users.

Minimalist

Design

EXCELLENT
LIGHT EFFECT

The black side glass shows the light effect in a
low profile way. Meanwhile, the overall
tempered glass design makes the inner view
of the chassis broad.

HIGH-QUALITY
STRUCTURE

0.6mm SPCC is painted to form the metal structure with impressive beauty.

Air Inlet
Design

FINE VENTILATION
PERFORMANCE

The air inlet design of right panel,not only have a good-looking appearance but also cool effectly.

MECHANICAL
HARD DISK
AT THE BOTTOM

The bottom placement make the

best  use of the space.

UPDATE
AVAILABLE

User-friendly design is adopted to make it
availble to update or expand in PC bulid.

THERMAL
SOLUTION

Thermal solution is achieved by excellent internal
cooling channel and up to 6 fans can
be installed in it.

USB 3.0 READY

The high speed transmission efficiency of
USB3.0 is equipped at top,which brings
about much convenience.

USB 3.0

​Ready

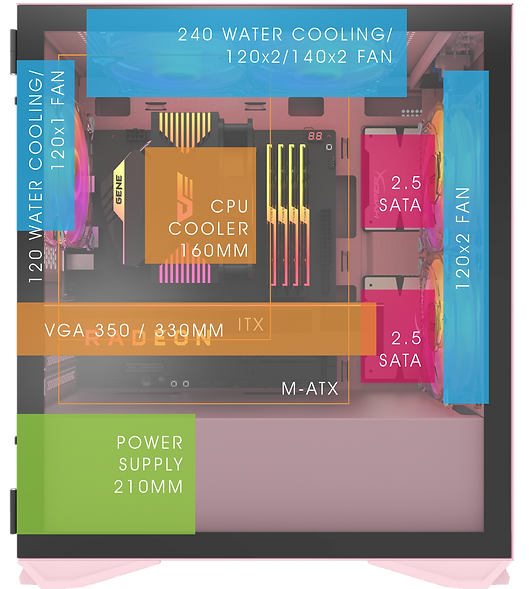

SPECIFICATIONS

Case Size :
Packing Size :


Material: Chassis :
N.W :
G.W :
Motherboard :
HDD / SSD :
Expansion Slots :
Max. VGA card :
Max. CPU Cooler :
Power Supply :

Cooling System

Front :



Rear :

Top :

FRONT I/O :



Front panel :

Left panel :

360*208*425mm
477*292*448mm


0.6mm SPCC
4.8KG
5.7KG
M-ATX, ITX
2 or 1 / 2 or 3
4
350 / 330mm
160mm
210mm, Bottom



120mm fan*2



120water-cooling / 120mm fan*1



240water-cooling / 120mm fan*2 / 140mm fan*2



USB 3.0 (x1) / USB 2.0(x2) /

HD AUDIO



Metal

Tempered glass
